Product Overview

Description









Product Name







CD-2008IIFull Automatic Wet Tissue Making Machine,


                Travel Baby Wet Wipe Machine, 5-30pcs/pack wet wipe production line















Product Description










1. Main technical parameter of making machine






































































































































ModelCD-2008II
Folding Machine
Suitable materialSpunlace non-waven fabric
Electrical source380V 50HZ
Total power25 KW
Material40gsm-60gsm
Raw material size(320-440) * 1200mm (W*Dia)
Production size ( Unfolded)(160-220)*(160-220)mm ( L*W)
Production size ( folded)(85-110)*(65-75)mm (L*W)
Design speed1000pcs/min
Stable production speed800 pcs/ min
Raw material ( Non woven)Web guiding system
Folding way“Z” or Double“ Z” fold and then V fold
Humidification agitationDouble agitating drums with agitator
Auto Rejection UnitYes
Counting wayAuto counting system, the quantity per pile can be changed.

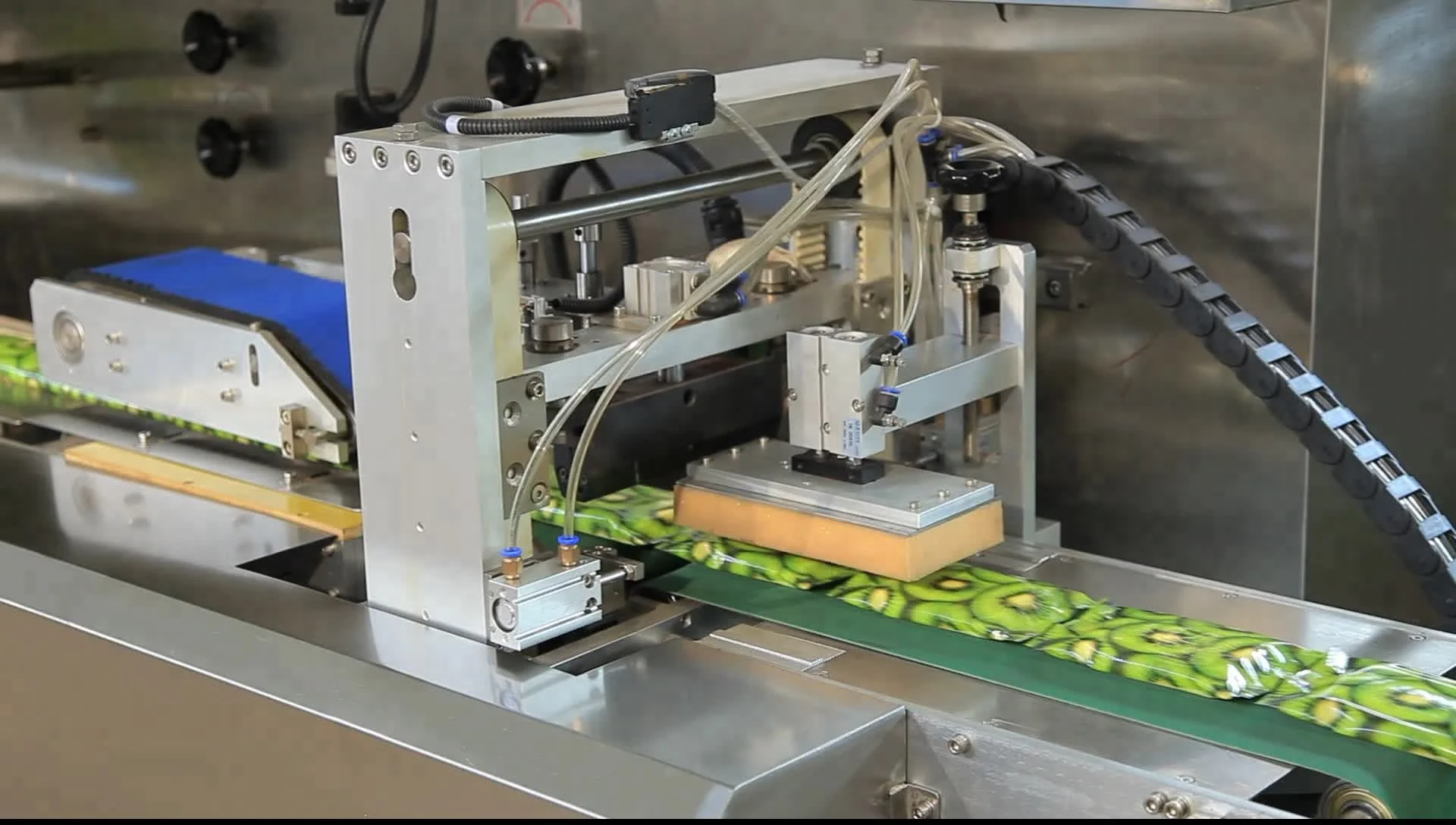

Packing Machine
Suitable packing size5-30pcs per bag packing
Finished production size(140-180)*(70-90)*(10-50)mm  L*W*H
Design speed of packing machine80bags/min
Steady speed70-80bags/min for 10pcs/bag, 35-40bags/min for 20pcs/bag
Packing materialPE&PET, OPP&PE
Water tank size2000*1100*1900mm ( L*W*H)
Other functions of packing machineAuto punching system, with insert corner, Euro hole system
Control systemPLC, touch screen
Machine size11000*1200*2000 mm (L*W*H)
Machine weight8000 kg
Efficiency Rate>=95%
Reject Rate<=2%







 2. Machine Introduction





 CD2008II full automatic wet wipe machine is easy and function is very steady. The parts touching with liquid are all made by 304 stainless steel with beautiful outline.


 All the processes are finished on the machine. Single line and double line production is optional.

  Production speed is high and sanitary. production is sanitary,and speed is high.





 3. Work Flow

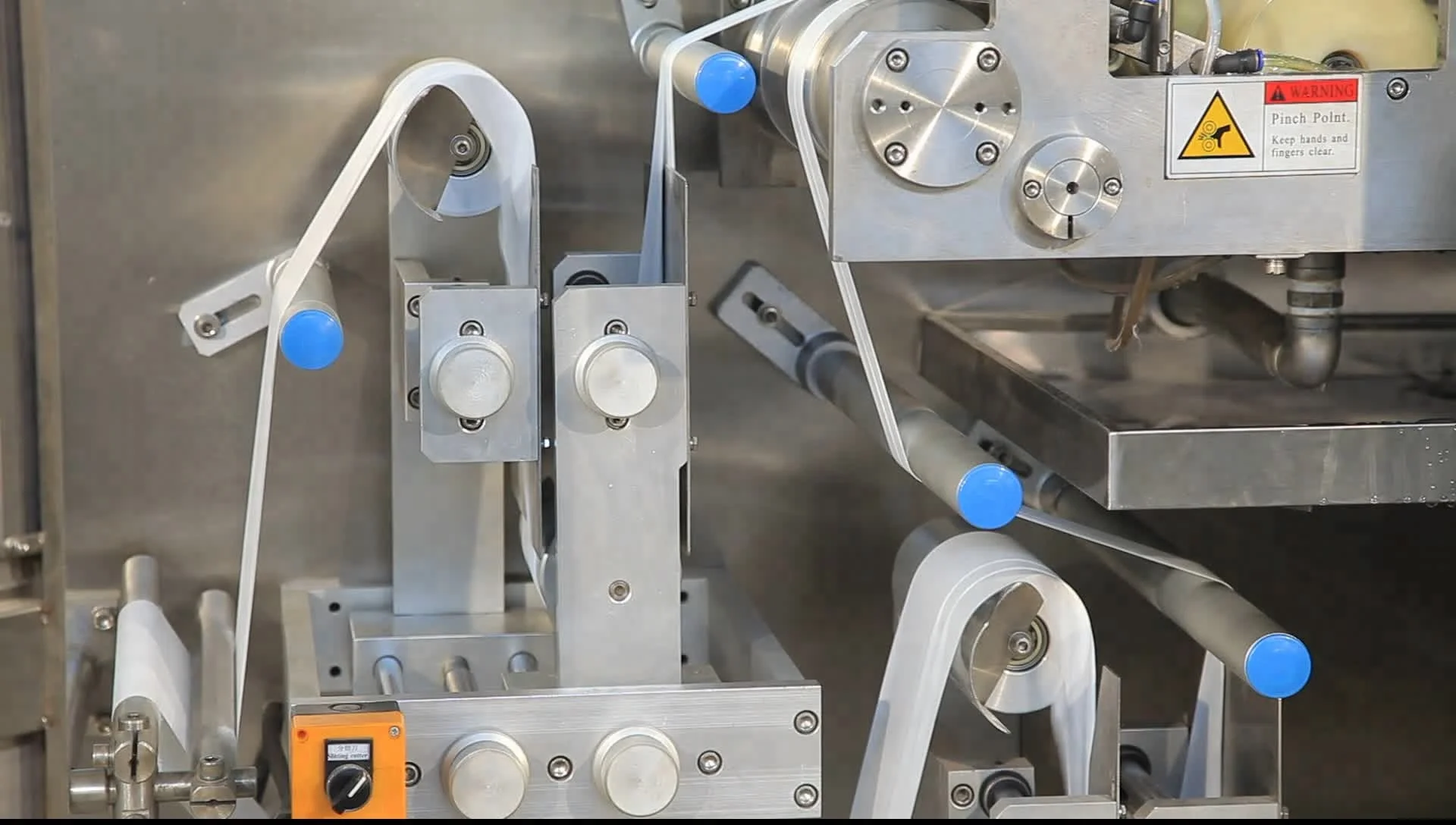

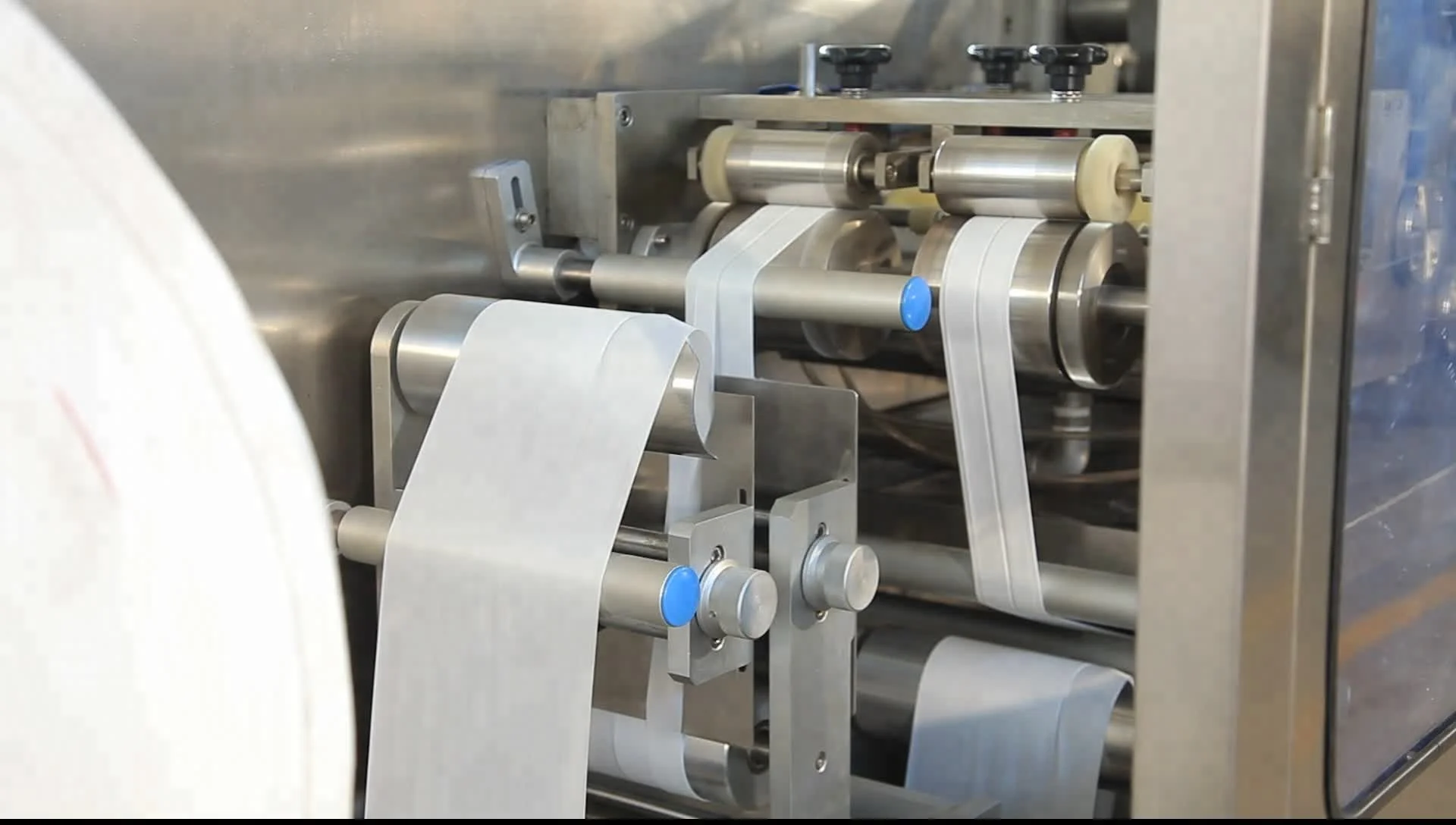

Raw material pneumatic unwinding → tension control →web guiding → folding → wetting → cutting in size →pieces piling  and counting by rotary wheel style → stacking → Piles doubling conveyor unit → transfer wipe to packing machine → packing → output

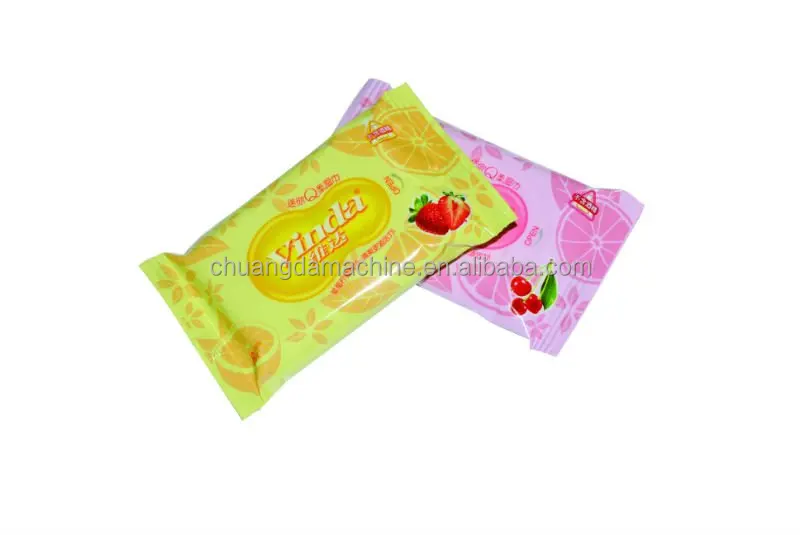

Finished Product







   5-2010





 20






Certifications


   CERTIFICATE

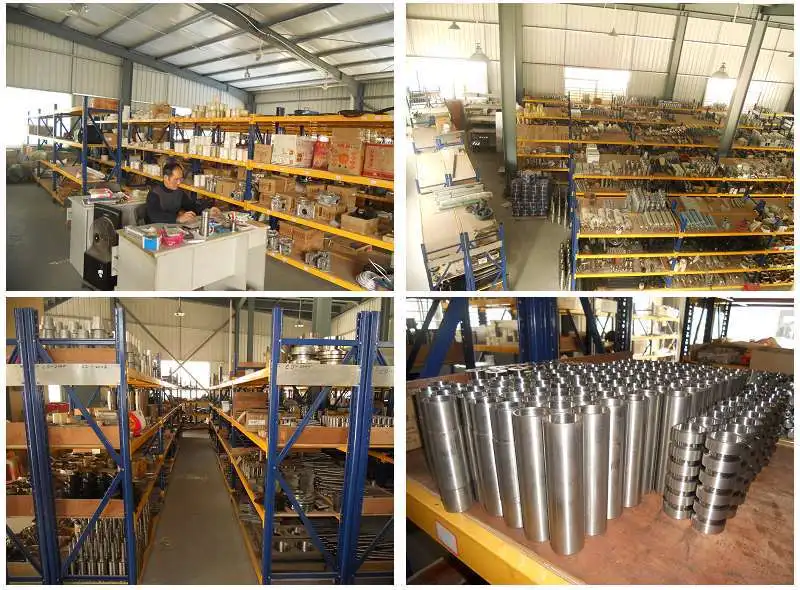

Factory Showing







-1

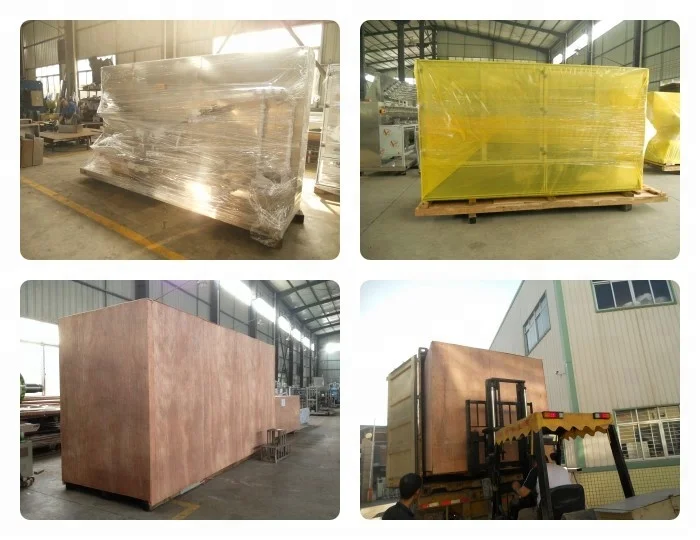

Packaging & Shipping











Company Information







Our machines can produce:


 Wet tissue, Baby wet wipe, Travel-use wet wipe, Freshness wet wipe, Make-up remove wipe, Medical use wipe, Disinfectant wet strength paper wipe, Cleansing wipe, Glasses lens cleaning towel, , Lens Wipes, Computer Cleaning Wet Tissue, Wet Tissue Used in hotel, Wet tissue Used for Catering in Airplane, Hand Wipes, Phone Wipes, Optical Lens Wipes, 3D Glasses Wipes, Screen Wipes, Leather cleansing wipes.








Our clients cover a variety of industries including Personal Care & Hygiene, Office Cleaning, Kitchen Cleansing, Restaurants & Catering, Industrial Cleaning, Travel & Convenience and Promotion and range from small businesses to multi-national retail outlets.








Thanks for your interest and welcome inquiry~
