Trade Assurance Cnc Plasma Cutting Machine Crossbow Esab Cnc Plasma Cutter

Product Overview

Description

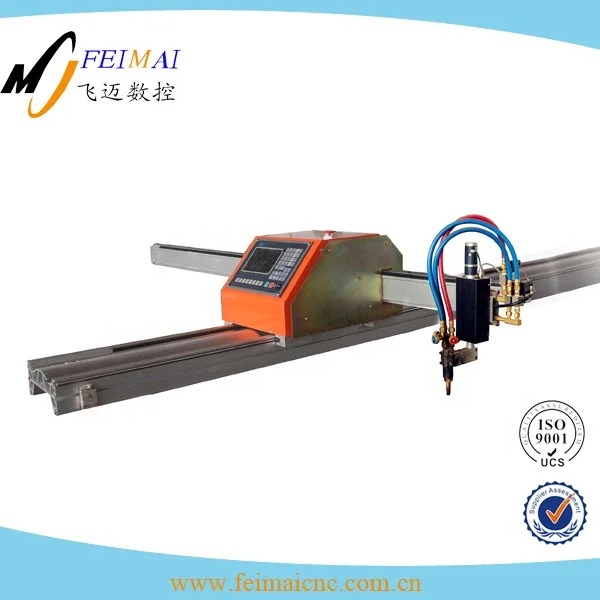

FTrade Assurance Cnc Plasma Cutting Machine Crossbow Esab Cnc Plasma Cutter                          portable cnc cutting machine for plasma

1. Adopt Startshaphon control system, it can cut arbitrary complex planar shape, high efficiency, low cost.

2. The nesting software can read Auto CAD format file directly and turn into cutting program.It has humanized human machine interface and powerful automatic programming system.

3.With SF25g torch height controller the plasma torch could adjust height automatically.

4. This machine has special features of compact structure, beautiful style, light weight and convenient movement. It can cut by manual control, and also can cut automatically with stable movement and high cutting accuracy.

5. The machine adopts telescopic boom type structure, X, Y axis both adopt aviation aluminum alloy material, high accuracy, no deformation and good appearance.

6. Standard model:  A,1525: 1500*2500mm;  B,1530: 1500*3000mm

   Optional size: 1500*4000/6000/8000/10000/12000mm

7.Application:Iron sheet, carbon steel, galvanized sheet, stainless sheet, Titanium plate and Aluminum plate, etc. Widely used in shipbuilding, duct, stoves, automobile, agricultural machinery, plate cutting, pressure vessel, tower, railway and aviation industries.



Product parameters

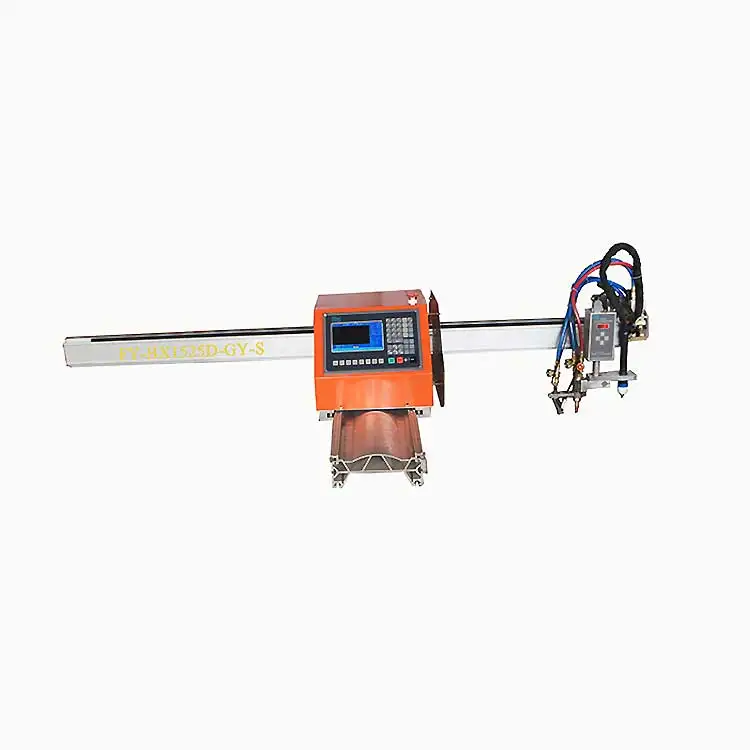

MODEL	FY-BX1530D
BASIC INFORMATION	Cutting method	Plasma	Flame
	Machine size	3550*2100mm
	Cutting material	All metal sheet	Mild/High Carbon steel
	Cutting size	1500*3000mm
	Cutting thickness	According to Plasma source	6-120mm
	Lifting travel	≤130mm
	Max travel speed	6000mm/min
	Running accuracy	≤0.05mm
CONFIGURATION LIST	CNC controller	Startshaphon (Optional: FangLing)
	Auto Height control	Starfire SF-25G	Lifter
	Motor drive mode	Stepper motor
	Drive system	Single drive
	Reducer	Direct drive
	Transmission method	Rack and pinion drive
	Linear guide	Linear axis
	X,Y Axis beam	Heavy duty aviation aluminum-alloy
EXTERNAL SUPPLY	Power	220V/ 380V(optional)
	Cutting gas	Compressed air	Oxygen + Ethyne(Propane)
	Gas pressure	0.4-0.7MPa	Oxygen:0.5MPa Fuel gas:0.1MPa
SOFTWARE	Graphic import method	USB
	Programming software	AutoCAD(all dxf,dwg,CAM,NC files)
	Nesting software	FastCAM

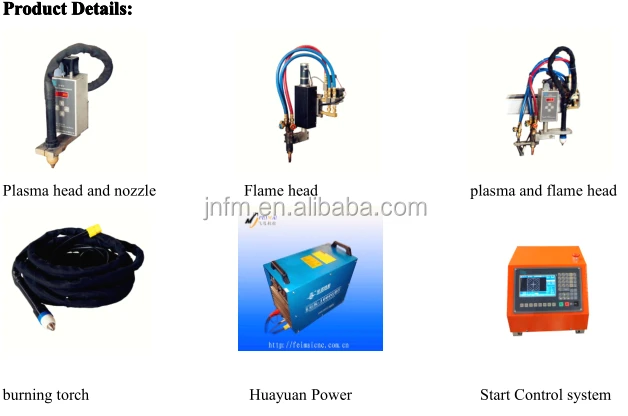

ACCESSORIES	Torch	One set of Plasma torch	One set of Flame torch
	Consumables	10 sets of nozzles	3 Flame nozzles
PACKING INFORMATION	Dimension	3620*330*300mm 560*480*450mm Plasma source :to be confirmed
	Weight	160Kg+Plasma source



Q1: I knew nothing about this machine, what kind of machine I should choose?

Very easy to choose. Just tell us what you want to do by using CNC plasma machine, then let us give you perfect solutions and suggestions.



Q2: When I got this machine, but I don’t know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail.



Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.



Q4: Before sending me an inquiry on our plasma, it is better for you to provide me the following information

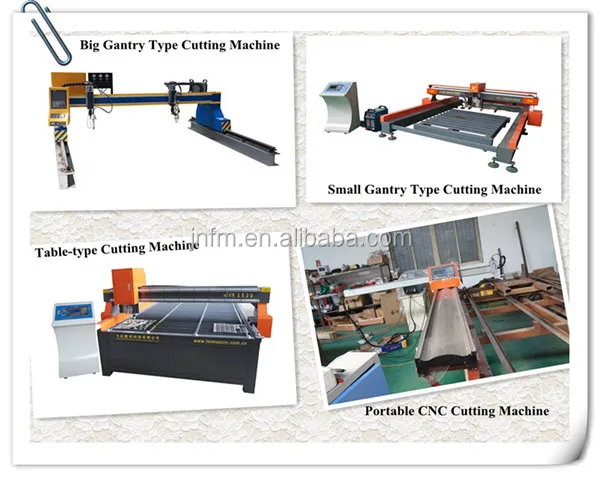

1)Your cutting size. Because in our factory, we have different models according to working area.

2)Your materials: Carbon steel, stainless steel , aluminum, or other materails

3) what’s your cutting thickness?

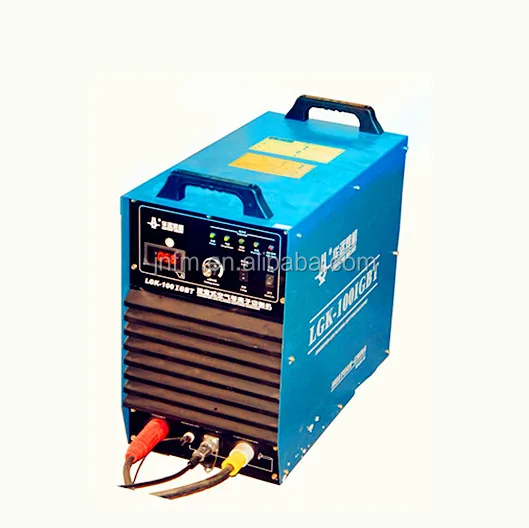

We will recommend suitable power source to you according to your cutting thickness



Q4: Our Service:

1) 24 Hours online service. my whatsapp: 15165193115

2) 12 months warranty for the whole machine except for wearing parts.

3) Engineers available to service machinery overseas.
