electrical press machine light duty hydraulic press machine

Product Overview

Description

electrical press machine light duty hydraulic press machine



Main features:

1.    Optimally designed steel-frame structure, is sturdy and durable

2.    Single piston double-acting hydraulic oil cylinder, is durable

3.    Up stroke and down stroke of cylinder rod controlled by manual, is convenient and flexible

4.    Oil cylinder moves left and right, pressure head works at multiple points

5.    Beam of work platform moves lifting device from up to down, is convenient and easy

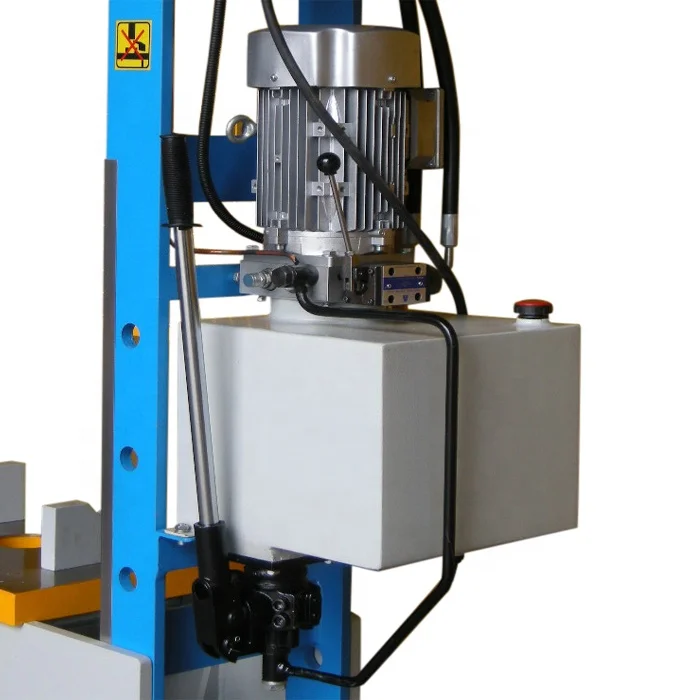

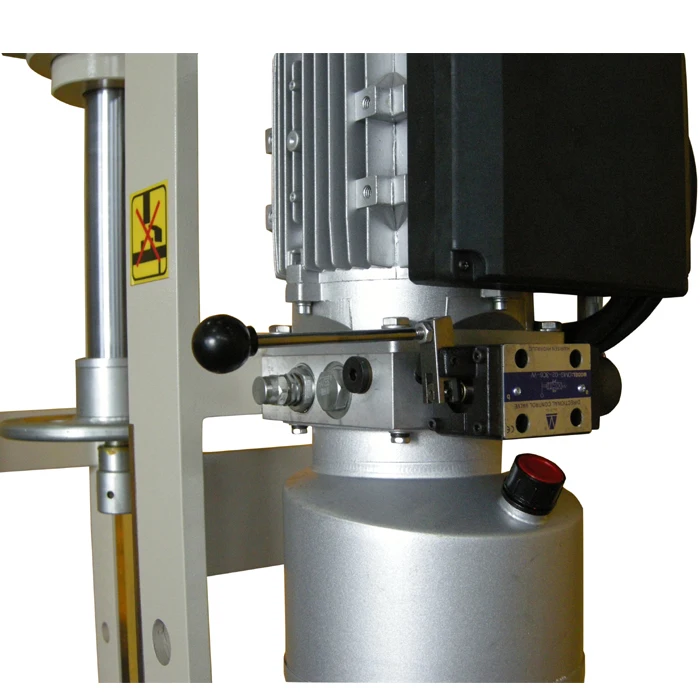

6.    Electric pump, manual compensation, easy to operate Piston rod chromium plating laye 3μm

7.    Sealing element grade B



specification:



Model	Max.pressure (KN)	Hydraulic pressure (Mpa) Electric/Manual	Stroke of cylinder rod(mm)	Working speed(mm/s)	Adjustment distance of woektable (mm×n)	Motor power(kw)	Net weight (kg)
JMDYy50/50	490	20/25.5	250	3/h4	150×4	2.2	506
JMDYy60/25	588	20/26	250	2.6/h3.6	150×5	2.2	560
JMDYy100/30	980	20/25.5	300	2.5/h3.5	150×5	3	1150
JMDYy160/30	1568	20/25.5	300	2.4/h3.6	150×5	4	1790
JMDYy200/30	1960	20/24.5	300	1.8/h2.7	150×5	4	2750

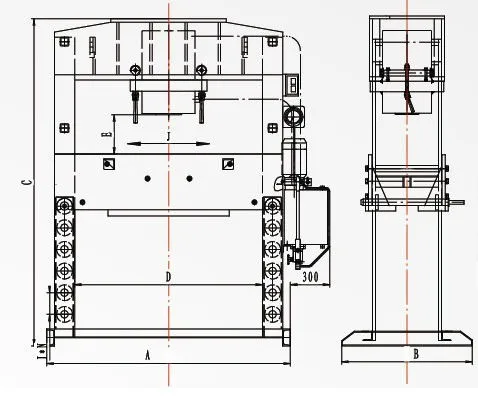

A	B	C	D	E	J
1026	700	1805	700	304	335
1076	700	1863	750	368	360
1480	790	2120	1100	185	640
1476	870	2200	1100	297	580
1686	900	2270	1300	273	730



Standard equipments:

1.    15-60 Ton frame structure

      100-300 Ton semi-closed slide plate

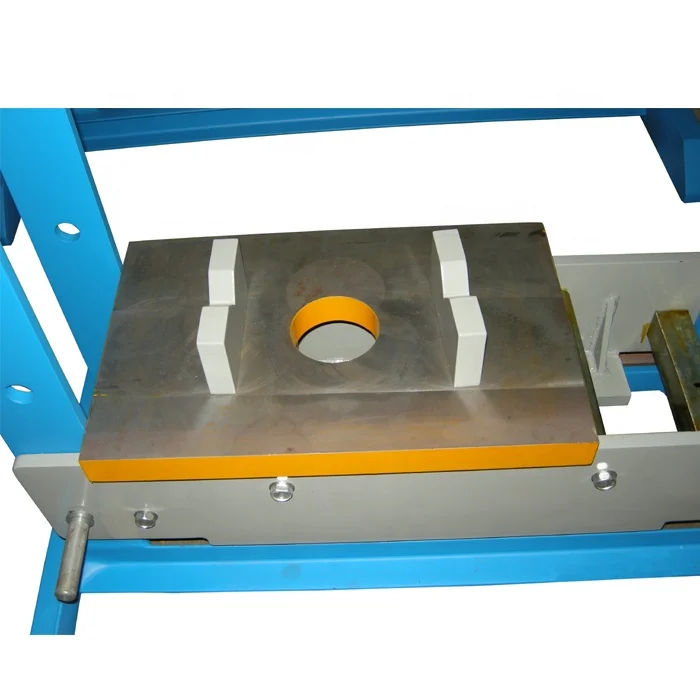

2.    V block

3.    Work table

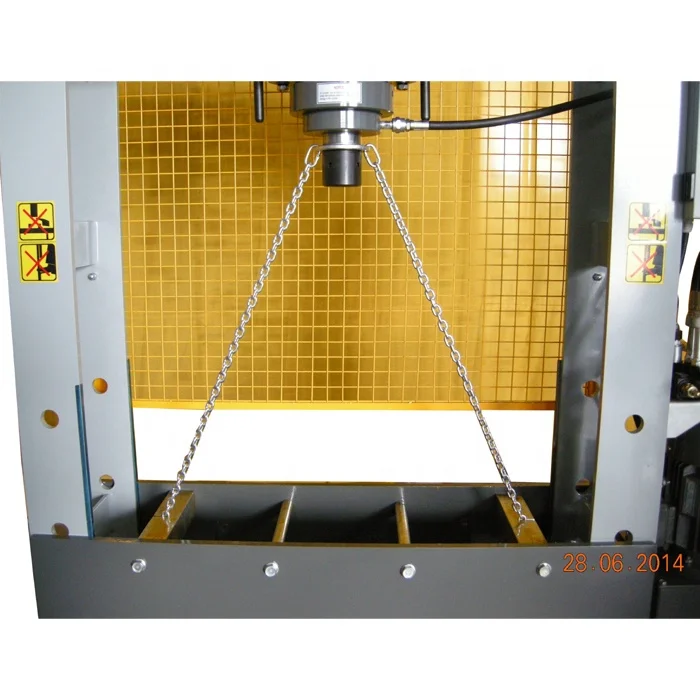

4.    Back protection cover

5.    Beam of work platform
