Low Voltage 400A LV Pole Mounted Fuse

400A rated fused cutout is one of our best selling products.

Application:

Designed with ease of use and simplicity in mind, this pole mountable used cutout is the ideal method of providing rural dwellings with a safe, protected and reliable low voltage power supply.

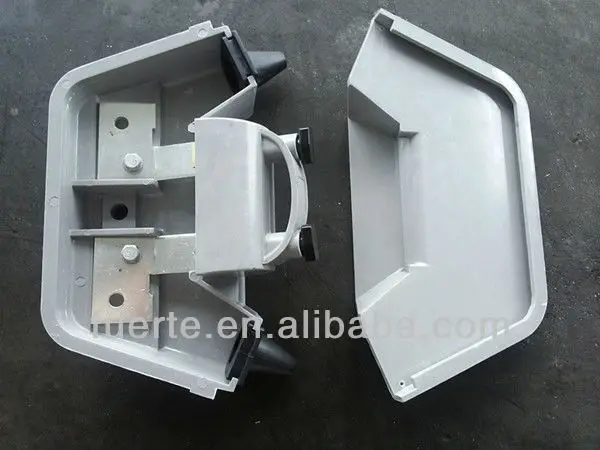

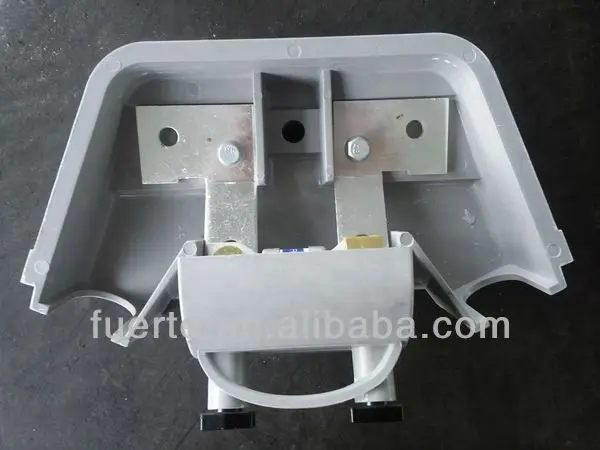

Each fused cut-out has fuse contacts and cable terminal plates which are manufactured from copper and bright tinned. These plates incorporated M12 captive studs with nuts and washers for the reception of cable sockets(lugs) up to 300 mm2(*compression type only at 300MM2) with coper or aluminium conductors.

For ease of mounting to either a wall or a wooden pole, the fused cutout is supplied with an M12 coach screw.
For cross-arm type mounting the fused cutout can be supplied with an M12 nut, bolt and washer.

Technical parameter:

Note:

Stepped washers recommended if lug palm has hole 16mm or greater.

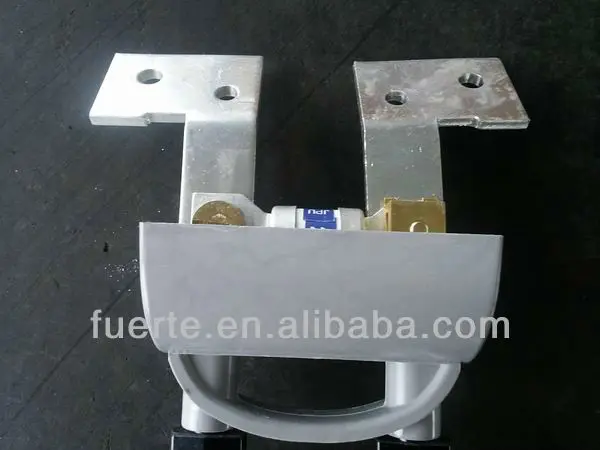

Fuse links

This fused cutout is designed to accommodate standard wedge type fuse link to BS88 Part 5:1988.

 Tested and approved for category of duty 415AC 80.

Fixing centre requirement is 82mm

Standard fuse link ratings range from 20 to 400A.
