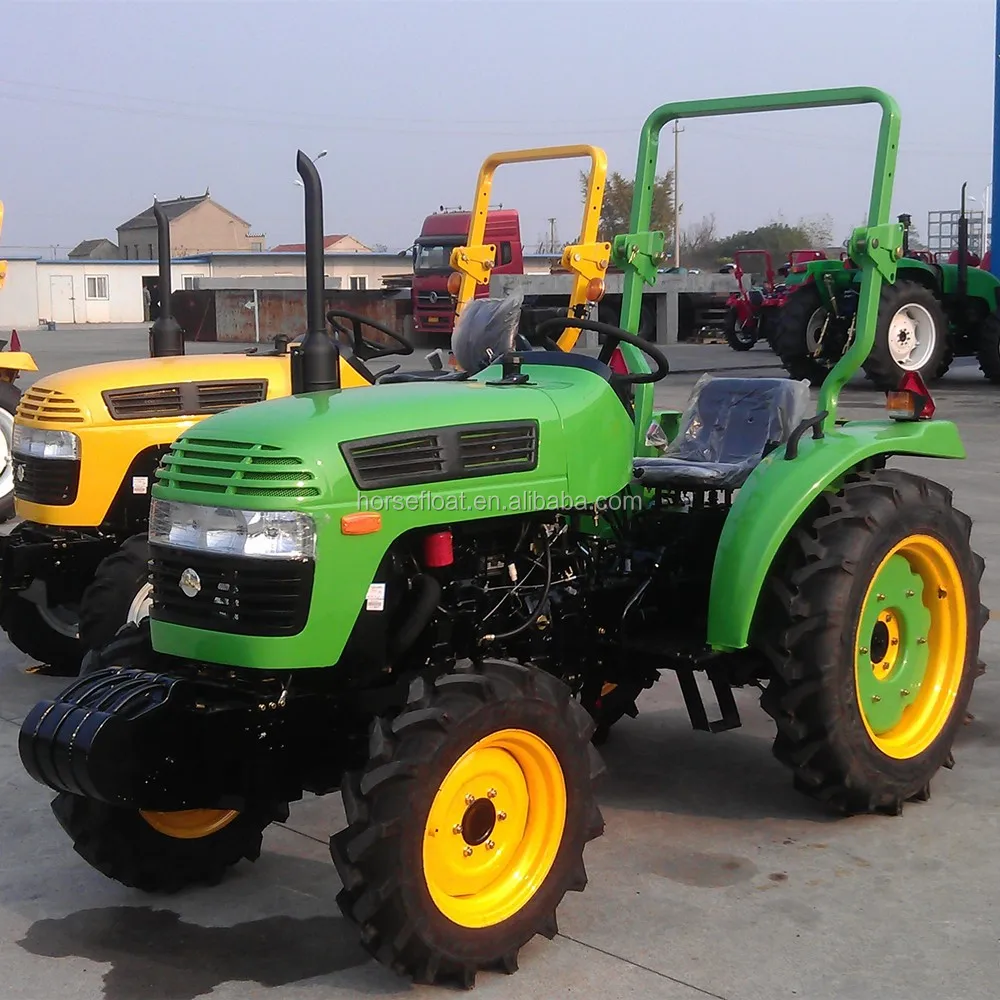

JM 204 jinma 20 hp tractor for sale at good price
- Category: >>>
- Supplier: Henan Lucky Machinery Co. Ltd.
Share on (60418314904):
Product Overview
Description
Jinma 20-35hp mini tractor mini for sale now at very good price. All the tractors are from Jinma factory with 12 months warranty.
20 hp 4wd Jinma tractor spec.
| Model | JM-204 | ||||
| Drive Type | 4WD | ||||
| Overall Dimensions (mm) | 3080x1280x1930 | ||||
| L*W*H(mm): | |||||
| Wheel Track(mm) | Front | 1000-1100 | |||
| Rear | 1040-1200 | ||||
| Wheel Base(mm) | 1645 | ||||
| Ground Clearance (mm) | 295 | ||||
| Rated Traction Force(N) | 4800 | ||||
| Construction Mass(kg) | 1120 | ||||
| Min.Turning Radius(m) | 2.5 | ||||
Theoretical Speed (Without creeper) ( km/h) | Forward | 1.68,3.31,5.52,7.75,15.30,25.50 | |||
| 0.31,0.62,1.03,1.45,2.85,4.76 | |||||
| Reverse | 1.33,6.15,0.25,1.15 | ||||
| Engine | Model | 380 | |||
| Type | 3-Cylinder Vertical, water cooled,4 stroke cycle | ||||
| Rated Power(kw/hp) | 14.7/20 | ||||
| Rated Speed (rpm) | 2400 | ||||
| Bore*Stroke(mm) | 80*90 | ||||
| Total Displacement(L) | 1.357 | ||||
| Drive System | Clutch | Dual-Stage | |||
| Gear Box | (3+1)*2 | ||||
| Main Drive | One Pair of Spiral Bevel Gearing | ||||
| Differential | Bevel Gear | ||||
| Differential Lock | Jaw Lock | ||||
| Final Transmission | External gearing, Spur Gear | ||||
| Traveling Mechanism | Tyre | Front | 6.00-12 | ||
| Rear | 8.3-24 | ||||
| Steering Gear | Full Hydraulic Steering | ||||
| Brake | Shoe type | ||||
| Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 3600 | ||
| 3-Point Suspension | Category:I | ||||
| P.T.O | Speed (rpm) | 540/1000 | |||
| Shaft | Spline Size | 35Rectangular 6 Spline | |||
| OPTIONS | ROLL BAR,CANOPY,CAB | ||||
Color: gree, red, blue, silver are optional
Packaging & Shipping
Iron frame or nude packing in container
L/T: 35days after order confimmation
Our Services
Payment terms: 30% TT down payment, 70% TT before delivery
Warranty: 12months
Departure port: Qingdao or Shanghai
FAQ
Why we only sell Jinma/YTO tractor?
1)Jinma/YTO tractor quality is good, it is reliable tractor
2)YTO company is with high reputation and good credit
3)We are partner of Jinma/YTO factory
What's the payment terms?
30% TT down payment, 70% TT before delivery.
Is it farm implements available?
Yes, it is available.
