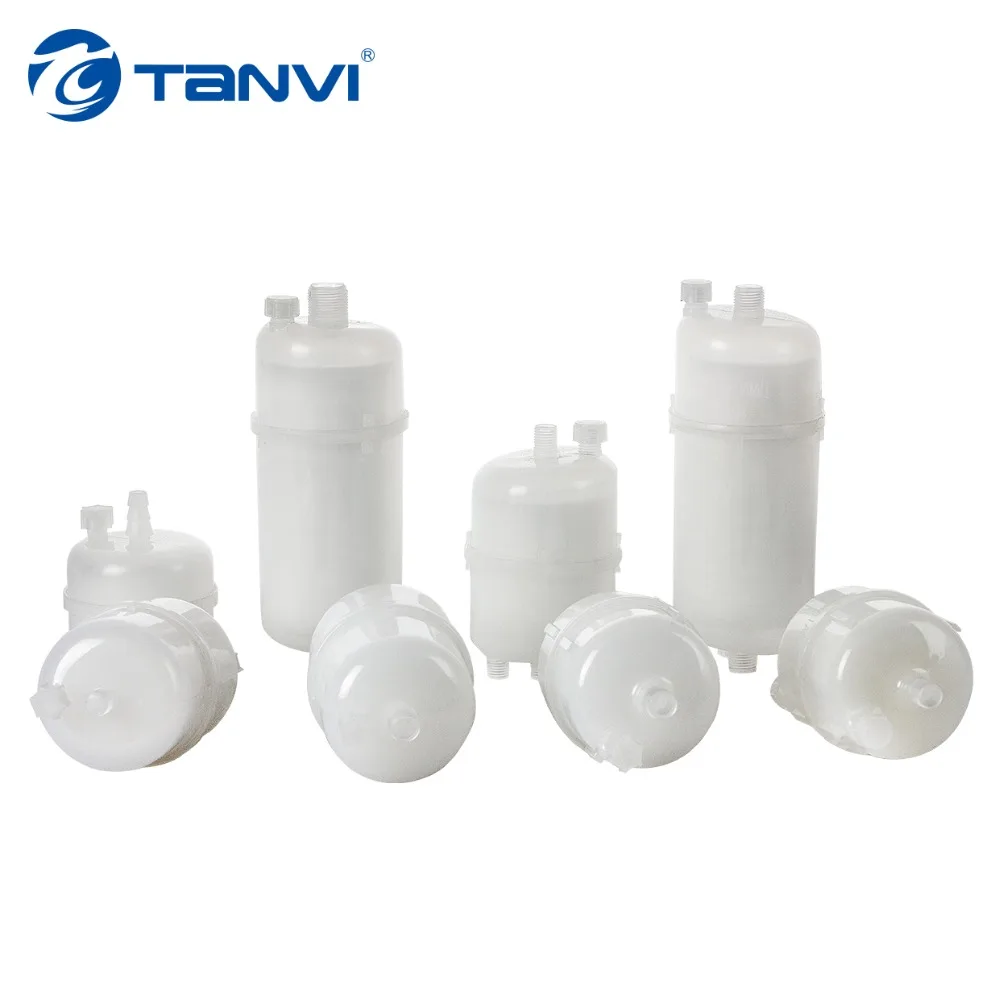

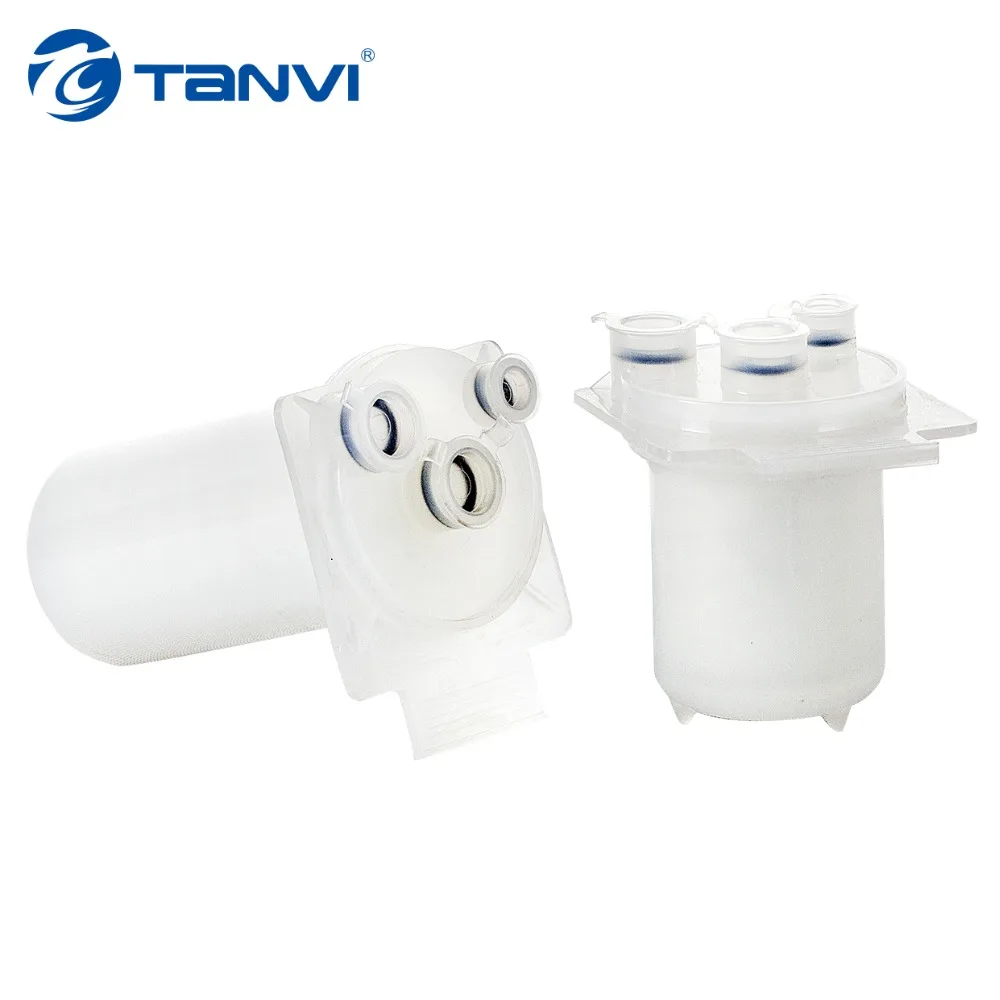

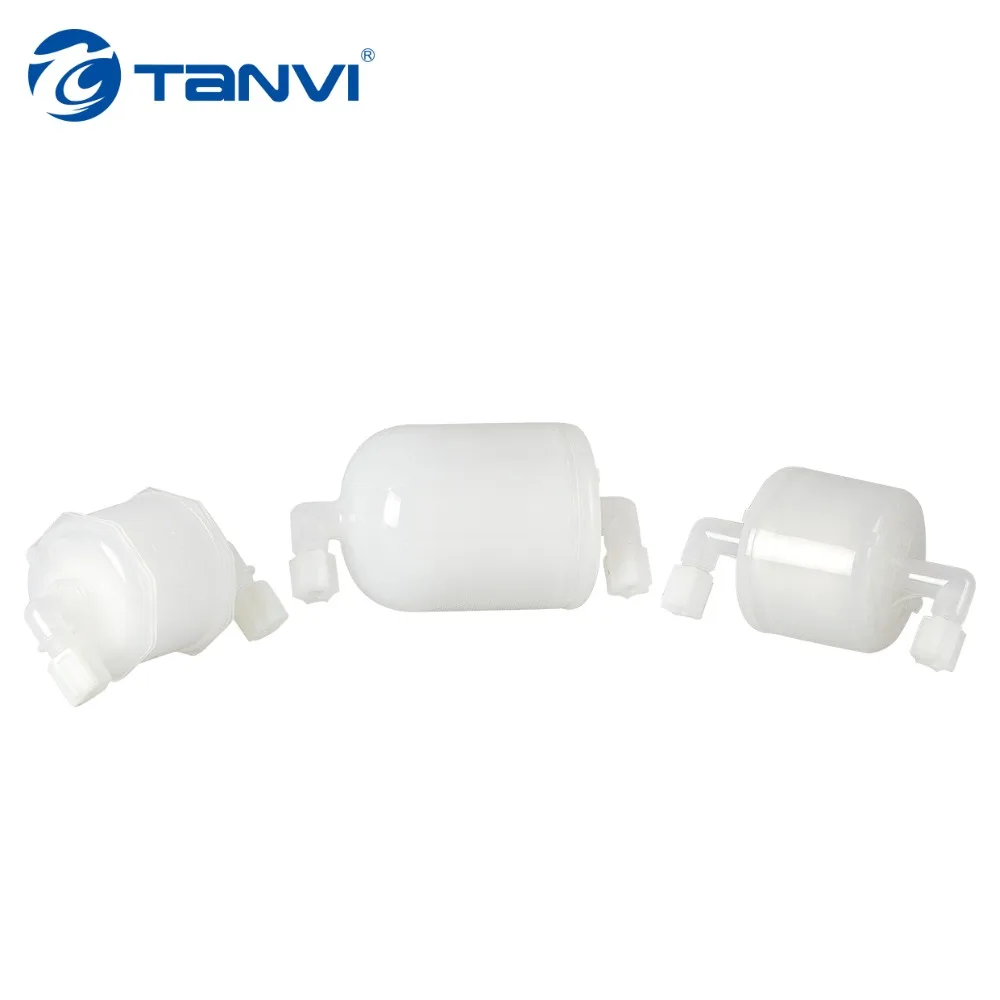

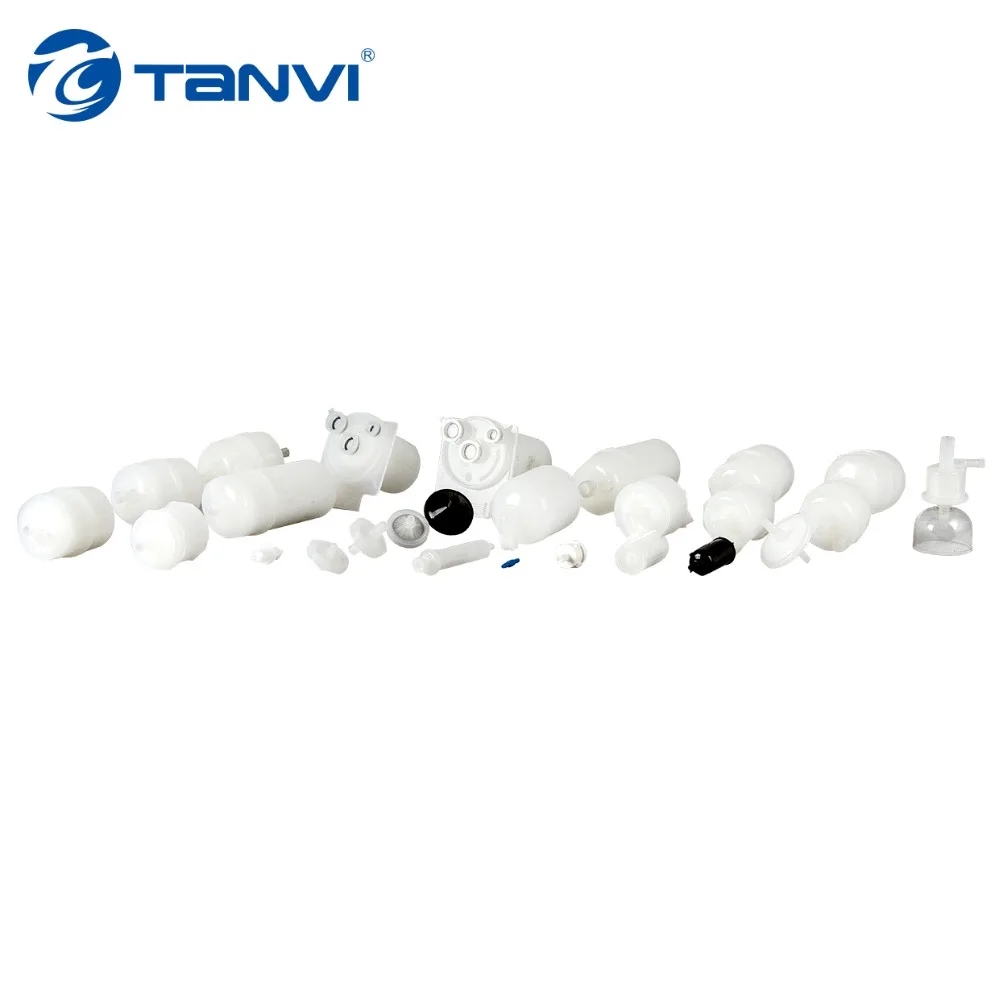

Print head High quality Solvent ink capsule filter

Share on (60418316053):


Price:$9.00 - $10.00

Quantity:


Product Overview

Description





Product Description









Capsule filters are also called disposable filters,very suitable for small flux fluid and gas filtration due to they small volume and filter area.Besides,capsule filters are suitable for precious medicines, Special chemicals which can’t contact with metal and air sterilization for small fermentation system.After many years passed, Capsule assemblies combine a full range of filter media, pore size ratings and surface areas to satisfy numerous applications.

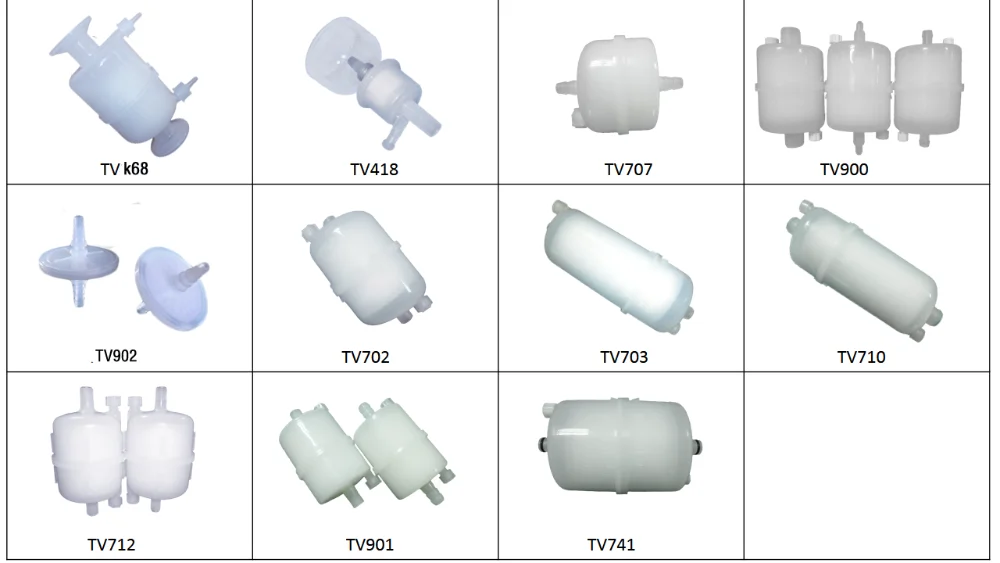

Ordering Guide




Specifications


























































































































Material of Construction


Filter membrane


PP,PES,PVDF,PTFE,N6,N66,CN-CA,GF


Diversion layer


PP


Housing


PP


Inner support


PP


Dimension


Length


2.5 ",5 ",10 " Other









Filtration Ratings


PP


0.10, 0.20, 0.45, 1.0, 3.0, 5.0, 10.0μm


PES


0.10, 0.20, 0.45, 0.65μm


PTFE


 0.10, 0.20, 0.45, 1.0μm


PVDF


 0.20, 0.45, 1.0μm


Nylon


 0.10, 0.20, 0.45, 0.65μm,1.0μm





Effective Filtration Area


2.5 "


≥0.12 m2


5 "


≥0.25 m2









Operation condition


PH Value


1~13


Normal working temperature


≤60℃


Max. Working temperature


85℃, Differential Pressure≤0.10Mpa


Max. Differential pressure


25℃,forward 0.42Mpa,reverse 0.21MPa













Connections(Inlet/Outlet)


1/8 "NPT


3/8 "NPT HB


1/4"NPT


1/2"Swagelok


1/8 "Swagelok


3/8 "Swagelok


1/4"Swagelok


1/2"Swagelok


9/16 "Conical hose


8-12.8Conical hose


1/4"-1/2" HB Conical hose


Φ50.5Quick Open Interface


Luer Lock


Others





Educt


Endotoxin


<0.25EU/ml


Extractive


<0.03g
