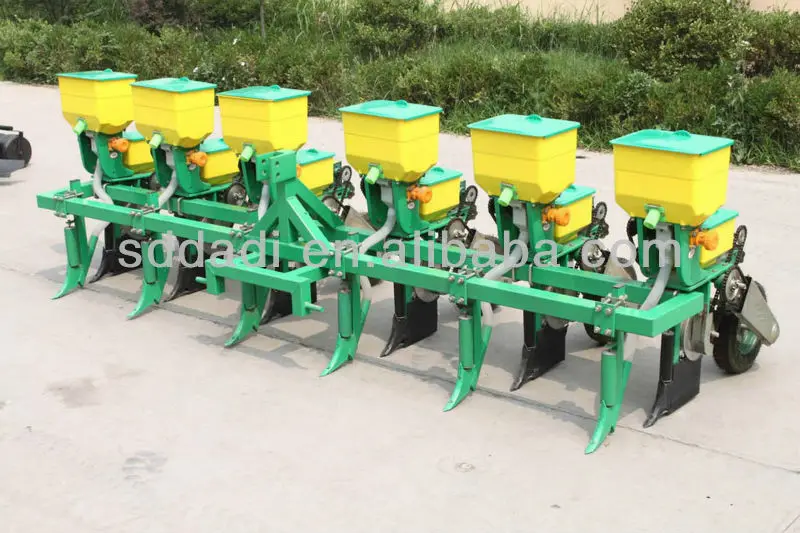

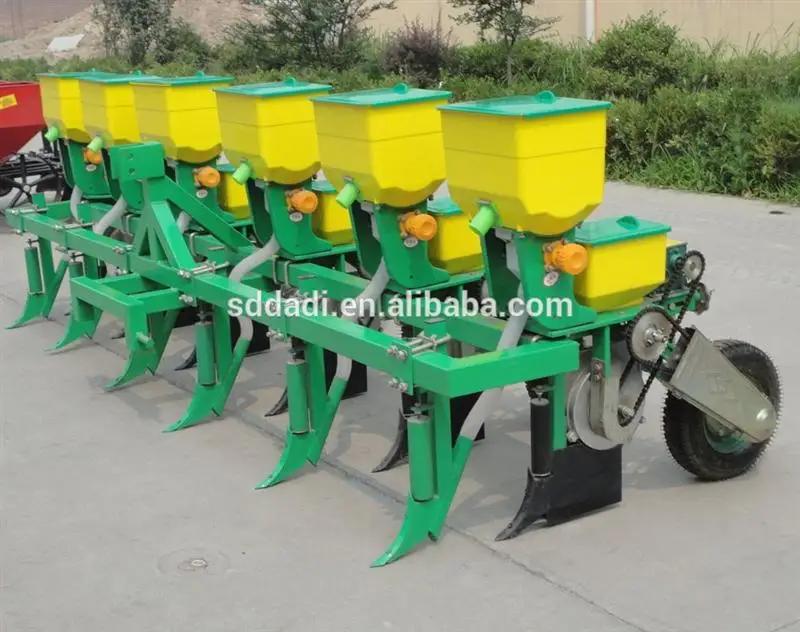

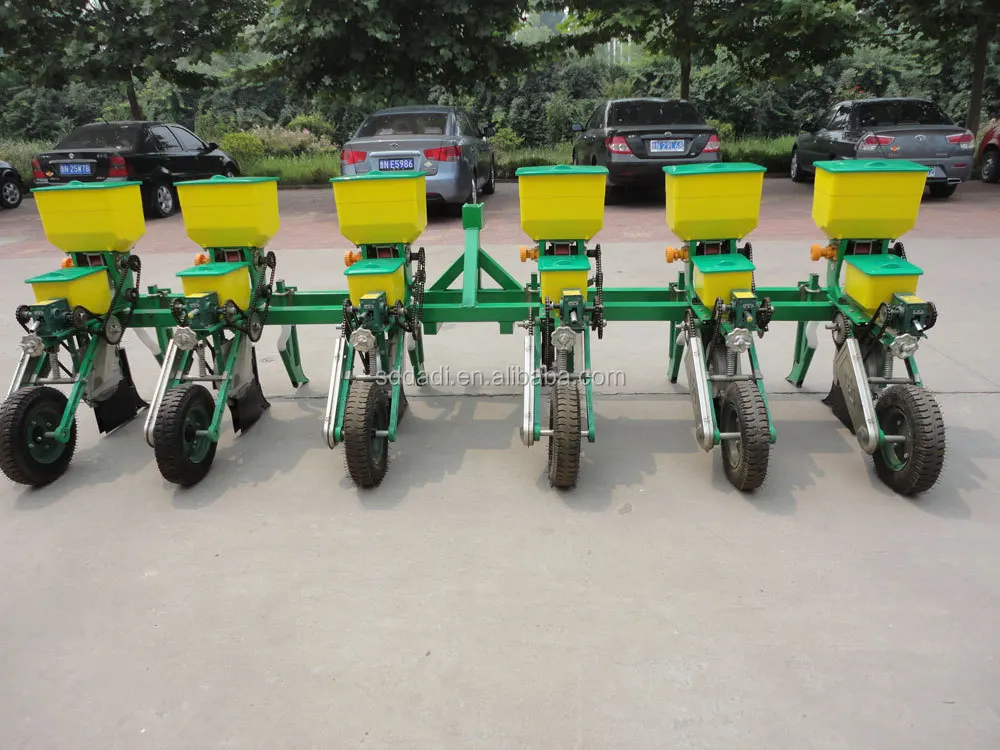

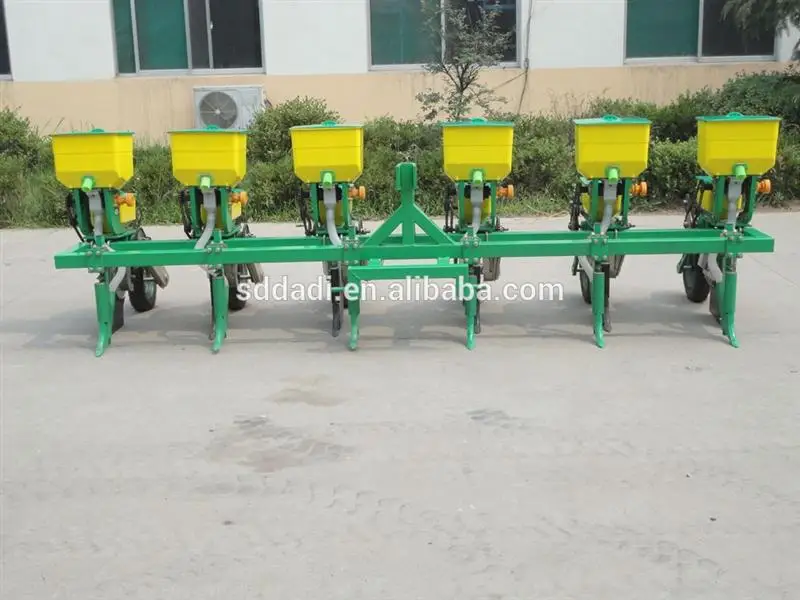

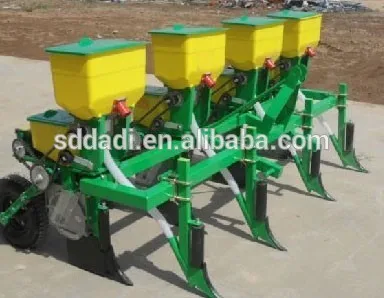

agricultural tractor atv corn planter made in China
*Sowing by weight,no damage to seeds. *High precise seeds clearance,evenly sowing stable,seeds saving and less thin out seeding. *Mainly for sowing corn,can also sowing bean, Sorghum .It has multifunction .The machine can spread the basis fertilizer during planting ,and can complete the suppression at the same time. *Feed outlet is driven by gear.There is an anti-reverse mechanism at the inside of driving gear to avoid troubles arising from machine reverse turning. *May adjust rows spacing by adjusting different driven gears.Can pick out the whole disc cover when clear the seeds. *Seeds clearance is convenient and thoroughly. |
Main specifications:
| Model | 2BCYF-3 | 2BCYF-4 | 2BCYF-5 | 2BCYF-6 | |||
| Driven power(hp) | 12~30 | 20-50 | 50-80 | 50-80 | |||
| Sowing seeds depth(mm) | 30-50 | ||||||
| Empty hole rate of seeds(%) | ≤2% | ||||||
| Sowing seeds quantity(pc/hole) | 1~3 | ||||||
| Working efficiency(ha/ar) | 0.2-0.3 | 0.4-0.5 | 0.65-0.85 | 0.8-1 | |||
| Theoretical rows spacing(cm) | 15.24,19.05,5.4,30.48 | ||||||
| Overall dimension(L×W×H)(mm) | 1330×1665×1000 | 1330×2015×1000 | 1330×2550×1000 | 1330×3100×1000 | |||
| Weight(kg) | 180 | 230 | 320 | 420 | |||
| Rows | 3 | 4 | 5 | 6 | |||
| Theoretical plant spacing(mm) | 200,250,310,380 | ||||||
| Fertilizer depth(mm) | 60-80 | 60-80 | 60-80 | 60-80 | |||
| Break seeds rate% | 0 | 0 | 0 | 0 | |||
| Capacity of fertilizer tank (L) | 16×3 | 16×4 | 16×5 | 16×6 | |||
| Capacity of seeds tank (L) | 9×3 | 9×4 | 9×6 | 9×6 | |||
| Min ground clearance during transporting(mm) | 300 | ||||||
