CHV series CNC Grooving Slotting V Cutting Machine
Product Description
Performance:
Make the V shaped grooving before bending of sheet metal, the working parts shall have edges and corners are distinct with correct and pretty appearance. For the sheet metal after grooving, it can form special materials with complicated shapes on the common bending machine. Automatic pneumatic clamping device is used for sheet metal and servo motor is used for knifes.
The processing and positioning precision is good. Double cutting with high production efficiency.
Features:
1. This machine composed of bed, beam, tool rest, cnc system, pneumatic material hold-down unit, compressed air blowing and cooling system. It is a gantry type grooving machine.
2. The bed and beam is box-type structure. Steel welded structure, tempering aging to eliminate stress. Good rigidity and accuracy.
3. Tool rest action of moving forward and backward(Y1 axis), up and down(Z axis), and forward and backward on hold-down(Y2 axis) are all controlled by cnc system.
4. AC Servo drive, ball screw transmission, with high accuracy and location accuracy.
5. Left and right moving of beam(X axis) use ac frequency conversion motor drive, transmission motion with gear and rack, with high speed, strong loading capacity.
6. The pneumatic hold-down system ensure good machining precision and repeat accuracy, which can automatically adapt different sheet thickness.
Parameters:
Specification
1220x2500
1220x3200
1220x4000
1500x4000
1220x5000
1220x6000
1500x6000
Max.grooving width(mm)
1220
1220
1220
1500
1220
1220
1500
Max.grooving length(mm)
2500
3200
4000
4000
5000
6000
6000
Max.grooving thickness(mm)
4.5
4.5
4.5
4.5
4.5
4.5
4.5
Min.grooving thickness(mm)
0.6
0.6
0.6
0.6
0.6
0.6
0.6
Min.grooving distance
8
8
8
8
8
8
8
Cutting speed
m/min
65
65
65
45
65
65
65
Knife rest resolution
(left & right)
(mm)
0.001
0.001
0.001
0.001
0.001
0.001
0.001
Positioning accuracy(mm)
±0.01
±0.01
±0.01
±0.01
±0.01
±0.01
±0.01
Main motor power(kw)
5.5
5.5
5.5
5.5
5.5
5.5
5.5
Hydraulic systemn(Mpa)
6-8
6-8
6-8
6-8
6-8
6-8
6-8
Length(mm)
4500
5200
6000
6000
7000
8000
8000
Width(mm)
2300
2300
2300
2480
2300
2300
2480
Height(mm)
1600
1600
1600
1600
1600
1600
1600
Machine Show

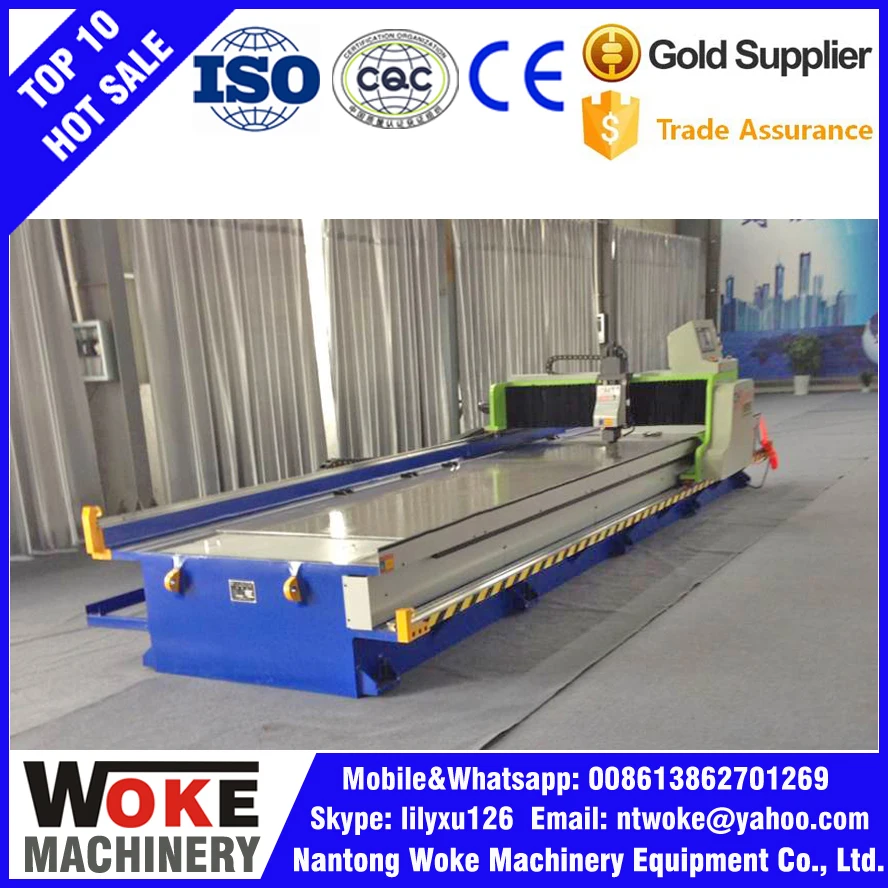

Grooving machine photos in our factory

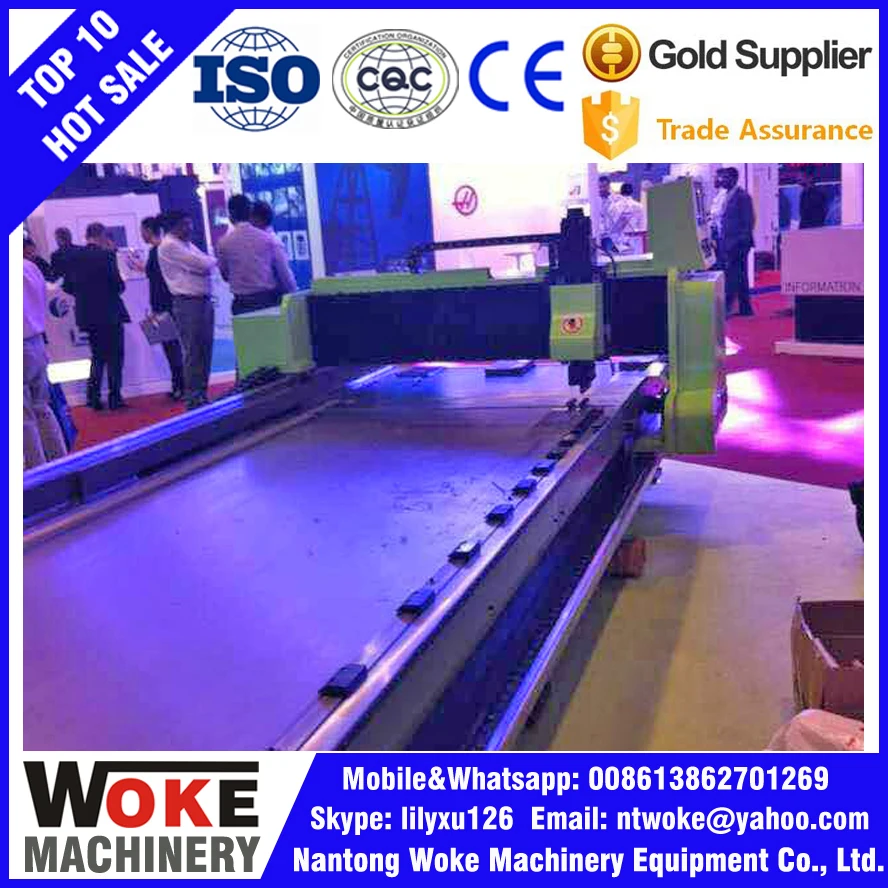

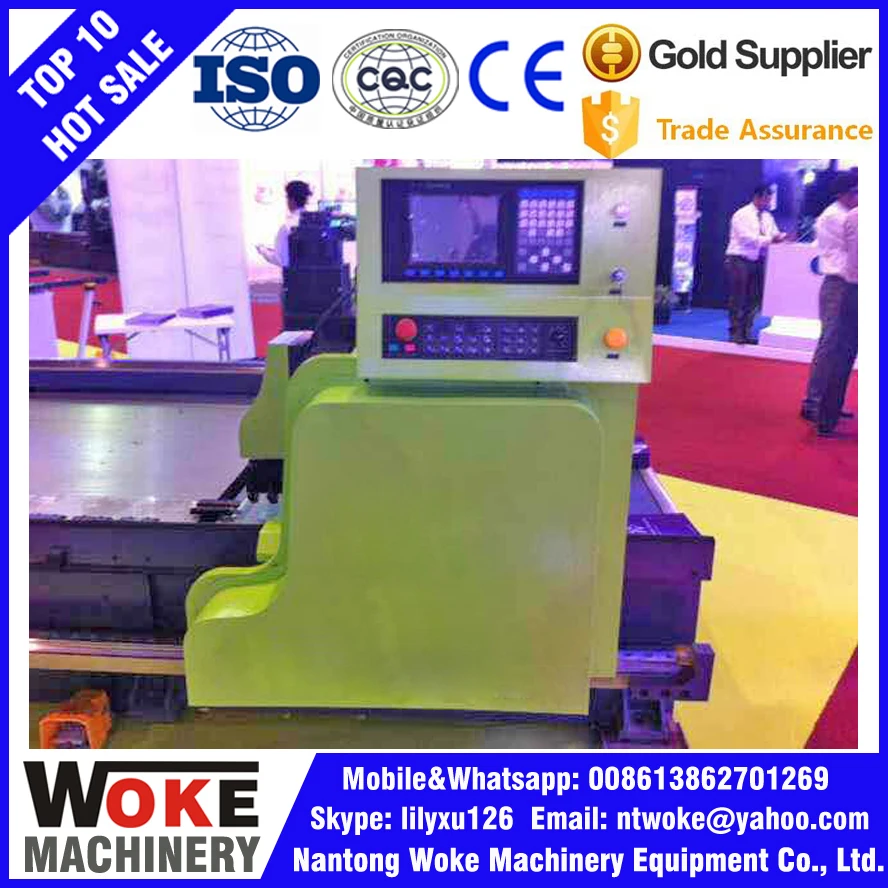

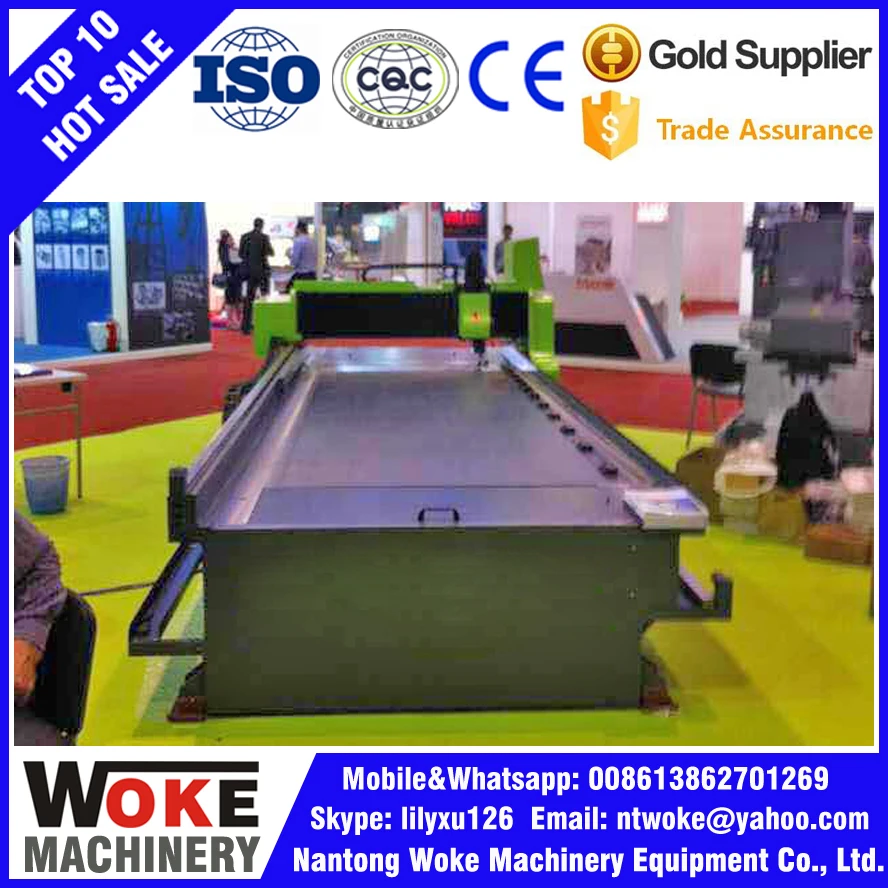

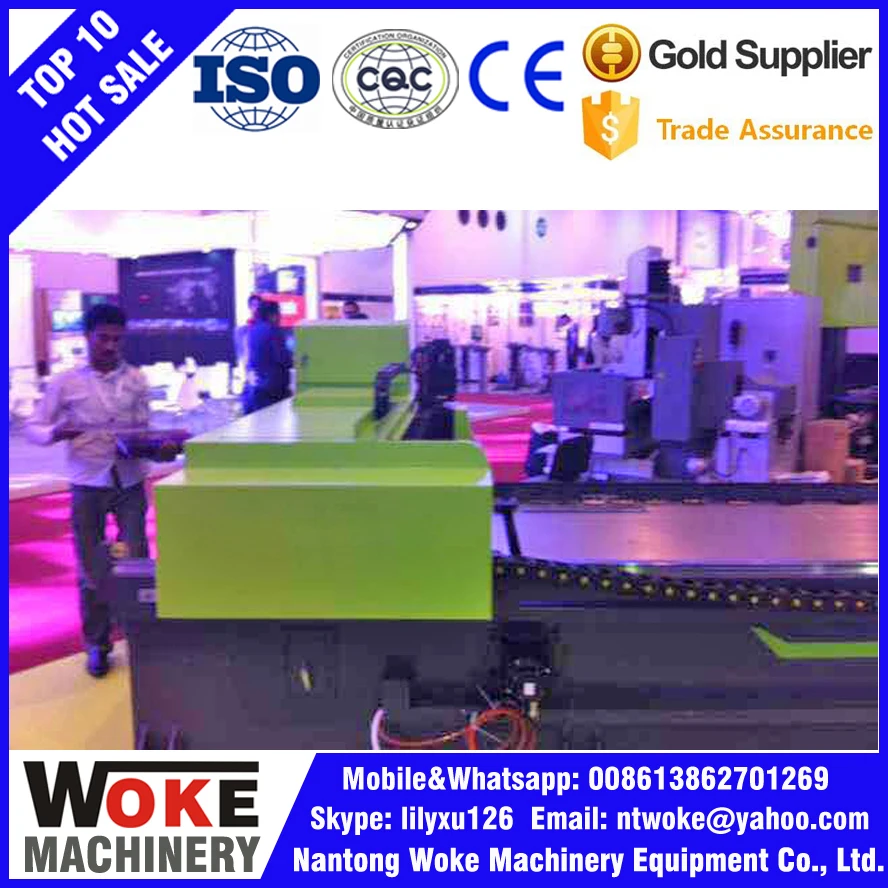

Our grooving machines in Canton Fair
Other metal working machines we supply: Shearing machine, press brake, roller bending machine, punching machine, cutting machine.
