Product Overview

Description

   21213-3404092

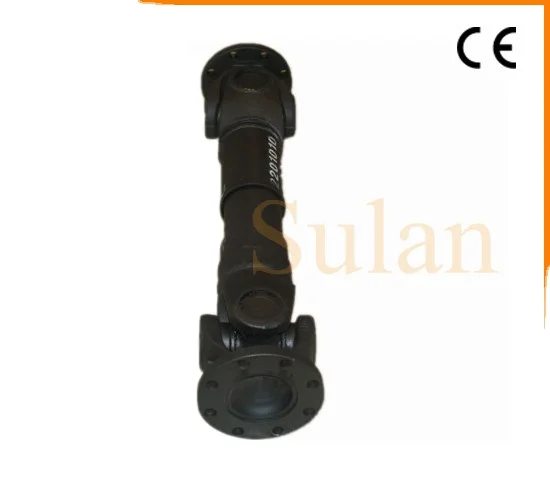

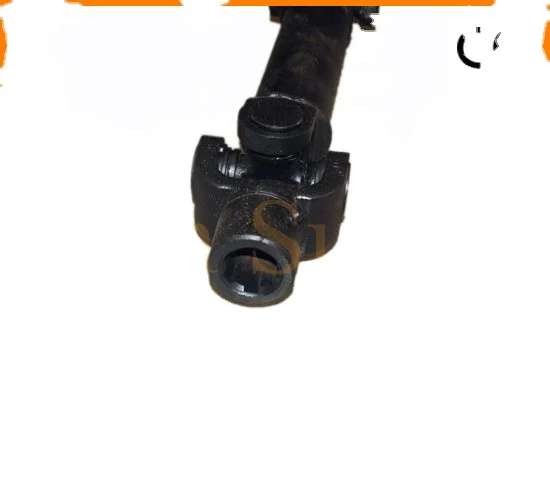

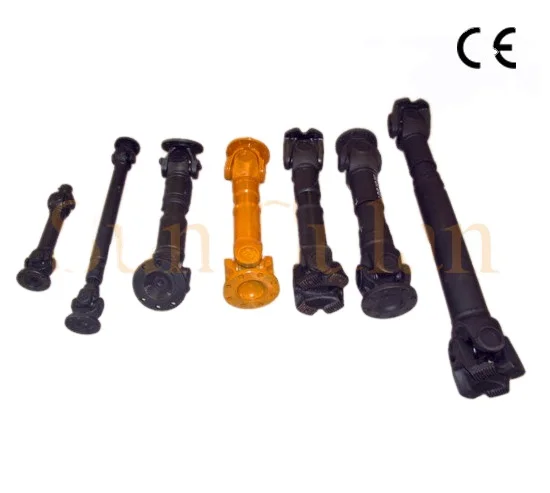

Drive shaft For Russan can/truck

1. High cost-effective.
2. Excellent dimension accuracy
3. All kinds of surface treatment are available
4. Material: Forging, Steel 45# (American standard 4140 or 4340)
MATERIAL: FORGING, STEEL 45 AND 40Cr (American standard 4140 and 4340)
5. Guarantee: 25000Kilometers or 1 Year after shippment.
6. OE standards
7. Traceability from raw material to finished products
OEM NO. CAR MODEL Color
2121-2201012-02 LADA NIVA BLACK
2121-2203012-02 LADA NIVA BLACK
2121-2201012-04 LADA BLACK
2121-2203012-04 LADA BLACK
21211-2201012 LADA BLACK
21211-2203012 LADA BLACK
72-2203012-A2 MTZ BLACK
    RED OR BLUE
    RED OR BLUE
    BLACK
24-2201010-01 GAZ BLACK
2105-2200012   BLACK
    BLACK
  KAMAZ BLACK
3741-2201010 UAZ BLACK
3741-2203010 UAZ BLACK
31512-220101 UAZ BLACK
31512-2203010 UAZ BLACK
31512-2201010-10 UAZ BLACK
31512-2201010-30 UAZ BLACK
3151-2203010-01 UAZ BLACK
31029-2200010-10 Volga BLACK
3302-2200010 GAZ BLACK
3302-2200010-10 GAZ BLACK
3307-2200011 GAZ BLACK

Our commitments are as follows:
1 shaft balancing test must be done after the assembly, shaft ends of the balance sheet welding, unbalance correction, balance sheet welding should be secure, not more than three at each end, which should not be less than the residual unbalance specified in GB9239 G40 balancing quality level.
2 reliable quality welded parts, weld appearance should be smooth without interruption, without Weld, welding slag and other defects. Weld surface forming beautiful.
3. The drive shaft assembly, the hand being, the movement trajectory of the conical surface formed by the universal joint angle in both directions along the reverse, the gimbal smooth, jamming phenomenon may not have a significant gap or gimbal clamp angle should meet the design requirements.
4. When the drive shaft assembly, grease nipple and grease nipple slip fork cross shaft should be on the same side.
5. Universal joint shaft ends should be specified in the phase plane, the deviation is less than 5 degrees.
6. Slide the slider and fork assembly, it should be able to slide axially within the working length of the design requirements, without jamming is like.
7. Front drive shaft out of the factory, all parts should be lubricated lubrication.

Quality Assurance Document:
1.Item Testing Plan will be submit to customer in 1 day after contract signed.
2.All the Q.A Document as per Client Requirement will be submitted before final product shipped out.

Packing and shipping:
1 Prevent from damage.
2. As customers' requirements, in perfect condition.
3. Delivery : As per contract delivery on time
4. Shipping : As per client request. We can accept CIF, Door to Door etc. or client authorized agent we supply all the necessary assistant

Drawings

 Size as follows:
