Product Overview

Description

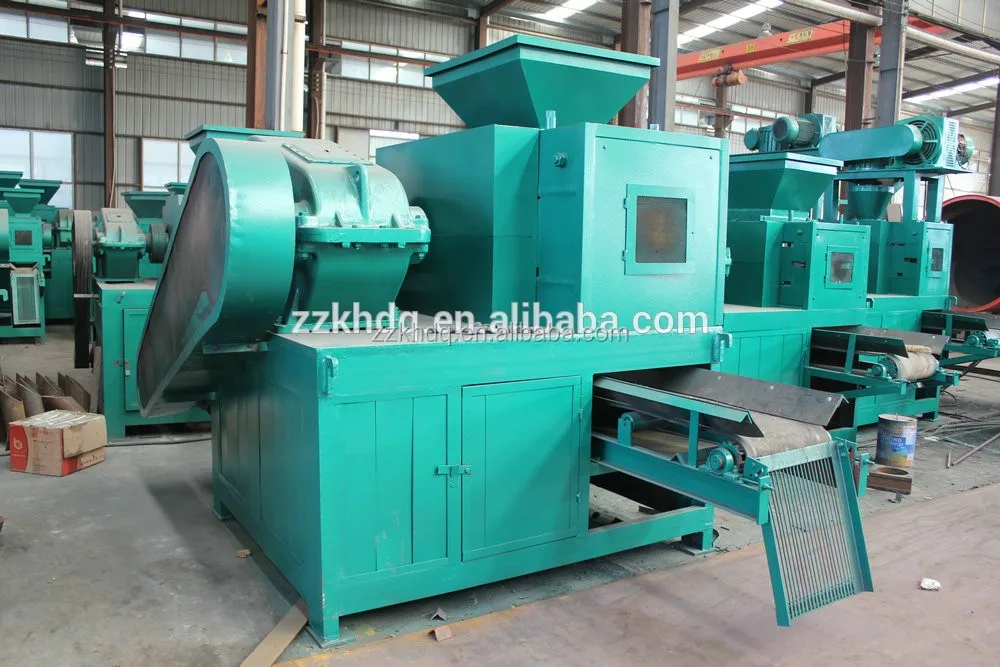

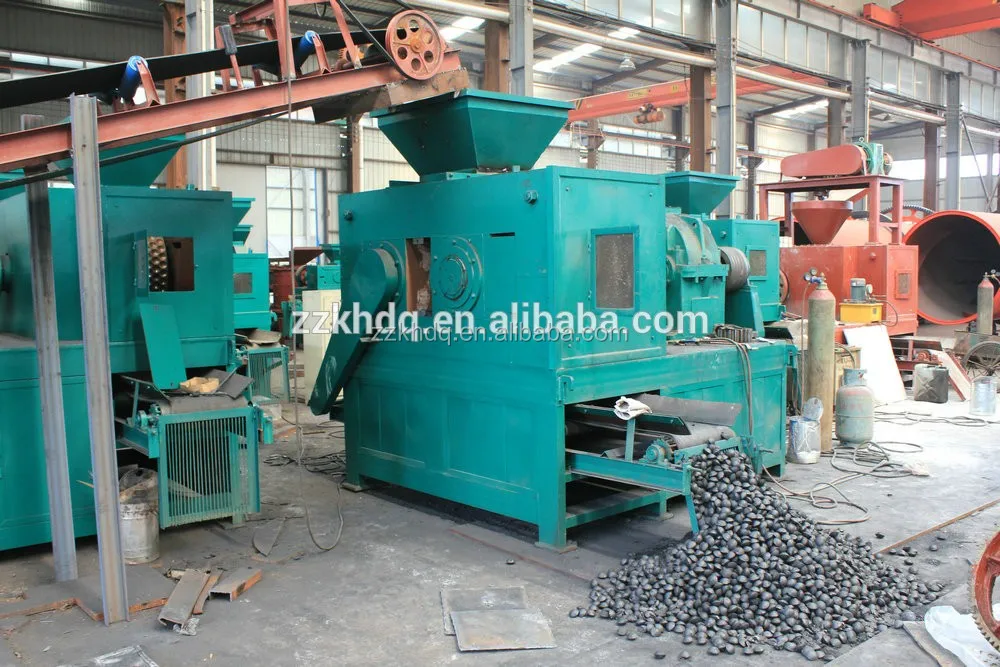

   Widely used ball press machine/carbon black pellet briquette press

production description

Widely used ball press machine/carbon black pellet briquette press can press  coal fines, coke fines, charcoal powder, carbon black, iron ore fines, mill scale,  manganese  ore fines, phosphor  gypsum powder into  briquettes.

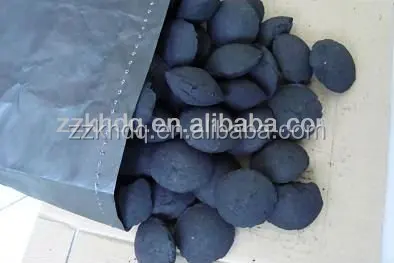

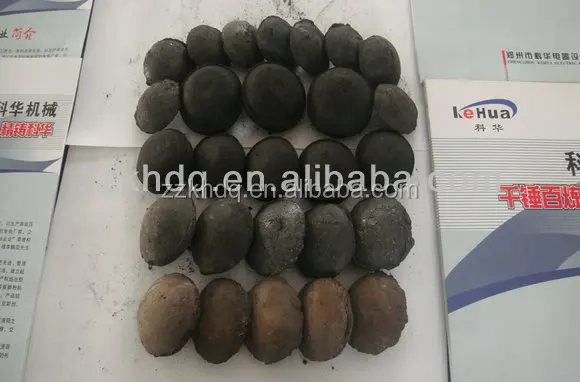

These briquettes can be designed of oval shape, egg shape, pillow shape etc. This machine is widely used in coal industry and metallurgy industry.







Product Features

1. High efficiency coal briquetting machine
2. Apply for many kinds of powder like charcoal, coal, mineral, etc

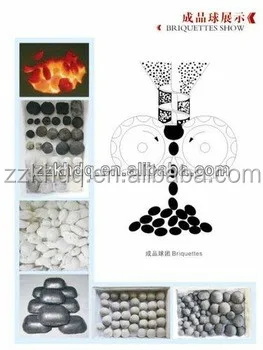

3. Make round type , pillow type, square shape, oblong type charcoal ball,oval shape
4. The products have high density, high strength, and high hardness











Technological process

The raw material which has high content water will be dried by the rotary dryer. If there were several mixed kinds of materials, the materials after been dried will be reasonable distributed by the electrical dosing machine. And they will be conveyed to the crusher to be crushed into fines via belt conveyor. The crushed fines will be mixed by the double shaft mixer with some binder. These mixed materials will be conveyed to increasing density machine through belt conveyor. After that, the materials will be transmitted to briquetting machine to make briquettes. Final briquettes will be conveyed to vertical dryer or chain type dryer or belt dryer to be dried. After been dried, these briquettes will be delivered to storage area or directly loaded. The whole production line could be designed according to customer demand.





Main  technical  parameter

Model	Roll diameter(MM)	Capacity(T/H)	Powder(KW)
ZKBM290	290	5.5	1-3
ZKBM360	360	11/15	4-6
ZKBM430	430	18.5	6-8
ZKBM500	500	18.5/37/55	8-12
ZKBM500-3	500	37	5-8
ZKBM500-4	500	55	8-12
ZKBM650	650	37/45	10-15
ZKBM750	750	75/90/110	15-20
ZKBM850	850	90/110	20-25
ZKBM1000	1000	90/110/132	25-30
