BLDC motor winding equipment stator coil winder needle winding Machine with 2 winding stations

BLDC motor stator needle winding Machine

(1) Technical parameter:

Statck ID: ≥25mm

Stack OD; ≤150mm

Stack height: 10~100mm

Suitable wire diameter: 0.3~1.0mm

Power supply:220V 50/60HZ

Weight 600KG

Dimension: 1400x900x2000

(2) Application:

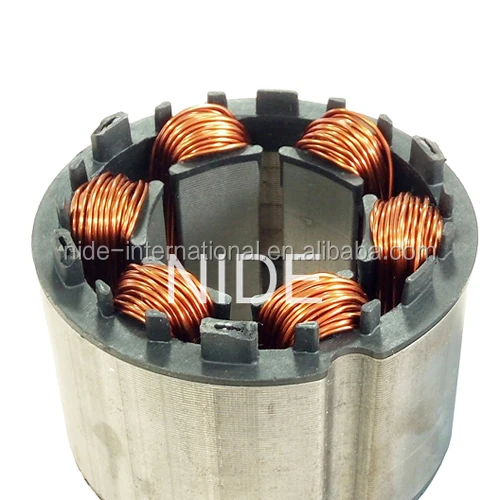

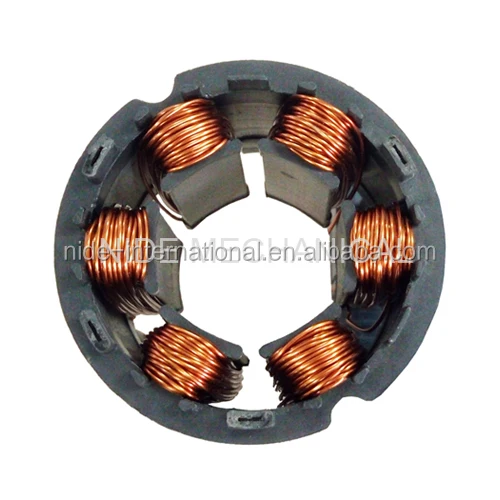

This BLDC winding machine is suitable for winding BLDC stator.

(3) Machine function and characteristic:

This needle winding machine is suitable for winding BLDC stator. It equips with servo system. It can automatically interwine wire end, winding, arraying, indexing, cutting, demolding.

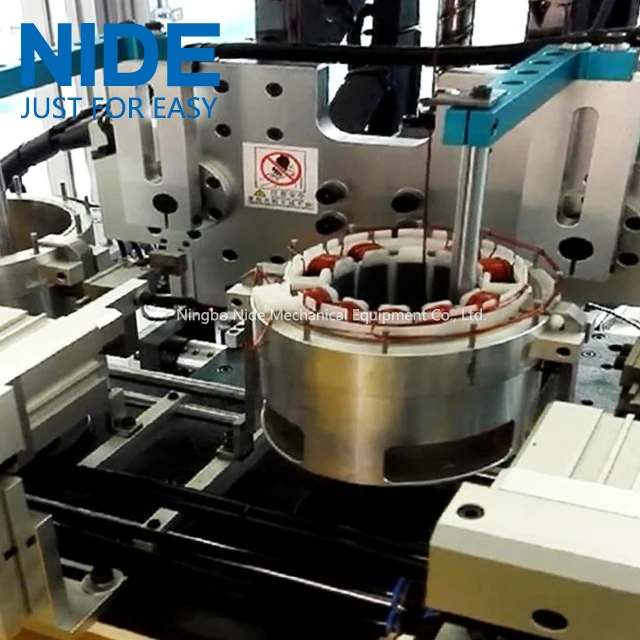

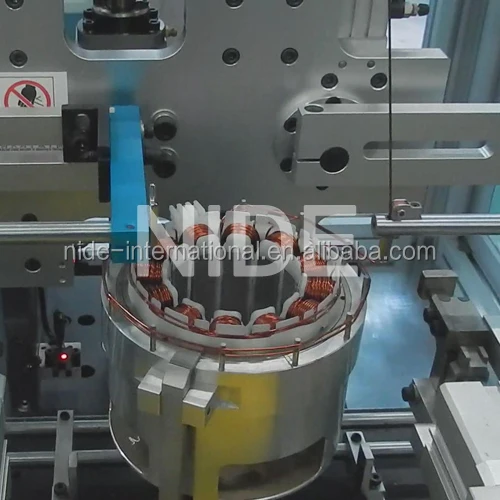

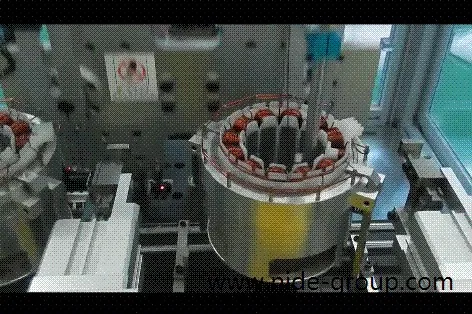

BLDC motor stator needle winding Machine wokring process

Motor stator manufacturing production assembly line including paper inserting machine, coil winding machine, coil winding inserting machine, lacing machine, forming machine and testing machine.NIDE can supply and manufacture about then ,and all the process will be done by machine automatically. Operator only needs to do loading and unloading.

With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries.Among the customers, many of them are the world-renown companies.

Established in 2010, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.

Nide has three main business divisions.
The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
