Precision Four column Hydraulic Plane Die Cutting Machine

Product Overview

Description

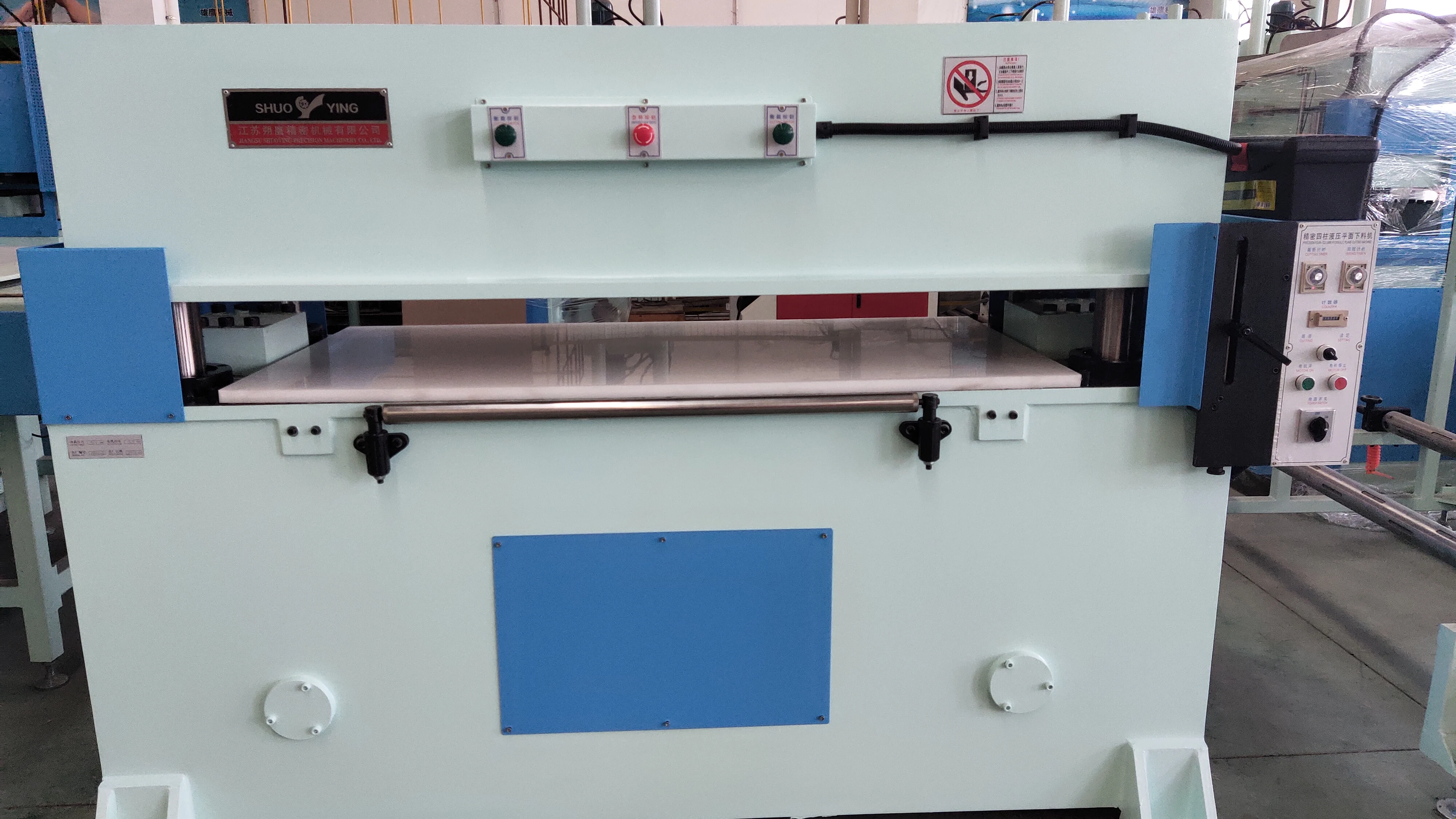

              Precision Four-column Hydraulic Plane Die Cutting Machine





CE and ISO approved  precision four-column hydraulic plane die cutting press machine

Application:

The machine is widely used for cutting Foams, paperboard, textile, leather, rubber,plastic,

 floor(carpet) etc.



Features:

1. Easy to operate, machine with strong cutting force and high cutting speed.

2.Double oil cylinder, precision four-column auto-balancing link structure, which

can ensure the uniform cuuting depth.

3. When upper cutting board drops down and touches cutting die, it can automatically

slow cutting to make the cutting material no size error between the top and bottom

layers.

4. Equipped with central oil supply automatic lubricating system, to ensure

working precision and prolong the service life of machine.

5. Operation with two hands, ensure high safety of operators.



Technical Parameters:

Maximum cutting force	35T
Stroke adjustment range	0—100mm
Range between the working tables	60—160mm
Size of upper cutting board	1600×600mm
Size of lower worktable	1600×610mm
Motor power	3kW
Cutting Speed	0.12m/s
Package size	2230×1160×1420mm
Net weight	1850kg
Gross weight	2050kg
Machine color	Blue and gray  or as your optional
Machine logo	SHUOYING  or Customized
OEM&ODM	Welcome

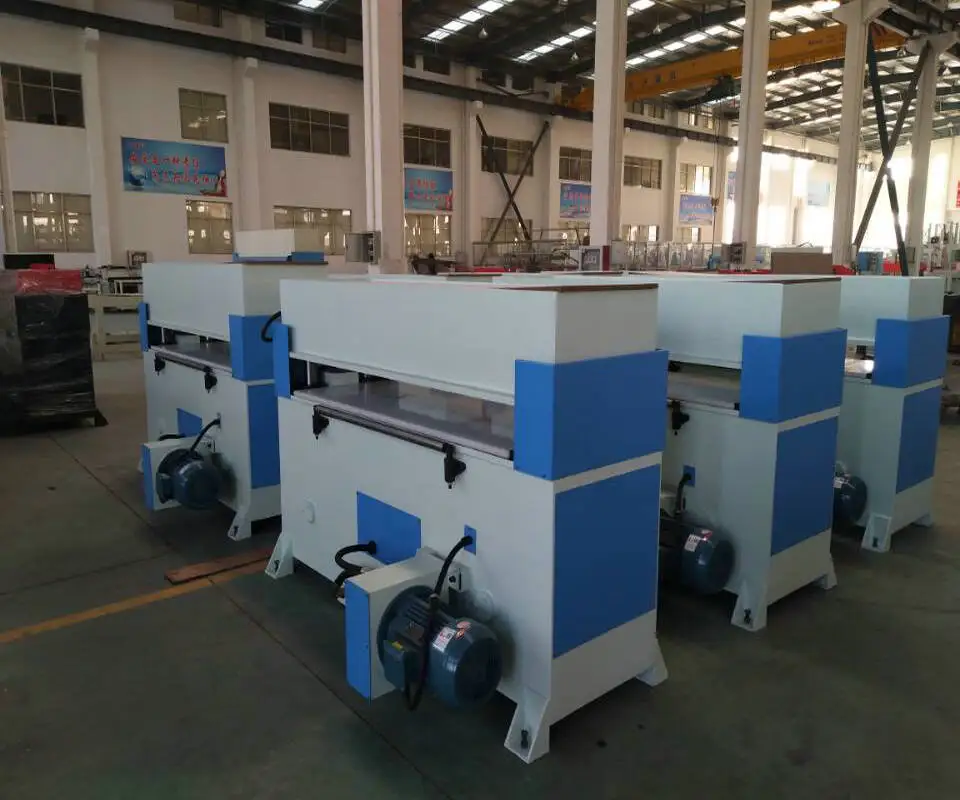

More views of this type machine:













Company Introduction:



Jiangsu Shuo Ying Precision Machinery manufacture various types of clicker press to

 meet our customers' manufacturing and production requirements.

 The die cutting technology that Shuoying provides its customers has proven to be top of

 the line in the international market. With the swing arm clicker presses leading the way

 in industry popularity, die cutting machinery has evolved into various press systerms

 for even more applications in a myriad of industries.

 The diversity of machinery within die cutting allows for a great range of tonnage, cutting

  stroke, and machine working table sizes for the various types of machinery.







Qualification Certificate and Sales Market:



 Jiangsu Shuo Ying Precision Machinery Company own the certificate of ISO9001:

 2008 and CE, also we have export and import license.

 "Shuo Ying" branch series die cutting machine cooperated with the wellknown

 international company of Hongkong, Italy and UK.

 Our products in 60% percent export to more than 30 countries in  the world wide.











Customers visit Factory:





Production Equipment:



Shuo Ying Precision Machinery Company import advance mechanical processing

 and testing equipment, which gurantee the high quality products.





Production process:



 The QA and QC department make strictly quality control for each product

 process. Shuo Ying pursue to provide customers high quality cutting press

 machine and after-sales service.

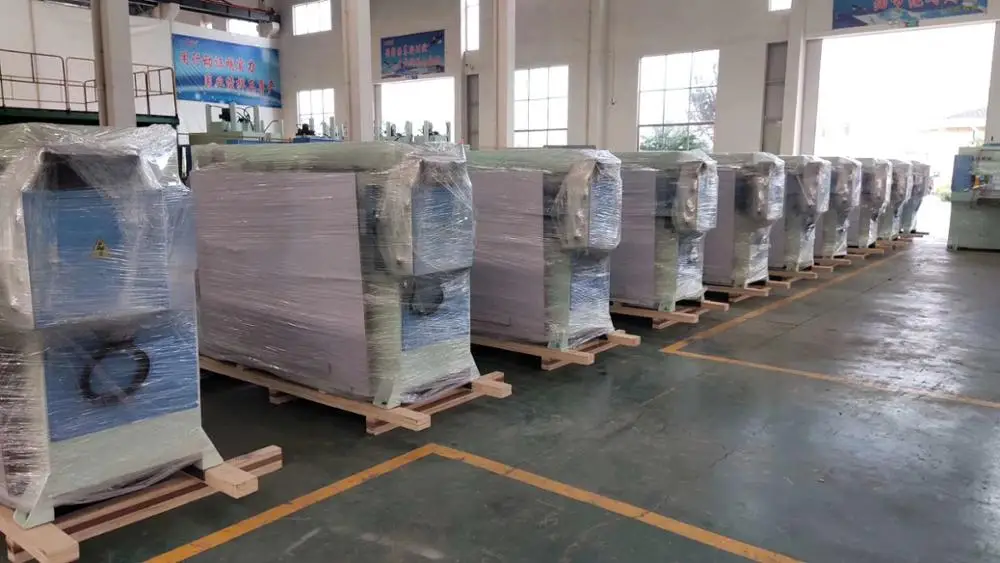

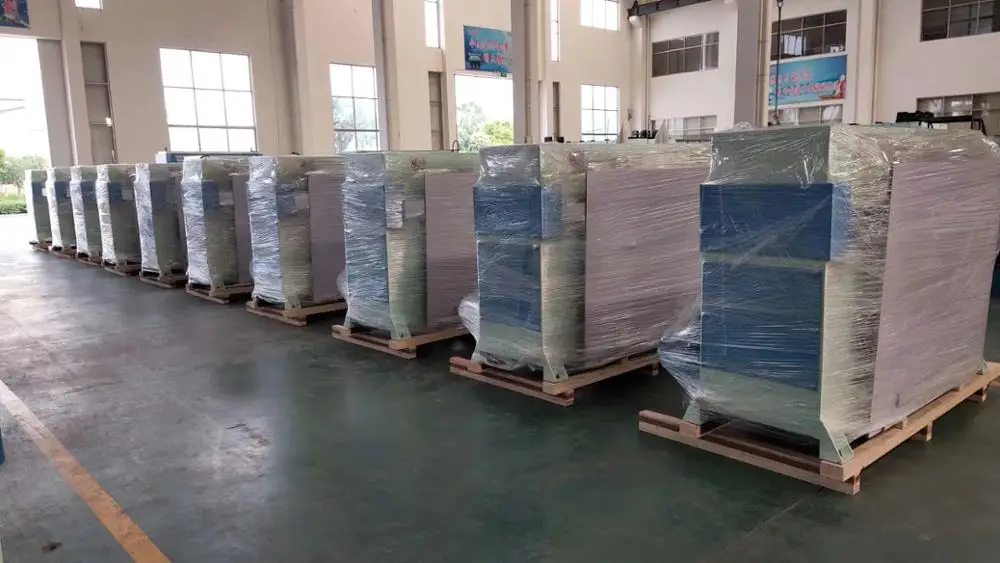

Package and Delivery:







FAQ :



 1, Are you a factory or a trade company ?



 we are a factory , welcome to visit  and make business contact.



 2, Where is your factory located ? How can I visit your factory ?



 Our factory is located in No 9 Chengxiang Road Daguang Town Yancheng city Jangsu



 Province China . You can take plane from Guangzhou/Beijing/shanghai city to Yancheng



 city (our city ) . It is convenient .



 3, Do you attend any Fair ?



 Yes , we attend some professional fairs every year :



 All china leather exhibition & china international footwear fair   ( in Shanghai china  )



International exhibition on shoes& leather industry   (In Guangzhou china )



4, Can we use our company logo on your machine ?



  Yes , you can use your logo if necessary .



5, How does your factory control the machine quality ?



 We have some QC staffs to inspect and test the machine . every machine must be



 tested for 12-16 hour before leaving factory .



6, How long is your guarantee period ?



 One year .
