Ручная небольшая строительная техника бензиновая вибрационная пластина уплотнитель rammer

Product Overview

Description

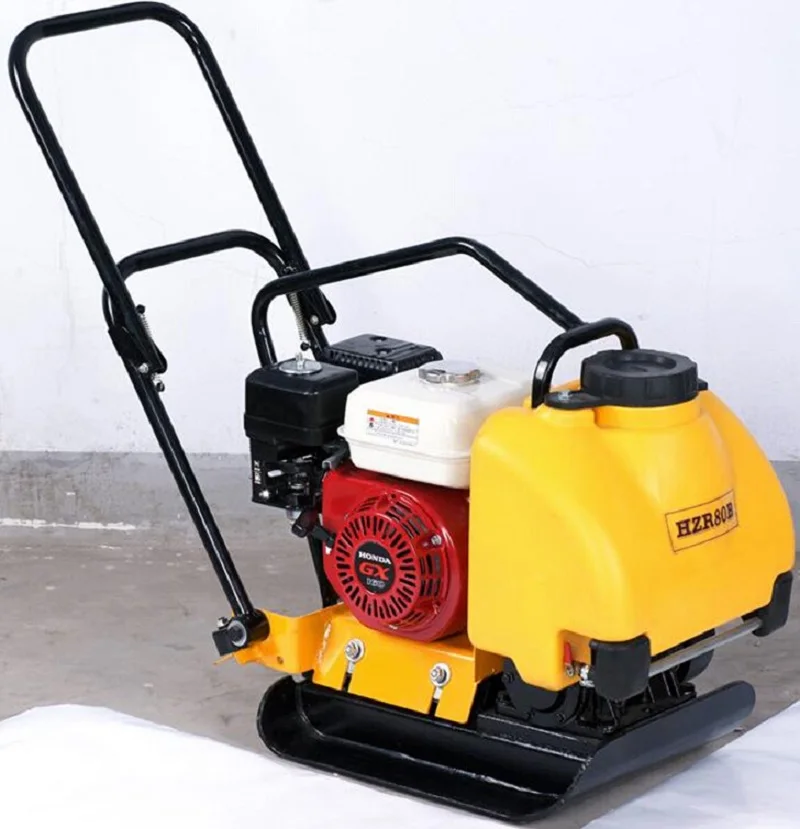

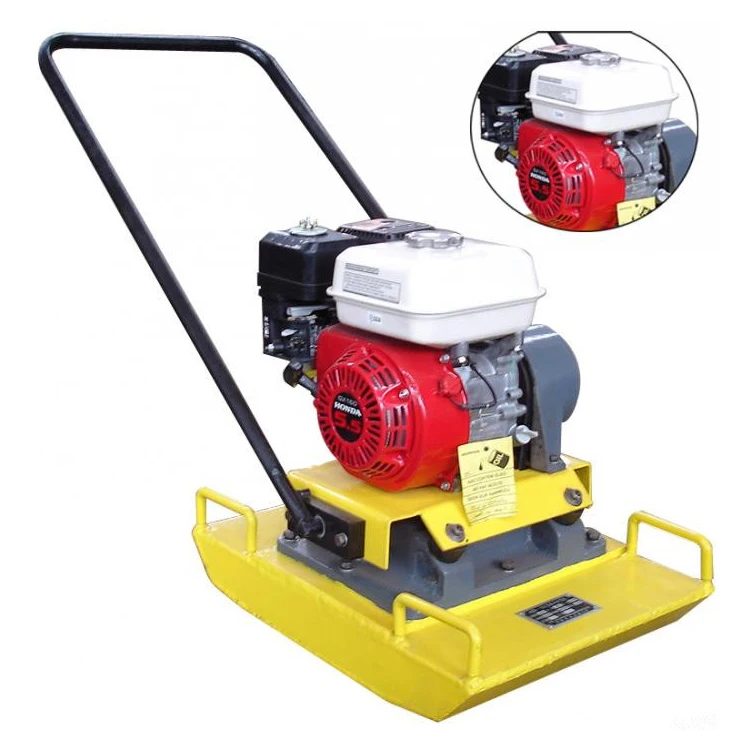

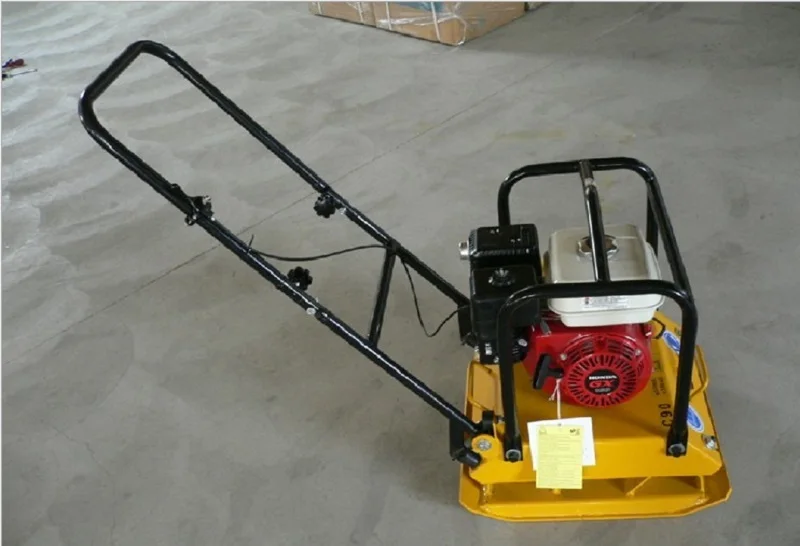

Manual small construction machinery gasoline vibration plate Compactor rammer

Vibratory plate compactors are engine-powered, walk-behind machines that impart powerful

vibratory compaction effort to loose materials and asphalt via a bottom-mounted steel plate

that might vary in area from 1.5 to 3 square feet. An eccentric drive mechanism propels the

compactor forward, and if the compactor is "reversible", the mechanism also propels the

machine in the opposite direction.



Feature:

Shock absorber made of nature rubber ,has better absorption, which protects the engine and user friendly.

Can modify machine for different purpose upon client's request

   a. Add PU plate for use on fragile surface, it's absorb impact to the surface.

   b. Add water tank for use on asphalt surface, anti-stick.

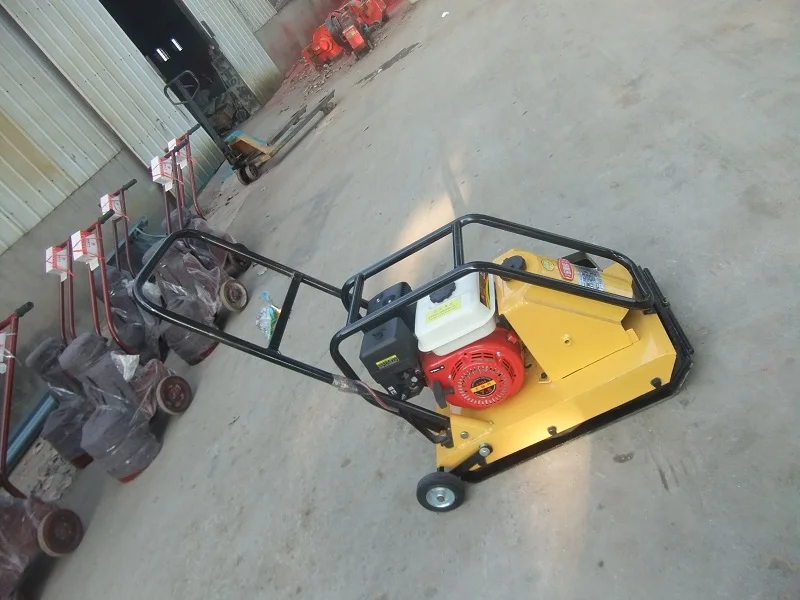

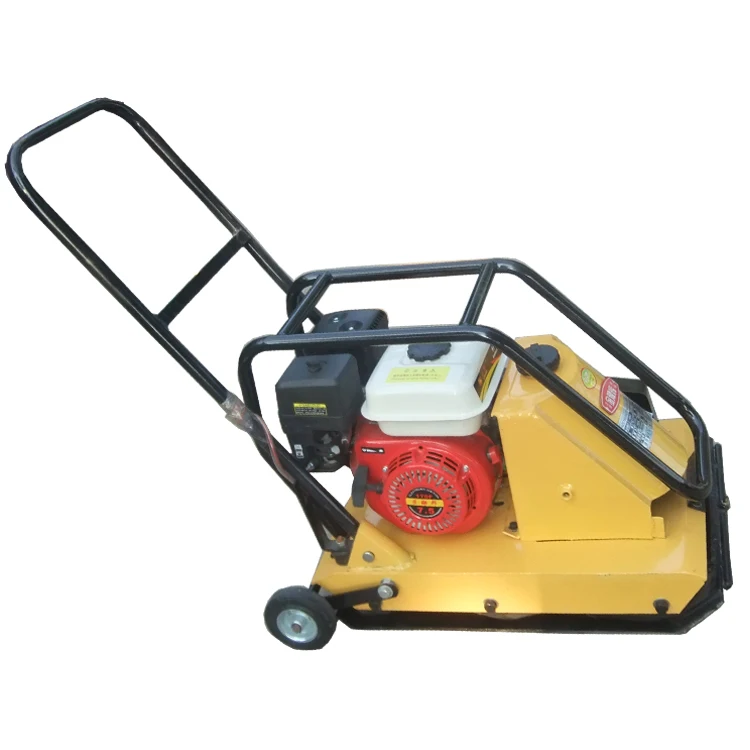

   c. Add wheels for easier transportation

Many power source options to choose from, such as Honda, Robin and Loncin.

Electric power source also available.

Parameter:

Model	Vibratory Plate Compactor
Ramming area	51*48cm
Engine model	HONDA GX160
Engine  power	5.5HP
Vibratory force	1.6 T(15KN)
Impact frequency	4500vpm
Climbing ability	≤20°
Engine speed	3600r/min
Fuel tank capacity	3.6L
Weight	92±3Kg
package size	750*530*740mm



Detailed picture:
