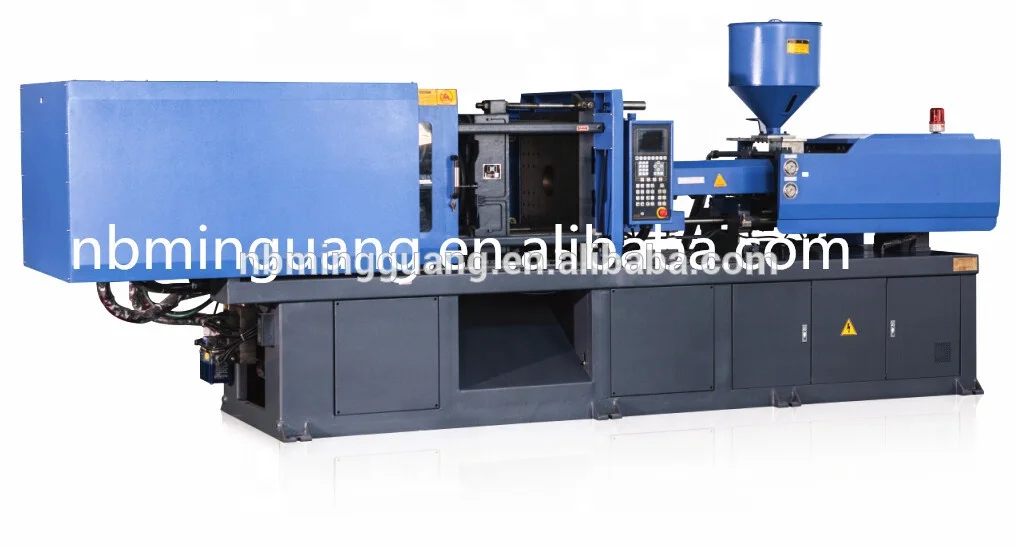

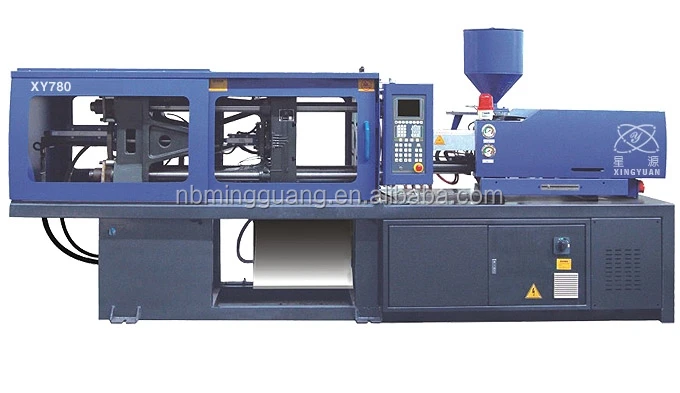

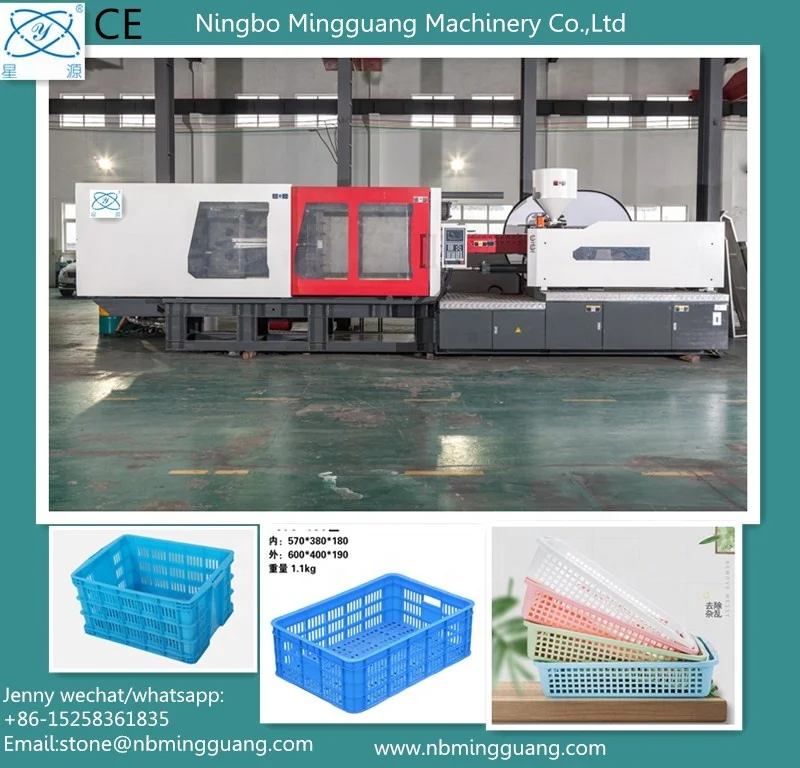

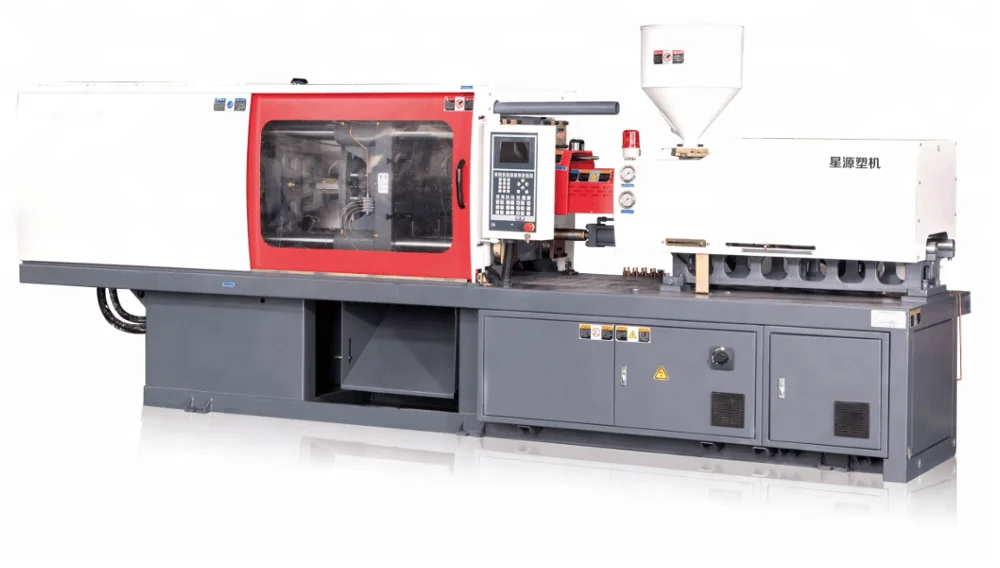

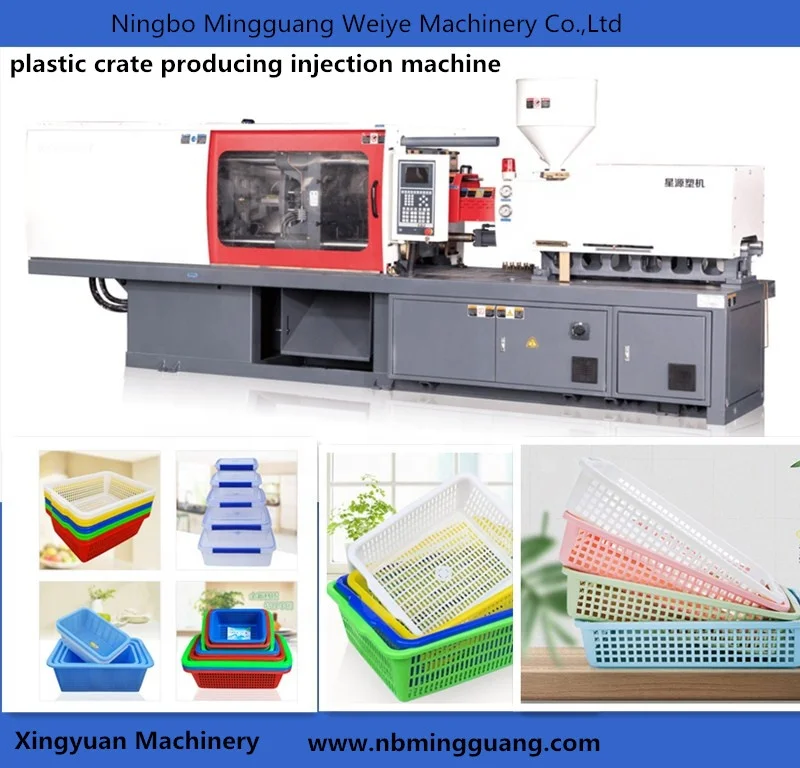

plastic crates producing injection molding machine
- Category: >>>
- Supplier: Ningbo Mingguang Weiye Machinery Co. Ltd.
Share on (60418984633):
Product Overview
Description
NINGBO MINGGUANG MACHINERY CO.,LTD
WE COULD PRODUCE ALL KINDS OF PLASTIC INJECTION MOLDING MACHINE.
UNTIL NOW WE HAVE EXPORTED MANY MACHINES TO MANY COUNTRIES.
SPECIFICATION | XY2000 | |||||||
| A | B | C | D | ||||
INJECTION UNIT |
| |||||||
SCREW DIAMETER | mm | 45 | 50 | 55 |
| |||
SCREW L/D RATIO | L/D | 24.5 | 22 | 20 |
| |||
SHOT VOLUME(THEORETICAL) | cm3 | 340 | 420 | 510 |
| |||
INJECTION WEIGHT(PS) | g | 310 | 383 | 466 |
| |||
INJECTION RATE | g/s | 124 | 154 | 186 |
| |||
INJECTION PRESSURE | MPa | 210 | 168 | 140 |
| |||
SCREW SPEED | rpm | 155 | ||||||
CLAMPING UNIT |
| |||||||
CLAMP FORCE | KN | 2000 | ||||||
OPEN STROKE | mm | 475 | ||||||
SPACE BETWEEN TIE BARS(W*H) | mm | 530x530 | ||||||
MAX.MOULD HEIGHT | mm | 530 | ||||||
MIN.MOULD HEIGHT | mm | 200 | ||||||
EJECTOR STROKE | mm | 140 | ||||||
EJECTOR FORCE | KN | 70 | ||||||
OTHER |
| |||||||
MAX.PUMP PRESSURE | MPa | 16 | ||||||
PUMP MOTOR POWER | kW | 18.5 | ||||||
HEATING POWER | kW | 13.6 | ||||||
MACHINE DIMENSION(L*W*H) | m | 5.92x1.55x2.14 | ||||||
OILTANK CUBAGE | L | 300 | ||||||
MACHINE WEIGHT | t | 7.3 | ||||||
