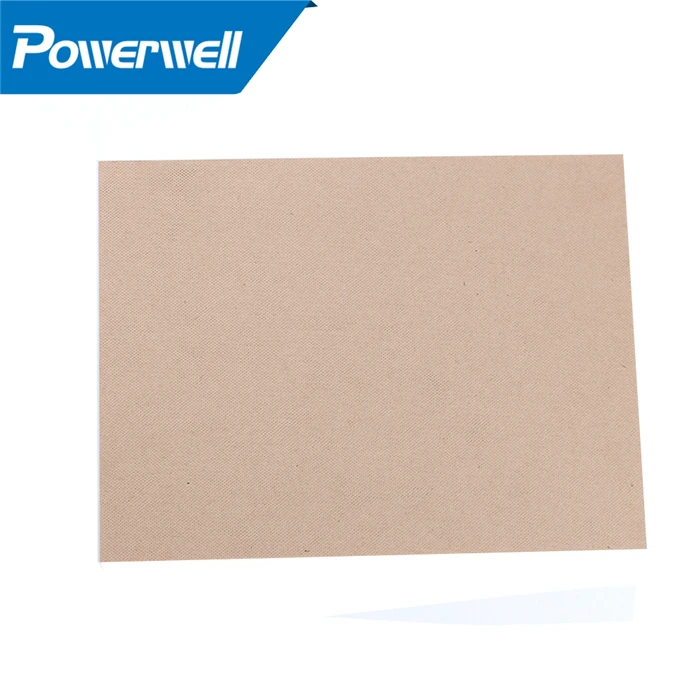

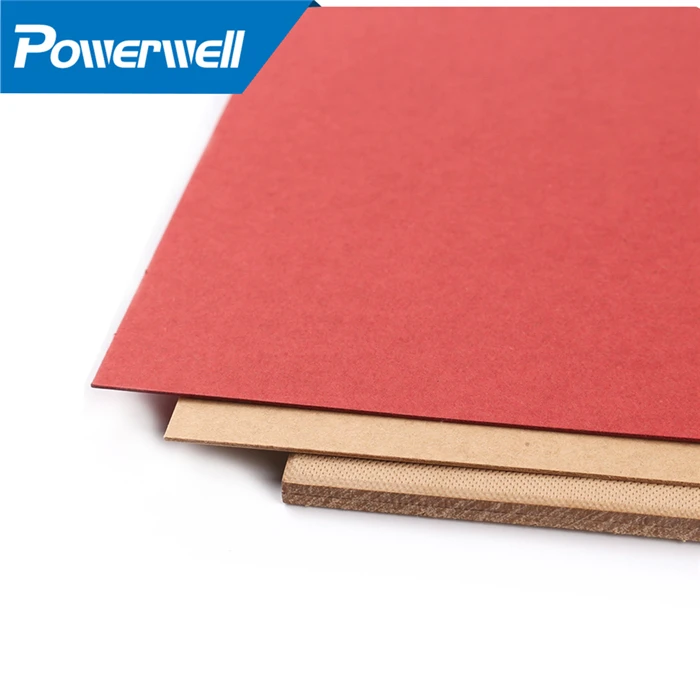

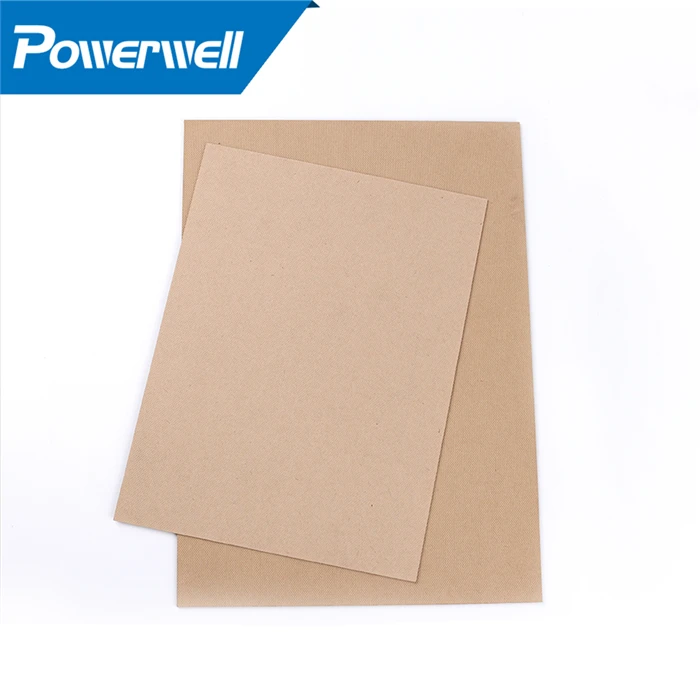

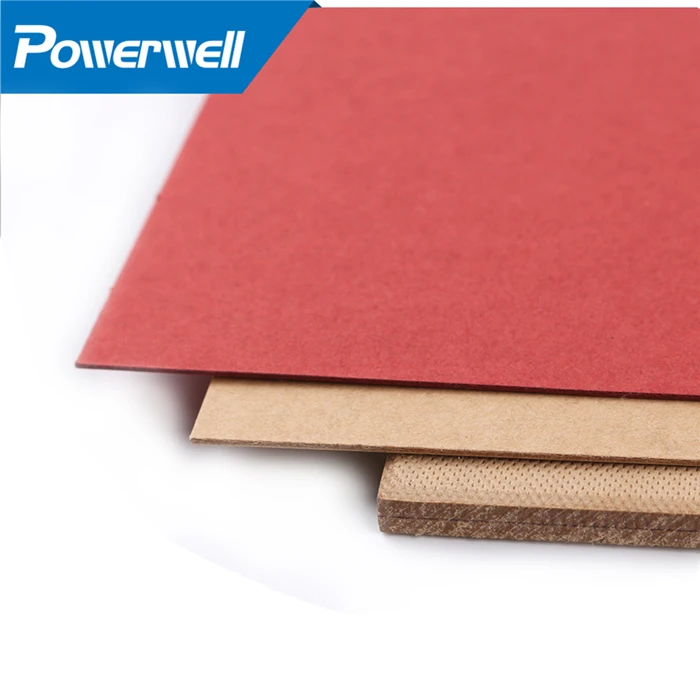

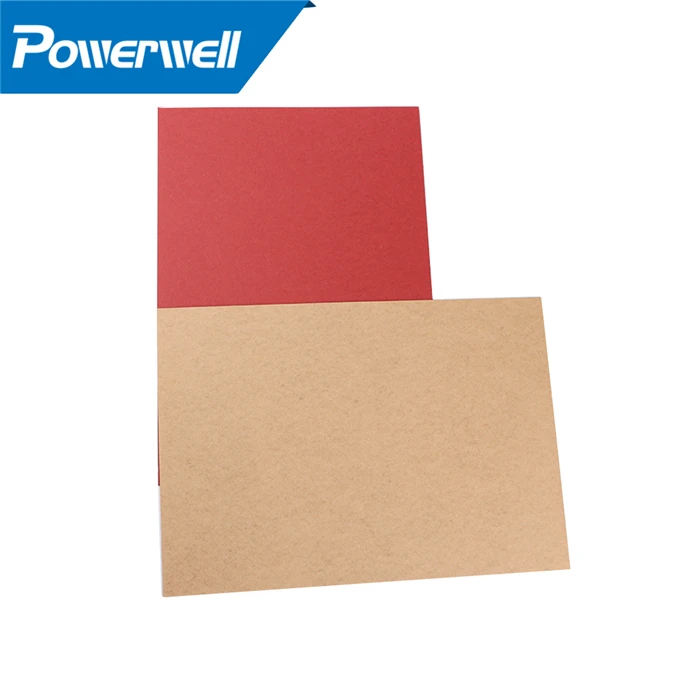

Manufacturer press board insulation paper board for sale Customized transformer insulation pressboard
- Category: >>>
- Supplier: Hunan Powerwell Industrial Co. Ltd.
Share on (60418987829):
Product Overview
Description
Is there any product that you need?
Is it really can be customized as per your requirement?
How to get personalized service?
Let’s find answers...
Technical parameter
thick paper board,thick paper board,thick paper board,thick paper board,thick paper board,thick paper board
Accurate specifications ensure that we provide professional products
Item | Test standard | Measured value | Standard value |
Thickness tolerance | IEC 641-2 | ≤ 1.6 mm 6.00 % | ±7.5 % |
> 1.6 - 8.0 mm 4.00 % | ± 5.0 % | ||
Apparent density | IEC 641-2 | ≤ 1.6 mm 1.09 g/cm³ | 1.00 - 1.20 g/cm³ |
> 1.6 - 4.0 mm 1.15 g/cm³ | 1.10 - 1.25 g/cm³ | ||
Min. tensile strength M.D. unfolded | IEC 641-2 | ≤ 1.6 mm 107 N/mm² | 100 N/mm² |
> 1.6 - 4.0 mm 128 N/mm² | 105 N/mm² | ||
Min. tensile strength C.M.D, unfolded | IEC 641-2 | ≤ 1.6 mm 77 N/mm² | 75 N/mm² |
> 1.6 - 4.0 mm 83 N/mm² | 80 N/mm² | ||
Min. elongation M.D, unfolded | IEC 641-2 | 3.90% | 3.00% |
Min. elongation C.M.D, unfolded | IEC 641-2 | 4.10% | 4.00% |
Max. moisture content | IEC 641-2 | 4.20% | 6.00% |
Max. ash content | IEC 641-2 | 0.30% | 1.00% |
pH of aqueous extract | IEC 641-2 | 6.3 | 6.0 - 9.0 |
Max. shrinkage M.D | IEC 641-2 | 0.40% | 0.50% |
Max. shrinkage C.M.D | IEC 641-2 | 0.60% | 0.70% |
Max. thickness shrinkage | IEC 641-2 | 3.90% | 5.00% |
Min. oil absorption | IEC 641-2 | ≤ 1.6 mm 13.7 % | 11.00% |
> 1.6 - 4.0 mm 10.6 % | 9.00% | ||
Compressibility C | IEC 641-2 | ≤ 1.6 mm 9.4 % | 10.00% |
> 1.6 - 4.0 mm 5.7 % | 7.50% | ||
Revers. part of compressibility Crev | IEC 641-2 | ≤ 1.6 mm 54 % | 45% |
> 1.6 - 4.0 mm 71 % | 50% | ||
Min. breakdown voltage in oil | IEC 641-2 | ≤ 1.6 mm 50 kV/mm | 40 kV/mm |
> 1.6 - 4.0 mm 45 kV/mm | 35 kV/mm | ||
Max. conductivity of aqueous extract | IEC 641-2 | ≤ 1.6 mm 3.3 mS/m | 5.0 mS/m |
> 1.6 - 4.0 mm 3.5 mS/m | 6.0 mS/m |
Next let us see more details
Details&features
thick paper board,thick paper board,thick paper board,thick paper board,thick paper board,thick paper board
thick paper board,thick paper board,thick paper board,thick paper board,thick paper board,thick paper board
Product description of thick cardboard sheets Pressboard PSP3052 (Transformer Board PSP3052) is a special product based on pure cellulose taken from long-fibred coniferous wood. This is structured into a fibrous tissue without additional adhesive and then pressed. Due to its high chemical purity, pressboard is excellently suited as an insulation material in electric machines, capacitors and oil-filled transformers.
Where can we use the product?
Product application will make us a direct impression.
Product Application ofthick cardboard sheets To use as insulation material in Power and Distribution Transformers
It is the base material for components like cyclinder, strips, spacers, rings. washers, plates, machine formed and moulded parts, punching and laminates.
What about the product line ?
How to ensure the quality ?
Do you want to know more details?
Go on....
Production Flow
thick paper board,thick paper board,thick paper board,thick paper board,thick paper board,thick paper board
From raw materials to finished products, every process is tested and controlled professionally and seriously by our professional machines and person.
Certifications
thick paper board,thick paper board,thick paper board,thick paper board,thick paper board,thick paper board
Package&shipping
thick paper board,thick paper board,thick paper board,thick paper board,thick paper board,thick paper board
How to send an effective inquiry for saving your time?
Inquiry information
Our Services
thick paper board,thick paper board,thick paper board,thick paper board,thick paper board,thick paper board
1.Response to your inquiries and questions within 24hours.
2.Existing samples provided on free,only charge the freight.
3.High quality products and competitive offer
4.On-time delivery date
