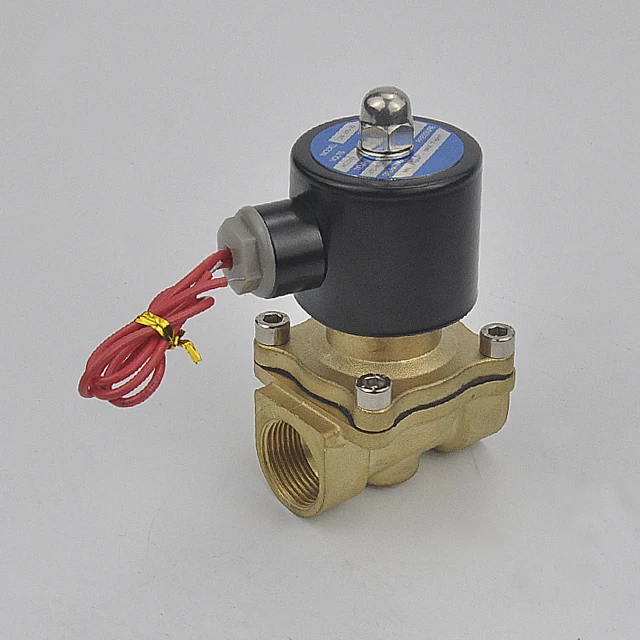

Hot sales NINGBO XINYIPC 2W Series Brass 220v ac Water oil gas solenoid valve price

Product Overview

Description

2016 Hot sales NINGBO XINYIPC 2W Series Brass Water oil gas solenoid valve  220v water solenoid valve

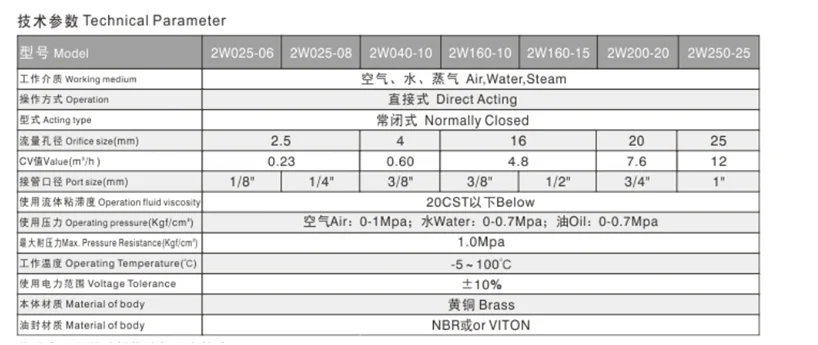

Technical parameters

Working Media       --Liquid, Water, gas, Light oil

Working Pressure     --0-10bar

Medium Temperature -- -5~80℃

Work style:           --Normally closed

Valve Body material   --Brass, Stainless steel

Sealing material     --NBR, EPDM, VITON

Coil parameters      --AC110V  AC220V  AC240V 50Hz/60Hz 26VA

                                    DC12V  DC24V  18W  IP65   Class H

                                   DN 12mm~25mm  AC 22VA  DC 17W

                                   DN 32mm~50mm  AC 28VA  DC 36W

Matches

1.Work style: normally open type        2.Iron shell coil: IP54 Class F

3. Sealing material: VITON, medium temperature -10~130℃; EPDM, medium temperature -10~110℃

4. Thread interface: NPT thread, RC thread   5.With electronic timer controller(P43)

6. With the LED indicator light connector
