ZXFP 2400 Ortholite (Shoe sole) Automatic Continuously Foam equipment

Product Overview

Description

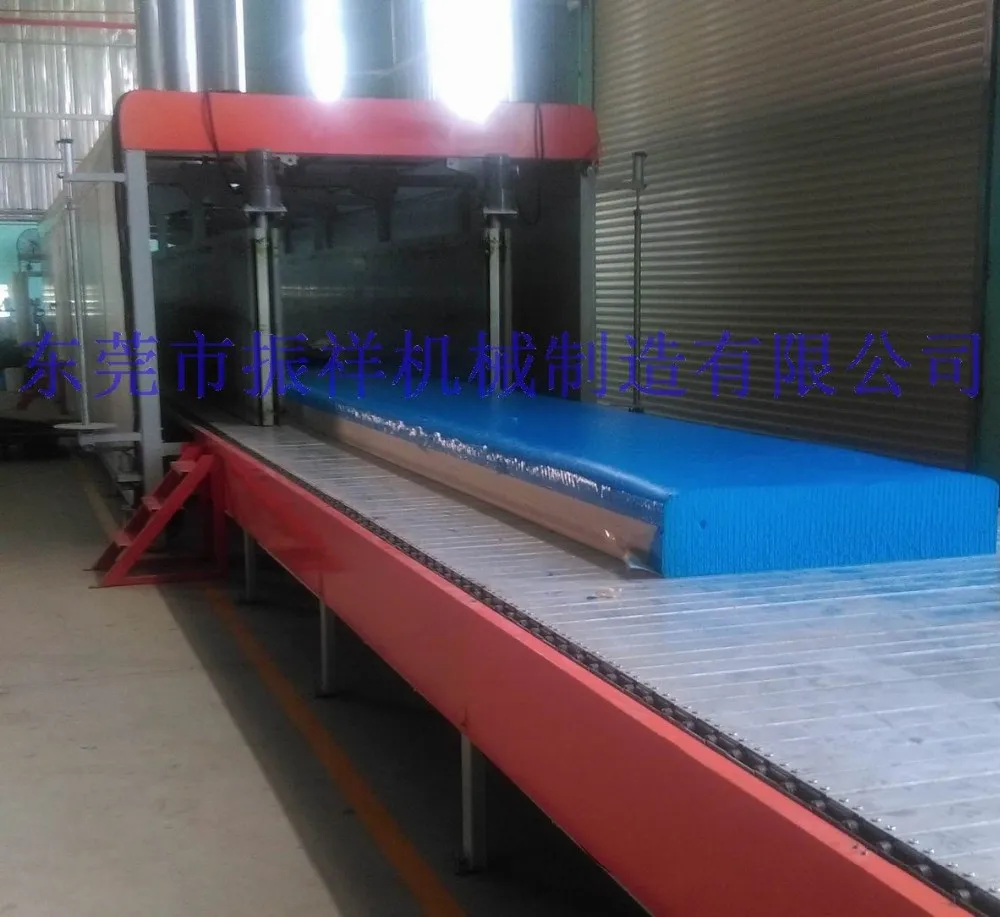

This Horizontal Automatic Continuously Foaming Line is mostly used to produce large-scale continuously foaming production (density is about 8 to 150 kg/m3). it is professional in foaming Ortholite and shoe insole foam. It adopts the advanced touch screen and PLC Operation System, its automatization level is high, the production is low-cost and the quality of foam is outstanding.



Main Technical Specification:

1, Total length 38m×Total width 4m×Total Height 3m

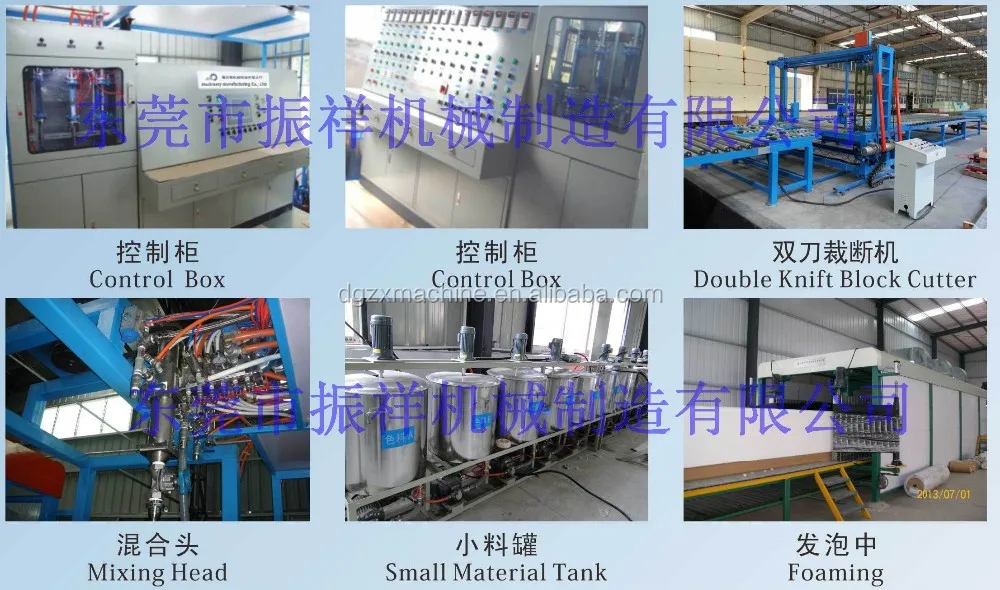

2, Man-machine interface, automatically computer control

3, Foaming width: 980mm~2250mm

4, Foaming height: Max 1300mm

5, Foaming density: 8Kg/m³~150kg/m³

6, Foaming speed: 2000r/min~7000r/min

7, Max total output: 350kg/min

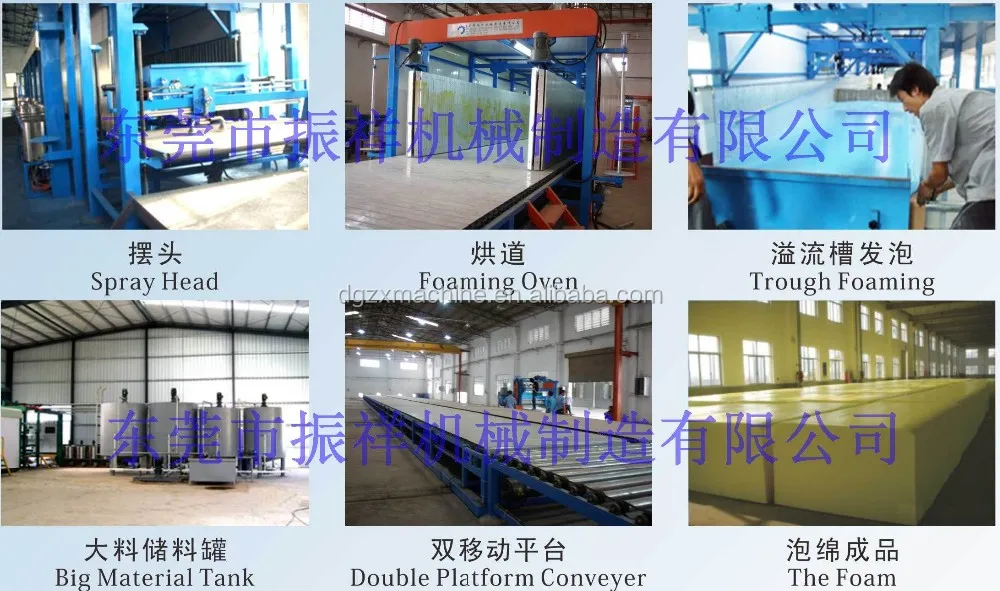

8, Material spraying way:

(1) The way of down sprayer head (upper, down, front, back can be adjusted)

(2) The way of trough device

9, Controlling way of foaming:

(1) PLC controlling, can continuously foaming different formulas in one time

(2) All inverter controlling foaming and work in phase with the production line

(3) Oven declining board height and width can be adjusted by control box.

(4) Oven side wall width can be adjusted by control box.

10, Mixing–head motor: 45kw

11, Total power: About 130kw













The entire machine will be nude packing. Some of the parts will be pack in wooden case. Others will be simple pack with paper or foam sheet with plastic film.

How many container will be needed for the whole set of machine?

For the standard ZXFP-2400 Foam Horizontal Automatic Continuously Foaming Machine, total three containers is enough 2*40HQ+1*20GP. In order to save the place and the cost of delivery we will also put some parts that inside the raw material tank.
We will try the best way to pack all the machine well and also save the freight cost.
