Hot Sale China hpht Cubic Hydraulic Press for Lab Grown Diamond
- Category: >>>
- Supplier: Luoyang Qiming Superhard Material Co. Ltd.
Share on (60419133040):
Product Overview
Description
Company Information
Product Description

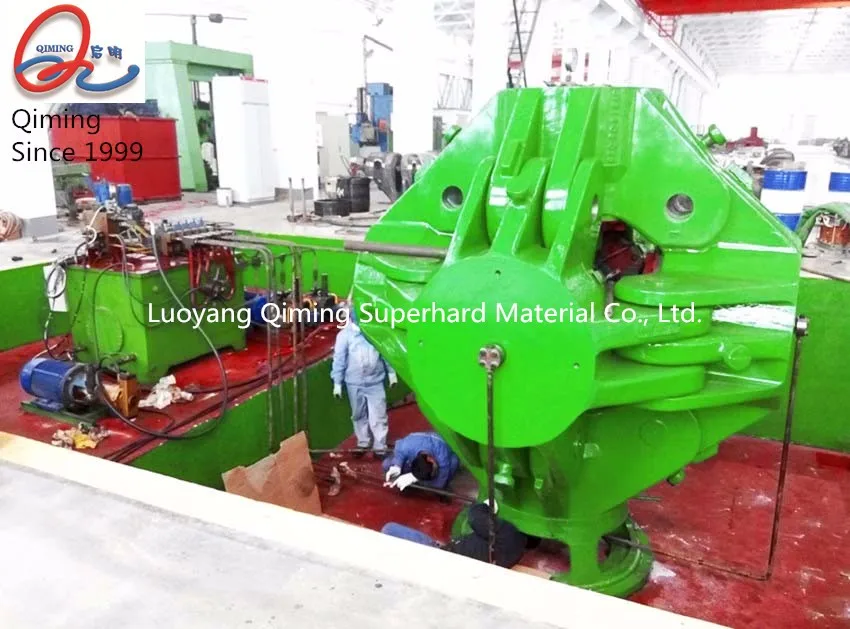

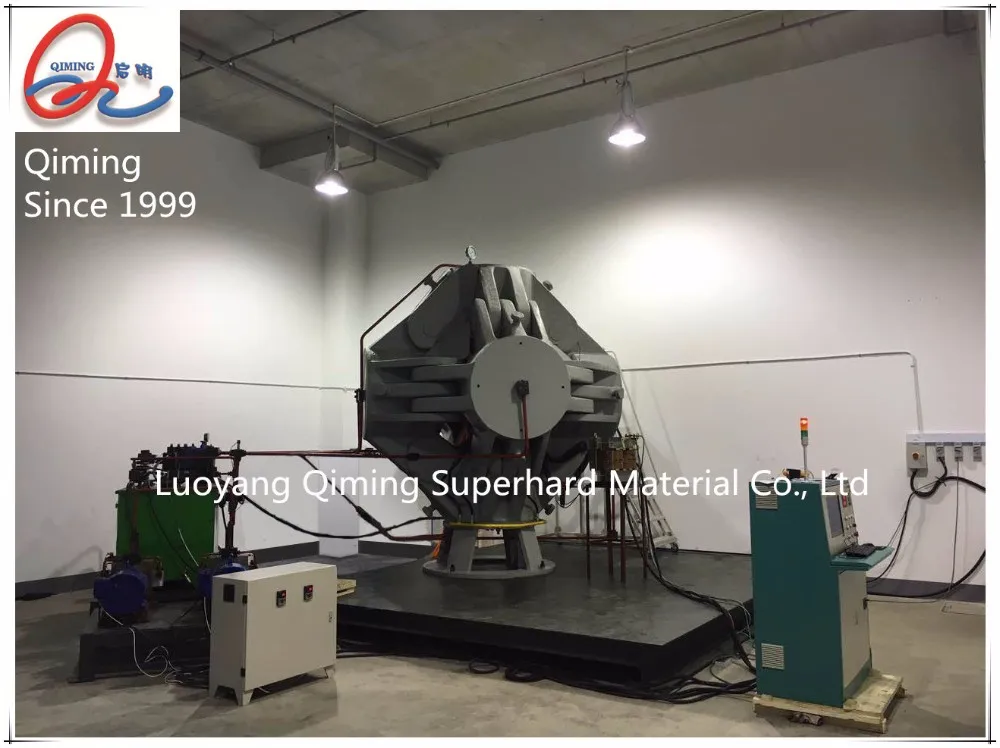

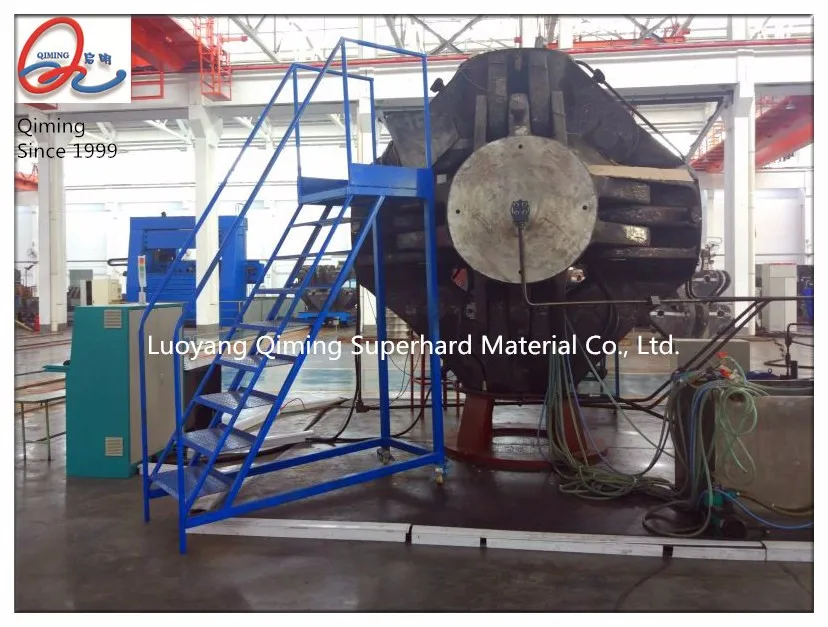

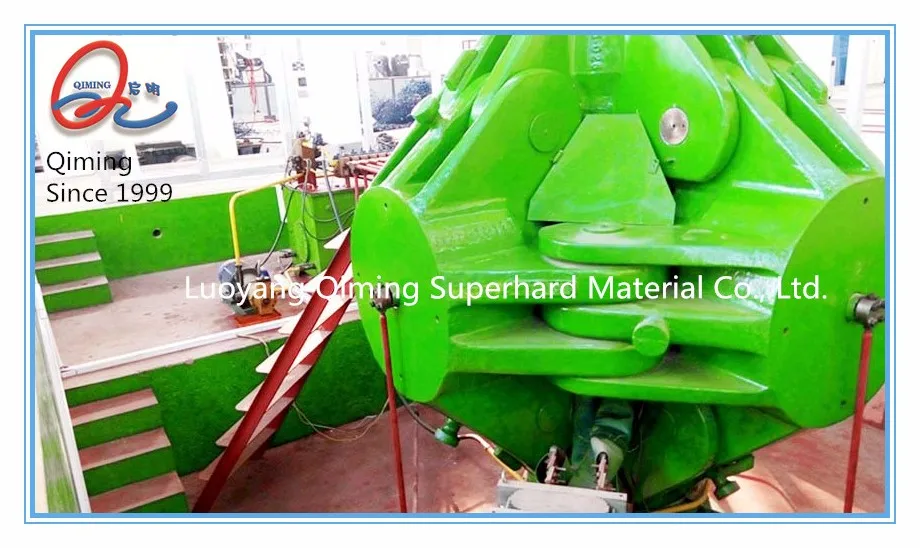

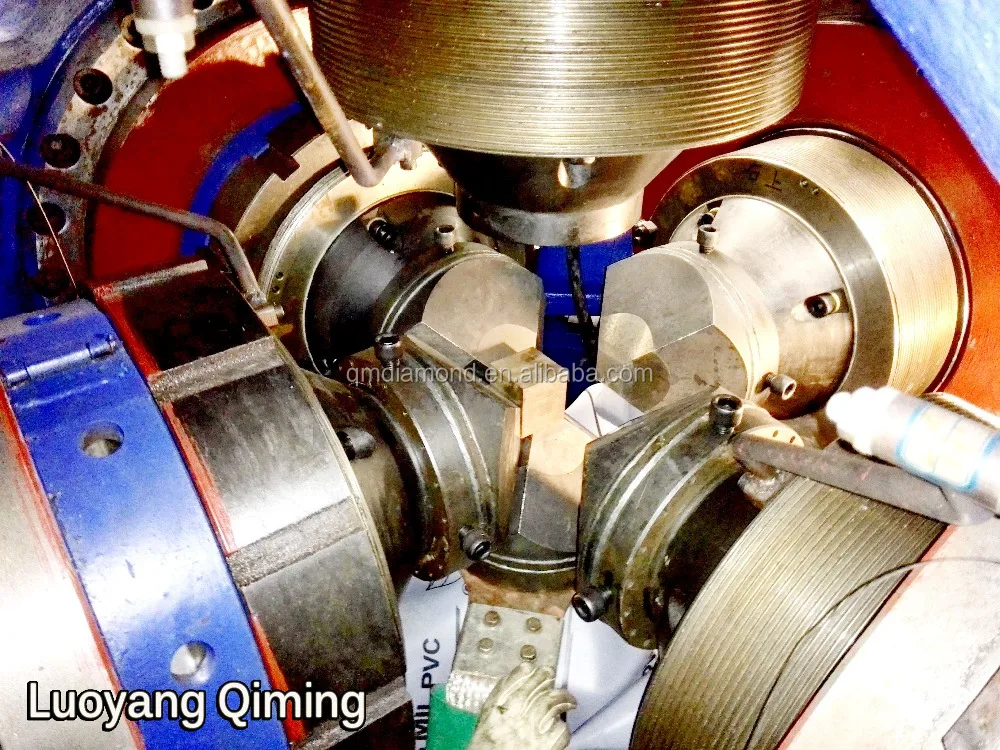

QMYG850 HPHT synthetic diamond equipment uses a cube-shaped volume. Cubic press is this machine's official name.It uses multiple anvils to put pressure on the volume. Originally only four anvils were used, however, cubicpresses now use six anvils because it maximizes the pressure available. They are smaller than belt presses. It is the most commonly used system for producing synthetic diamonds, diamond micro-powder, PDC and so on. It has been used at home and abroad
mainly because of its low cost and high production efficiency.
3.Technical parameters
Parameters/Type | Unit | QMWG700 |
Diameter of cylinder | mm | 700 |
Diameter of piston | mm | 700 |
Design pressure | Mpa | 110 |
Design nominal pressure (single cylinder) | MN | 42.3 |
Working pressure | Mpa | 85 |
Nominal pressure (single cylinder) | MN | 32.7 |
Opening height | mm | 802 |
Closing height | mm | 630 |
Distance of Travel | mm | 86 |
Recommended anvil | mm | 142*49 |
Overall dimension | mm | 2712*2712*3262 |
Weight | T | 45.2 |

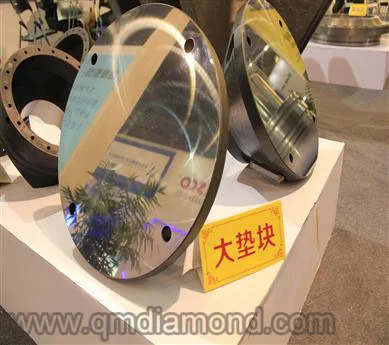

![2014052015204871s[1]](http://sc03.alicdn.com/kf/HTB1_AJeMXXXXXXPXVXXq6xXFXXXM/200921213/HTB1_AJeMXXXXXXPXVXXq6xXFXXXM.jpg)
Packaging & Shipping

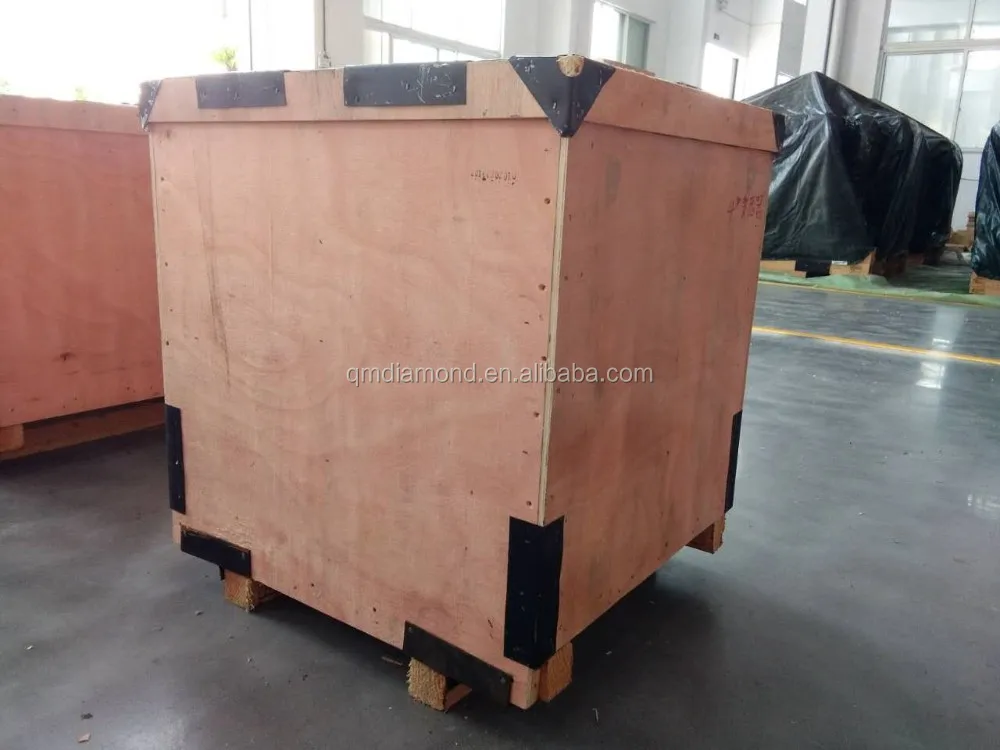

Packaging Detail: export wooden box seperately.
Delivery detail: about 3monthes as usual once the deposit receipt.
Products

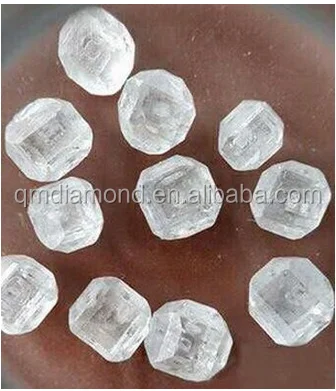

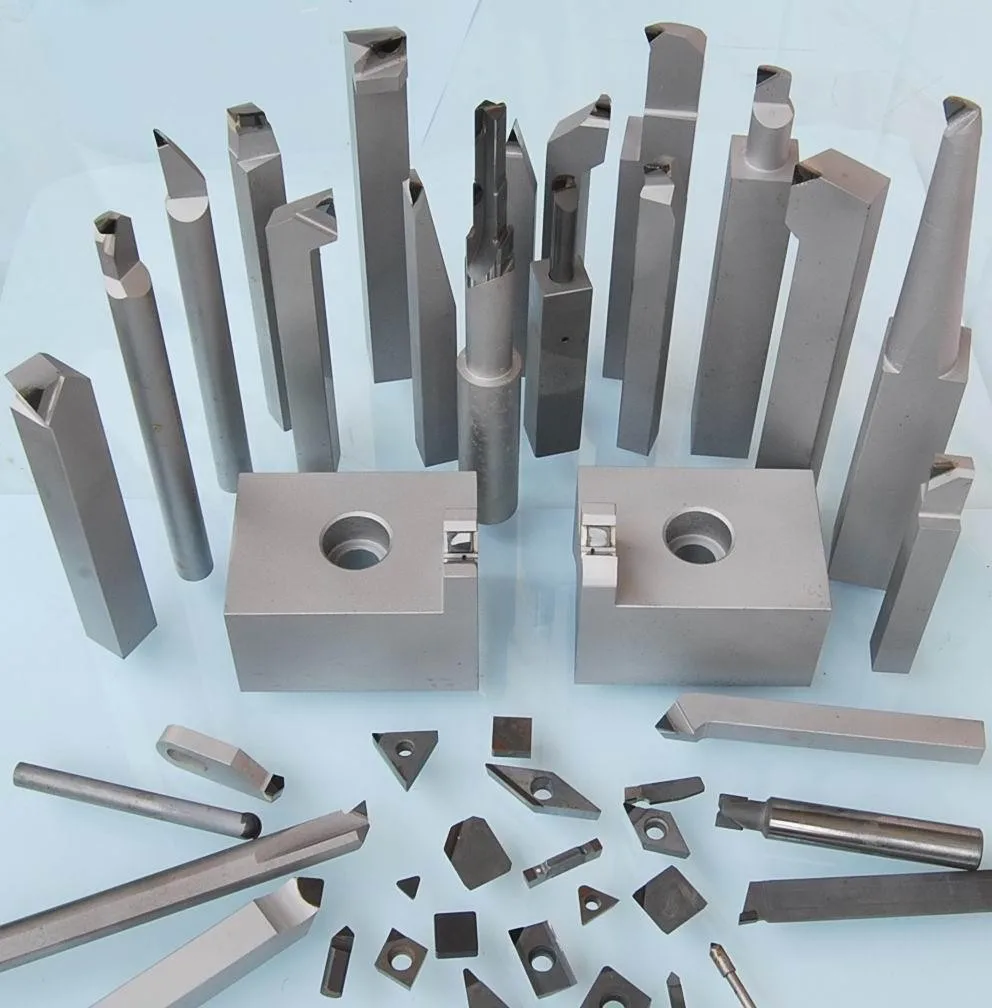

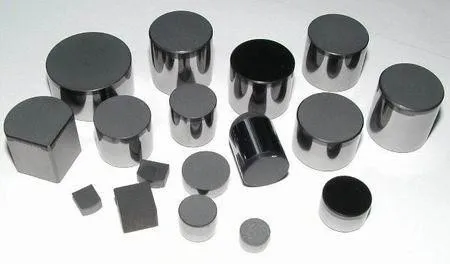

synthetic white diamond, synthetic diamond powder, PCD/PDC, CBN/PCBN, polycrystalline, monocrystalline, large crystal diamond, dimond repair and other superhard material, etc.
Our Services
Redesign: We've strong R&D ability, which can produce the machine based on customer's reasonable requirement.
Training: Specialized assembling team and operation training.
Raw material: Accessories and raw materail can be offered.
For more details, feel free to contact us. We will get back to you as soon as possible.
FAQ
1. What does this machine do?
This is HPHT cubic press, which is mainly used to produce and R&D synthetic diamond, CBN, PCD, PDC,PCBN,polycrystalline, monocrystalline, diamond repair, color alteration and other material.
2. Does this machine can produce CVD diamond?
Our press can produce the seed of CVD diamond, which is yellow single crystal diamond. But it cannot produce CVD diamonds directly. Synthetic diamond is also widely known as HPHT diamond or CVD diamond after the two common production methods (referring to the high-pressure high-temperature and chemical vapor deposition crystal formation methods, respectively).
3. Can this machine do color alteration?
Yes, it can. We have customers made it with our press by their own technology, which has made achievement.
4. What will be used to pack the product?
High-quality wooden box. The material of the box can be the one with fumigation mark according to customer’s requirements. The waterproof paper and
