Ultrastrong Breaking Strength Location Water Leak Detection Cable 4 Pins Water Sensing Cable Leak Sensor Cable Alarm
- Category: >>>
- Supplier: Shenzhen Anying Technology Co. Ltd.
Share on (60419197379):
Product Overview
Description

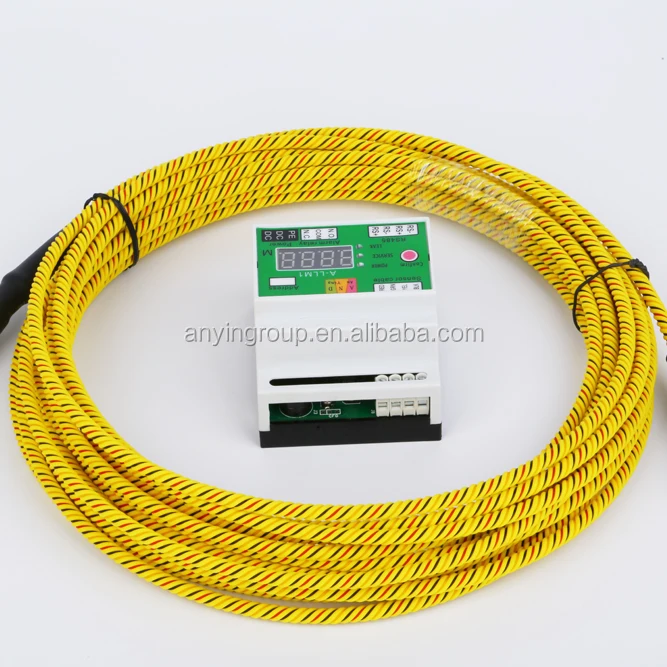

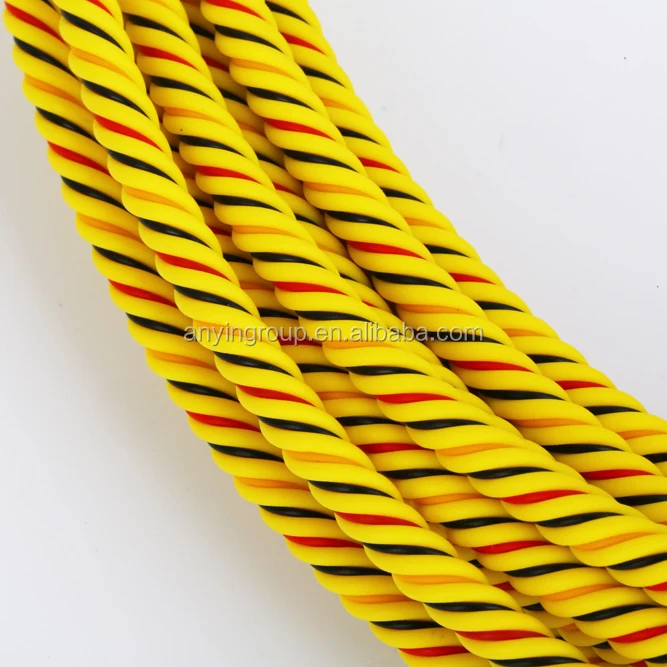

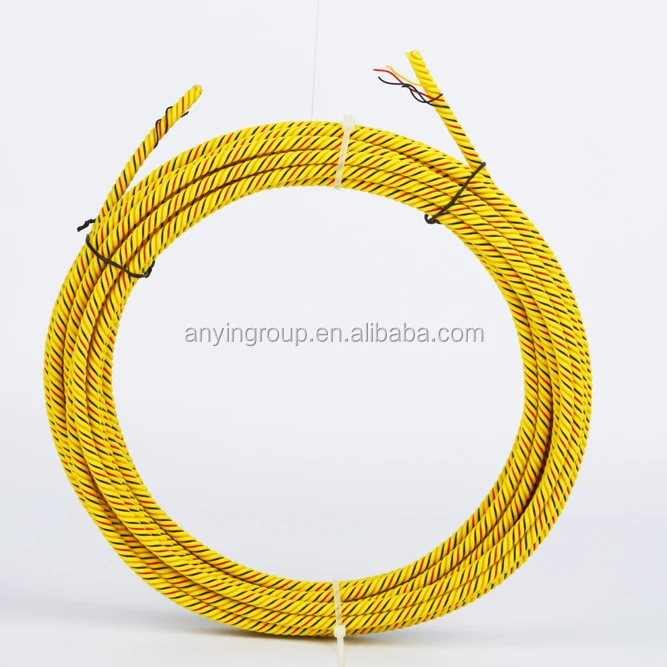

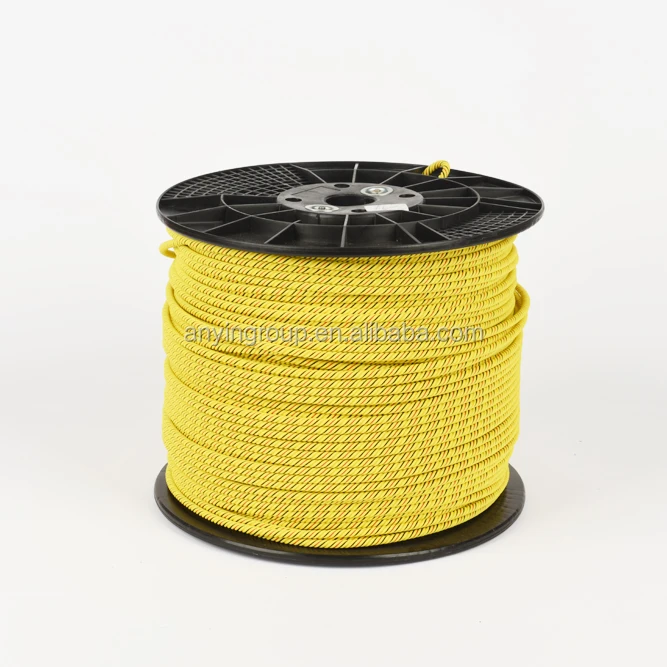

4 pins water sensing cable for location water leak detector, water sensor Cable, water leak detection cable with alarm
Product Description
Using single or Multiple water sensing cable can expand the capabilities of water leak detection.
The length of the A-LLW1000 can be custom-made to any length within 400m.
Color and internal structure are also customizable ( Customize MOQ 500m) .
| Product Features | |
| Product Features | 0.24 in(6.0mm)nominal |

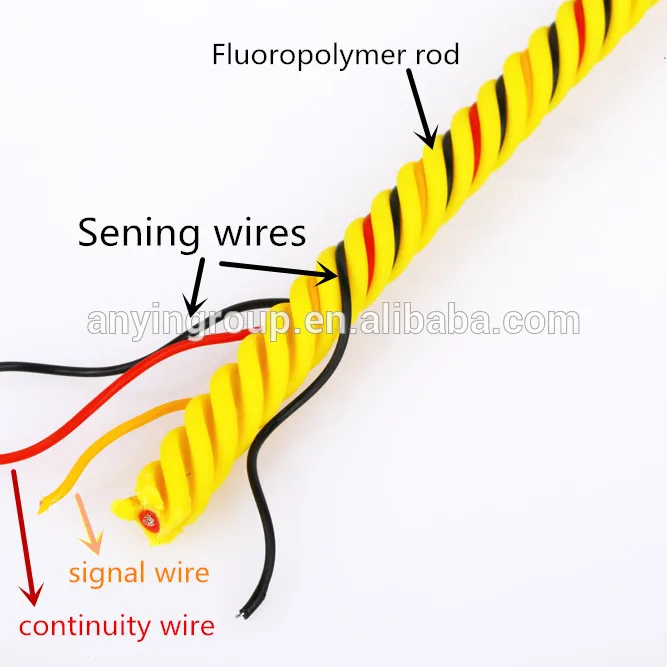

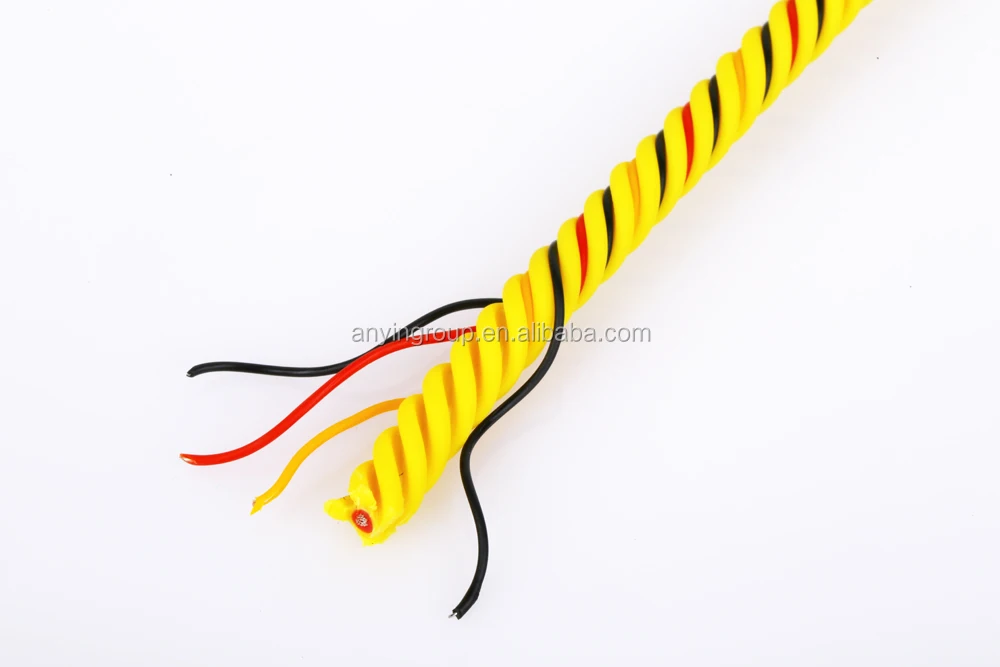

| Continuity and signal wires | 2*26 AWG with insulation of fluoropolymer |
| Sensing wires | 2*30 AWG with jacket of conductive fluoropolymer |
| Carrier | Fluoropolymer |
| Cable weight(50 ft/15m length) | 2.3 lb (1kg) |
| Cable color | High-visibility yellow |
| Technical Information | |
| Breaking strength | Cable only:160 Ib(72KG) .Including connectors:70 Ib(32kg) |
| Cut-through force | >50Ib with 0.005(>22kg with with 0.13mm) in blade; cross head speed 0.2in/min |
| Abrasion resistance | >65 cycles per UL719 |
| Maximum continuous operating temperature | 70degree |
| Performance Data | |
| Leak size to alarm(tap water) | 2 in(50mm)maximum at any point along sensing cable ,up to 5000 ft maximum system length |
| Drying time | Cable dries and resets within 15 seconds removal from standing water |
| Standard cleaning method | Wipe with clean damp cloth |
Applications
Data Center
Water damage is the most unknown environmental threat for a data center. Once the leakage occurs under the raise floor, it can flood electric wires, cause heavy financial losses especially for the banking and telecommunication systems. Early detection will avoid catastrophic damages.
Wafer/Chip/Semiconductor Plants
The expensive equipment in these plants can be damaged once in contact with the liquid. More seriously, it will cause the production suspension.
Technical Room-MER/UPS Room
These rooms are critical to assure the good functioning of the whole building. In case of the leakage water in contact with UPS would paralysis the backup system, causing the most serious data damage loss. This is the crucial environment in which water leakage is unacceptable.
Museum & Library
Precious artistic work, highly protected cultural relic, rare specimen demonstrated in the museum and books deposited in libraries are concerned by 100% safety. Protection of water leakage is one of these priorities.
Company Information
Shenzhen An Ying Technology Co.,Ltd was established in 2009.Our company has strong science and technology strength.Otherwise ,there are many high quality researching talents who own the master's and bachelor's degree.We have established the machine room monitoring departmen under our common efforts.We specialize in researching ,producing and processing leak detector,machine room monitoring device, agriculture monitoring device etc. The head office is located in Shenzhen.There is complete and scientific quality management system in Shenzhen An Ying Technoloey Co.,Ltd . The honesty, the strength and the high quality of the products has been recommended by the industy and the customers in the world. Your presence and guidance ,or business negotiation are warmly welcome.
Certifications
Packaging & Shipping
What we provide for this :
- Common box packing / Gift box packing / OEM and Customized packing is welcome.
- Normally, we use courier service ( such as UPS, DHL, FedEx, TNT) for fast and safely shipping methods.
- Delivery time, within 2-7 working days and sample can be sent within 24 hours
Our Services
What we provide:
- Quite competitive and reasonable price.
- A most strict QC standard in the industry is implemented.
- Strong ability to develop new products,with a dedicated R&D department.
- Always solve the problem of water leakage for you.
