The needle-punched non woven geotextile is produced from polyester or polypropylene fiber by different equipment and technology to get different thickness .The main function is filtration ,drainage ,reinforcement .It has good impermeability and resistance to deformation.
Filament polyester geotextile
The filament non-woven geotextile is produced from polyester long fiber forming into net and consolidation with three dimension structure.It's kind of new material in geotechnical and engineering project .Except for its good mechanical properties of tensile strength and puncture resistance ,it also has good drainage ability ,acid and alkali resistance and anti-aging .The wider opening size allows it has good permeability and filtration .
>>Specification
raw material
PET continuous filament fabric /PET staple fiber fabric
color
white/black/grey or as your request
gsm
100g/m2 to 800g/m2
roll size
width(1m to 6m),length(50m to 200m)
process
spun-bonded,needle punched,if required,heat-set is also available
packing
PP woven plastic bags
project

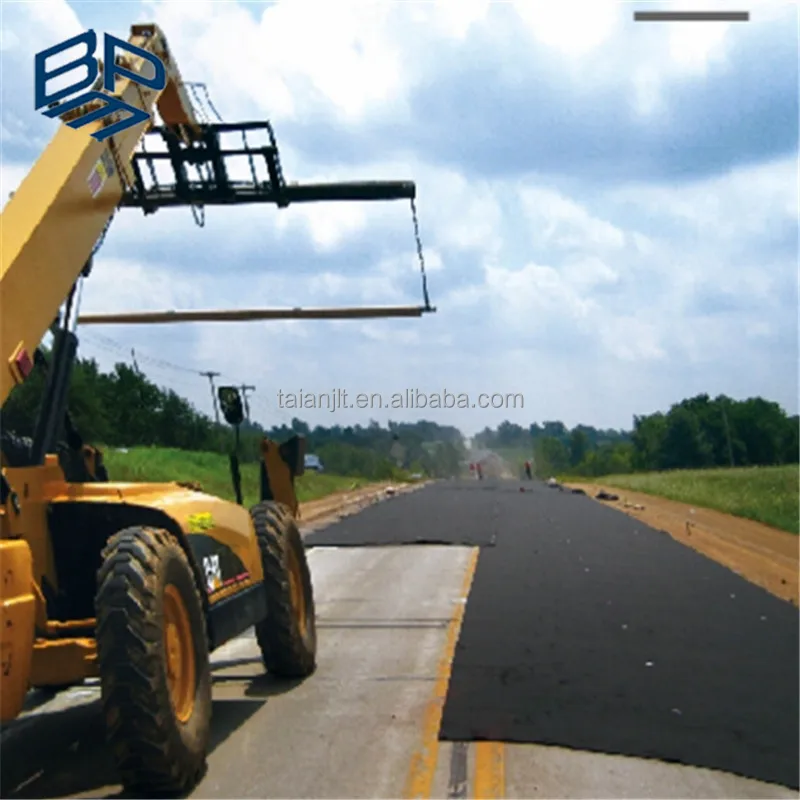

road construction,geomembrane protection,river bank erosion control,etc
>>Features
high elongation
high tensile strength
excellent permeablity
durable CBR puncture resistance and UV stabilized
>>Technical Parameter
No.
Specification(g/m2)
100
150
200
250
300
350
400
450
500
600
700
800
1000
Remark
1
Weight deviation, %
-8
-8
-8
-8
-7
-7
-7
-7
-6
-6
-6
-6
-6
2
Thickness, mm≥
0.9
1.3
1.7
2.1
2.4
2.7
3
3.3
3.6
4.1
4.5
5
5.8
3
Width deviation,%
-0.5
4
Breaking strength, KN/m ≥
2.5
4.5
6.5
8
9.5
11
12.5
14
16
19
22
25
31
MD and CD
5
Breaking elongation,%
25~100
6
CBR bursting strength, KN≥
0.3
0.6
0.9
1.2
1.5
1.8
2.1
2.4
2.7
3.2
3.7
4
5
7
Sieve Size O90 mm
0.07~0.2
8
Vertical permeability
Kx(10-1~10-3 )
K=1.0 ~9.9
coefficient, cm/s
9
Tear strength, KN≥
0.08
0.12
0.16
0.2
0.24
0.28
0.33
0.38
0.42
0.46
0.53
0.6
0.75
MD and CD
>> Function of geotextiles
1.Separation
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different
granule pathway from the groundsill or other buildings. 2.Reinforcement The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earthbody stability. 3.Protection It prevents the bank from being washed out, protects the bank and the
bottom, prevents the water and soil from being washed away
>>Application
All have a wide range of applications and are currently used to advantage in many civil engineering applications including roads,airfields,railroads,embankments,retaining structures,reservoirs,canals,dams,bank protection coastal engineeringand reinforce the roadbed.
>>Our Packing
Geomembranes are wrapped double layers woven geotextile,and added two strips at both ends.
Geotextiles are wrapped double layers woven geotextile.
Of course, If you have any requests, we will package products as your request.
All products will be loaded container safely.
>>Our Certificates
We have obtained SASO, SONCAP, BV, ISO and other certificates.
And we also have passed DEKRA, Intertek, CNAS and other tests.
Our quality is reliable.
If you have any other test or certificate, we can do it for you.
**If you have any question ,feel free to contact me .
