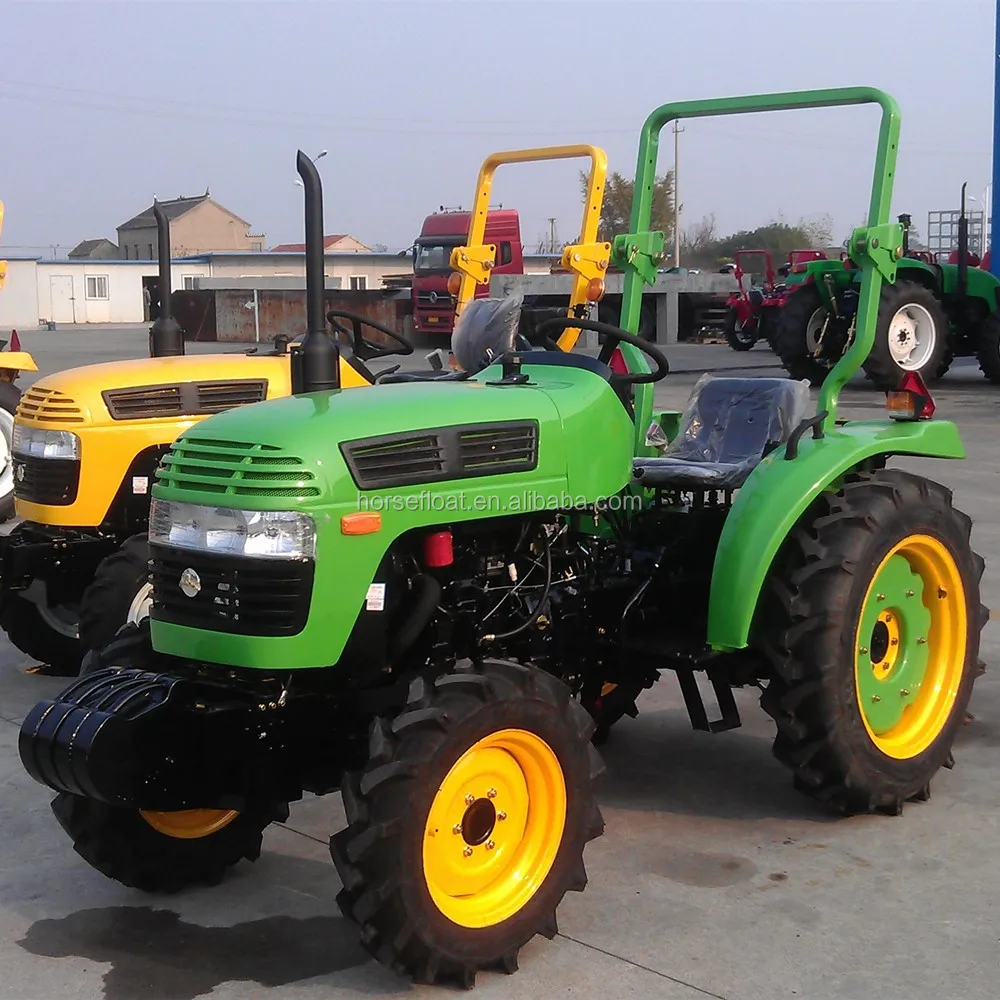

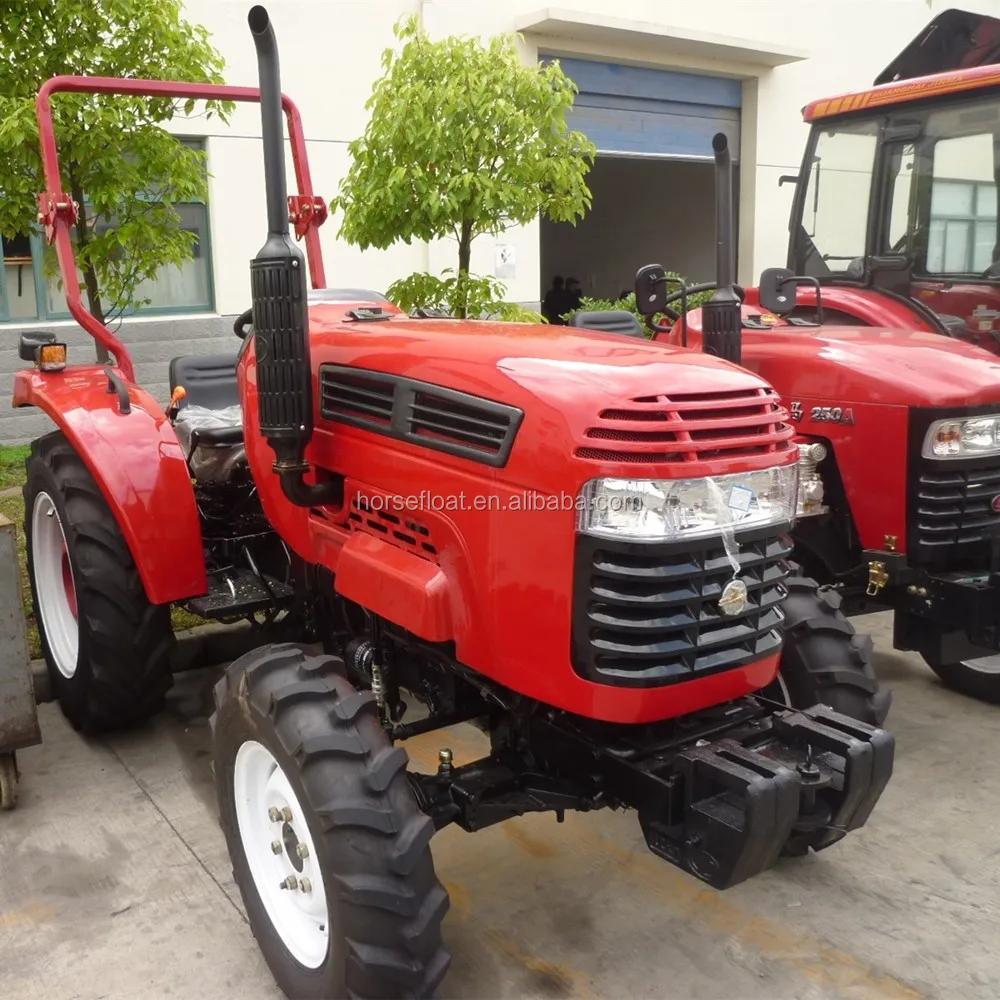

JM 254 jinma 25hp mini traktor for sale at good price
- Category: >>>
- Supplier: Henan Lucky Machinery Co. Ltd.
Share on (60419358646):
Product Overview
Description
Product Description
Jinma 20-35hp mini traktor mini for sale now at very good price. All the tractors are from Jinma factory with 12 months warranty.
25hp 4wd Jinma traktor spec.
| Model | JM-254 | ||||
| Drive Type | 4WD | ||||
| Overall Dimensions | 3080x1440x1930 | ||||
| L*W*H(mm): | |||||
Wheel Track (mm) | Front | 1100 | |||
| Rear | 1040-1200 | ||||
| Wheel Base(mm) | 1645 | ||||
| Ground Clearance (mm) | 295 | ||||
| Rated Traction Force(N) | 5980 | ||||
| Construction Mass(kg) | 1140 | ||||
| Min.Turning Radius(m) | 2.8 | ||||
Theoretical Speed (Without creeper)( km/h) | Forward | 1.73,3.42,5.71,8.01,15.80,26.40 | |||
| Reverse | 1.37,6.35 | ||||
Theoretical Speed (With creeper)( km/h) | Forward | 0.32,0.64,1.06,1.49,2.95,4.92 | |||
| Reverse | 0.26,1.18 | ||||
| Engine | Model | Y385/KM385 | |||
| Type | 3-Cylinder Vertical,water cooled,4 stroke cycle | ||||
| Rated Power(kw/hp) | 18.4/25 | ||||
| Rated Speed (rpm) | 2350 | ||||
| Bore*Stroke(mm) | 85*90 | ||||
| Total Displacement(L) | 1.532 | ||||
| Drive system | Clutch | Single/Dual-Stage | |||
| Gear Box | (3+1)*2 | ||||
| Main Drive | One Pair of Spiral Bevel Gearing | ||||
| Differential | Bevel Gear | ||||
| Differential Lock | Jaw Lock | ||||
| Final Transmission | External gearing, Spur Gear | ||||
Traveling Mechanism | Tyre | Front | 6.00-16 | ||
| Rear | 9.5-24 | ||||
| Steering Gear | Full Hydraulic Steering | ||||
| Brake | Disc type | ||||
Working device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 4200 | ||
3-Point Suspension | Category:I | ||||
| P.T.O | Speed (rpm) | 540/1000 | |||
| Shaft | Spline Size | 35Rectangular 6 Spline | |||
| OPTIONS | ROL BAR,CANOPY,SHUTTLE,HYDRAULIC STEERING,TURF TYRE,CAB | ||||
Color: gree, red, blue, silver are optional
Packaging & Shipping
Iron frame or nude packing in container
L/T: 35days after order confimmation
Our Services
Payment terms: 30% TT down payment, 70% TT before delivery
Warranty: 12months
Departure port: Qingdao or Shanghai
FAQ
Why we only sell Jinma/YTO tractor?
1)Jinma/YTO tractor quality is good, it is reliable tractor
2)YTO company is with high reputation and good credit
3)We are partner of Jinma/YTO factory
What's the payment terms?
30% TT down payment, 70% TT before delivery.
Is it farm implements available?
Yes, it is available.
