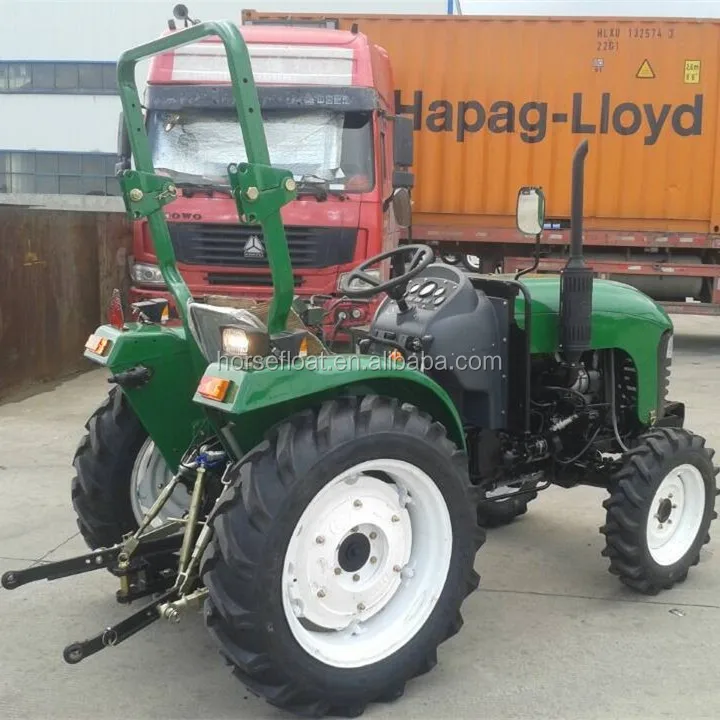

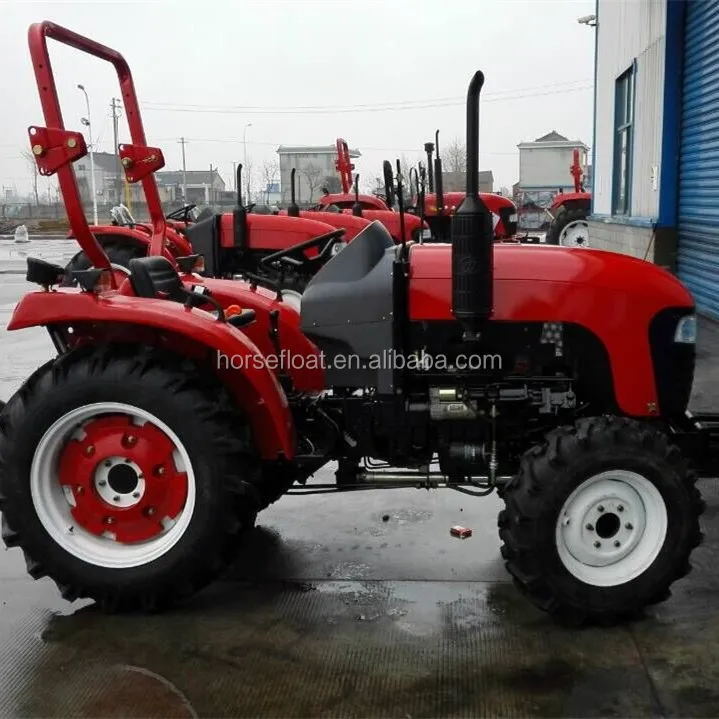

JM 354 35hp traktor mini, famous Jinma brand
- Category: >>>
- Supplier: Henan Lucky Machinery Co. Ltd.
Share on (60419362624):
Product Overview
Description
Jinma 20-35hp china mini traktor for sale now at very good price. All the tractors are from Jinma factory with 12 months warranty.
35hp 4wd Jinma 354 traktor mini spec.
Tractor Parameters | Model | JM-354 | |
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H(mm): | 3357x1435x1985 | ||
| WheelTrack(mm) | Front | 1200 | |
| Rear | 1150-1450 | ||
| Wheel Base(mm) | 1833.5 | ||
| Ground Clearance (mm) | 292 | ||
| Rated Traction Force(N) | 8800 | ||
| Construction Mass(kg) | 1800 | ||
| Min.Turning Radius(m) | 4.2 | ||
Theoretical Speed (With out creeper gear (km/h) | Forward | 2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867 | |
| Reverse | 2.861,13.2 | ||
| Engine | Model | TY3100/4L22T | |
| Type | 3/4-Cylinder,Vertical,Water-Cooed,4 Stroke Cycle | ||
| Rated Power(kw/hp) | 25.7/35 | ||
| Rated Speed (rpm) | 2300/2350 | ||
| Bore*Stroke(mm) | 100*105/85*95 | ||
| Total Displacement(L) | 2.47/2.156 | ||
Drive Sysytem | Clutch | Single/Dual stage | |
| Gear Box | (4+1)*2 | ||
| Main Drive | One Pair of Spiral Bevel Gearing | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmissions | Spur Gear,External,Gearing | ||
Travelling Mechanism | Tyre | Front | 7.5-16 |
| Rear | 11.2-24 | ||
| Steering Gear | Power Steering | ||
| Brake | Disc type | ||
Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Pioint (N) | 5800 |
3-Point Suspension | Category:I | ||
| P.T.O Shaft | Speed (rpm) | 540/720 or | |
| 540/1000 | |||
| Spline Size | 5Rectangular 6 Spline | ||
| OPTIONS | ROLL BAR,CANOPY,CAB | ||
Color: gree, red, blue, silver are optional
Packaging & Shipping
Iron frame or nude packing in container
L/T: 35days after order confimmation
Our Services
Payment terms: 30% TT down payment, 70% TT before delivery
Warranty: 12months
Departure port: Qingdao or Shanghai
FAQ
Why we only sell Jinma/YTO tractor?
1)Jinma/YTO tractor quality is good, it is reliable tractor
2)YTO company is with high reputation and good credit
3)We are partner of Jinma/YTO factory
What's the payment terms?
30% TT down payment, 70% TT before delivery.
Is it farm implements available?
Yes, it is available.
