Paper Making Industry Multi Disc Filter Machine
- Category: >>>
- Supplier: Shandong Easttai Paper Machinery Co. Ltd
Share on (60419444398):
Product Overview
Description
Multi-Disc Filter
Product Description
Application:
• By adopting the vacuum formed by the drop leg extraction, and also with the help of the filtration
media, disc filter separates the solid and the filtrate and gets filtrates in different quality divided
by the distribution valve.
• It is widely used for white water recycling and pulp thickening. When used as saveall, it recycles
water and fibers; when used for thickening, it achieves high production rate with low fiber loss via
unit machine.
• Outlet consistency can reach to 12%~14%.
Design Features:
• Disc with different structures and high strength, ensures larger effective filtering area.
• It is economical and easy to replace.
• All models and sizes are available.
• Filtering area can be modified upon capacity requirements.
• Distribution plates are made of special wear resistant material, which has good seal effect.
Main Technical Data:
Model | EST37 | EST45 | EST52 | |
Filter disc diameter (mm) | 3700 | 4500 | 5200 | |
Filter disc number | 6-16 | 8-20 | 10-20 | |
Single filter disc area (m2) | 17 | 26 | 38 | |
Main driving motor power (kw) | 7.5-15 | 11-18.5 | 15-37 | |
Inlet consistency (%) | OCC, Chemical wood pulp | 0.5-1.2 | ||
Deinking stock, straw pulp | 0.5-1.0 | |||
White water recovery | 0.3-0.8 | |||
Outlet consistency (%) | OCC, Chemical wood pulp | 8-12 | ||
Deinking stock, straw pulp | 8-12 | |||
White water recovery | 3.5-4.5 | |||
Capacity (m3/m2.h) | OCC, Chemical wood pulp | 0.7-1.1 | ||
Deinking stock, straw pulp | 0.5-0.7 | |||
White water recovery | 1.6-3.8 | |||
The capacity may be different according to different pulp variety and concentration.
So the capacity in the above chart is only used for choosing the model.

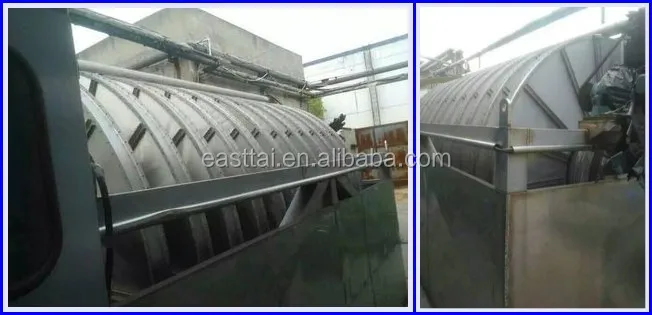

Products Pictures:

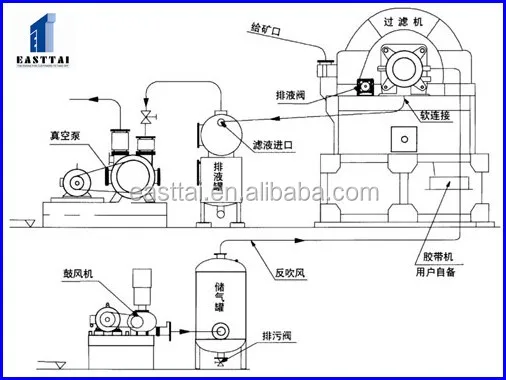

Struture:
Company Information
EASTTAI INDUSTRIAL LIMITED is mainly engaged in exporting paper machine and providing high
quality products and service for foreign customers. Our products mainly exported to Southeast Asia,
Africa, Latin America and other more than 10 countries and areas.
We are the key manufacturer specializing in papermaking machinery equipments. Acting as a local
representative of manufacturers for the last few years, it primarily deals paper machinery spare parts
in China. Meantime we have established a good reputation and dependability in the market through
our committed services to all concerned.
Paper making production lines we can supply:
Waste paper pulp machine production line |
Automatic corrugated box production line |
Corrugated paper making production line |
Fluting paper pulp making production line |
Coated White Board Paper production line |
Honeycomb Paper making production line |
Testliner paper making production line |
Paper plate making production line |
Tissue paper making production line |
Toilet paper making machine line |
Kraft paper making machine line |
Boxboard paper machine line |
Paper coating machine line |
Napkin paper machine line |
OCC line |

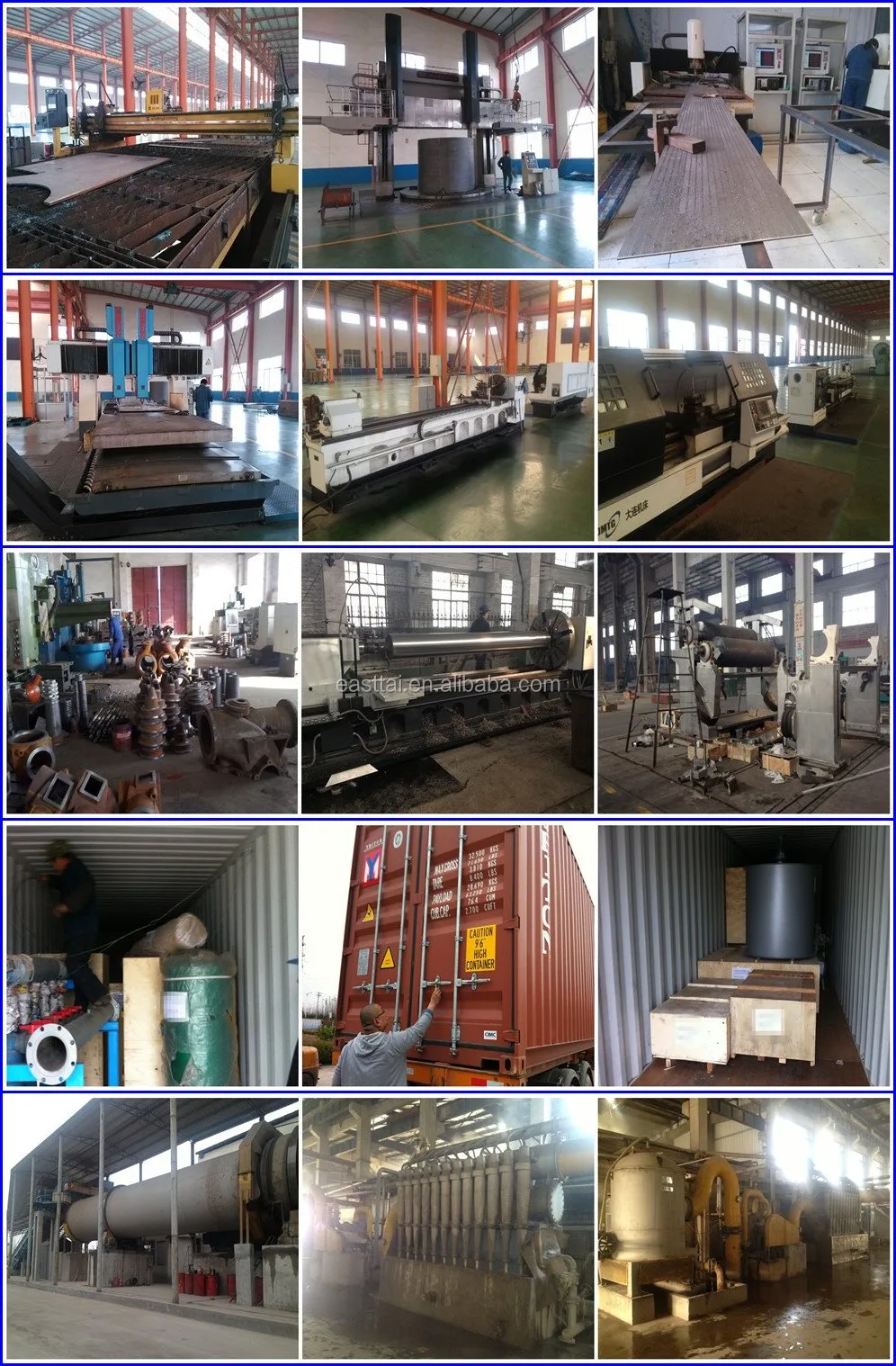

Our Factory:

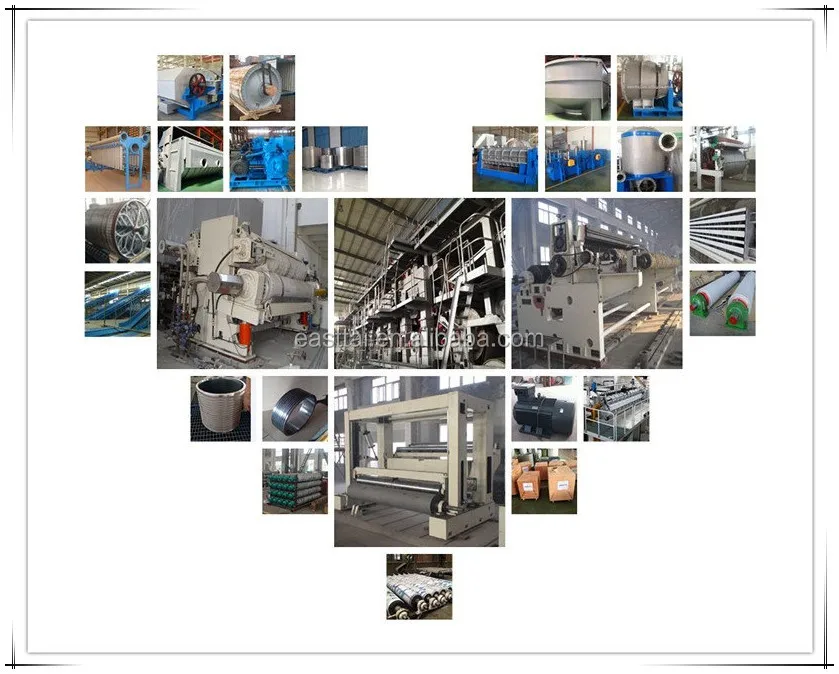

Our Products:
Packaging & Shipping
Our Services
Customer first!Quality first!
Pre-sales Service
• Offering comprehensive technical and business consultation services;
• Proposing the most suitable scheme and equipment for our clients;
• Designing and fabricating targeted products according to the special requirements of clients;
• Training periodically high qualified service technician.
After-sales Service
• Highly inspecting equipments in every working procedure, quality comes first;
• Fast & Safe Delivery;
• Assisting our clients for foundation construction of equipments;
• Dispatching engineers to install and debug equipments;
• Training the first-line operators on site;
• Regularly visit clients to solve production problems;
• Providing life-long maintenance service;
• Providing technical exchanging.
FAQ
Q: Are you a manufacturer or a trade company?
--- We are a manufacturer of professional papermaking machinery equipment and spare parts with
several years experience.
---Our products mainly exported to Southeast Asia, Africa, Latin America and other more than 10
countries and areas.
---Welcome to visit our factory at your time.
Q: How long does your product quality warranty last?
---One year for all our products against any nonartificial quality problem since the product leave our
factory. We could also offer a longer warranty, but the price will be a little higher.
Q:Can I see the running machine in your factory?
---Seeing is believing ! It would be our honor If you can come and visit us. and we have confidence
that our machine performance will make you satisfied.
Q: What will you do with quality complaint?
---All of our products are tested before the delivery. No product that failed performance test leaves
our factory.
---Our engineer team is always at your disposition to resolve your problems about installation,
operation and maintenance.
Q: What about your delivery time?
---It depends on your paper or pulp making technology. Generally 15 days after we receive the
deposit or the prepayment. We will confirm you again when we start to produce.
Q: Do you accept L/C payment?
---Of course. Besides, we accept T/T payment, 30% prepaid as deposit and 70% against B/L.
