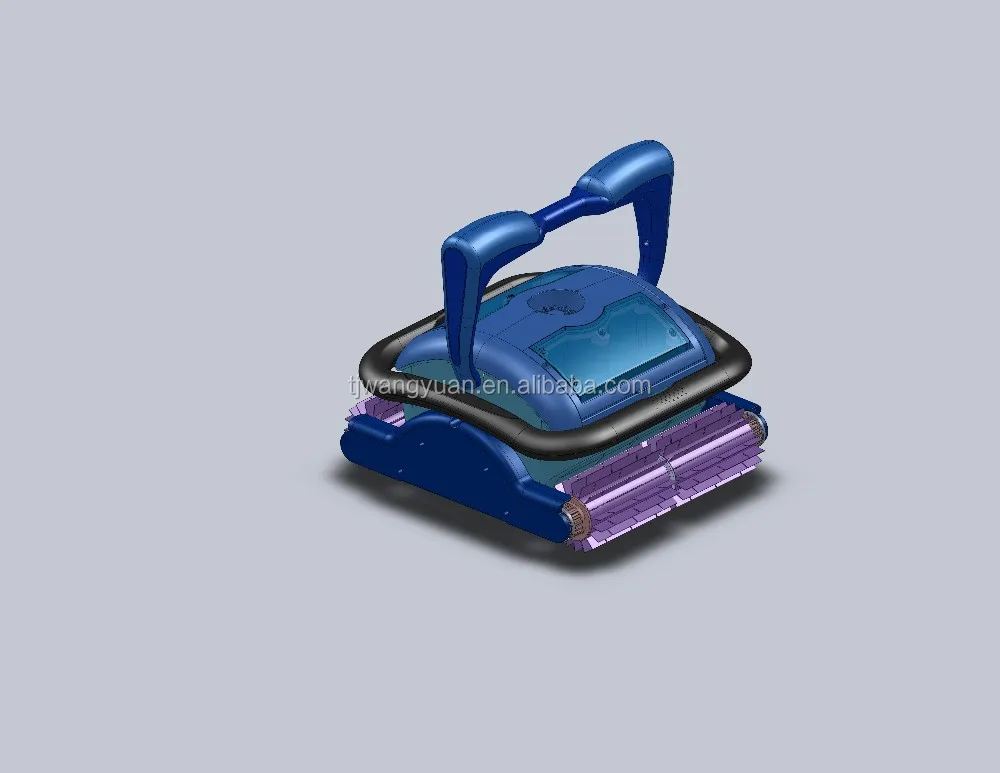

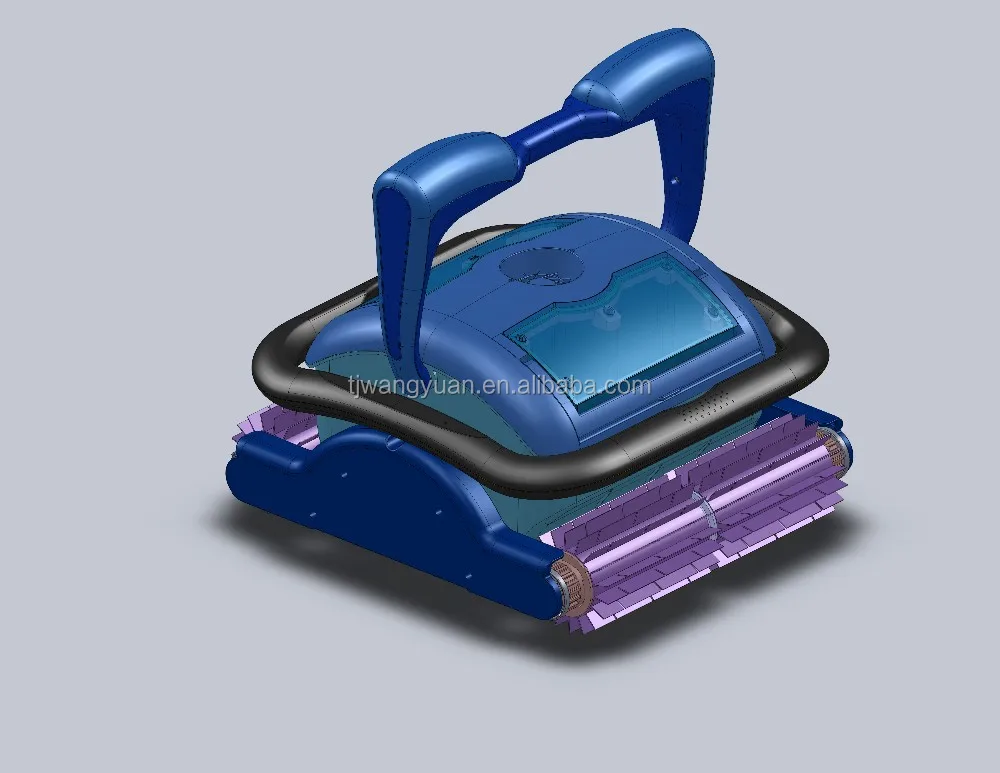

Wall climbing automatic pool cleaner

TheHJ3010 (Basic model) robotic pool cleaner is a new type of highly efficientand energy-saving swimming pool cleaning robot. Through its advanced computer controlled program, it can clean the pool walls and bottom automatically. At the same time, it filters the pool water and gets rid of suspended particles without replace the pool water. It’s total environmental-friendly.

For safe operation, the cleaner works on 24V direct current.

1.Rated input voltage: 220VAC(230VAC)/ 110VAC(120VAC)

2.Frequency:50Hz/60Hz

3.Output voltage:DC24V

4. Power:200W

6. Remote control frequency:433M

7.Cable length: 20m/30m/40m

8.Roller length:465mm

9.Max cleaning area:appr. 270 square meters (18m cable)

10.Filter volume:20m³/h

11.Filter ability: 180 μm, 250 μm.

12.Pool water temperature:10℃-32℃

13.Working temperature:10℃-40℃

14. Moving speed:12.5m/min

15. IP grade:Cleaner IPX8

Power supply unit IPX5

16. Cleaner weight:12.5kg(Without cable)

Warranty 2 years for motor(s) and electical parts.

Rapid after-sales service in China and Europe.

All spare parts available on customer request.

    As a manufacturer of Sino-French joint-venture, we're established in 2005, key product includes swimming pool cleaner and related accessories. We have strong technical ability, good financial condition and a professional team of both Chinese and French engineers, as well as experienced technical workers and a elite management team led by general manager who has many years experience in France. We committed to research, production, selling and after sales service, the R&D centre and European marketing centre is located in France and is in charge of new product developing, design and communications with European super markets and professional shops, there is a perfect after sales service system in Europe with manufacturing base in TEDA of Tianjin, the plan of opening new branches in the USA, Australia and Middle east is also in process.

The HJ3010 (Basic model) robotic pool cleaner is a new type of highly efficientand energy-saving swimming pool cleaning robot. Through its advanced computer controlled program, it can clean the pool walls and bottom automatically. At the same time, it filters the pool water and gets rid of suspended particles without replace the pool water. It’s total environmental-friendly.

For safe operation, the cleaner works on 24V direct current.

Smart program of cleaning route

Manual/auto control to move forward/backward, turn left/right

Control on smart phone apps through wifi (optional)

Full coverage of pool floor, walls and waterline, multiple choice of pool floor only, walls only, once for each of pool floor and walls, or even triple for pool floor and once for pool walls

Powerful vacuum filter system to catch leaves, hair, mud, dust, algae and other fine particles on the floor.

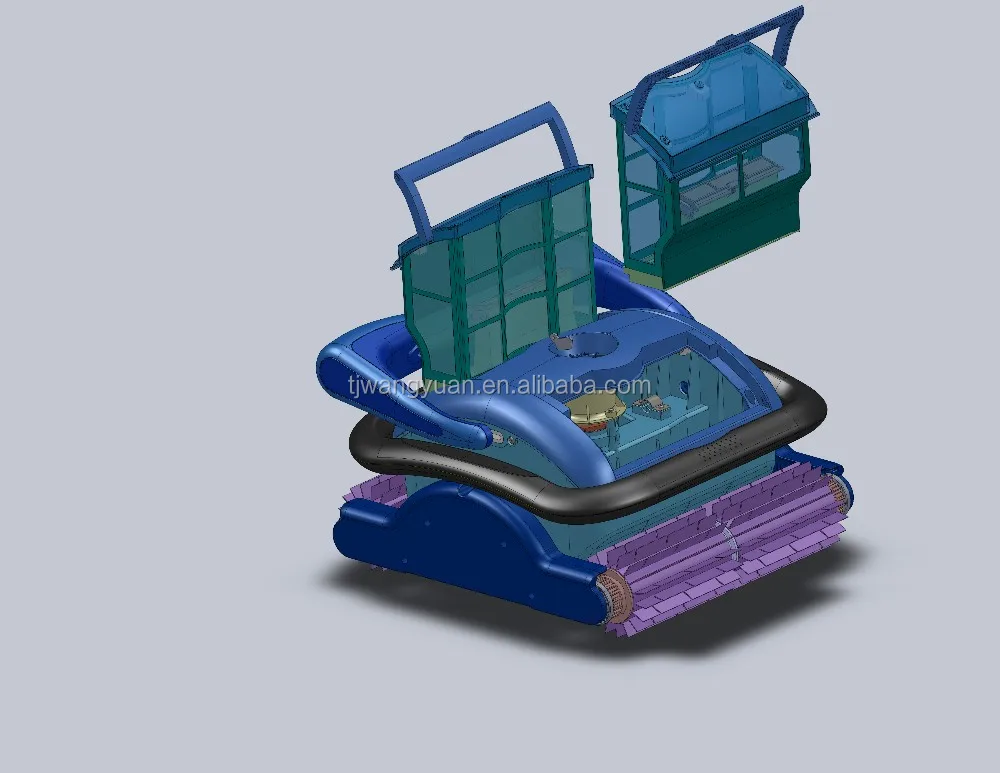

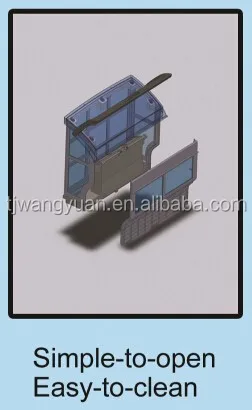

light weight, detachable filter container

Filter bag full load alarm

Out of water sensor and alarm, cable defect alarm, motor defect alarm, switch power defect alarm; all of these fault diagnosis shows on the display screen

Fit for all types of pool

1,Hold the top handle and put the cleaner into the pool, Make sure to empty the trapped air inside, then The cleaner can immerseinto the pool floor.

2,Power Connection

Once the cleaner immersed into the pool floor, connect the cable with the power supply unit,and fasten the nuts on both sides, then plug into your power socket; (make sure to plug it in the correct direction and position), . The cleaner is ready to work
