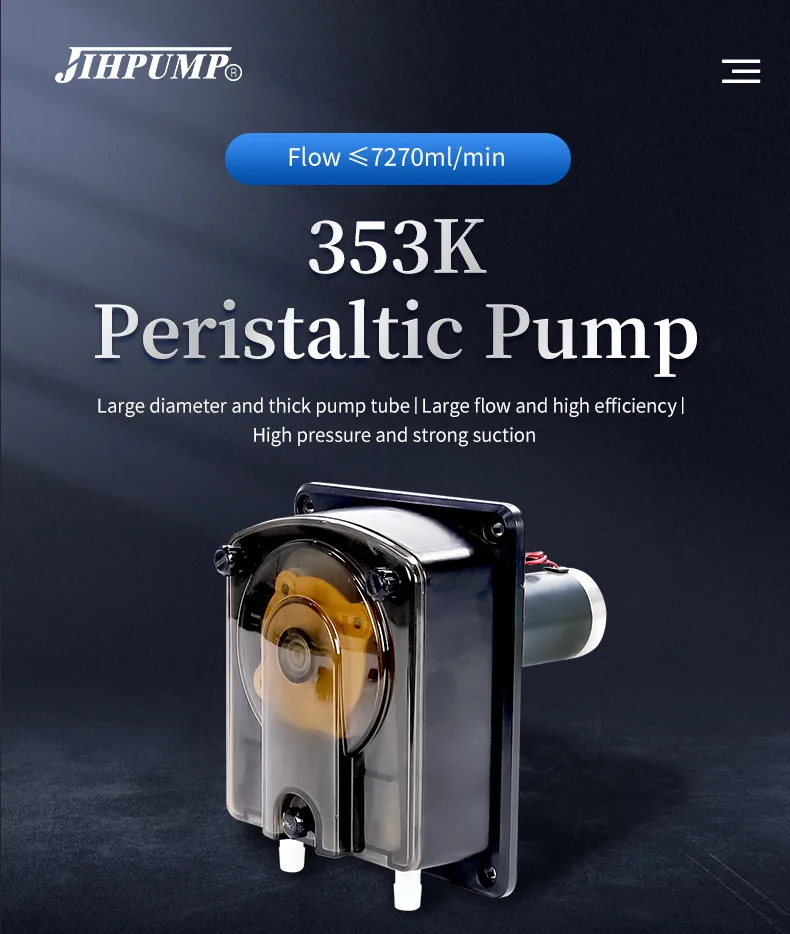

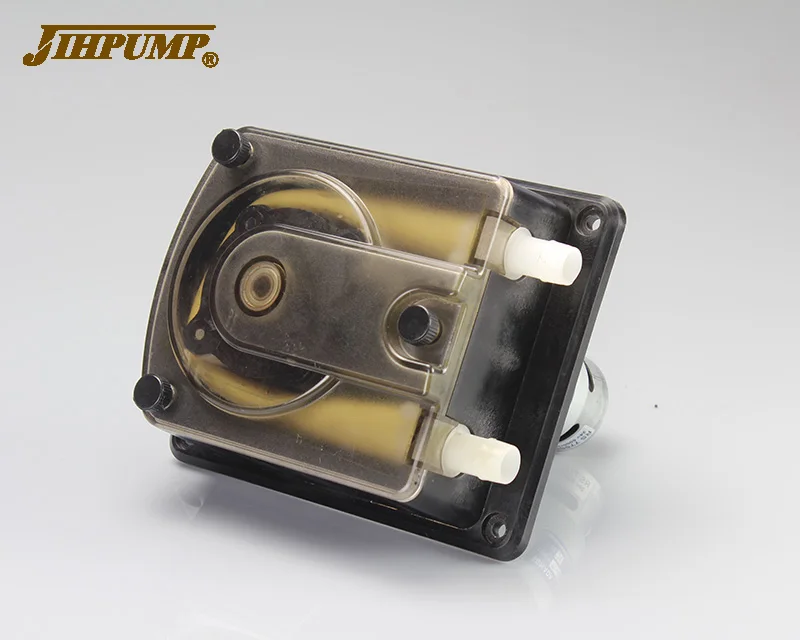

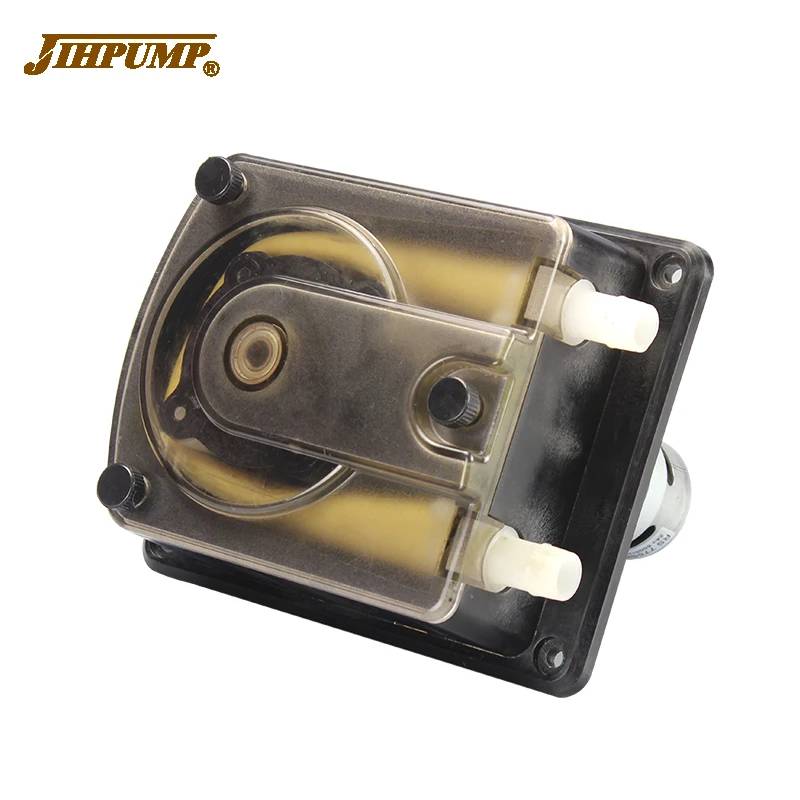

Industrial big flow JIHPUMP OEM peristaltic pump of flow rate 5900ml/min high flow pumps
- Category: >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (60419465159):
Product Overview
Description
Corporate Strength:
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.Peristaltic Pumps Professional Manufacturer and Supplier.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
Lilian He(Europe ,
North and South America) :
WhatsApp:+8618983834629
Skype：+8618983834629
Email：alan@jihpump.com
Skype：+8618983834629
Email：alan@jihpump.com
April Huang(Asia and Africa) :
WhatsApp:+8615703016080
Skype：jihpump
Email：april@jihpump.com
Products Description:
353K Peristaltic Pump Features | ||||||
Increase the diameter of the pump tube | Thick Wall Pump Tube Design | High flow and high efficiency | High pressure and strong suction | |||
3 types of motors are available | 2 hose diameters | Tool-free tube replacement | Wide range of application industries | |||

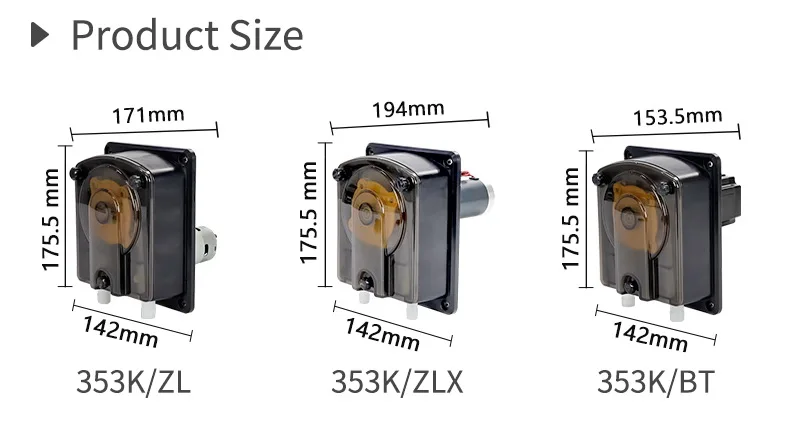

Product Parameters | ||||||
Product number | 353K/ZL | 353K/ZLX | 353K/BT | |||
Motor type | DC motor | DC Planetary Motor | Stepper motor | |||
Use electric | DC 12V,4A/24V，2A | DC24V，4A | DC24V，4A or DC36V，3.3A | |||
Use power((W) | ≤48W | ≤72W | ≤54W | |||
Weight | 1282g | 1313g | 1825g | |||
Outlet pressure | ≤0.17MPa | |||||
Main material | Pump cover: Polycarbonate; Wheels: Polyacetal; Base: Polyamide | |||||
Reference flow (unit: ml/min) | ||||||||||||||
Product number | 353K/ZL | 353K/ZLX | 353K/BT | |||||||||||
Motor speed Tube number | 135r | 166r | 100r | 200r | 300r | 24V | 36V | |||||||
73# | 2075 | 2655 | 1610 | 3040 | 4810 | 4120 (280rpm) | 5650 (400rpm) | |||||||
82# | 3085 | 3915 | 2415 | 4600 | 7055 | 4900 (200rpm) | 7270 (300rpm) | |||||||
Flow rate description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, and when conveying clean water. | |||||||||||||

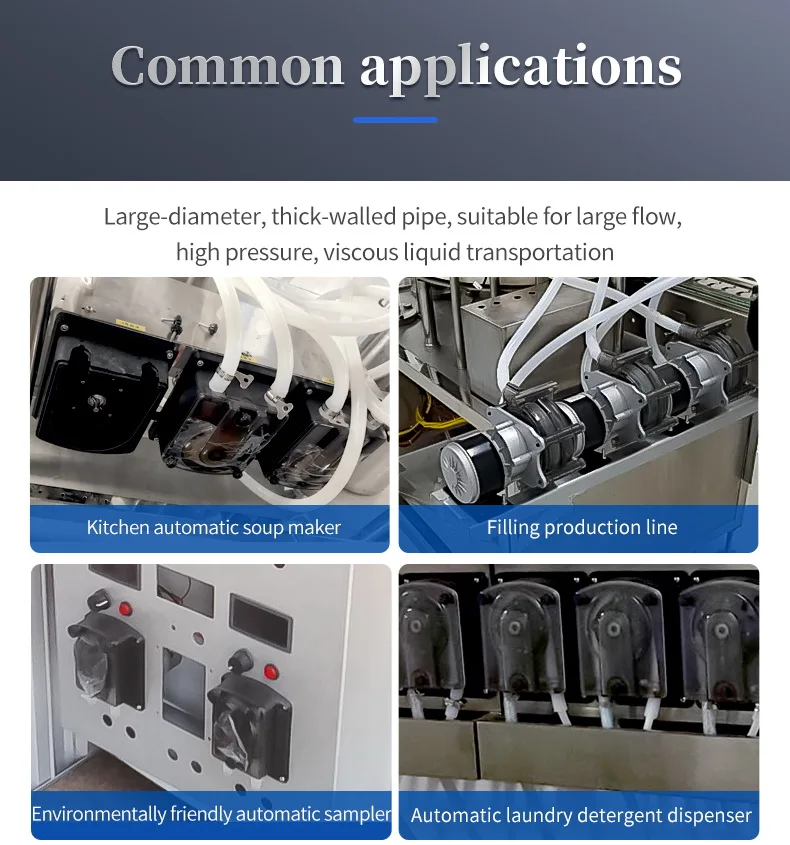

Common Applications: Automatic soup mixing machine for kitchen, Filling production line , Environmental protection automatic sampler , Automatic laundry detergent dispenser , Seasoning distributor of frying machine etc.
Applications Industry: washing cleaning industry, Food and Drink industry，Analytical Instruments, Analytical Instruments, Inkjet Ink, Printing industry， Food and Drink industry, Experimental Research, Pharmaceutical Machinery, Industrial Machinery，Smart Home Appliances etc.
Large diameter , thick-walled pipe , suitable for large flow , high pressure , viscous liquid transportation jihpump peristaltic pump.

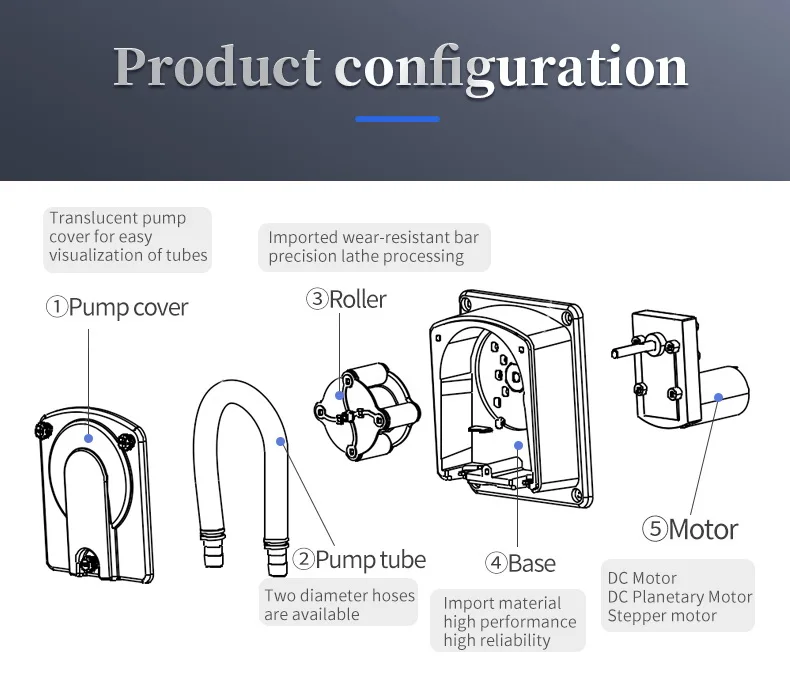

①Pump cover :Translucent pump cover for easy visualization of tubes | ②Pump tube : Two diameter hoses are available | |
③Roller : Imported wear-resistant bar precision lathe processing | ④Base : Import material high performance high reliability | |

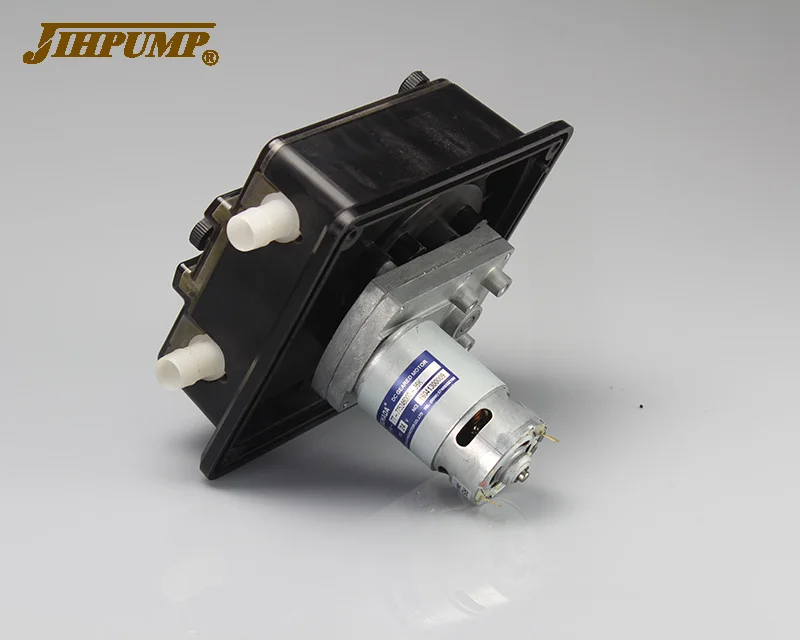

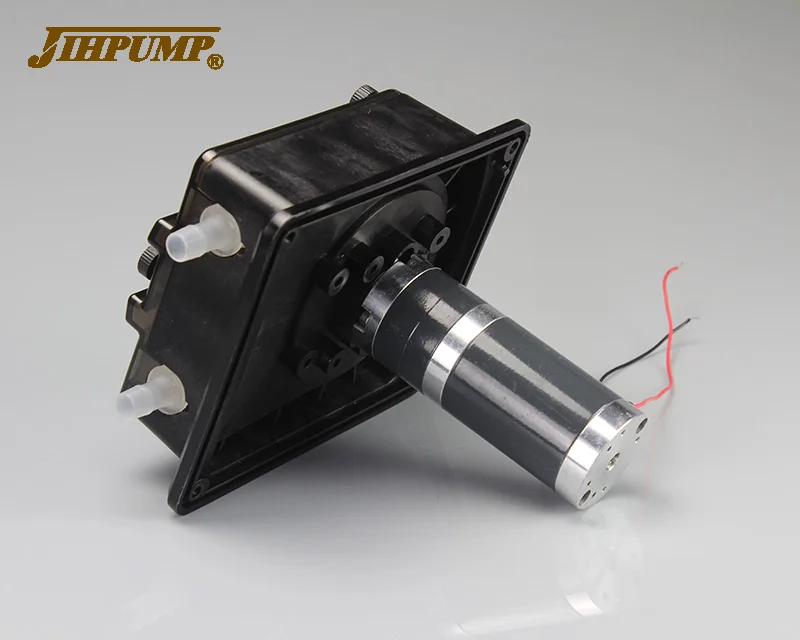

⑤Motor : DC Motor DC Planetary Motor Stepper motor | ||

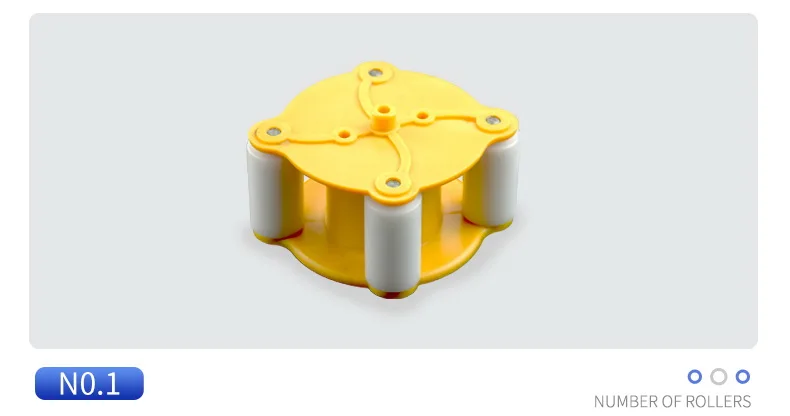

Work roller
4 roller structure, more stable conveying, low pulse Imported wear-resistant self-lubricating bar material and rollers processed by high-precision CNC lathes are more accurate and wear-resistant .

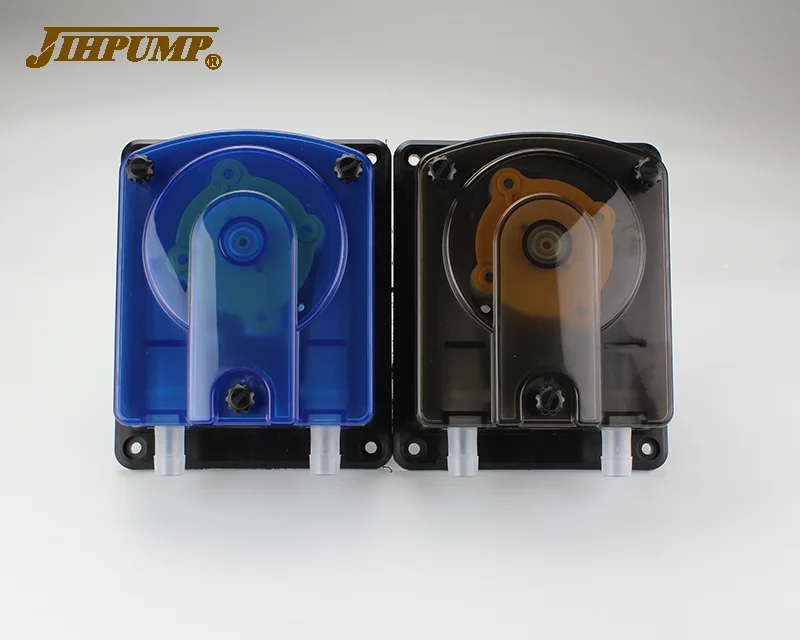

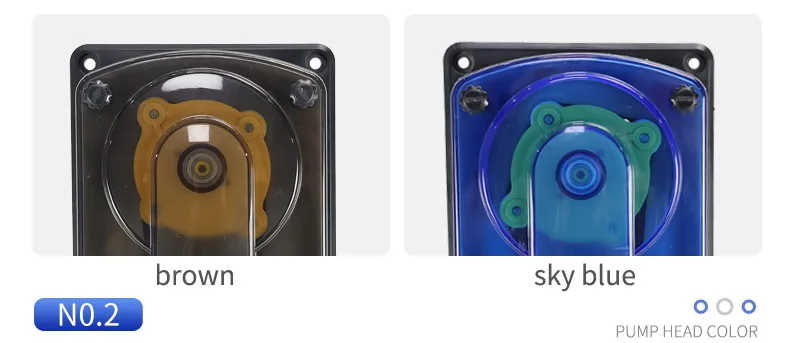

Pump cover color
Translucent pump cover for easy observation of pump operation Multi-color pump cover to meet different color matching, easy to visualize management .

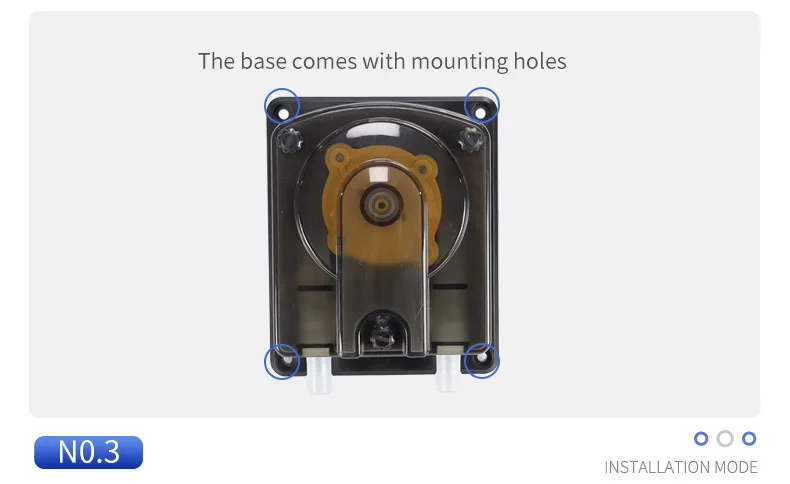

Installation method
The base comes with mounting holes.

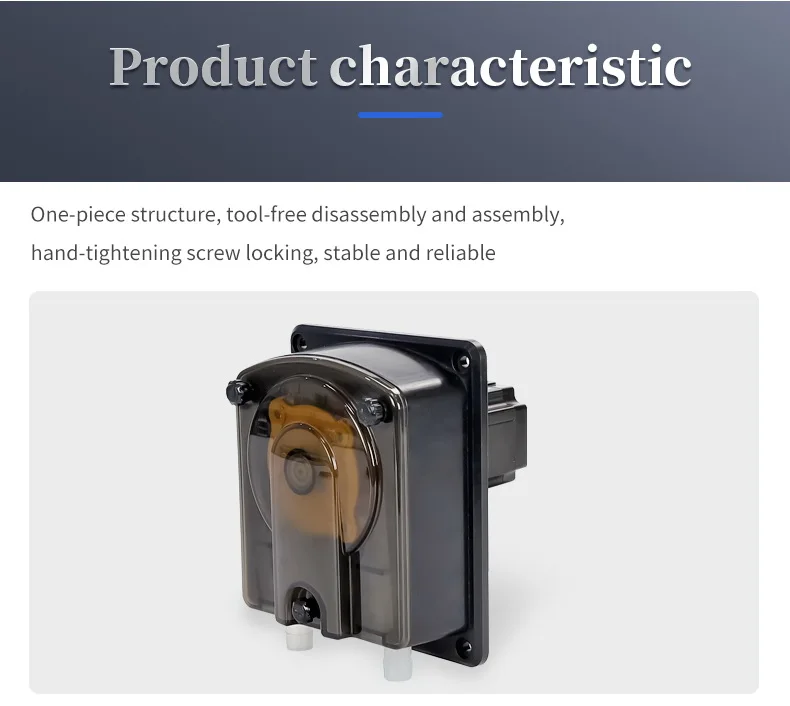

One-piece design
The base comes with mounting holes, neat and generous..

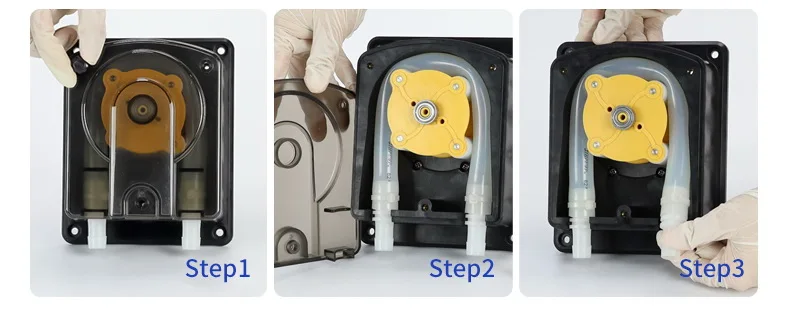

Easy installation and maintenance
The screw is locked by hand, and the tube can be replaced without tools,
which is more convenient for tube replacement and maintenance..
which is more convenient for tube replacement and maintenance..
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile:
JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective,high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents,laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.
Contact Us :
Customer Reviews
FAQ:
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the
power supply. The types of pumps used in the two cases are different.
power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
