high quality NP17 12 yuasa battery 12v 17ah yuasa battery agm yuasa battery
- Category: >>>
- Supplier: Guangzhou JL Electronic Equipment Co. Ltd.
Share on (60419486397):
Product Overview
Description

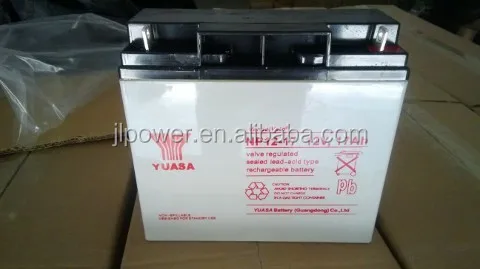

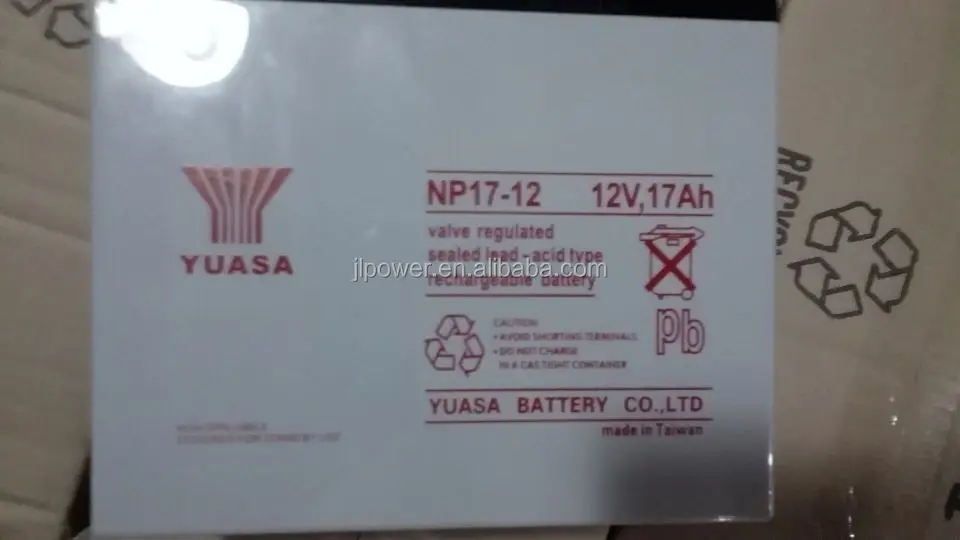

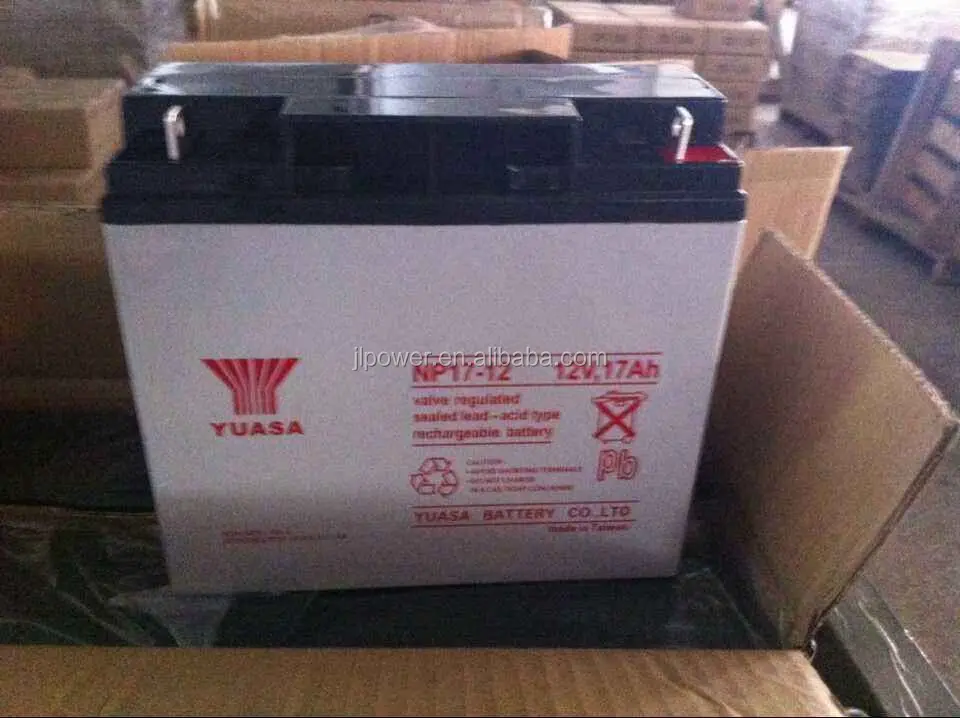

high quality NP17-12 yuasa battery 12v 17ah yuasa battery agm yuasa battery
Packaging & Delivery
| Packaging Details: | 4 pieces a carton pallet |
|---|---|
| Delivery Detail: | 10 days after the payment |
Product Description
Applied Scope :
1)Communication Systems:Switch,Microwave Stations,Mobile Base Stations,Data Centers,Radio and Broadcasting Stations.
2)Motivity Field:Robots,Electric Toys,Electric Tools&Portable Vacuum Cleaners.
3)Solar&Wind Power Generation Systems
4)EPS&UPS Systems
Main Characteristic :
♦ maintenance-Free Operation
Absorbent glass mat (AGM) technology ensures efficient gas recombination up to 99% and freedom from electrolyte maintenance.During the expected float service life of Prostar batteries,no need to check the specific gravity of the electrolyte or add water.
♦ Good Discharging Ability
Tight assembly technology ensures an excellent high-rate discharge performance.
♦ Long Service Life
A unique corrosion-resistant grid alloy ensures Prostar batteries have long service life.
♦ Low Self Discharge
Using high purity raw materials ensures Prostar batteries have less self-discharge.
♦ Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate,which can prevent the acid fog from separating out.
Technical Specification :
Nominal Voltage | 12V | ||
Nominal Capacity (20 hour rate) | 17Ah | ||
Capacity 25oC (77°F) | 10 hour rate (1.62A) | 16.2Ah | |
5 hour rate (3.03A) | 15.2Ah | ||
1 hour rate (11.2A) | 11.2Ah | ||
Internal Resistance | Full Charged Battery 25oC | ≤12mΩ | |
Capacity affected by Temperature (10 hour ) | 40oC (104°F) | 102% | |
25oC (77°F) | 100% | ||
0oC (32°F) | 85% | ||
-15oC (5°F) | 65% | ||
Self-Discharge 25oC (77°F) Capacity | after 3 month storage | 90% | |
after 6 month storage | 80% | ||
after 12 month storage | 62% | ||
Charge (Constant Voltage) 25oC (77°F) | Float | Initial Charging Current Less than 5.1A Voltage 13.6-13.8V | |
Cycle | Initial Charging Current Less than 5.1A Voltage 14.4-15.0V | ||
Battery Dimensions | Length | 181mm |
Width | 76mm | |
Height | 167mm | |
Total Height | 167mm | |
Box Dimensions | Length | 325mm |
Width | 195mm | |
Height | 185mm | |
Quantity Per Box | 4 pcs per box | |
Net weight Per Cell | 4.5kg±150g | |
Net weight Per Box | 18.0kg | |
Gross Weight | 18.5kg | |
Packaging & Shipping
Our Services
Factory
Q1: Where can we use the batteries
A1: Our batteries can be widely used in UPS and computer standby power supply, Solar and wind system, Control system, Telecommunication system, Emergency light system, Alarm system, Security system, Firefighting equipment standby power supply, Railway system, Emergency lamp, Medical treatment equipment, Power system, Power station, Standby power supply, Military equipment, Telephone switching system and etc.
There are many different model battery here, we can supply 2V 4AH- 3000AH Battery, 6V 1AH-300AH Battery, 8V 3AH-240AH Battery, 12V 1AH-715AH Battery and 4V Battery, 24V Battery, etc.
