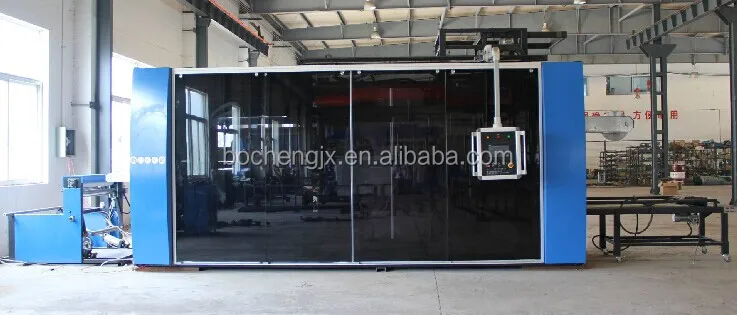

Full Automatic PP, PET, HIPS, BOPS, PE, PLA, PVC, ABS Thermoforming Machine

1. With full servo configuration, the forming station, the blanking station location, separation, stacking launch location, feeding chain drive and feeding chain width are adjusted by servo motor control.
2. Equipped with a special independent fast clamping system and device for high precision computer temperature control system, so it is easy to operate, with high production efficiency, good reliability, high degree of automation features, etc, and can memory the process parameters.
3. Almost all thermoforming sheets can be formed, Like PP, PET, HIPS, BOPS, PE, PLA, PVC, ABS, etc.
4. It can make vacuum forming, pressing blank forming, composite molding, because the device pre-stretching device makes the product wall thickness is uniform.

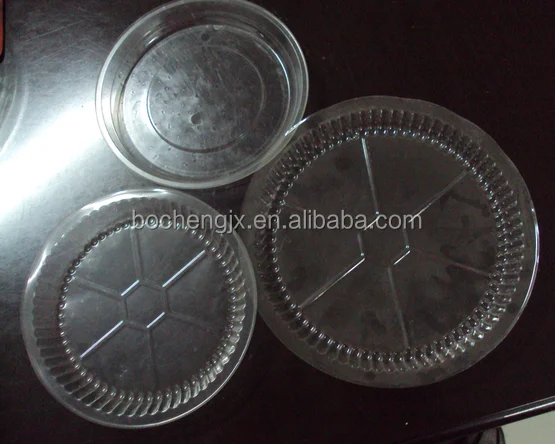

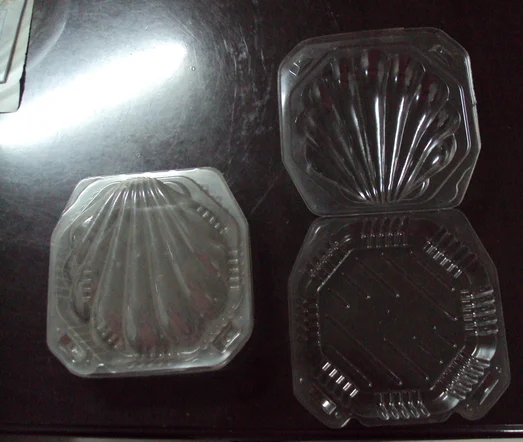

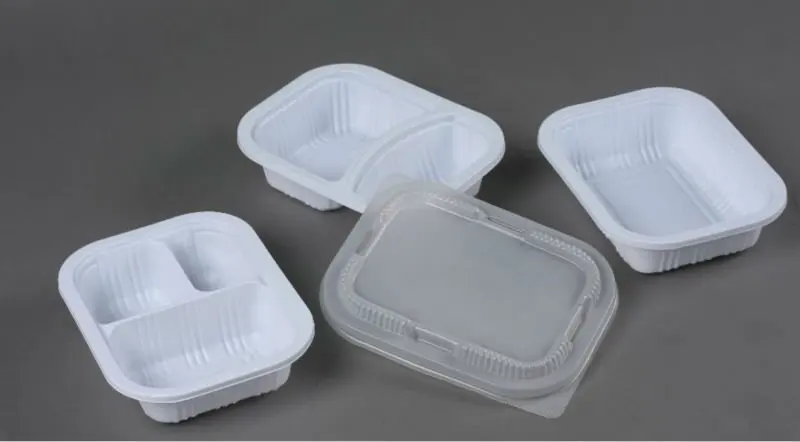

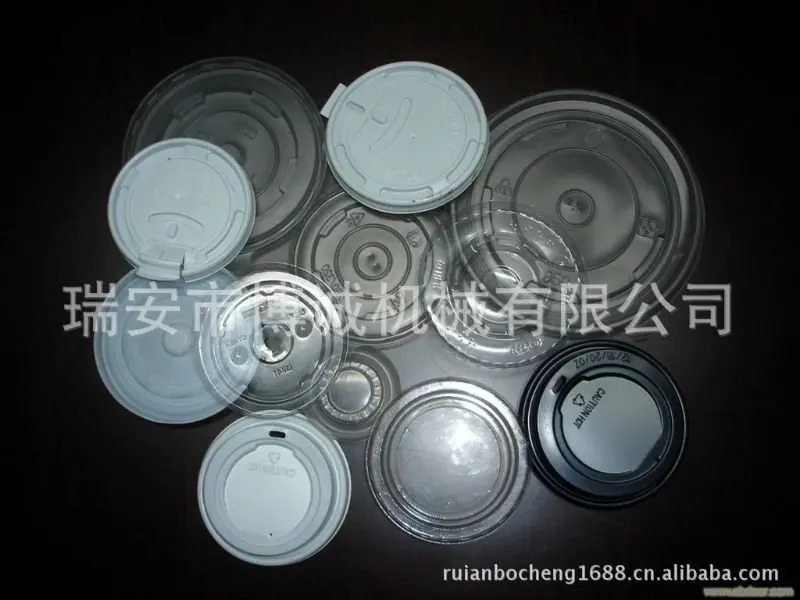

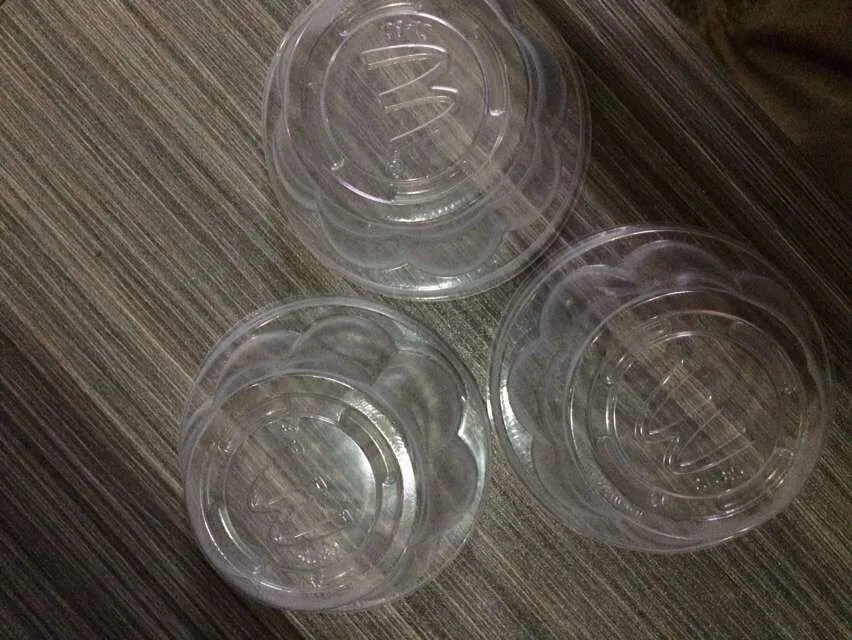

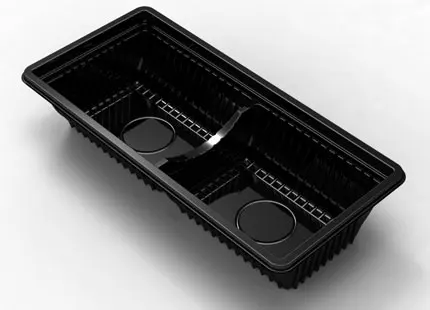

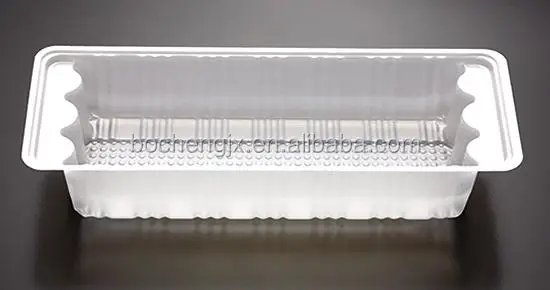

Samples

Technical Parameters

Model Parameters	BCZ-550A
Sheet	PP, PET, HIPS, BOPS, PE, PLA, PVC, ABS
Max. Sheet thickness	1.5mm
Max. Tool Dimensions	700*400mm
Max. Forming Area	550*400mm
Max. Cutting Area	550*400mm
Max. Forming Depth	100mm
Max. Foil width	600mm
Min. Foil Width	300mm
Heating Power of Upper Heater	20KW
Heating Power of Lower Heater	20KW
Total Power	55KW
Forming Power of Press	15T
Cutting Power of Press	25T
Operation speed	10-35cycle/min
Installation size(L*W*H)	7000(L)*1650(W)*2300(H)M
Compressor	0.8m3/min,0.7MPa
Cooler	3000Kcal
Weight Approx	6T
