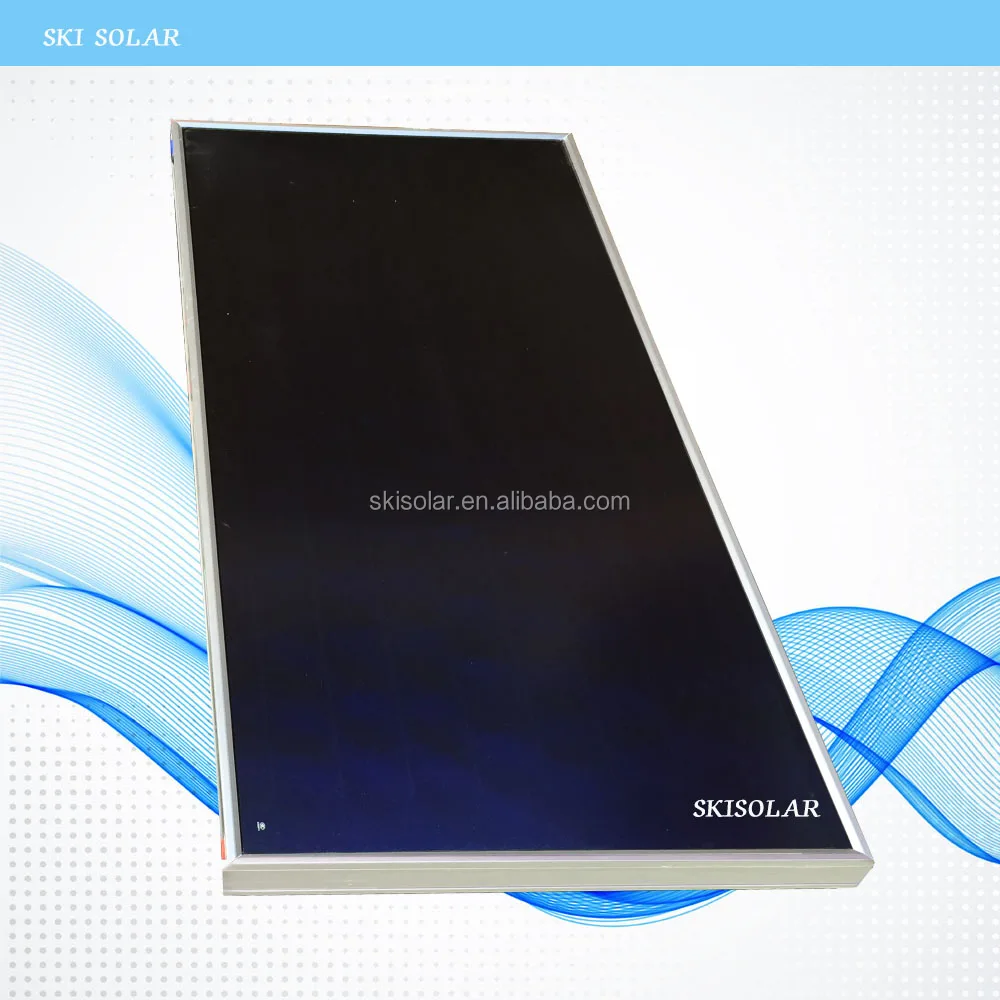

Flat Plate Solar collectors contain an insulated layer and weatherproof box. The box contains a dark absorber plate, covered by one or more transparent or translucent glass. Water or conducting fluid passes through pipes located below the absorber plate. As the fluid flows through the pipes it is heated. The flat plate solar collector is with high efficiency and reliable utilization. It is widely used at split pressurized solar water heater. The collector can be installed on roof or wall and it is harmonious with the building.
What is the specification of the flat plate solar collector?
Specifications of flat plate:
Dimension L*W*T
2000mmX1000mmX80mm
Gross area
2.00m²
Aperture area
1.84m²
Absorber area
1.73m²
Cover
Tempered Glass
Cover transmission
89%
Net weight
35kg
Surface treatment
chrome plating
Absorber material
TP2 copper
Insulation
Rock wool, glass fiber cotton (black backing) polyurethane compound
Insulation thickness
Back:45mm; Side:20mm
Border
Aluminum alloy
Water Tank Specifications:
Tank Capacity
SolarCollector
Electrical backup
Electrical backup
100l
2m²
1.5kw
2-3
200L
2m² or 4m²
1.5kw
3-4
300l
4m²
2.5kw
5-6
400L
8m²
2.5kw
8-10
What is the technology of this flat plate solar collector?
Design Advantages:
♦High efficiency:S-type tube structure initiated in China,the low-flow instant efficiency can up to 81.1%
♦ Anti-low-temperature:can still work properly under -40°c

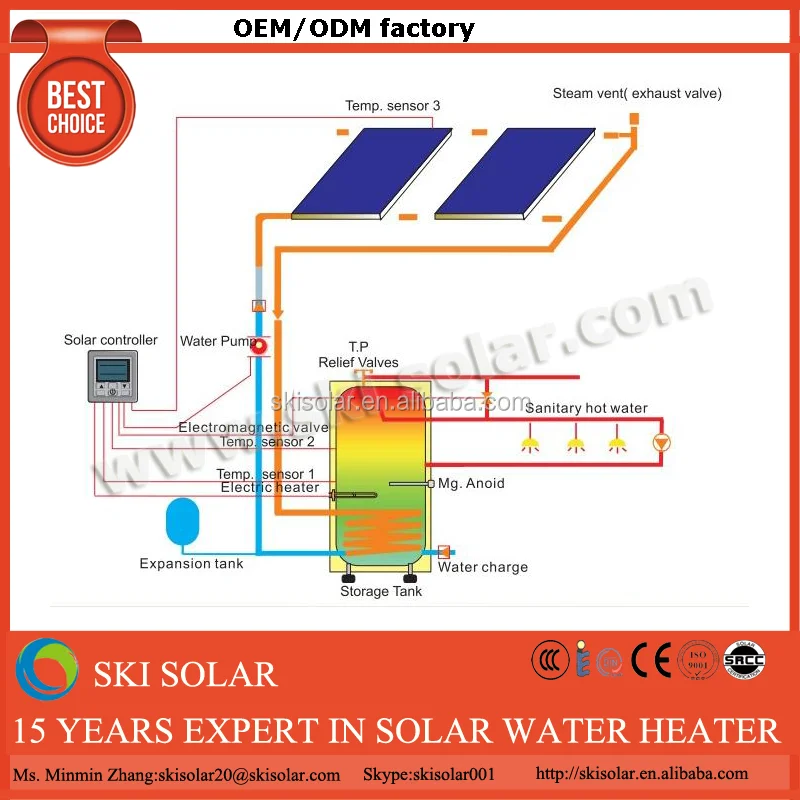

How to use this flat plate solar collector?
What is the details of this flat plate solar collector?
Projects of this flat plate solar collector
Quality control
Packaging & Shipping
Package and shipping of this flat plate solar collector
Shipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
2. Customers specifying freight forwarders or negotiable shipping methods!
3. Delivery Time: 7-10 days for samples; 15-25 days for batch goods. Payment Terms
1. Payment: T/T; 30% deposits; 70% balance against copy of original BL.
2.MOQ:1pcs
3.Warranty : 5 years for water tank, 3 years for the collector
Company Information
Changzhou SKI Solar Energy Co.,Ltd.located in Changzhou,jiangsu province,which is only 180KMs far away from the biggest city-Shanghai.Our company is an OEM/ODM manufacturer in the R&D,production and marketing of solar products. We are one of the largest solar manufacturers and exporters of solar water heaters in China. It is with rich technical force,well equipments and a number of high-precision mechanized production lines.It has a production capacity of 10000 sets solar water heaters annually,ranking the size of the domestry industry forefront.The products have been exported to over one hundred countries such as USA,Europe and so on.Our products won great acclain from our clients.
Certifications
FAQ
1- What is your Delivery Time?
LCL order:7-10days.
Full container order:15-20days.
2- What is your Guarantee Time?
3years; Provide you with some accessories,
3- Can you accept OEM and ODM ?
YES, printing your LOGO on the package.
4- What is your payment term?
We accept T/T or L/C.
5-What is your MOQ?
1 sets
6-How do you pack?
LCL order in plywood case
Full container order in high quality export carton
7-What is your FOB port?
Shanghai port.
8.-What is your monthly production capacity?
1000 sets
9-What is your shipping term?
By sea/Air/Rail/Truck
10-Do you any additional services?
YES!
We offer free spares according to your order quantity. Such as Vacuum Tube, tube holders, dusting rings, silicon rings, screws etc.
And we can offer logo design, Products Advertising Design etc services free.
