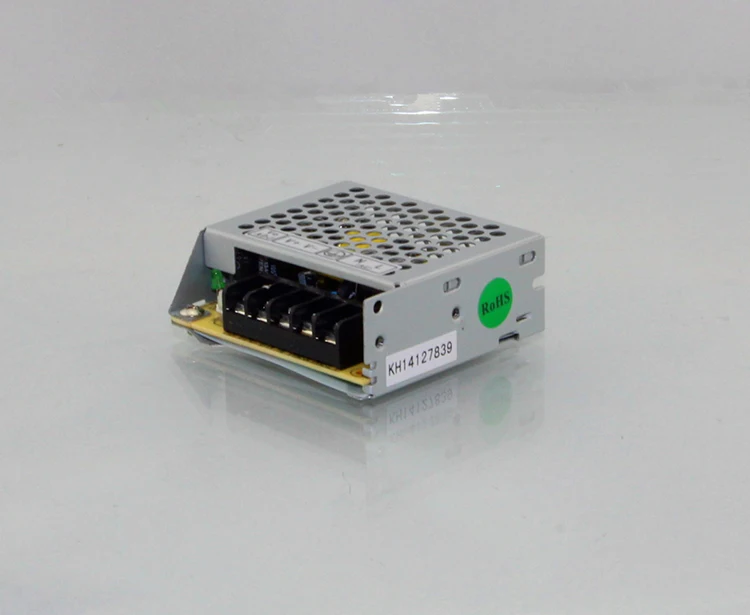

Высококачественный импульсный источник питания с двойным выходом 15 в 15 в 1 А, сделано в Китае
- Category: Power Supplies >>>
- Supplier: Guangzhou Kaihui Electronics Co. Ltd.
Share on (60419576640):
Product Overview
Description
High Quality +15V -15V 1A Dual Output Switching Power Supply Made In China
15W switching power |
case:K801 74×68×27mm | ||||||||
Features: |
| ||||||||
High efficiency, low temperature |
| ||||||||
Product: Light/ Thin/ Short/ Small |
| ||||||||
Built-in EMI filter, low ripple noise |
| ||||||||
100% full load burn-in test |
| ||||||||
Protections: Short circuit/ Over load |
| ||||||||
Input voltage range -----------88~264V AC,120~360V DC | |||||||||
Input frequency -----------47~63Hz | |||||||||
Over load protection ------105%~150%(rated load),Auto-recovery | |||||||||
Withstand voltage---------- Input-Output: AC1.5KVACV,1min; Input-Ground:AC1.5KVACV,1min; | |||||||||
Working temperature ------ -10~+50°C@100%, 60°C@60%load | |||||||||
Safety standards -----------MeetGB4943 | |||||||||
Weight ---------------0.15kg | |||||||||
Code | Item No. | Output | Tol. | R&N | Effi. | ||||
Double Output | |||||||||
0104 | K01-U15D5+12 | +5V,2A +12V,0.5A
| ±2% ±1% | 50mV 100mV | 75% | ||||
0105 | K01-U15D5+24 | +5V,1A +24V,0.4A | ±2% ±5% | 50mV 100mV | 76% | ||||
0106 | K01-U15D5 | +5V,2A -5V,0.5A | ±2% ±5% | 50mV 100mV | 75% | ||||
0107 | K01-U15D15 | +15V,1A -15V,0.5A | ±2% ±5% | 50mV 100mV | 80% | ||||
0108 | K01-U15D12 | +12V,2A -12V,0.5A | ±2% ±5% | 50mV 100mV | 80% | ||||
| 0109 | K01-U30D12 | +12V,1.5A -12V,1A | ±2% ±5% | 50mV 100mV | 82% | ||||
| 0110 | K01-U30D15 | +15V,1.2A -15V,0.8A | ±2% ±5% | 50mV 100mV | 82% | ||||
We can custom design the casing and custom logo to match customer market share. | |||||||||
High quality,competitive price
High efficiency, low temperature
Product: Light/ Thin/ Short/ Small
Built-in EMI filter, low ripple noise
100% full load burn-in test
Protections: Short circuit/ Over load
