2p нержавеющая сталь 304 газовый водяной клапан для соединения труб
- Category: Ball Valves >>>
- Supplier: Zhejiang Xinhong Valve And Fitting Co. Ltd.
Share on (60419668726):
Product Overview
Description
.MAIN PERFORMANCE SPECIFICATIONS
PRODUCT SPECIFICATION | DN15-DN100 |
NOMINAL PRESSURE | PN1.0/1.6MPA |
APPLICABLE MEDIA | WATER,AIR,OIL,ACID |
APPLICABLE TEMPERATURE | -20~100 |
THREAD STANDARD | BSPP BSPT NPT |
DESIGN AND MANUFACTURE | GB/T1224/ANSI B16.34 |
INSPECTION AND TEST | GB/T13927/API598 |
MATERIAL OF MAIN PARTS
PART NAME | MATERIAL |
BODY | CF8M CF8 WCB |
BONNET | CF8M CF8 WCB |
BALL | SS316 SS304 SS304 |
STEM | SS316 SS304 SS304 |
SEAT | RTFE |
GASKET | PTFE |
MIDDLE HEAD PAD | PTFE |
PACKING SLEEVE | SS201 |
HANDLE | SS201 |
NUT | SS201 |
CONNECTING DIMENSIONS
NPS | DN | D | L | H |
1/4" | 6 | 11.6 | 57 | 49 |
3/8" | 10 | 12.7 | 57 | 49 |
1/2" | 15 | 15 | 53 | 54 |
3/4" | 20 | 20 | 64 | 65 |
1" | 25 | 25 | 72 | 72 |
1-1/4" | 32 | 32 | 83 | 83 |
1-1/2" | 40 | 38 | 95 | 94 |
2" | 50 | 50 | 108 | 107 |
2-1/2" | 65 | 65 | 161.5 | 130 |
3" | 80 | 80 | 178 | 148 |
ENTERPRISE INTRODUCTION
Zhejiang Xinhong Valve&fitting CO.,LTD is a valve manufacture factory who owned 16 years experience of valve producing, selling

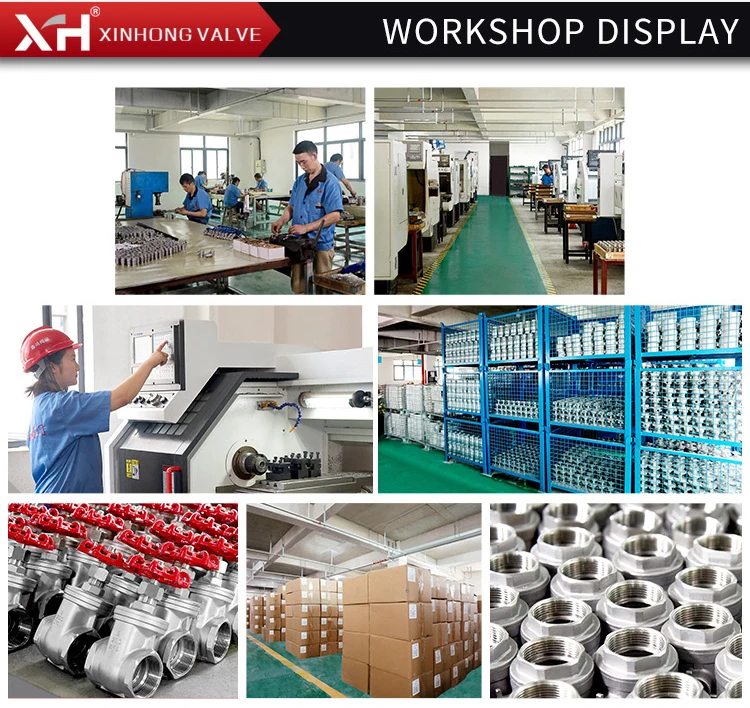

and service. The company occupies a land area of 2, 000 square meters, has 120 staff .The company has a modern factory building,
excellent machining equipment, boring machine, vertical lathe, CNC lathe, plasma spray welding, chemical composition analysis,
mechanical performance testing, hardness testing, imported direct-reading spectrometer, non-destructive testing. Ensure that
products conform to the relevant design and inspection standards, so that the quality level of products is continuously improved.
Xinhong valve products include gate valves, globe valves, ball valves, check valves, and so on. The main materials of the valve
are stainless steel 201,304,316,316L. Product drive mode can be selected according to the actual conditions of users manual, gear
drive, electric, pneumatic, hydraulic, electro-hydraulic linkage and other transmission methods; Valve specifications from DN6 to
DN200; Working pressure from 1.0 to 6.0Mpa and 150LB; Working temperature -20 to 300degrees Celsius . Products are widely used in
petroleum, chemical, steel, pharmaceutical, environmental protection, mining, paper, urban construction, water supply and drainage
and other industries, selling well throughout the country, and through foreign trade companies exported to Europe, the United
States, Southeast Asia, the Middle East and other countries and regions, by the majority of users trust and praise.
Zhejiang Xinhong Valve&fitting CO.,LTD is a valve manufacture factory who owned 16 years experience of valve producing, selling
and service. The company occupies a land area of 2, 000 square meters, has 120 staff .The company has a modern factory building,
excellent machining equipment, boring machine, vertical lathe, CNC lathe, plasma spray welding, chemical composition analysis,
mechanical performance testing, hardness testing, imported direct-reading spectrometer, non-destructive testing. Ensure that
products conform to the relevant design and inspection standards, so that the quality level of products is continuously improved.
Xinhong valve products include gate valves, globe valves, ball valves, check valves, and so on. The main materials of the valve
are stainless steel 201,304,316,316L. Product drive mode can be selected according to the actual conditions of users manual, gear
drive, electric, pneumatic, hydraulic, electro-hydraulic linkage and other transmission methods; Valve specifications from DN6 to
DN200; Working pressure from 1.0 to 6.0Mpa and 150LB; Working temperature -20 to 300degrees Celsius . Products are widely used in
petroleum, chemical, steel, pharmaceutical, environmental protection, mining, paper, urban construction, water supply and drainage
and other industries, selling well throughout the country, and through foreign trade companies exported to Europe, the United
States, Southeast Asia, the Middle East and other countries and regions, by the majority of users trust and praise.
Q1: We are interested in your products? A1: In order to recommend you suitable products, please provide detail information, like
size, material, pressure, model. Q2: Is the requirement for MOQ? A2: For some small size, like 1/4''-1''(DN6-DN25), it request the
MOQ is 100pcs for each size. Generally speaking, it depends on your order. Q3: How about the warranty? A3: The warranty time is 12
months after leaving our factory.
size, material, pressure, model. Q2: Is the requirement for MOQ? A2: For some small size, like 1/4''-1''(DN6-DN25), it request the
MOQ is 100pcs for each size. Generally speaking, it depends on your order. Q3: How about the warranty? A3: The warranty time is 12
months after leaving our factory.
