GD 313 Portable Fast end mil cutter grinding machine

Price:RUB 26,836.36 - RUB 32,893.71

Quantity:

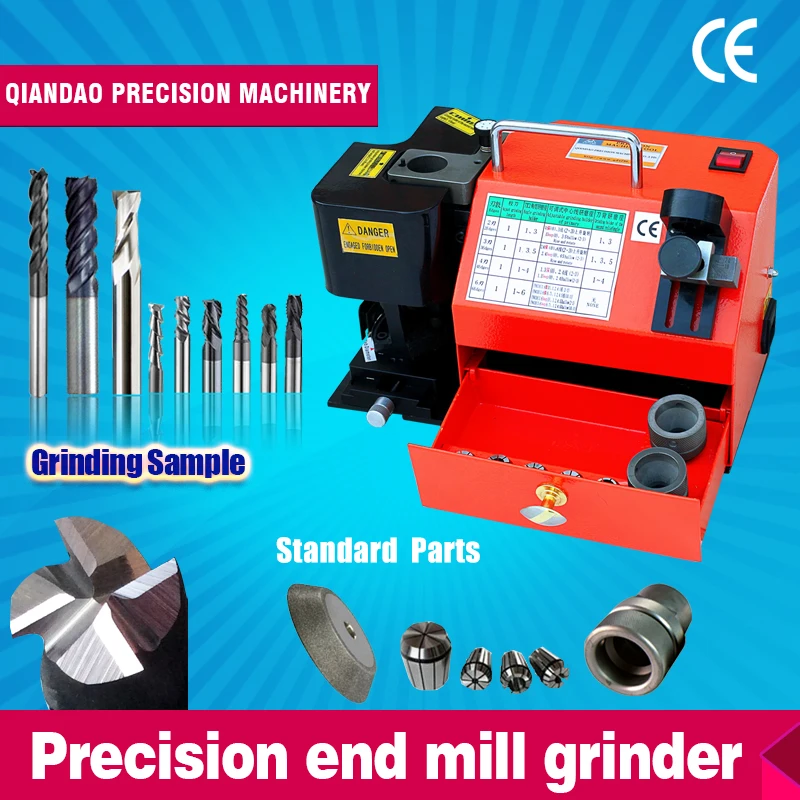

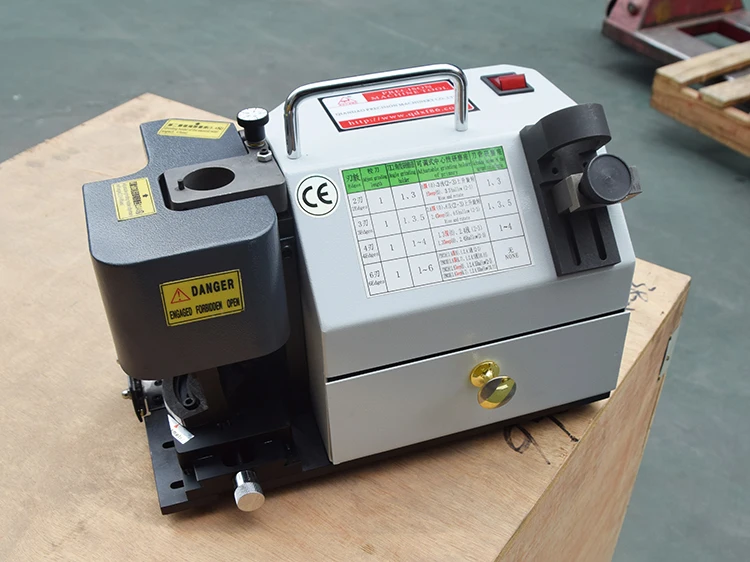

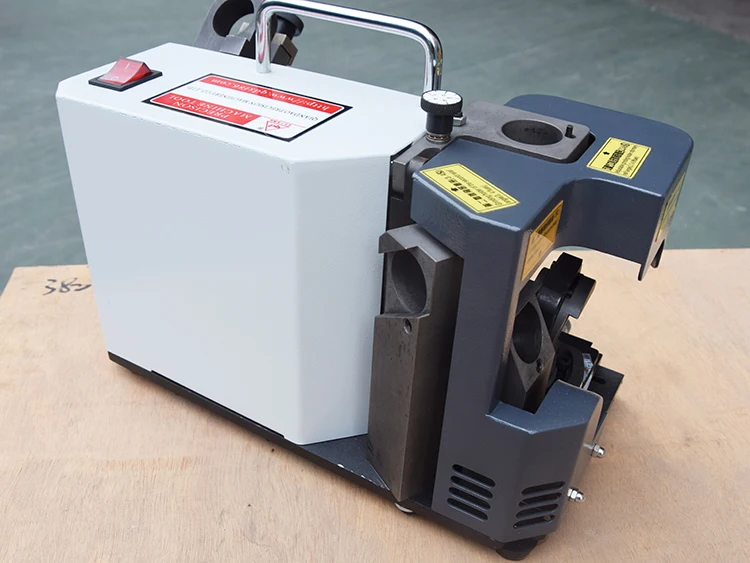

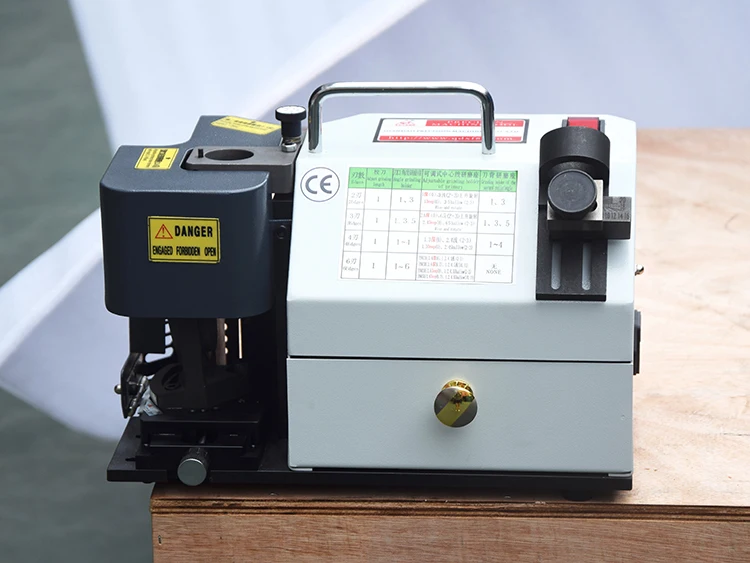

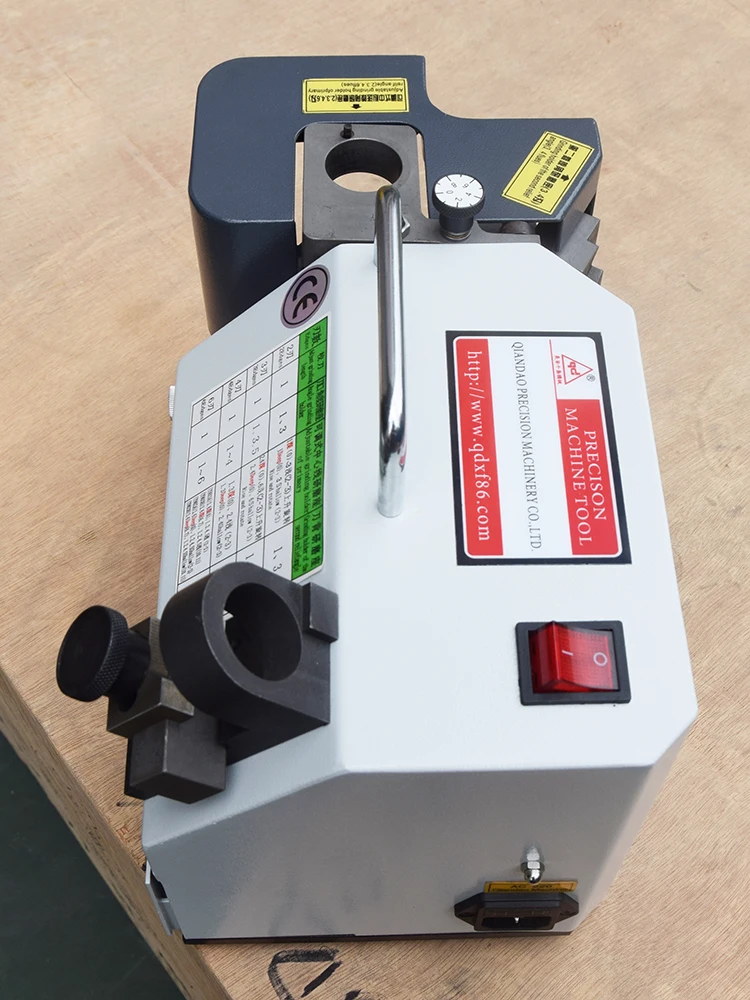

GD-313 Portable Fast end mil cutter grinding machine

2, 3, 4 mill, 6 general end milling, grinding range: diameter 3-13mm

See this machine operation video please copy URL: //v.youku.com/v_show/id_XOTU1Mjg5ODc2.html

The latest color is orange red, has a yellow color, if there is a request to contact customer service

Patent NO:ZL 2011 2 0532308.2

313_03

Product Description

1.Easy to operate, unskilled workers can learn to sharpen the end mill quickly.

2.Economical price, grinding fast and high accuracy. Diamond grinding wheel.

3.Low maintenance, good grinding result. Motor is electronic and powerful, frequency stably,extra motor life.

4.Quickly sharpen standard end mill into high-performance, self centering split point mill

5.Outstanding value, will pay for itself in just a few months

6. One CBN grinding wheel of 3~13 2flutes,3flutes,4flutes and 6flutes end mills

Parameter

Model:	GD-313
Diameter:	Φ3-Φ13
Power:	220V/300W
Speed:	4500rpm
Point angle:	0°-5°
Dimension:	37×25×26cm
Weight:	17kg
Standard Equipment:	One piece grinding wheel :CBN (for HSS)×1
	Six collets: Φ3, Φ4 ,Φ6,Φ8,Φ10,Φ12,Φ13
	Two collet chucks: 2,4 flutes ×1 piece; 3,6 flutes×1 piece
Optional Equipment:	grinding wheel :SDC (for Carbide)
