150*150*300mm Honeycomb monolith ceramic catalyst substrate used in industrial exhaust gas purifier system
- Category: >>>
- Supplier: Beihai Kaite Chemical Packing Co. Ltd.
Share on (60419702522):
Product Overview
Description
Product Description
Ceramic honeycomb substrate is a new kind of catalyst monolith, which is widely used in automobile emissions purifying system and industrial exhaust gas treatment system. After coated with catalysts, this product is applied in catalytic converter of diesel or gasoline vehicle to catalyze, convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV, Euro V and Euro VI.
Advantage of Honeycomb Ceramic Monolith
1. Thin wall, high surface area.
2. Low coefficient of thermal expansion.
3. Low back pressure, good air flow.
4. Good thermal shock resistance and heat resistance.
5. High temperature resistance and chemical corrosion resistance.
6. High compressive strength and stable water absorption rate.
7. Accurate size control, good for encapsulation.
8. Low light off temperature and high conversion efficiency.
9. Ideal matching with different catalysts.

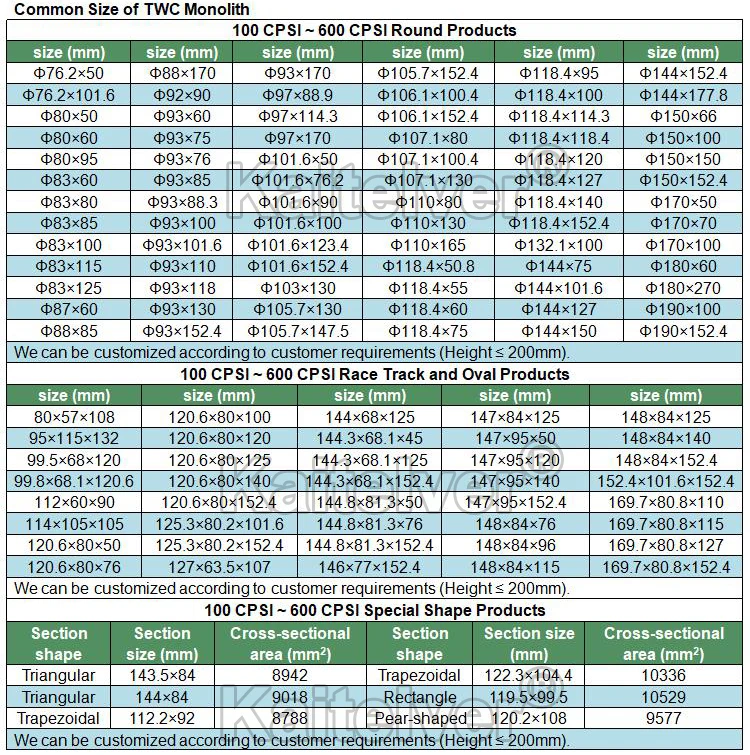

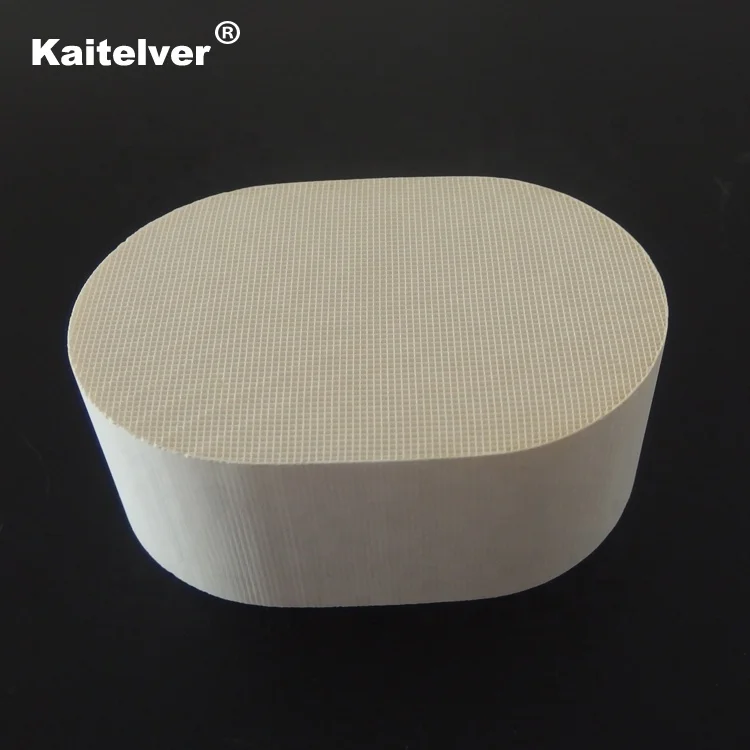

Three-way catalyst monolith used in gasoline engine tail gas purifying system
The ceramic monolith is made of cordierite, and it is used for car catalytic converter of gasoline engines. We can supply both ceramic element coated with noble metals of Pt, Pd, Rh and ceramic element without noble metals.
Advantage of TWC ceramic monolith
1. High specific surface area: ensure exhaust gas could contact weigh catalyst enough.
2. Stable water absorption: guarantee catalyst could be firmly and evenly coated on the surface of substrate, so it's no waste for too thick coating.
3. Fast in temperature rising: after starting up engine, the temperature of substrate could reach the active temperature of catalyst in the shortest time.
4. Low exhaust resistance: ask exhaust resistance of substrate to engine low, so that it won’t affect the performance of engine.
5. High intensity: substrates work in bumpy cars, so the intensity of substrates must be too high to be destroyed.
6. Perfect assembly: substrates are parts of exhaust; perfect appearance and exact dimension could ensure assembly perfect.
Physical & Chemical Properties of TWC Monolith
Items | Index | |
Chemical Composition | SiO2 | 50.9±1% |
Al2O3 | 35.2±1% | |
MgO | 13.9±1% | |
Cordierite Crystal Phase | ≥90% | |
Wall Thickness | 100 CPSI | 0.42-0.48mm |
200 CPSI | 0.32-0.38 mm | |
300 CPSI | 0.25-0.31 mm | |
400 CPSI | 0.17-0.20mm | |
600 CPSI | 0.12-0.15mm | |
Compression Strength | Lengthways | ≥15MPa |
Horizontal | ≥3MPa | |
Coefficient of Thermal Expansion (20-800°C) | ≤1.2×10-6/°C | |
Water Absorption | 23-27% | |
Soften Temperature | ≥1400°C | |
Refractory | ≥1600°C | |
Thermal Shock Resistance (Indoor Temperature -550°C) | 550°C Three time (Air cool) | |
Tolerance of Outside Dimensions | ±1% | |
Bulk Density | 0.40-0.50Kg/L | |

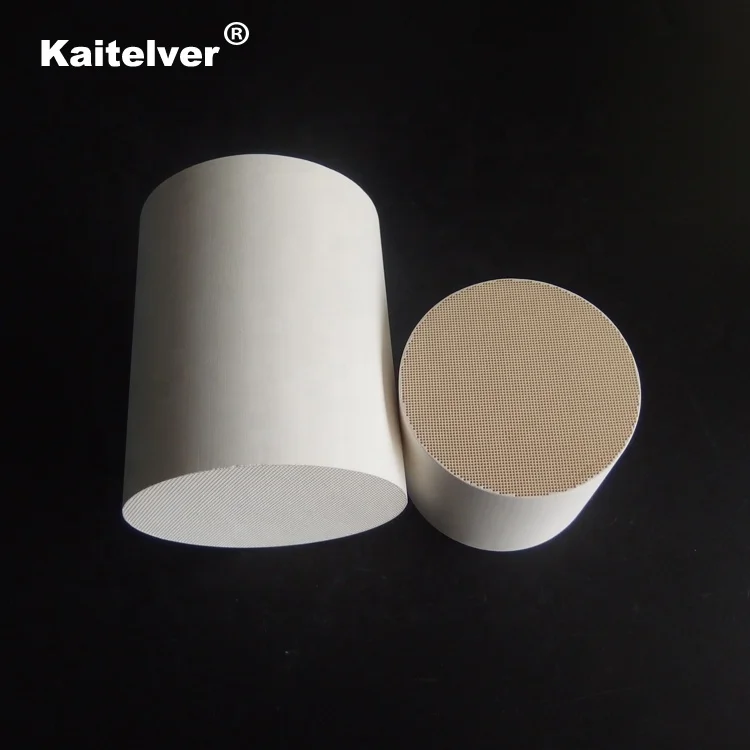

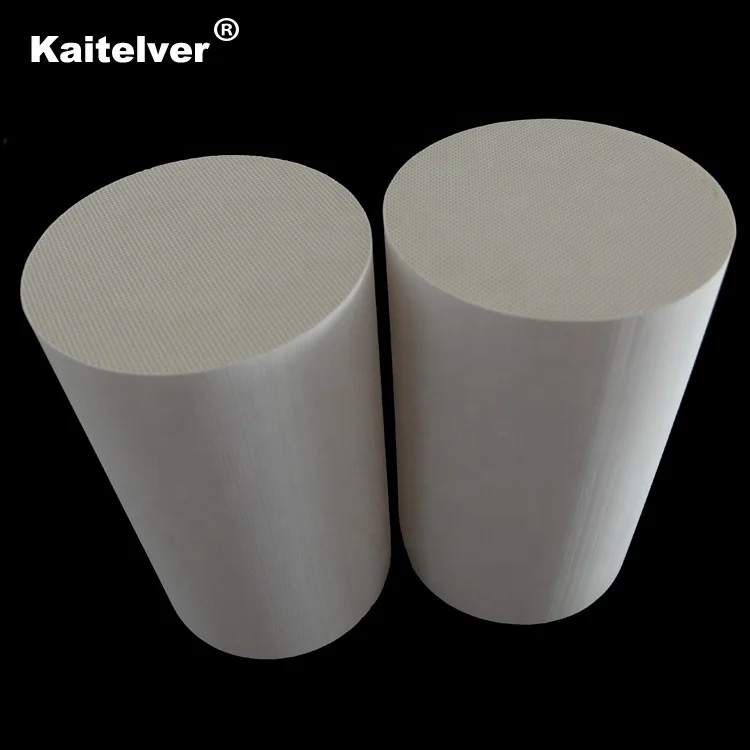

SCR POC & DOC substrates used in diesel engine tail gas purifying system
The DOC POC & SCR substrates are used in diesel engine tail gas purifying system, the substrate is coated with catalyst, which is used in catalytic converters for diesel exhaust purification, and DPF connections using can achieve better purifying effect.
Technical Indexof DOC POC and SCR Substrates
Item | Index |
Size | 300/400 CPSI Diameter ≤ 330mm(13 inch) |
Wall thickness | 300 CPSI/8 mil, 400 CPSI/7 mil |
Coefficient of thermal expansion (20-800°C) | ≤1.2×10-6/°C |
Thermal shock resistance (indoor temperature -550°C) | 550°C Three time (Air cool) |
100 CPSI ~ 400 CPSI Common Sizes of DOC POC and SCR Substrates
size (mm) | size (mm) | size (mm) | size (mm) | size (mm) | size (mm) |
Φ118.4×70 | Φ150×100 | Φ190×100 | Φ228×100 | Φ240×152.4 | Φ286×100 |
Φ118.4×127 | Φ165×100 | Φ190×127 | Φ240×76.2 | Φ267×76.2 | Φ305×100 |
Φ144×127 | Φ170×100 | Φ210×127 | Φ240×100 | Φ267×100 | Φ330×100 |
Φ144×152.4 | Φ175×100 | Φ228×76.2 | Φ240×127 | Φ267×152.4 | Φ330×177.8 |
We can be customized according to customer requirements (Height ≤ 200mm). | |||||

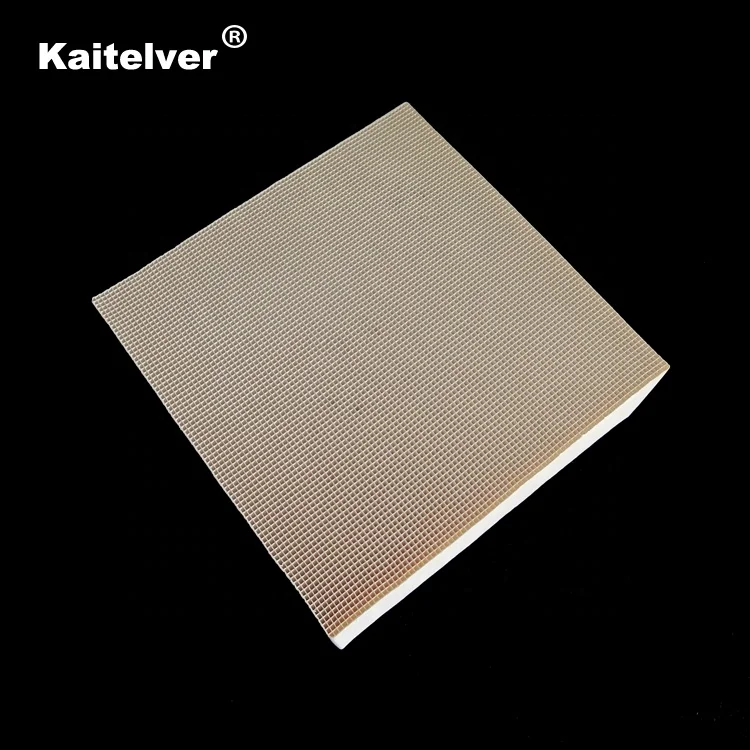

Honeycomb ceramic substrate used in industrial waste gas purifier system
The carriers of industrial waste gas purifier have unique honeycomb structure, large specific area, good high temperature resistance and low gas drag. It uses appropriate catalysts and special equipment to purify the harmful waste gases, utilizing residual heat, saving energy consumption and protecting environment. It is widely used in VOCs waste gas purification, heat exchange system of industrial waste gas treatment, NOx purification system, thermal power plant flue gas denitrification, waste incineration harmful gas purification treatment.
Common Size of Denox, VOC & RCO Industrial Carrier
Item | Index | ||
Wall Thickness | 400 CPSI/7-8 mil | ||
Coefficient of thermal expansion (20-800°C) | ≤1.2×10-6/°C | ||
Thermal shock resistance (indoor temperature -550°C) | 550°C Three time (Air cool) | ||
Section size (mm) | Cross-sectional area (mm2) | Remarks | |
50×50 | 2500 | We can be customized various height of product according to customer requirements (Height≤ 200mm). | |
100×100 | 10000 | ||
150×150 | 22500 | ||
150×150 | 22500 | Height 700~1000mm for flue gas denitrification. | |
Pore density | 20, 36, 50, 100, 150, 200, 300, 400 cells/square inch | ||
