ZNC450 2021 Znc Type Edm Sinking Machine

Product Overview

Description

Welcome to visit our website, the specification data of ZNC450 2021 Znc Type Edm Sinking Machine is as followed, if you need other information of our machine, please contact me freely or visit our factory by feild trip.



One. ZNC450 2021 Znc Type Edm Sinking Machine Features:

1.Machine body structure with advanced castings of resin sand stress relieving.

2.Adopt precision CAD design and high precision frame structure.

3.X,Y axles movement surface with "TURCITE" and ball screw.

4.X,Y axles are made up V-shape and plane structure,ensuring the precision life of mechanical.

5.Adopt Japan SANYO DC servo motor,linear bearing and high strength and precision of integral castings.

6.Using high frequency induction hardening heating treatment.

7.The table is precision grinded work table.

8.Adopting centrifugal high pressure oil pump of WALRUS and 10u filter system.

9.The machine castings adopt resin sand which the grade is above 250.

10.The castings are stress relieving cast iron.

11.The desktop uses high frequency quenching.

12.X,Y axles adopt the screw nuts of "model steel" which is produced by Taiwan.That may install ball screw optionally.

13.With functions of large area process and deep holes process.

14.Import accessories including electrode tip,automatic fire extinguisher,lamps,hand pull pump,page switch,gasket and centimeter bring up competitive machine tools.



Two. ZNC450 2021 Znc Type Edm Sinking Machine Functions:

1.Intelligent compile:depending on experience or input electric current and depth of processing.

2.Sectioned automatically from thick to thin.The steps which may complete the processing at one time  from thick→middle→thin to sleek.

3.Setting copper pairs with steel,graphite pairs with steel and copper pairs with hard alloy according to the electrodes and materials.

4.Multiple set selections to process the thin slice and large-sized workpieces.

5.Anti-carbon automatically detection.

6.Fire-prevention and liquid level control automatically.

7.Translating between Chinese and English,metric and imperial.

8.Conform to the CE safety standard of power box.



Three. ZNC450 2021 Znc Type Edm Sinking Machine Specifications:

Item	unit	SW-ZNC-450
Table size(L×W)	mm	700×420
Travel(X,Y,Z)	mm	450×350×200+200
Oil tank inside diameter dimension(standard)	mm	1150×660×450
Size of oil box(standard)	mm	1250×760×510
Spindle bearing	kg	70
Working table's bearing	kg	600
Max distance plate electrode to table surface	mm	660
Machine weight	kg	2200



Four. ZNC450 2021 Znc Type Edm Sinking Machine Power Supply Unit

Current/Type	Max machining rate	Min electrode wear rate	Optimal surface accuracy	Max input power
60A	400	0.3	0.3	5KVA
90A	800	0.3	0.3	8KVA



Five. ZNC450 2021 Znc Type Edm Sinking Machine Accessories

Model	Standard Accessories	Optional Accessories
SW-ZNC-450	Permanent-magnet chuck	Precise orbital  head
	Special fire extinguisher	ER special clamp
	Electrode tip
	Clamping sets
	3 Axis optical scale
	Filter net
	Quartz work lamp
	Toolbox

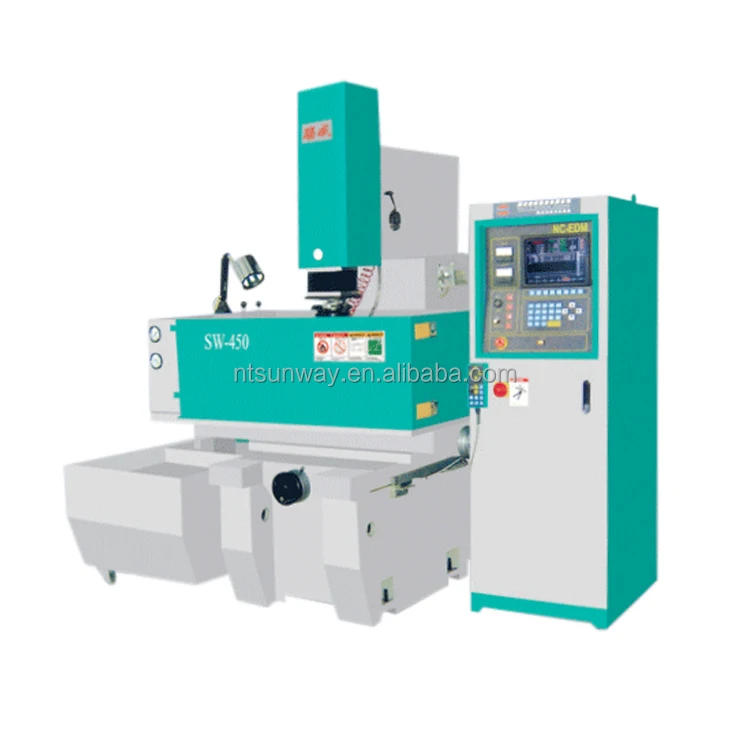

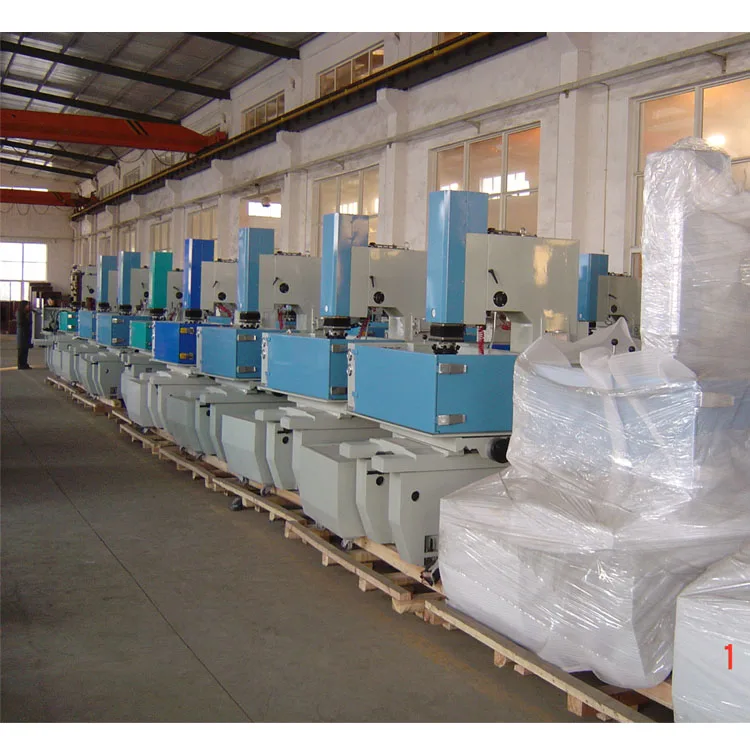

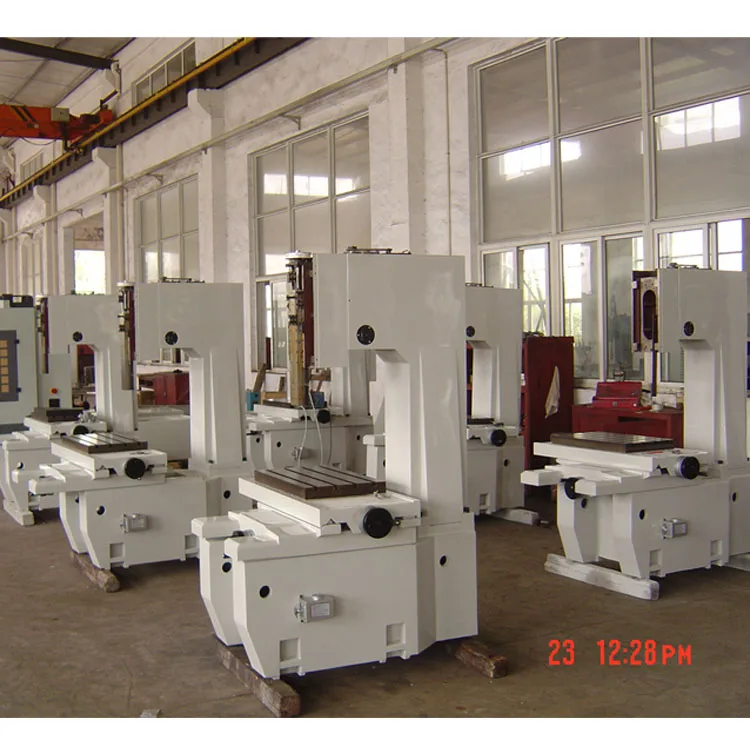

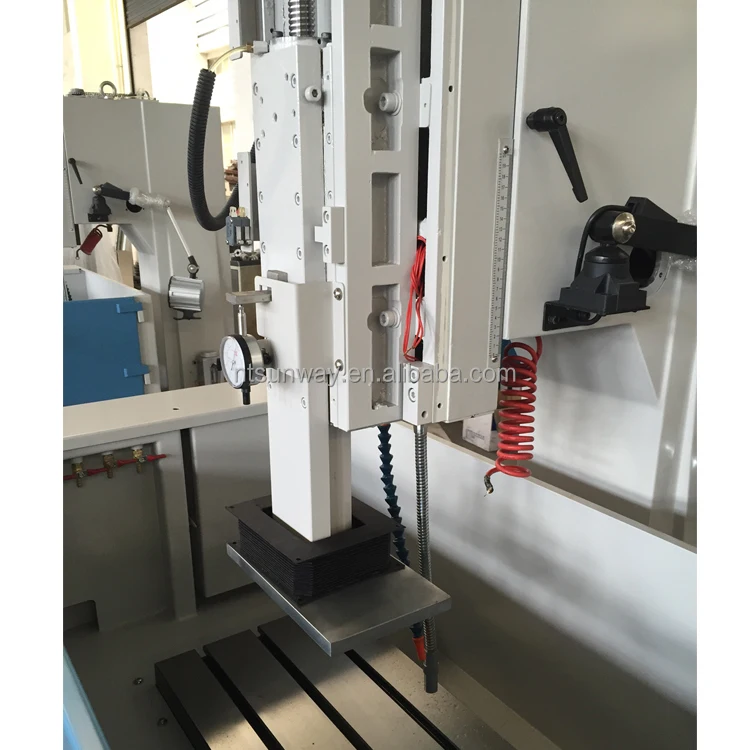

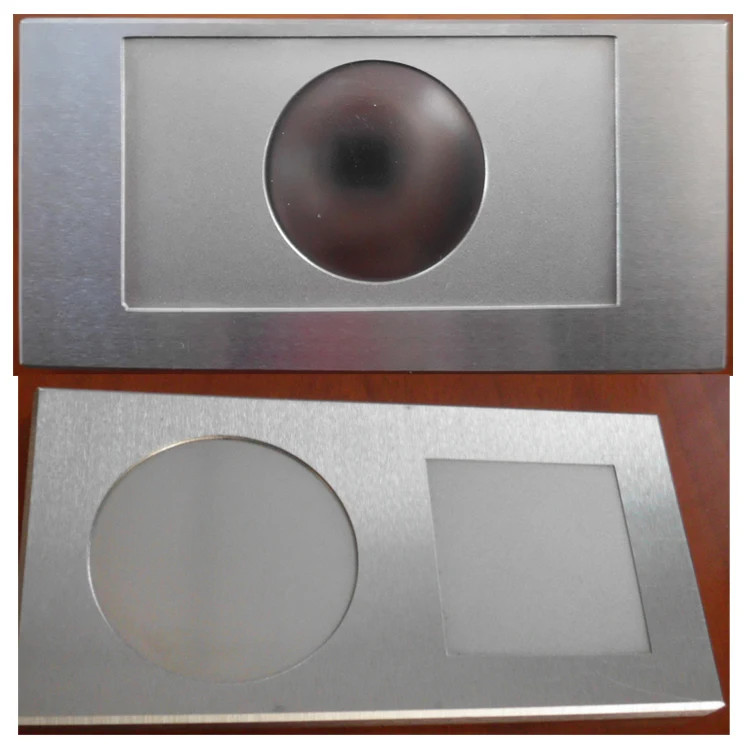

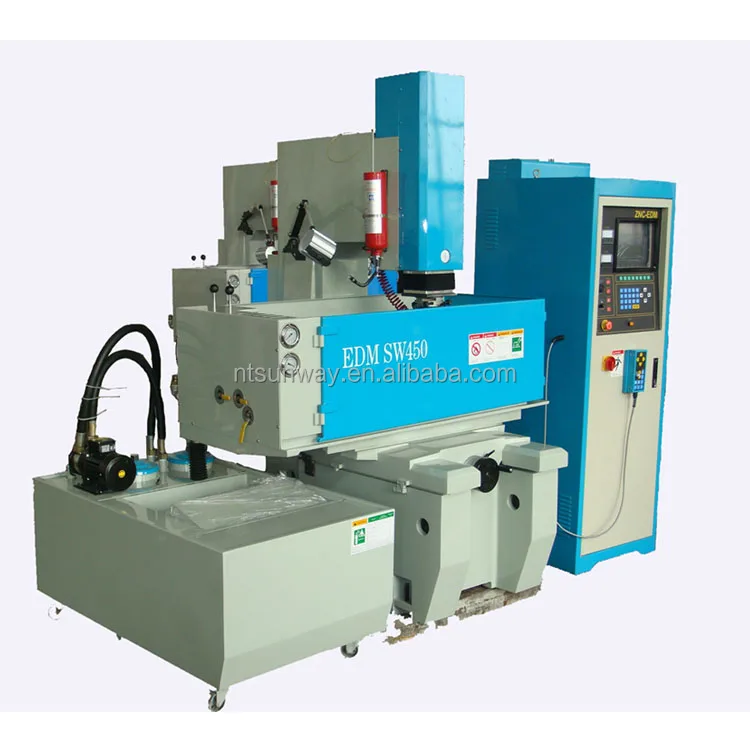

Six. ZNC450 2021 Znc Type Edm Sinking Machine photos:
