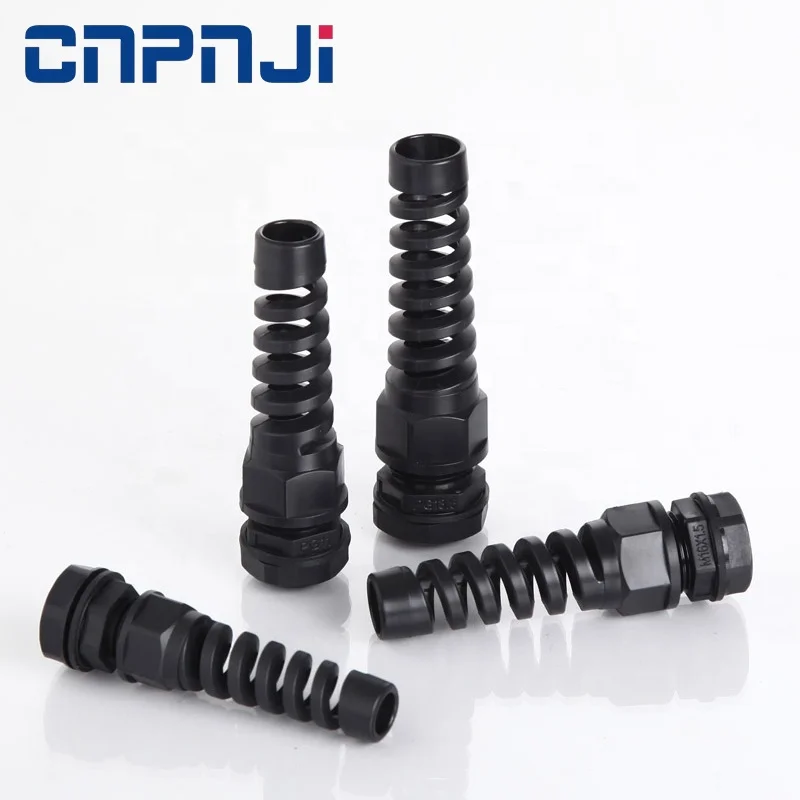

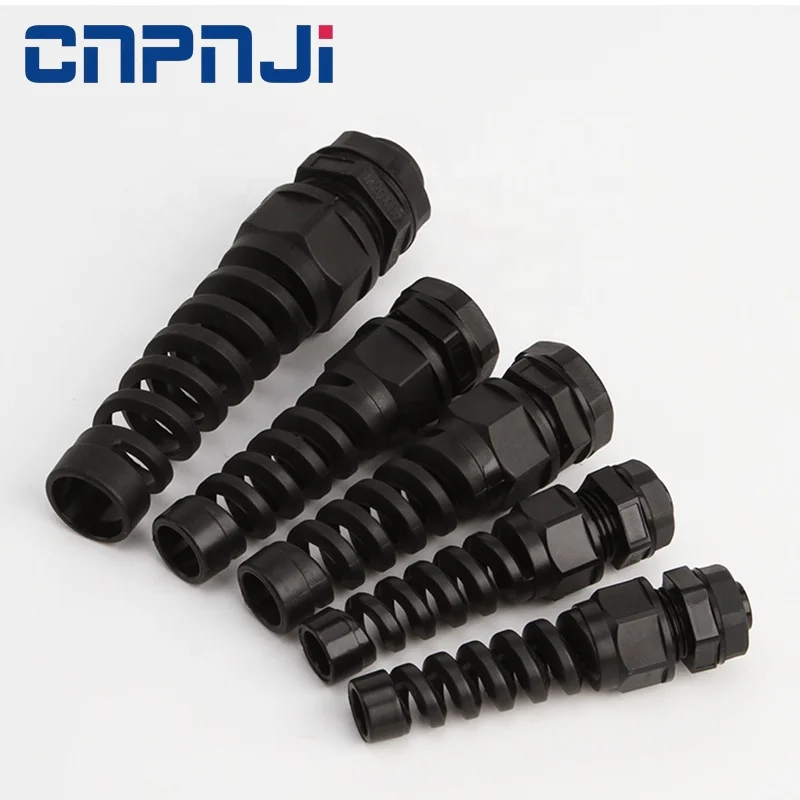

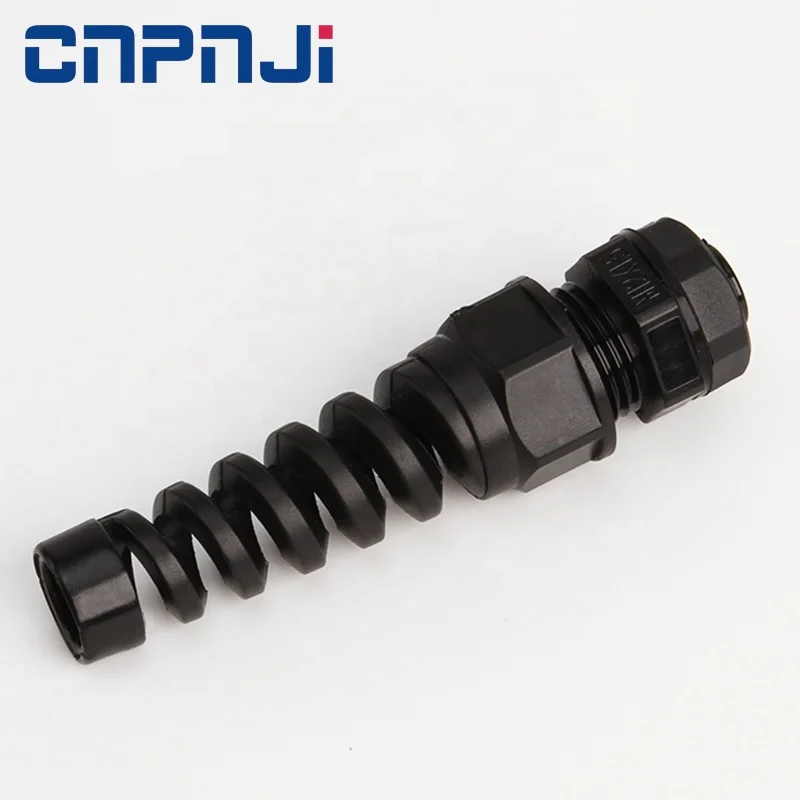

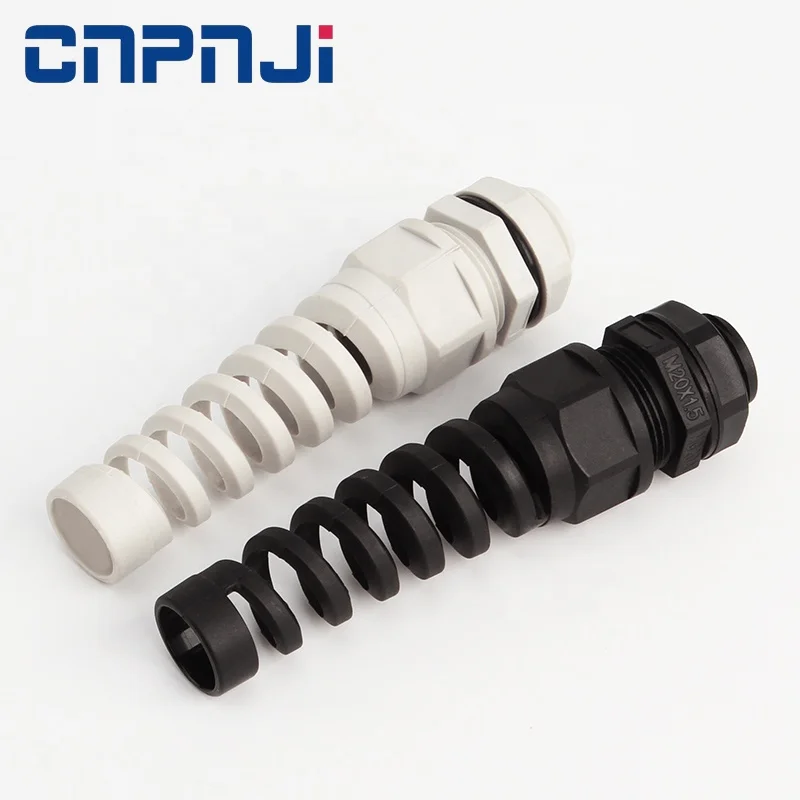

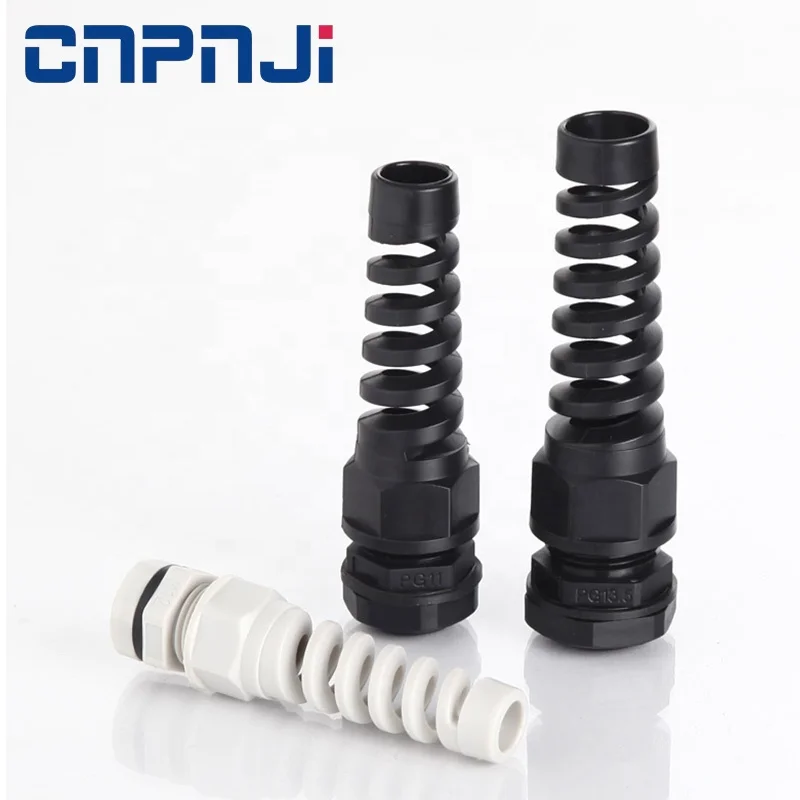

High Quality Type PG Spiral Cable Gland with Strain Relief
- Category: Cable Glands >>>
- Supplier: Shanghai Pinji Electronic Technology Co. Ltd.
Share on (60419976472):
Product Overview
Description
UL Approved Ip68 M PG Strain Relief Gland

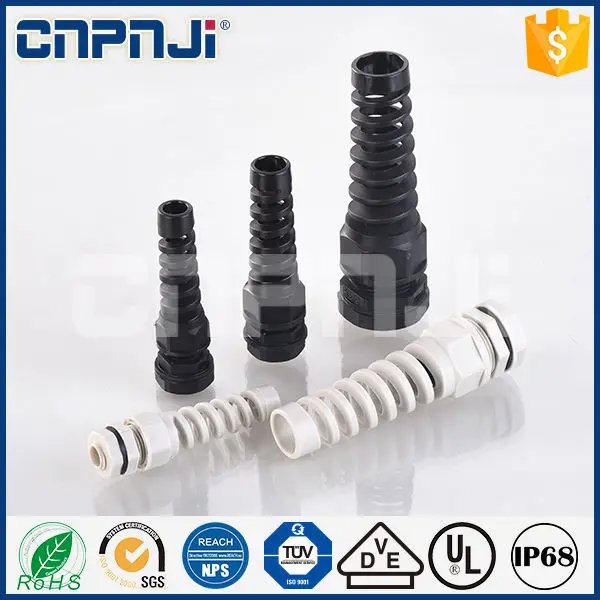

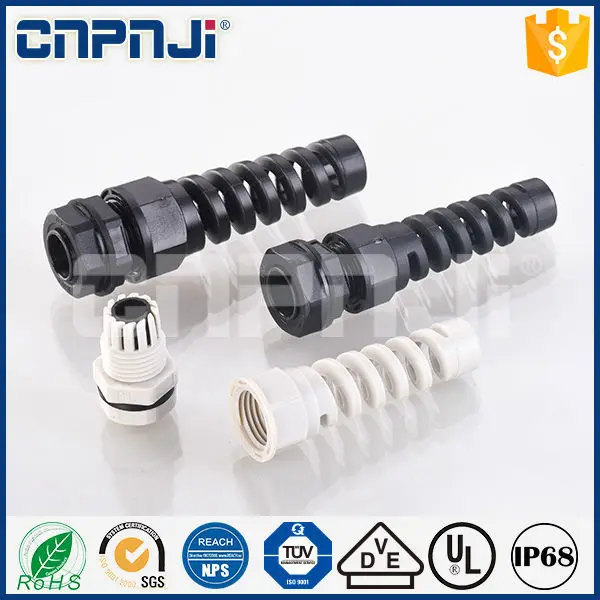

1. Pictures Of IP68 PG Cable Glands
2. Specification Of IP68 PG Cable Gland
| Standard Thread | PG, Metric, NPT, G(PF) |
| Meterials | UL approved nylon PA66(Flammability UL 94V-2) for A,C,E,F parts; EPDM rubber for B,D parts |
| Protection Level | IP68 |
| Working Temperature | EPDM Rubber: -40 to +100 °C Silicon Rubber: -50 to +200 °C |
| Feature | Different cable range for different cable diameter Different thread length for different junction box |
| Color | Black, Gray, White, Blue, Red (Special colorscustomizable) |
| EPDM Rubber | More waterproof; more durable; more weather resistant |
| Certificates | UL,CE,ROHS,SGS,IP68,Halogen-free,UV Resistant |

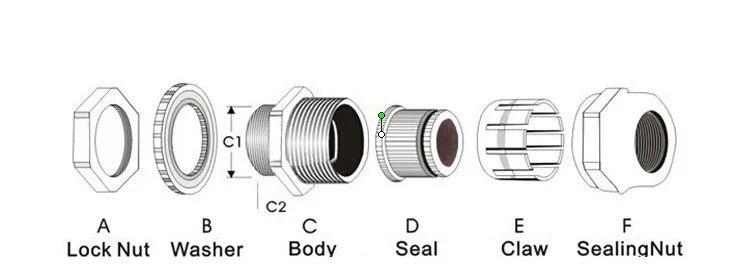

3. Exploded View And Applications Of Cable Gland
| NPT Cable Gland Do Not Include Lock Nut | |||||
| Size | Item | Cable Range | Thread O.D. | Thread Length | Spanner Size |
| No | (mm) | C1(mm) | C2(mm) | F(mm) | |
| NPT1/4" | NPT1/4-5.5 | 3-5.5 | 13.157 | 8.5 | 19 |
| NPT1/4-6.8 | 4-8 | 13.157 | 8.5 | 19 | |
| NPT3/8" | NPT3/8-7 | 3-7 | 16.662 | 10 | 22 |
| NPT3/8-10 | 5-10 | 16.662 | 10 | 22 | |
| NPT1/2" | NPT1/2-9 | 5-9 | 20.955 | 10 | 24 |
| NPT1/2-13 | 6-12.5 | 20.955 | 10 | 24 | |
| NPT3/4" | NPT3/4-13 | 7-13 | 26.441 | 15 | 33 |
| NPT3/4-18 | 12.5-18 | 26.441 | 15 | 33 | |
| NPT1" | NPT1-22 | 15-22 | 33.249 | 17 | 41 |
| NPT1-25 | 17-25 | 33.249 | 17 | 41 | |
| NPT1 1/4" | NPT1 1/4-25.5 | 17-25.5 | 41.91 | 17 | 52 |
| NPT1 1/4-31 | 24-32 | 41.91 | 17 | 52 | |
