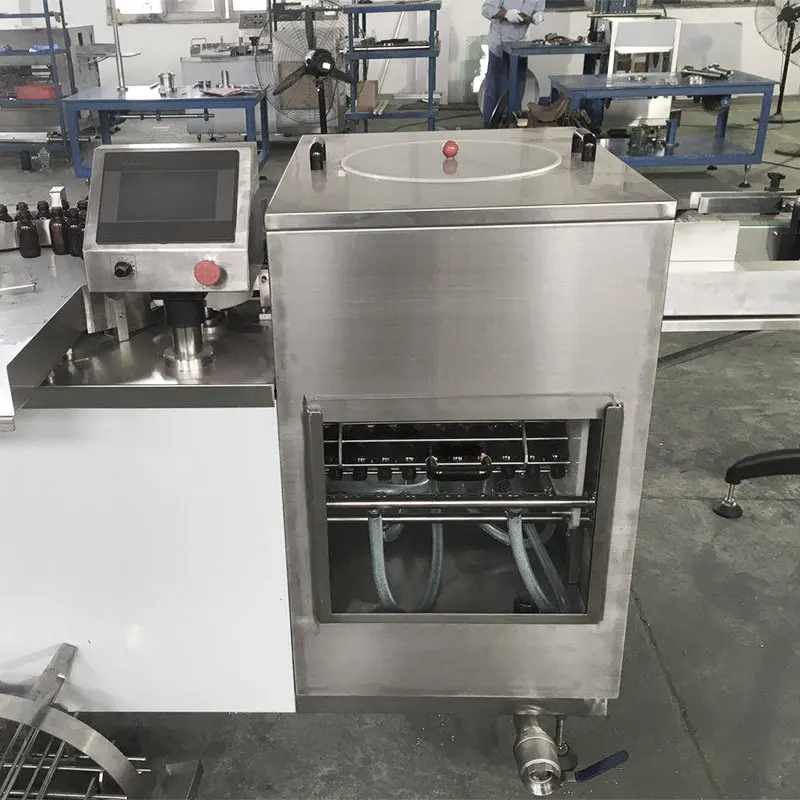

Automatic plastic glass vials bottle(air, water , ultrasonic) washing machine
- Category: >>>
- Supplier: Nantong Bolang Machinery Technology Co. Ltd.
Share on (60420034508):
Product Overview
Description
Our Product Advantages
1.We have many high quality and reliable suppliers.
2.We have young and powerful sales team, and have enough exported experience.
3. Our products are of excellent quality and fast processing speed.
4.Rich experience, more than 1,500 global customers, more than 20 years of factory history.
5. Rich product categories, products support OEM and customer customization.
6. One-year warranty, can provide overseas installation and debugging services.
7.We all hope all of our clients will enjoy doing business with us. We look forward to be your reliable partner.
Product Description
Product Function

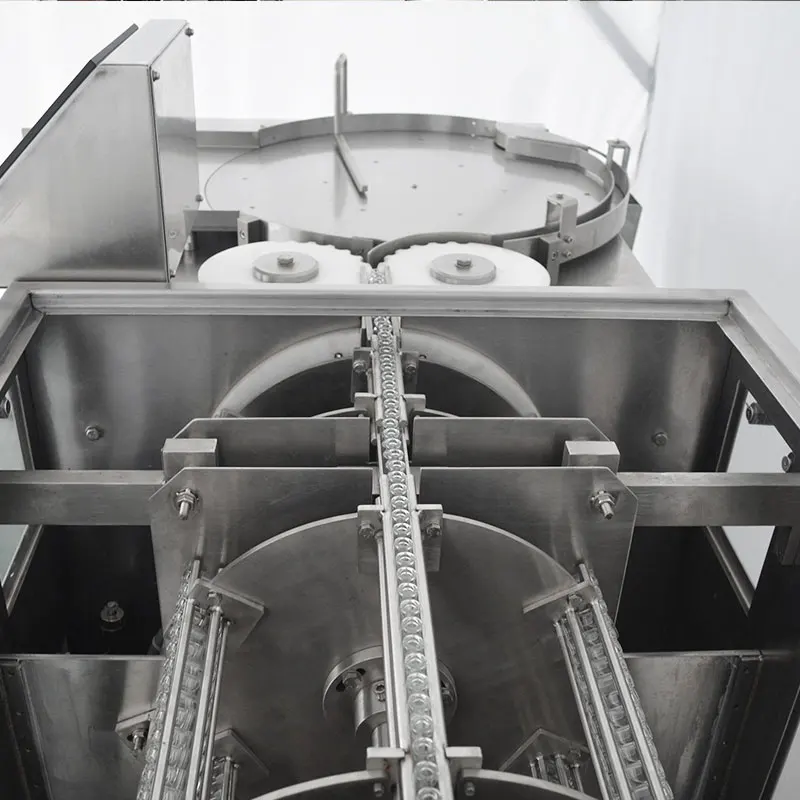

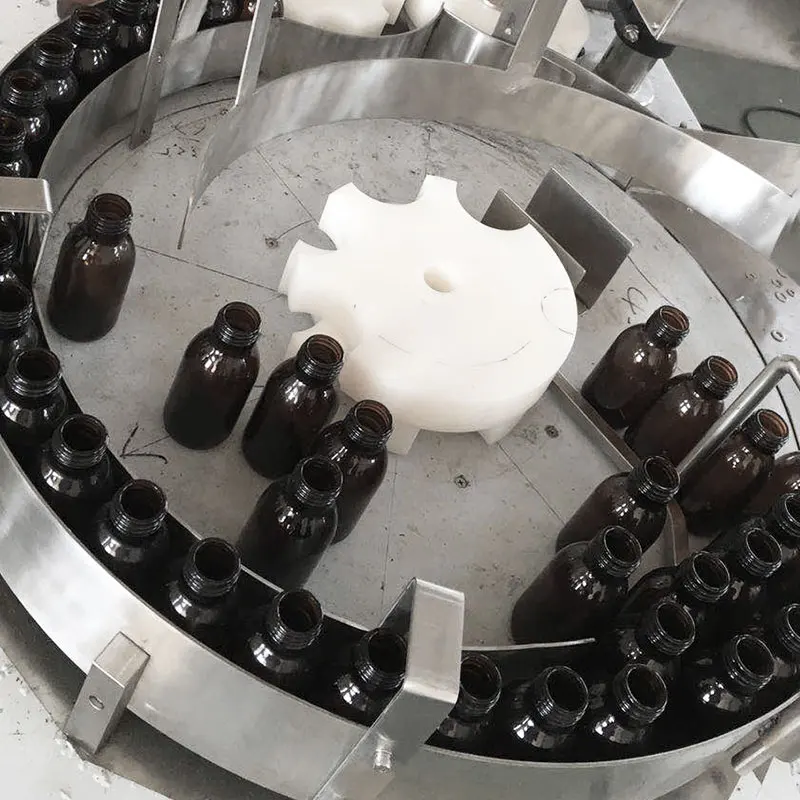

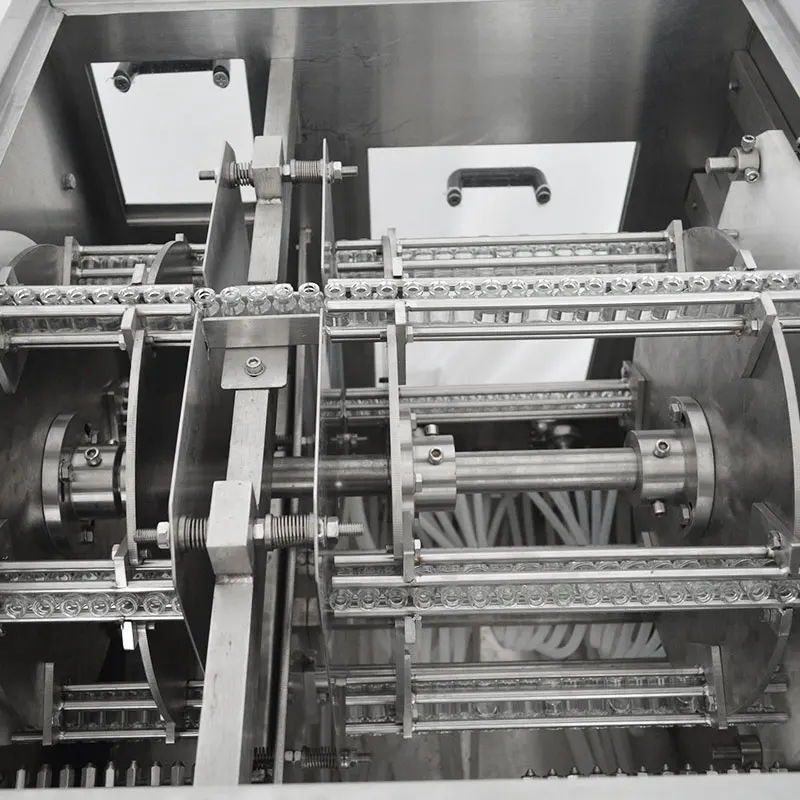

1. The machine for the oral liquid bottles or other bottles of cleaning equipment, using the drum structure, conveyor belt for the bottle, the cylinder to send bottles in the form of bottles.2. The bottle is conveyed by the conveyor belt, the bottle will be pushed into the first four bottles of bottles to push the bottle, push the cylinder and then push it into the drum; drum for intermittent rotation, the drum on the drum with the drum rotation, Respectively, after cleaning the water repeatedly washed and purified compressed air blowing to complete the bottle.
3. The machine has a smooth operation, reliable action, good cleaning effect, and with a water vapor treatment system.
Production capacity | 3000 ~ 5000 bottles / hour |
Applicable bottles | 30ml ~ 500ml(can be adjustable) |
Cleaning water consumption | 0.5m³ / h Pressure: 0.2 ~ 0.3MPa |
Purified compressed air | 0.4m³ / min Pressure: 0.3 ~ 0.4MPa |
Purified compressed air consumption | 25m³ / h Pressure: 0.3 ~ 0.4MPa |
Power | 380V 50Hz three-phase four-wire system |
Power | 2.5Kw |
Dimensions | 1800 × 850 × 1450 |
Main device component configuration
No. | Name | Model or Material | Supplier |
1 | frequency converter | S310-201-H1BCD15 | Taiwan TECO |
2 | gear reducer motor | 6IK120GU-AF | JINWEIDA motor |
3 | stainless steel pump | CDXM120 / 20 | HANGZHOU South Pump |
4 | solenoid valve | NT20 | SNS |
5 | high-precision sub-box | RTT80-10-2: 1 | ZHUCHENG MINGXIN machinery |
6 | Other electrical components | France Schneider | |
7 | drum | 304 # | NANTONG BOLANG |
8 | water tank | 304 # | NANTONG BOLANG |
9 | drive mechanism | components | NANTONG BOLANG |
10 | cleaning | system 304 # | NANTONG BOLANG |
11 | side panels, panel | components (304 #) | NANTONG BOLANG |
12 | rack, table | assembly (A3) | NANTONG BOLANG |
Company Profile
Our company is one of the member units of China Pharmaceutical Equipment Industry Association. Its predecessor is Haimen Nantong Precision Machinery Co.,Ltd.It has a history of more than 20 years.It specializes in the design and manufacture of pharmaceutical,food and chemical machinery,and has a far-reaching impact on the national pharmaceutical and food industries.The company has strong design ability.The products are also exported to Southeast Asia,Central Asia and other countries and regions,and are favored by users.
Delivery&Certificate
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2007,sell to North America,Domestic Market,Southeast Asia,Oceania,Eastern Europe.
2. How can we guarantee quality?
We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
3.What can you buy from us?
Filling Machine,Filling Production Line,Bottle Washing Machine,Sterilization Drying Machine,Capping Machine
4. Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
We are based in Jiangsu, China, start from 2007,sell to North America,Domestic Market,Southeast Asia,Oceania,Eastern Europe.
2. How can we guarantee quality?
We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
3.What can you buy from us?
Filling Machine,Filling Production Line,Bottle Washing Machine,Sterilization Drying Machine,Capping Machine
4. Is there any insurance which I pay for to guarantee I will get the right machine?
We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Russian
