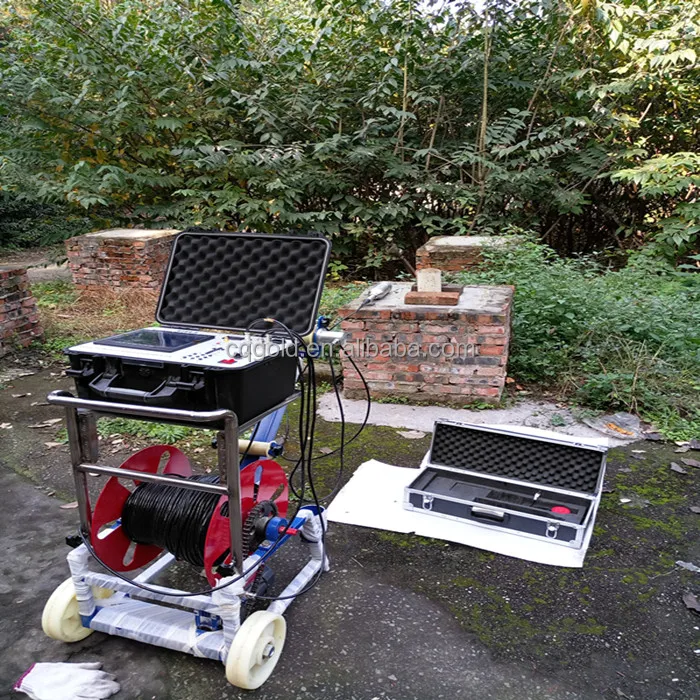

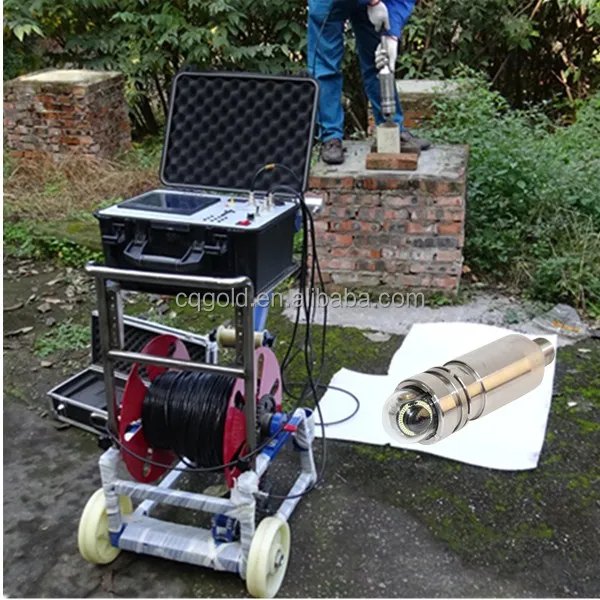

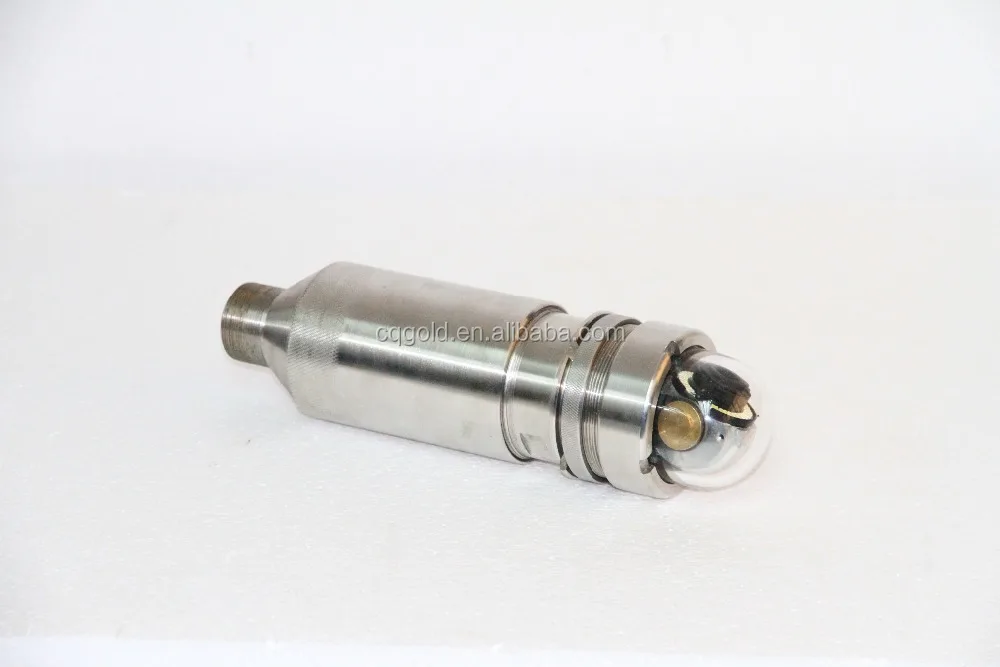

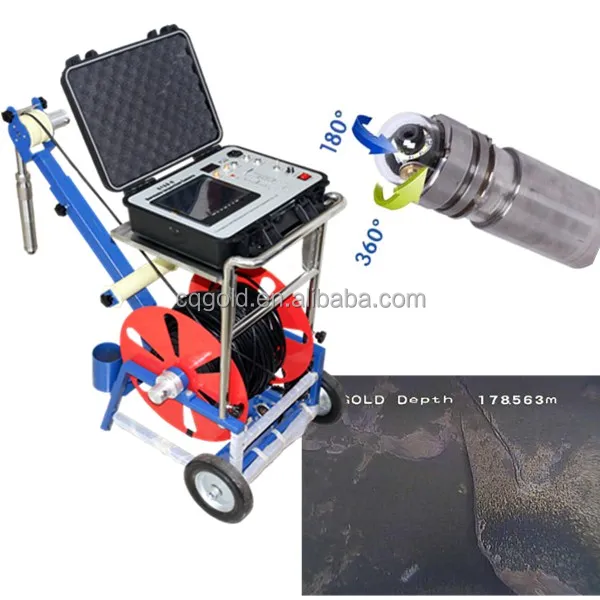

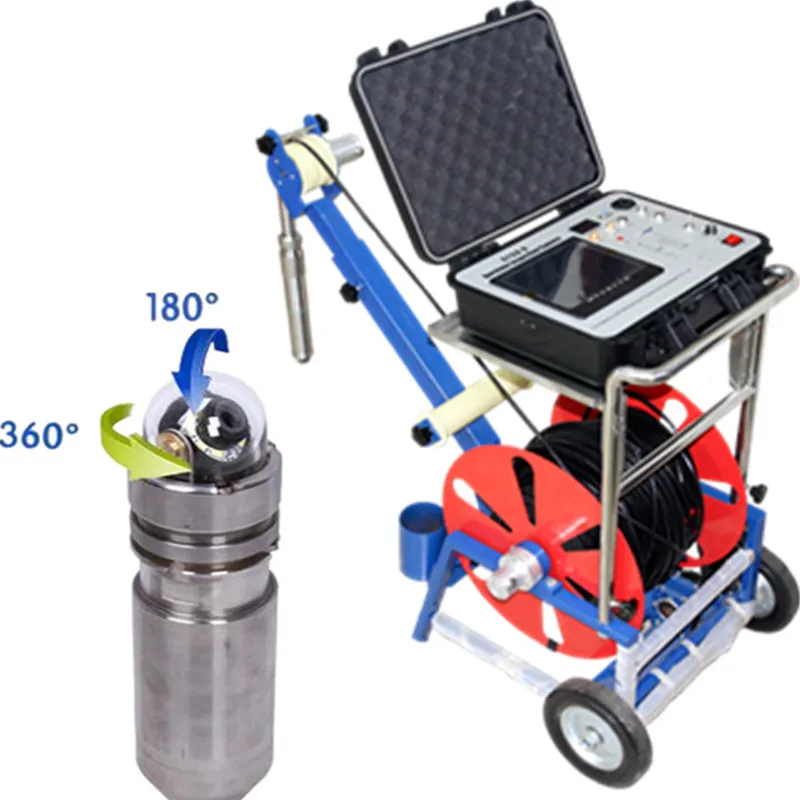

Underground Water Well Inspection Camera With Color Video Borehole Camera

Introduction

This instrument is designed for water well, oil well, ocean engineering inspection, etc., applications. For example this can be used to know the casing problems, like leakages, etc., so that those problems can be addressed to and solved. We can also know so many things, where man cannot see physically, as per our requirements, interest and need.

1.  Accessories:

Before starting the process of Bore Well Scanning, check whether all the required accessories are available at your dispose or not. Make sure that all the required accessories and implements are ready and then start your job of bore well exploration. Please take all the accessories to the testing site every time. Also take all the precautionary and safety measures.

Set of Accessories

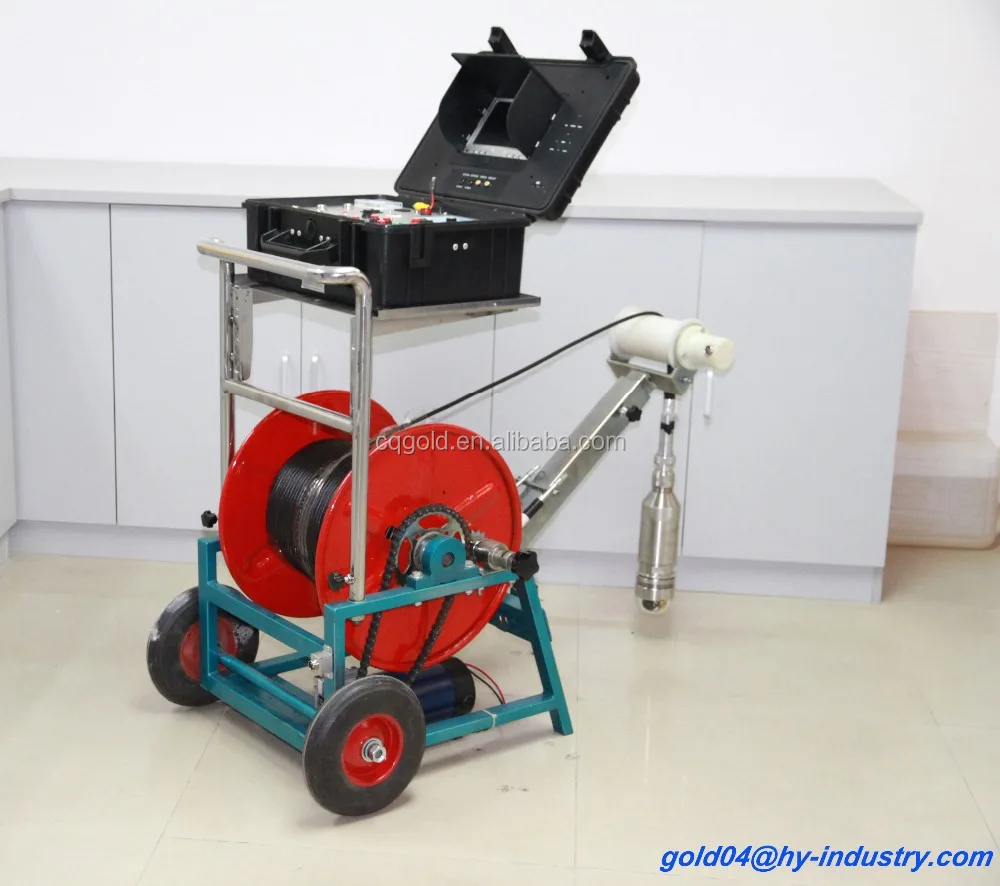

a)       Combined Automatic and Mechanical Winch

b)      Hoist

c)       Hoist table

d)      Arm of pulley

e)       Tool box (Rotary sensor; Power line for winch, Power line for hoist, Data line for pulley depth counter, Link line for sensor, Data line to modify the programmer data, Remote control panels for SD card, Silicone oil and seals, Centralizer, 12V Power input cable, Instructions sheet, 2 Pieces Pipe tong, Patch board, Pliers, Multimeter, Screwdriver, etc.)

2. Main Features:

Real time video, collect, record;

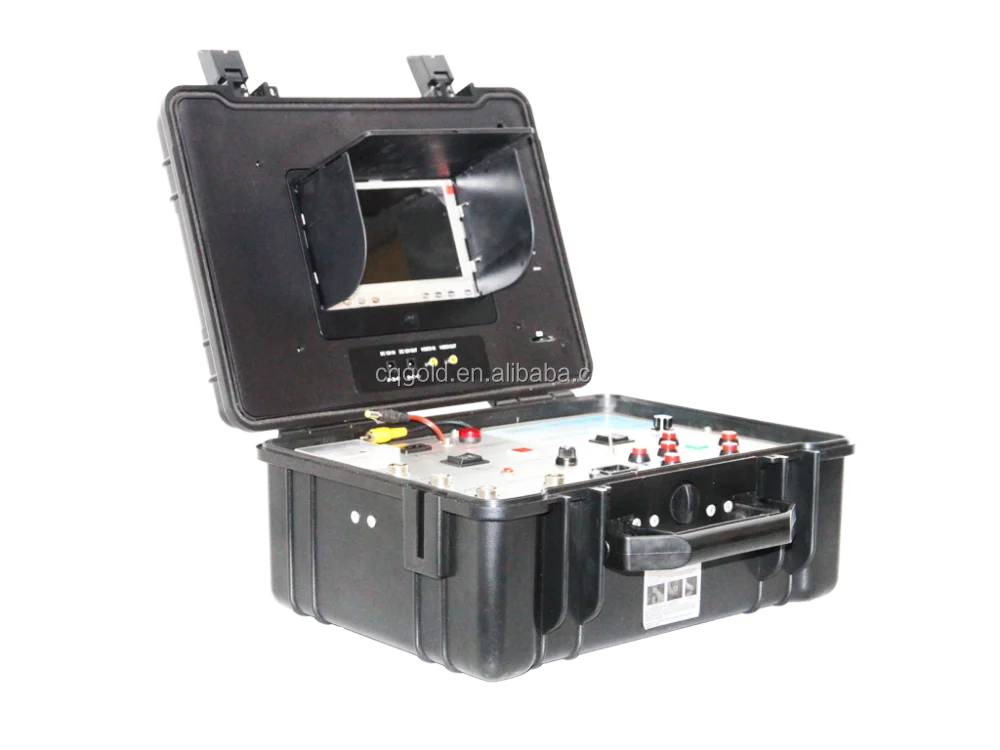

Clearly image show on ground instrument, colored video and Image;

Vertical drilling hole, horizontal drilling hole, arbitrary drilling hole;

 Widely used in water well, oil field, coal field, engineering geology, dam, reservoir, Oceaneering.

3. Appliction:

Stratum structure divide

Well wall stratum crack

Karst development discrimination

Distinguish fractured development zone

Determine the karst distribution position

Long time underground borehole monitoring

4. Technical Parameter:

5. Standard Configuration:

 Normally one set per wooden case, or as your requirement. Depend on the design and final quantity.
