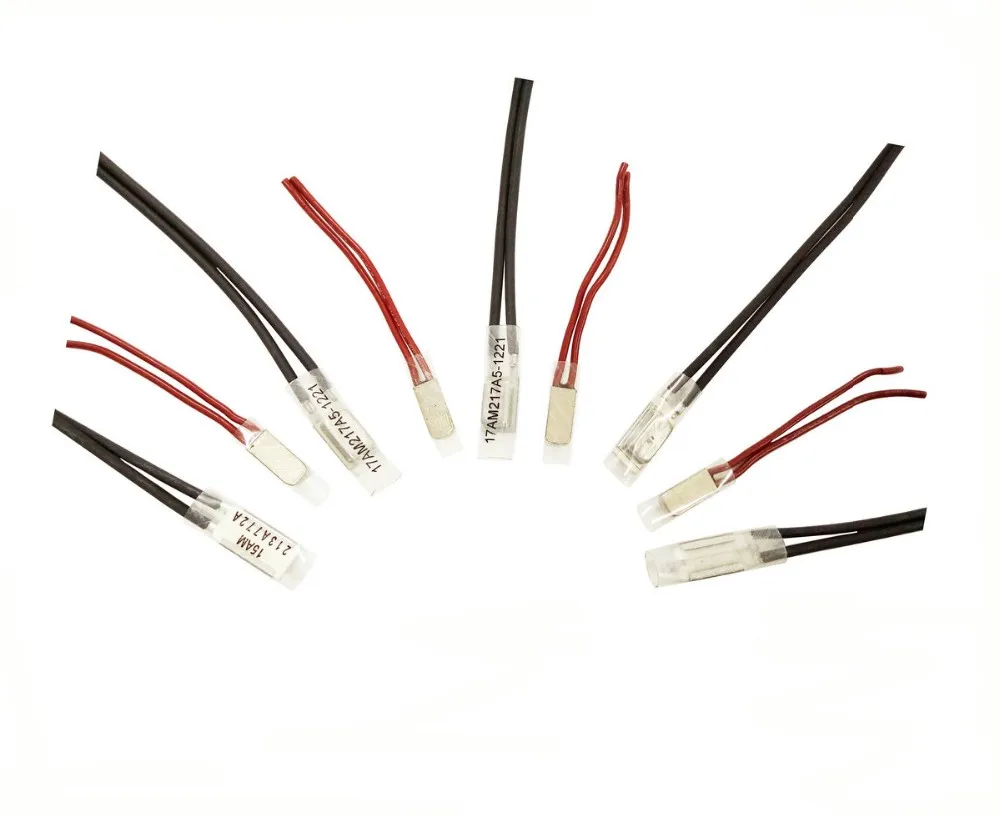

Customized electric motor thermal protector

BR-A2D. BW series thermal protectors are used to provide effective and reliable safety protection to motors and prevent motors from damage due to overheating. These series thermal protectors are widely applied in the industrial motor under 1.5HP, such as transformers, rectifiers, electro-thermal appliances, etc.

Temperature specification

Open temperature: 70~150±5℃, one gear per 5℃

Reset temperature: it is 2/3 of standard opening temperature or specified by customers. The tolerance is 15℃.

Contact capacity

They are applicable for more than 5000 cycles under following condition.

Notice:

The thermal protector can not sustain heavy impact during working.

The word side is the temperature sensing surface.

NIDE can supply the full range of electric motor components such as commutator, ball bearing, thermal protector, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.

Our Products are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.
