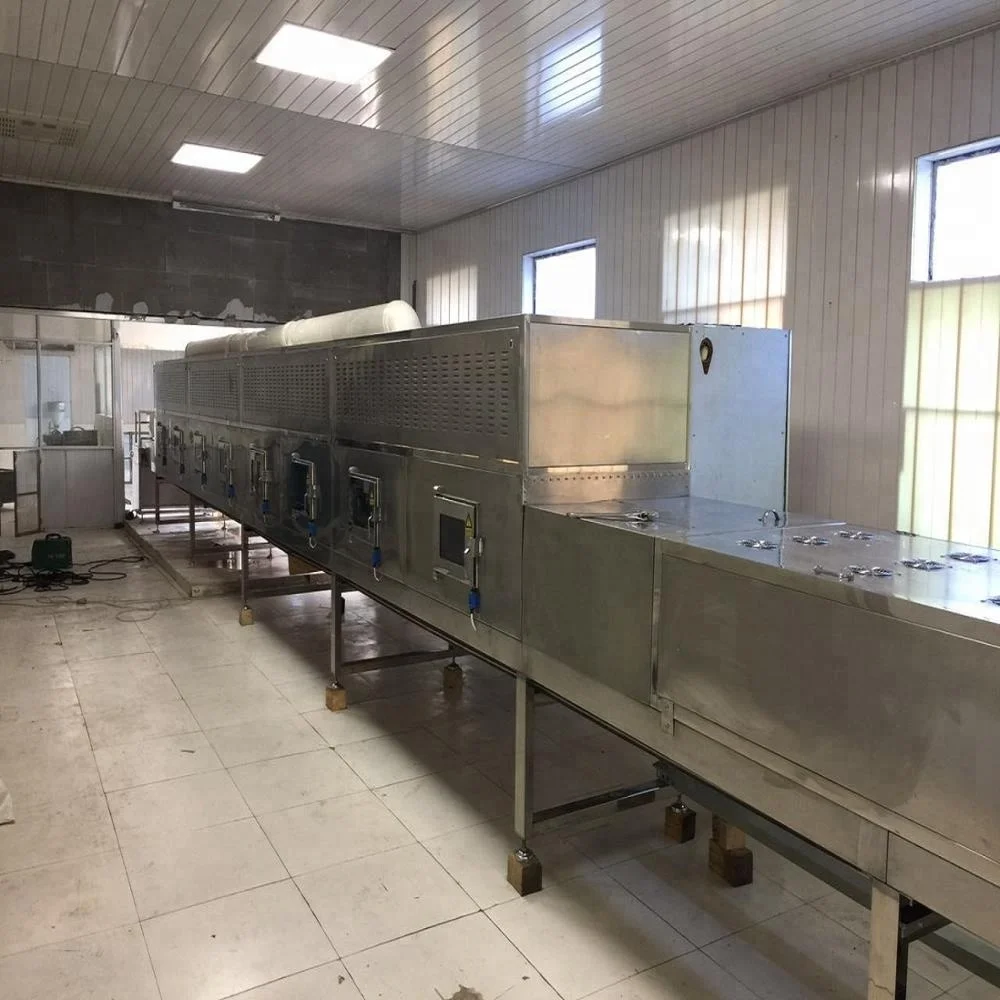

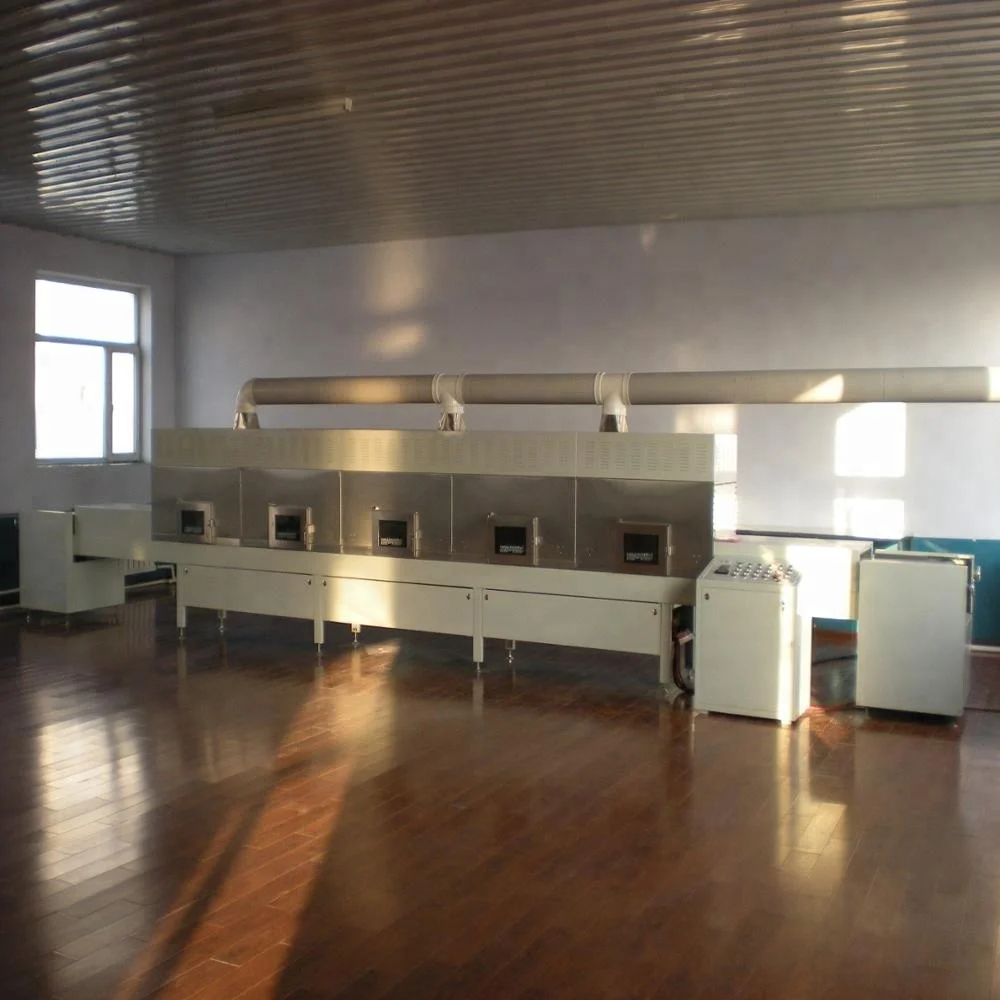

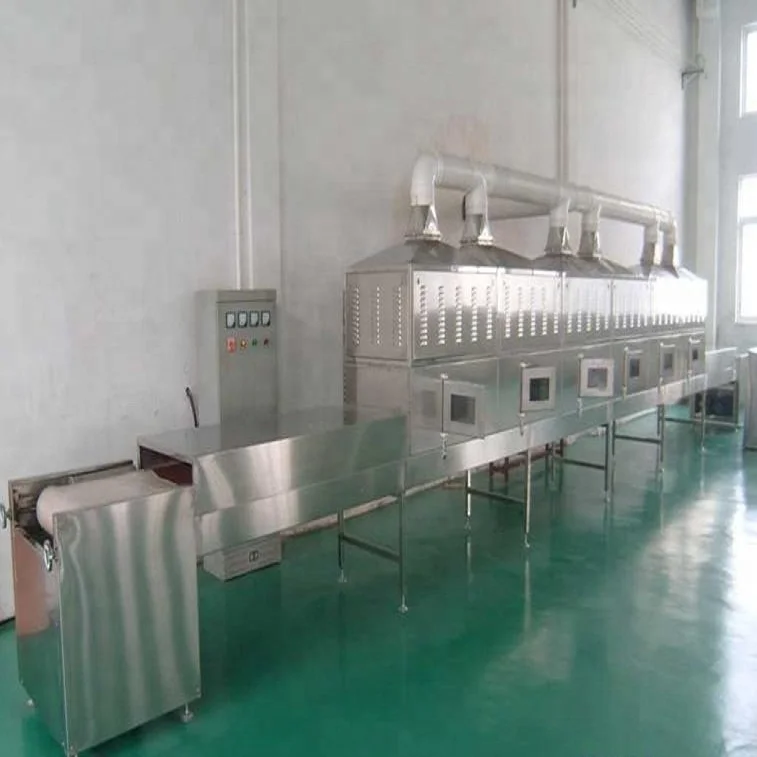

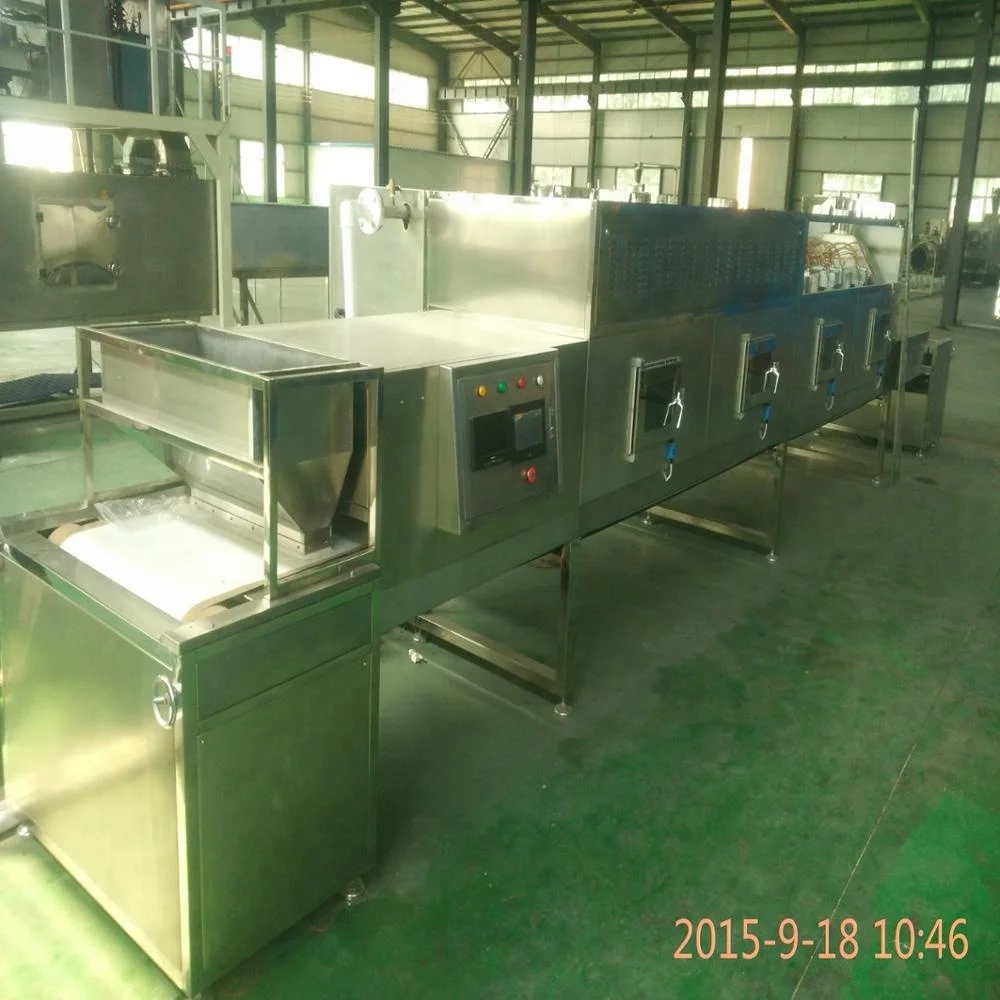

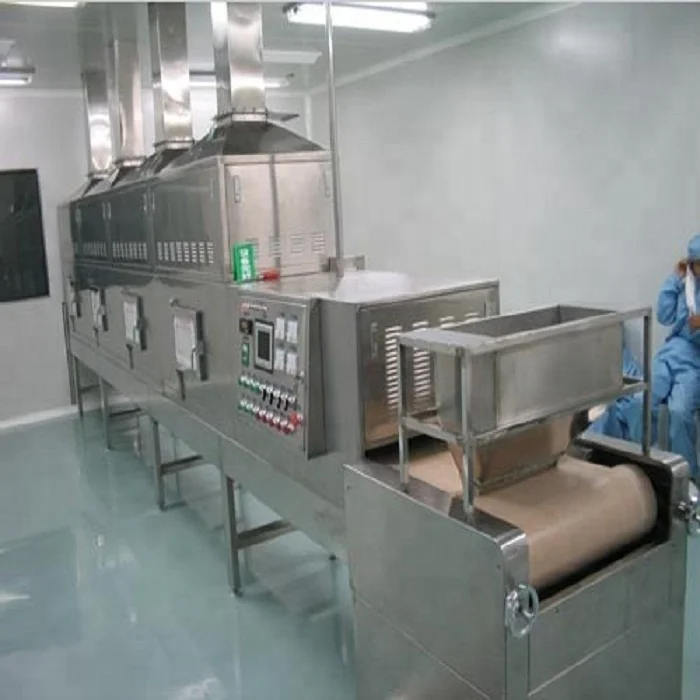

Continuous clay microwave dryer/industrial tunnel type microwave dryer

Applications of Microwave Dryer:
1. chemical material,medicine tablet or pill,such as watered pills,water-honey bolus,honeyed bolus,condensed pill and Tibetan pill,etc.
2.all kinds of teas,herbs, flowers, green leaves,etc.
3.various dried meat, like beef, pork, chicken,duck, fish etc.
4. powder for various material,such as spices, other food additives.
5. agricultural products,such as china date,nuts,grains,peanut,etc
6.snack food, fruit seeds, grains, peanuts, chips,etc.

Equipment Main Features&Microwave drying advantage

Equipment features:

1. The equipment is made of high-quality 304# stainless steel,fully meet with medicine machinery requirements;

2. Microwave leak:accord with a country GB10436-89 standards(≤5 mw/cm²);
3. Control system: PLC control interface or press-button control;
4. Adopt high-quality Panasonic magnetron,long life,best effect;

5. Low-temperature drying and sterilization,keep material character perfect,keep the ingredient.
Microwave Drying Advantages
1) Microwave dryer equipment effect at once, power adjustable, transmission speed adjustable, no thermal inertia residues, compare with the conventional process equipment to save energy.
2) Microwave dryer make the material itself become body heat source state, no need heat transfer process, can achieve the drying temperature within a very short time.
3) Due to the fast drying speed, microwave drying machine maximally save the activity of the materials, nutrition ingredient and the original color.
4) Microwave dryer uniform heat up the material inside and outside because of the strong penetrability, will not appear outside dry but inside wet.
5) Microwave dryer can fast sterilization under low temperature sterilization, material store for a long time will not mildew.
6) Microwave leakage control in metal drying chamber and the waveguide, no radiation damage and harmful gas emissions, not produce waste heat and dust pollution, microwave drying is efficient and economic environmental drying mode.

Operating principal:

This microwave source adopts continuous microwave magnetron as its microwave oscillation source. The

continuous magnetron is a kind of cross-field microwave radio tube, the direct current field and

the stationary magnetic field are vertical. The anode of the magnetron is a complex system of resonance.

The anode block consists of many little resonant cavity. Between them there is inductance coupling, so the

anode block is the crossover network of microwave. The electron eradiated from the cathode of the magnetron

will firstly be affected by the direct current field and curl like an angle. While the electrons are moving from

the cathode to the anode, the contrail of their movement is like a swing vibration. Under the condition

of synchronism between high frequency field and electron cloud, the electron contrail will rise toward the anode

direction and form electron spoke. Among the spoke, while the electrons are carrying through synchronistically,

they will change the potential energy into high frequency energy and increase the high frequency breadth. After

themagnetron is started, the direct current which is instored in the resonance cavity will be changed into super-high frequency energy, finally, microwave source of enough power will exported through wave-guide.
