ASTM D3420 Pendulum Impact Resistance Test Machine
- Category: >>>
- Supplier: Labthink Instruments Co. Ltd.
Share on (60420547011):
Product Overview
Description
Product Description

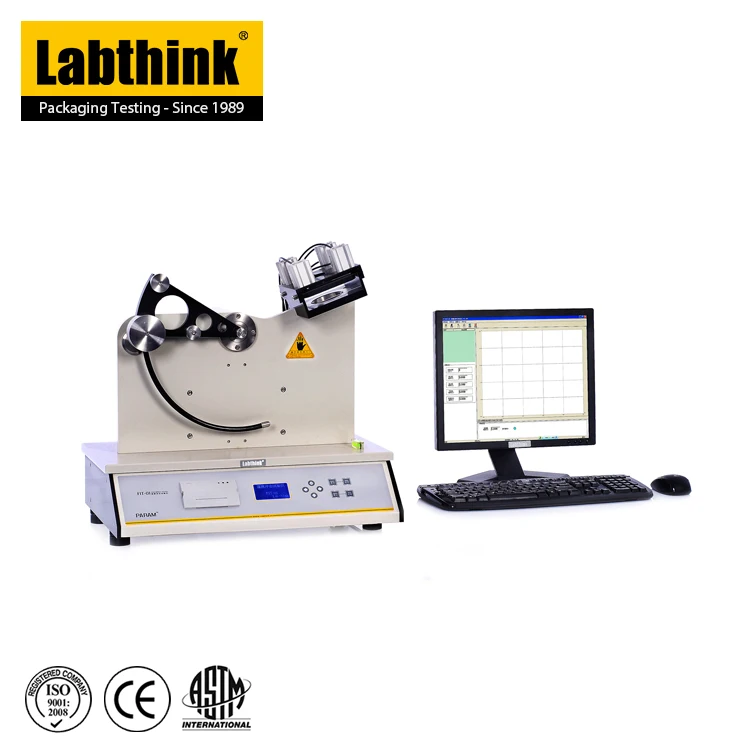

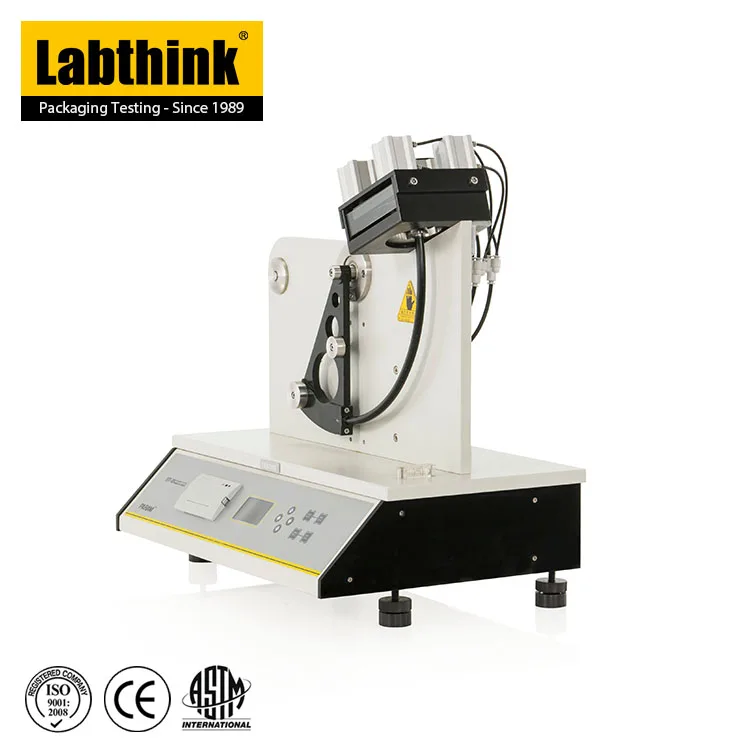

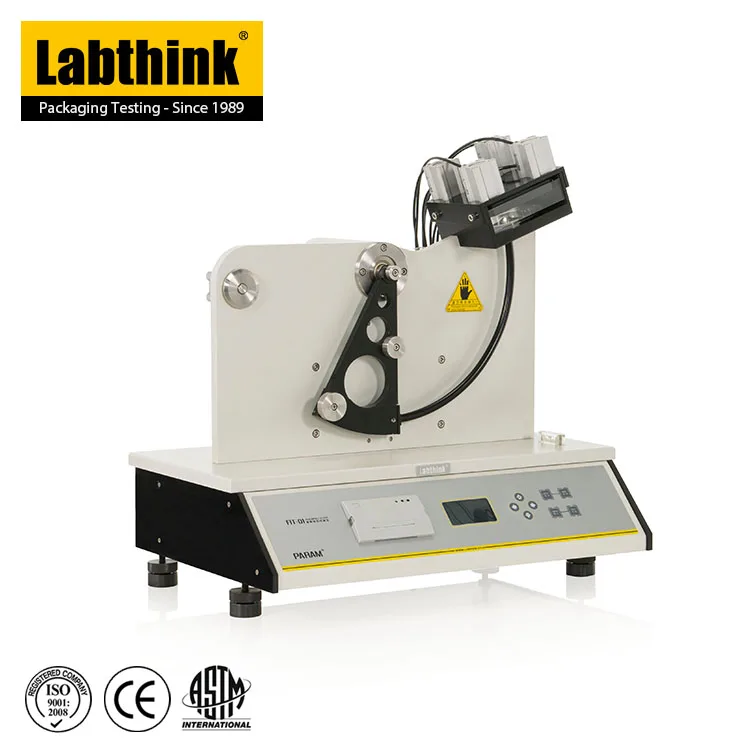

FIT-01 Film Pendulum Impact Tester is professionally applicable to the determination of impact resistance properties of pendulum of plastic films, sheets, composite films, aluminum foils and other materials.
Basic Applicatioins |
Including plastic films, sheets and composite films e.g. PE/PP composite films, aluminized films, aluminum plastic composite films, nylon films for food and drug packages |
Features
* Adjustable range and electronic measurement support various combinations of non-standard test conditions
* Pneumatic specimen clamping, pendulum release mechanism and horizontal adjustment system effectively reduce the errors caused by manual operation
* The system provides automatic statistics of testing data for users’ convenient viewing
* The instrument is controlled by micro-computer, with LCD, menu interface and PVC operation panel.
* Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and test reports
Standards
This instrument conforms to various national and international standards:
GB/T 8809, ASTM D3420, NF T54-116
Specification | |
Impact Energy | 1 J, 2 J, 3 J (Standard) |
Resolution | 0.001 J |
Impact Head Size | Ф25.4 mm, Ф19 mm, Ф12.7 mm (Customization is available) |
Specimen Clamp Diameter | Ф89 mm, Ф60 mm |
Specimen Size | 100 mm x 100 mm or Ф100 mm |
Gas Supply Pressure | 0.6 MPa (outside of supply scope) |
Port Size | Ф6 mm PU Tubing |
Instrument Dimension | 600 mm (L) x 390 mm (W) x 600 mm (H) |
Power Supply | 220VAC 50Hz / 120VAC 60Hz |
Net Weight | 64 kg |
Packing Details
Note: this is just a sample packaging. We Labthink cares all instruments that we are sending to customers.
Our Service
Romote Service
Lifelong free of charge! unpacking, Installation, debugging, training, maintainance, etc
Field Service
Include installation, debugging, operation and application training, calibration, repairing
Local Service Centers
More than 30 International service providers give you promote services.
Our Company
Labthink China
Founded in 1989, Located in Ji'nan, Shandong, has 200+ empolyees and self owned laboratory
Labthink USA
Located in Medford, MA; has 30+ employees, including sales team, after-service team and shown room.
Labthink Labotary
360 m2 test area, 120 testing instruments, 20+ experienced lab technicians. Provide test data as well as soluction services
Debugging Department
Each Lathink instrument are carefully checked and debugged by the engineers.
Labthink has taken the lead in proposing & drafting 14 national standards and has been granted more th-an 109 patents.
