Machine Summary The machine is applicable to machining inner holes of various types of parts, such as round holes, splined holes, holes with single key, involute profile and holes with internal spline. The machine is suitable for volume production of small and medium-sized parted and components, especially for machining the inner single keyway of small parts.
Specifications List
Technical Parameters
Specifications
Units
L5104
L5106
Number of broaching stations
1
1
Rated pulling force
KN
40
60
Max. stroke length
mm
600
800
Length range of broaching tool
mm
400-650
500-850
Hole diameter of worktable
mm
Φ100
Φ120
Max. outer diameter of workpiece
mm
Φ200
Φ260
Working speed
m/min
3-8
3-8
Returning speed
m/min
2-20
2-20
Machine net weight
kg
2500
3200
Standard workpiece verticality of hole centerline and base after broaching
mm
≤0.04/200
≤0.04/200
Detailed Images

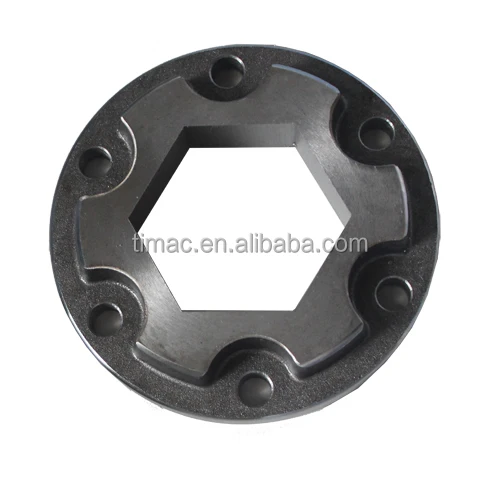

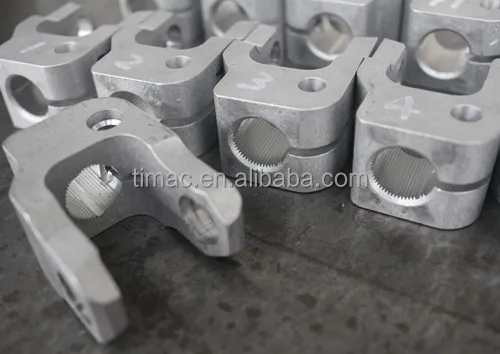

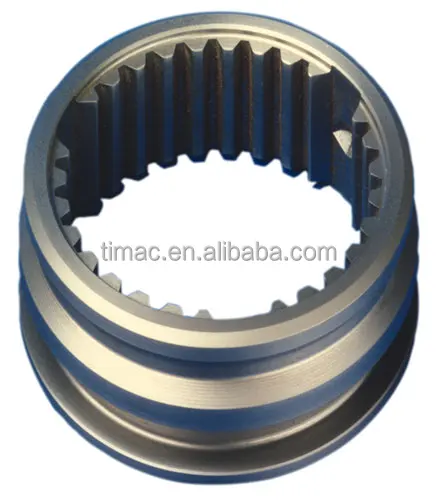

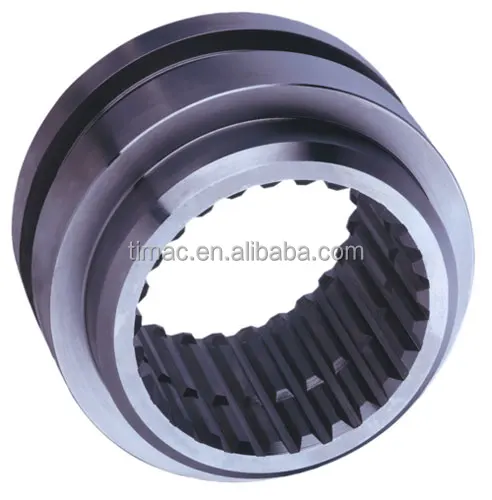

Workpieces Samples
