X solo mini 3 Hybrid S2+C/t2 twin Tuner Enigma 2 satellite receiver
1.DVB-S2 +DVB-C/T2 Tuner 2.CPU:1200MHz Dual DMIPS Processor 3.Chipset:BCM7362ZZKFEB3G 4.1 smart card reader 5.1Gb(256MB*4) Ram, 4Gb Serial Flash(256MB*16) Flash 6.2 usb port
HD DIGITAL DVB-S2 add an extra DVB-S2 or Hybrid C/T2
- Linux Operating System
- Multimedia plug-in supported
- 1 x Smartcard-Reader
- 2 x USB2.0
- 100 Mbit Ethernet Interface
- Advanced EPG (Electronic Program Guide)
- Full automatic service scan
- Various OSD skins supported
- Cool silent fanless running
- Low deep-standby power consumption under 1 W
Product Description
1).General
1.Produce Type Name
Produce Type Number
HD DIGITAL DVB-S2 add an extra DVB-S2 or Hybrid C/T2
2.Main Features
STB Type
X SOLO MINI3
Main Chipset
BCM7362ZZKFEB3G
Func/Interface

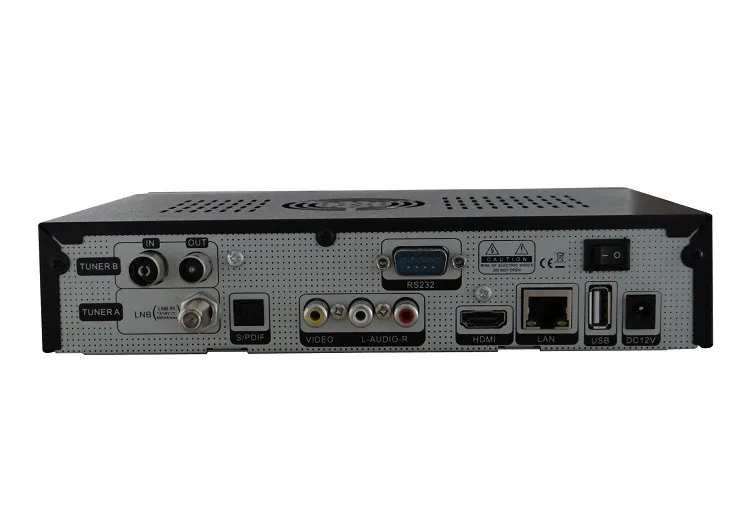

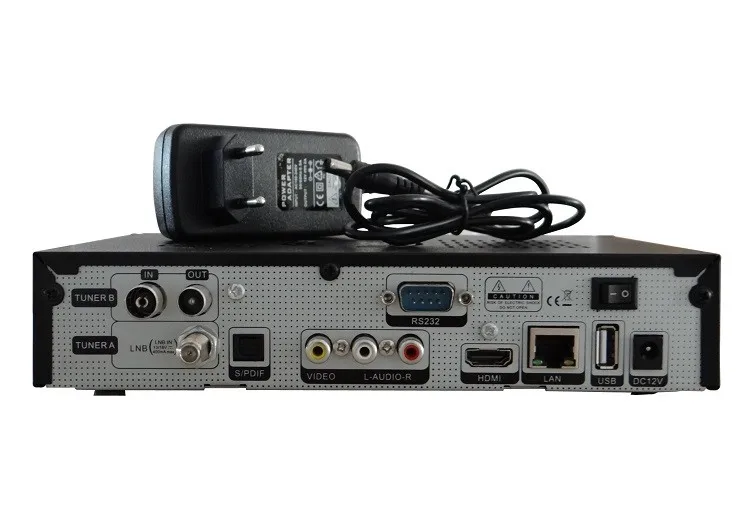

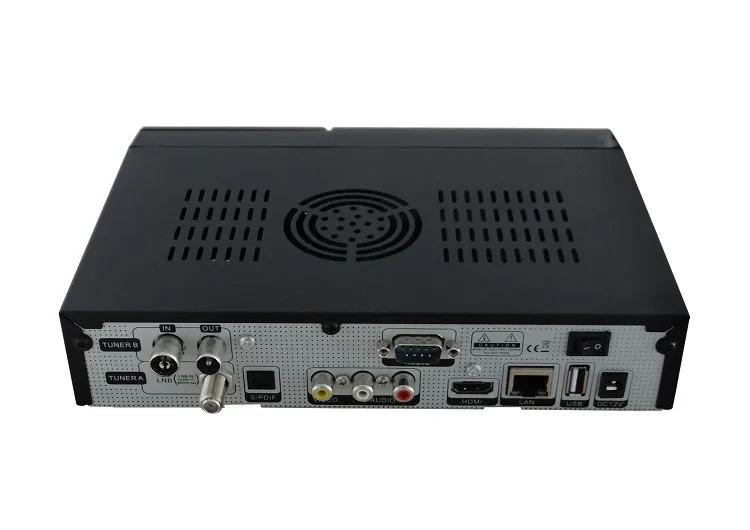

RCA with CVBS,S/PDIF out , ETHERNET, DUAL USB , smart card
3.Special Features
Heatsinking
Yes, Main Chip
Encrypt
yes,
Video Modulator
yes,
TUNER Type
Integration in the main control chip
Demodulator Type
Integration in the main control chip
Power Supply
Input 100V ~ 240V 50/60Hz
2).Software Features
1.Software General Features(DVB-S2,DVB-C/T2)
MPEG4
SD&HD-compatible/MPEG-2/MPEG4/H.264
Large memory and fast CPU
Memory of 1 GB(512MB RAM & 512MB Flash),The CPU is a Dual 2000 Mipsel BCM processor
OSD Language
Auto Languager seletion:English German French Portuguese Spanish Italian and so on
Linux OS
Premium Twin HD is based in Linux and has many features that makes it unique.It supports HbbTV,YouTube,DLNA,has an embedded Media Player and a lot more.
Additional tuner
Miraclebox Premium mini HD comes with one embedded DVB-S2 tuner.Despite its small size it is possibile to add an extra DVB-S2 or Hybrid C/T2 tuner.Combine it ad you want.
EN 302 755, Supports all DVB-T2 modes,including:Single and multiple-PLPs;6\7\8MHZ,QPSK,16QPSK,64QPSK,256QPSK
DVB-T
EN 300 744,6/7/8MHZ,QPSK,16QPSK,64QPSK
DVB-C
EM 302 429,8MHZ,16/32/64/128/256QPSK
5.USB Decode
DVR supporting
Stereo/MONO/Left/Right
Media Supporting
Dual USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card.
File system
FAT12, FAT16, FAT32, NTFS (only support first partition)
USB2.0 High Speed HOST
DVR with USB HDD, Time shifting with USB HDD
6.Video Decode
Video Decoding
MPEG-2,MPEG-4 compatible
Input data rate
2-45 Msymb/s
Video Resolution
576p, 720p, 1080i,1080P
7.Audio Decode
Audio Decoding
Dolby Digital,MPEG-4(AAC-HE) MPEG-1/2/3
Sound Mode
LEFT/RIGHT/STEREO/MONO
Sampling Frequency
32/4.1/48kHz
8.AV Output
Video Bandwidth
5.5MHz(-3dB)
Video Impedance
75Ω
Video Voltage Level
1.0 Vp-p
Audio Freq. Range
20~20KHz
Audio Impedance
600Ω
Audio Voltage Level
2V rms(5.6Vp-p)
9.Environment
Input Voltage
AC:110-240V / 50-60Hz ,DC:12V 2A
Consumption
35W Max / 1W Standby (it’s optional by customer’s board)
Temperature
0℃ to +50℃
Humidity
<95%
