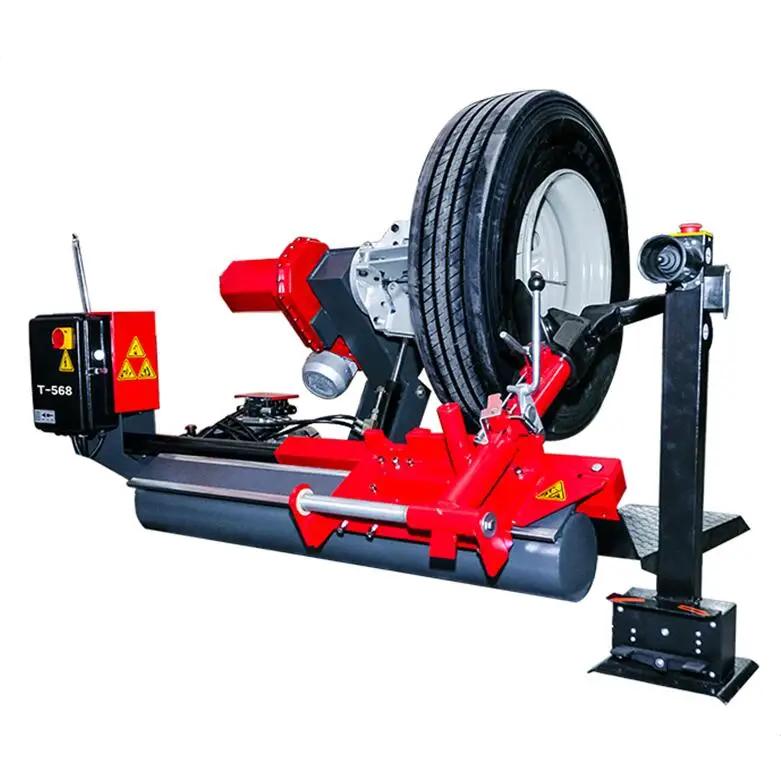

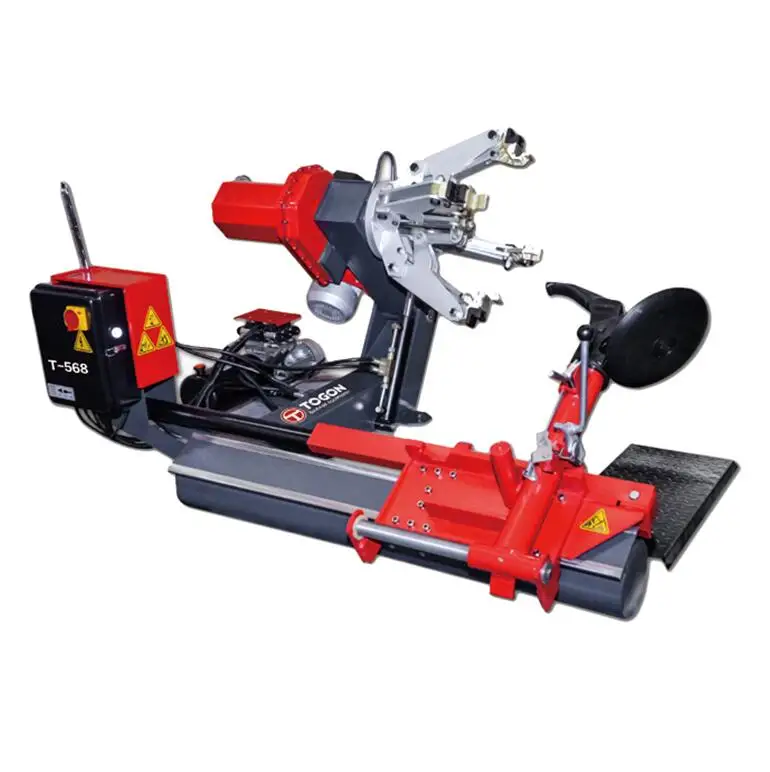

T568 hot sell auto truck tyre change machine of garage tools equipment
- Category: Tire Changers >>>
- Supplier: Guangzhou Jinkaitong Machinery Co. Ltd.
Share on (60420746248):
Product Overview
Description
T568 hot-sell auto truck tyre change machine of garage tools equipment
Features:
1.Semi-automatic truck tyre changer T568

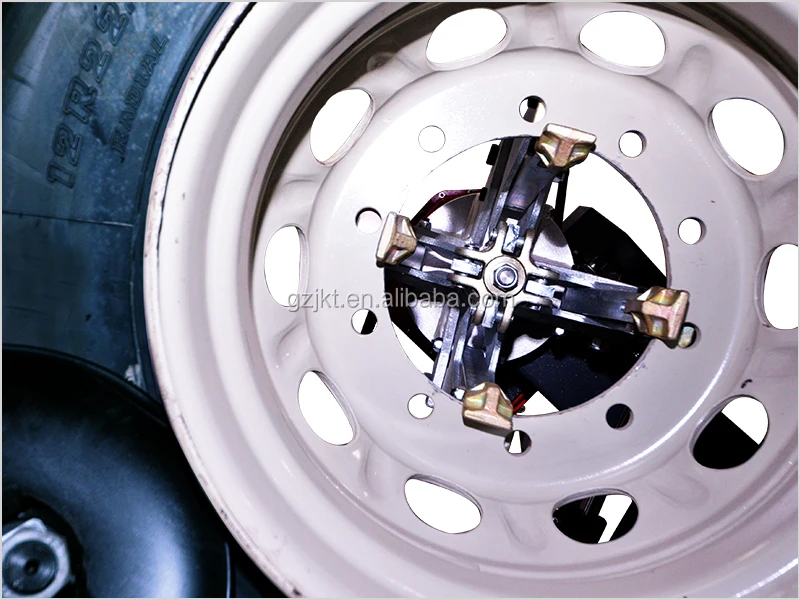

2.Univer self-centering chuck.
3.Clockwise and anticlock wise rotation of chuck.
4.Rim capacity 14"-26".
Technical Data:
| Rim Diameter: | 14"-26" |
| Max.wheel weight: | 500kg |
| Max. wheel width: | 780mm |
| Max. Tire diameter: | 1600mm |
| Hydraulic pump motor | 1.5kw 380v-3ph (220v optional) |
| Gearbox motor: | 1.8kw 380v-3ph (220v optional) |
| Bead breaker force: | 2500kg |
| Operation control voltage: | 24V |
| Machine weight approx: | 570kg |
| Overall dimensions approx: | 2500*2000mm |
| power: | 220/400 50/60hz 1p/3p Optional |
| Gross weight: | 647kg |
| Ouside Dimension(L*W*H) | 2030*1590*1000 |

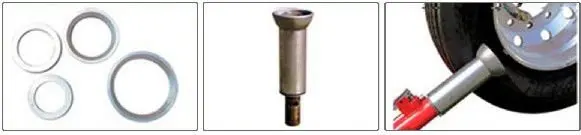

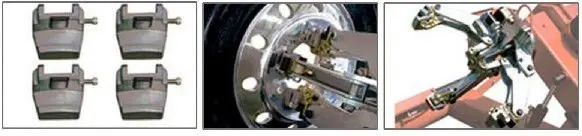

Optional Accessories:
Alu alloy rims protection set
Alu alloy rims protection rings Tubeless roller

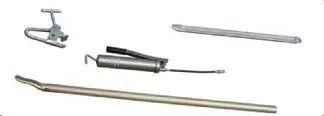

Standard Accessories:
