Most popular Wiegand interface to USB access control communication converter with CD Driver CE and ROHs

Product Overview

Description

Most popular Wiegand interface to USB access control communication converter with CD Driver CE ROHs certification



Product Description

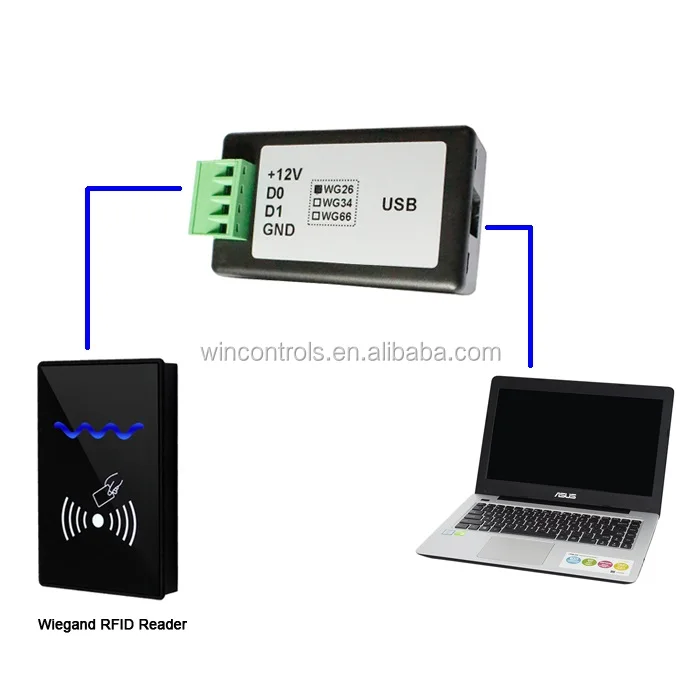

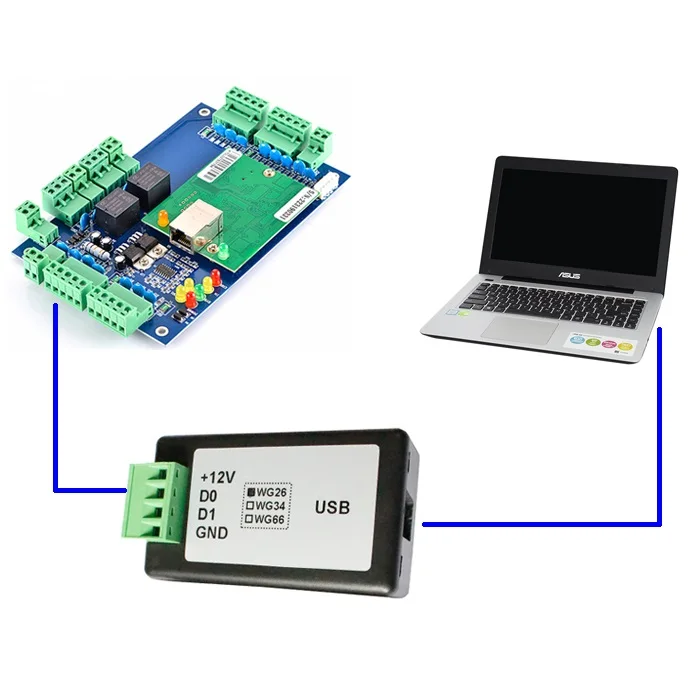

USB2WG communication convector is designed for hand-held testing tool or embedding into products manufactured by third-parties, we had widely use for our RFID and access control system solution.



The converter support double-way transmission, can transfer Wiegand 26bit or Wiegand34bit data to USB data, also can transfer USB data to Wiegand 26bit or Wiegand 34bit data, standard Wiegand output 26bit data in default (Wiegand 34bit and other format as optional)



Technical parameters:

Model:WS-USB2WG

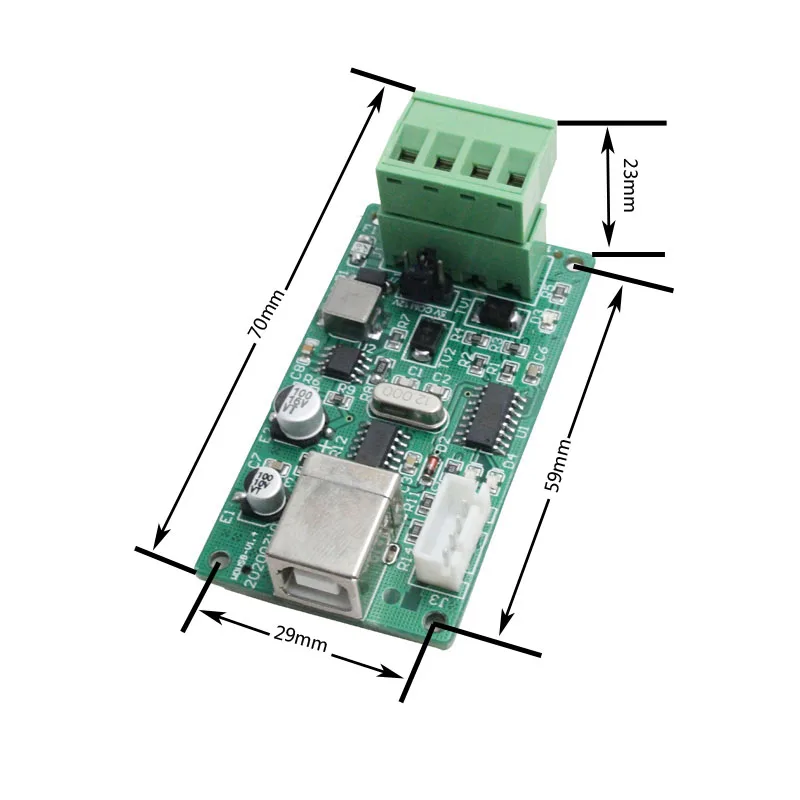

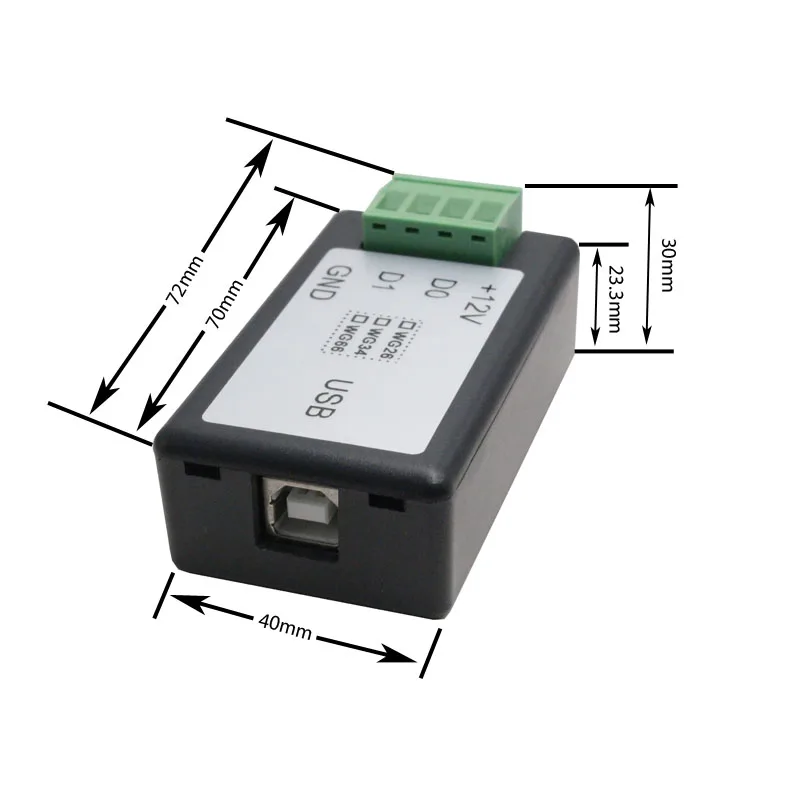

Size: 9*4.5*3.5cm

Net Weight: 0.03KG
Operating voltage: DC 9V-12V;
Compatible with USB standards, the USB input all the way to independent, corresponding to Wiegand all the way out; With an external watchdog to prevent the crash.

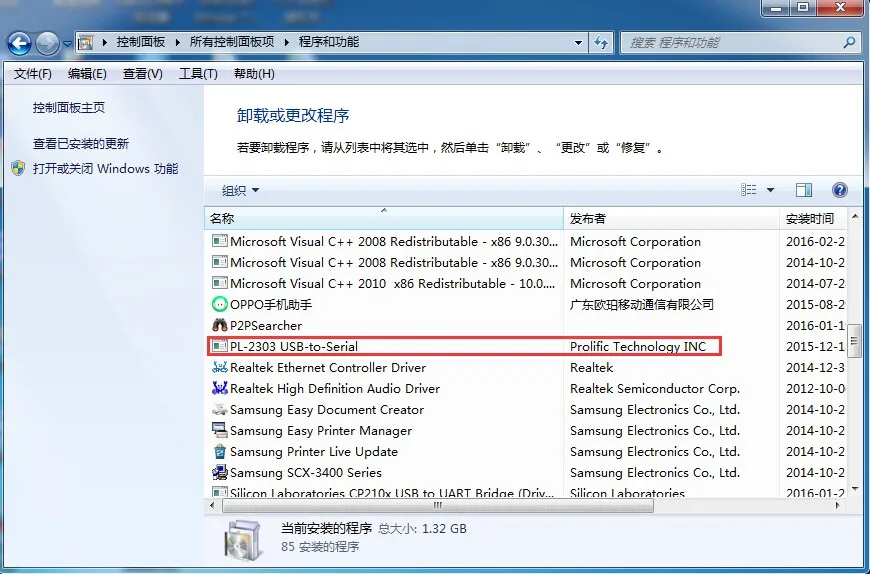

Need install driver



Communication Format:
Baud Rate 9600 N 8 1

1, WG26 or WG34 input

4 byte number: 1010795316 = (hex) 3C3F8334

WG26 input (hexadecimal) 3F8334

WG34 input (hexadecimal) 3C3F8334

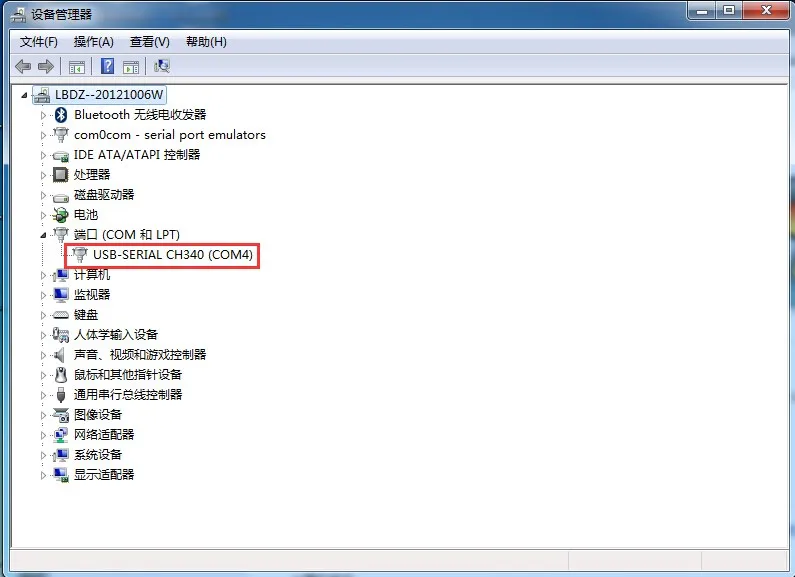

2, USB output(Virtual serial port RS232)



Suitable with computer USB port (after install USB driver), not working with USB barcode scanner or other USB device without operstaion system.

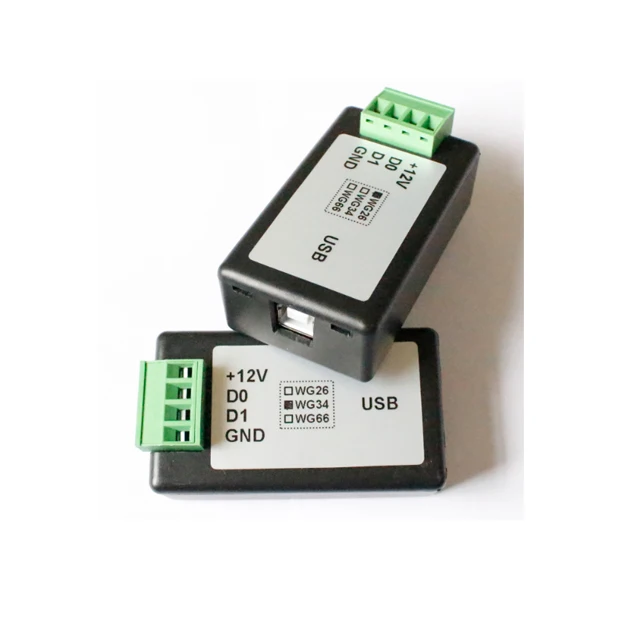

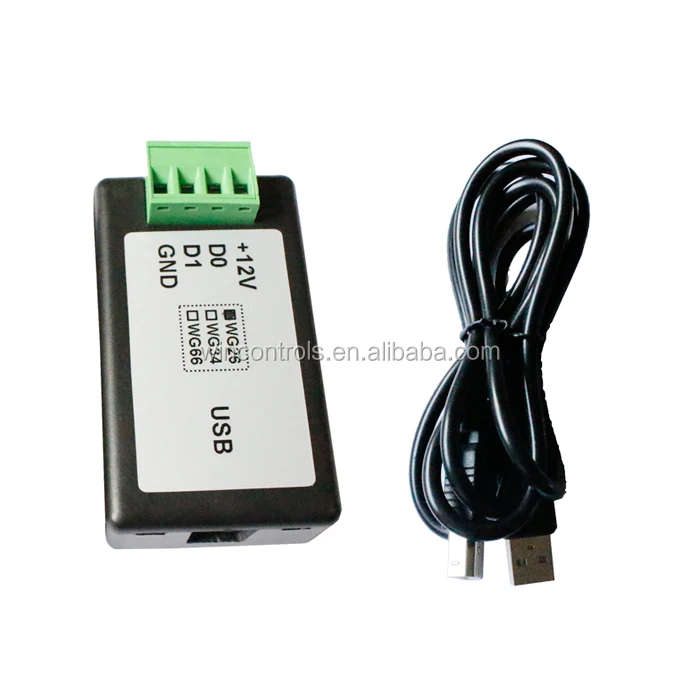

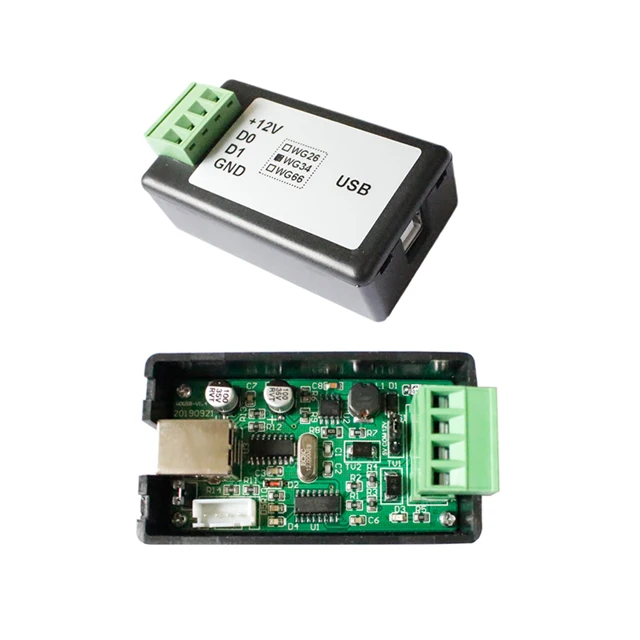

Appearance:

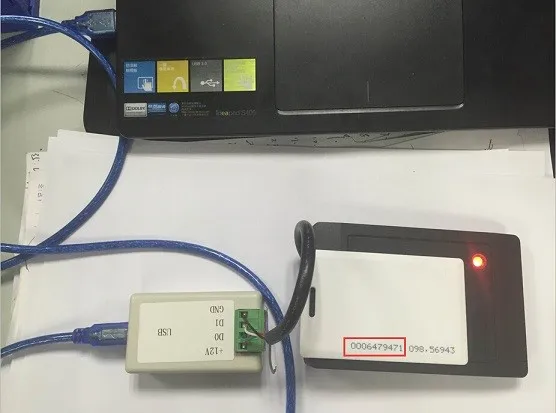

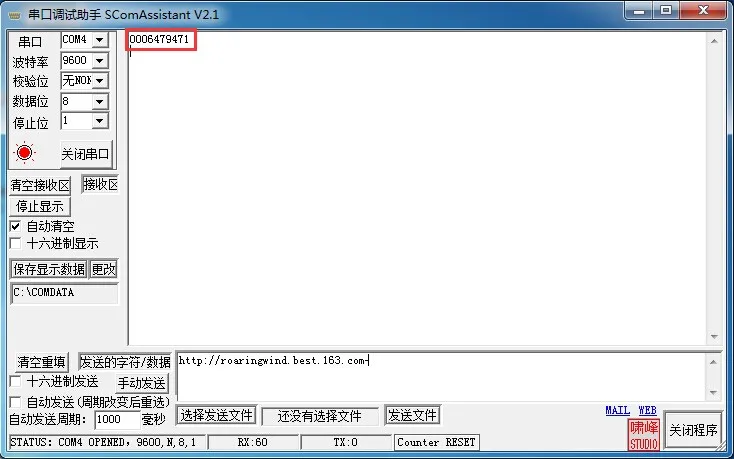

Testing demo:
