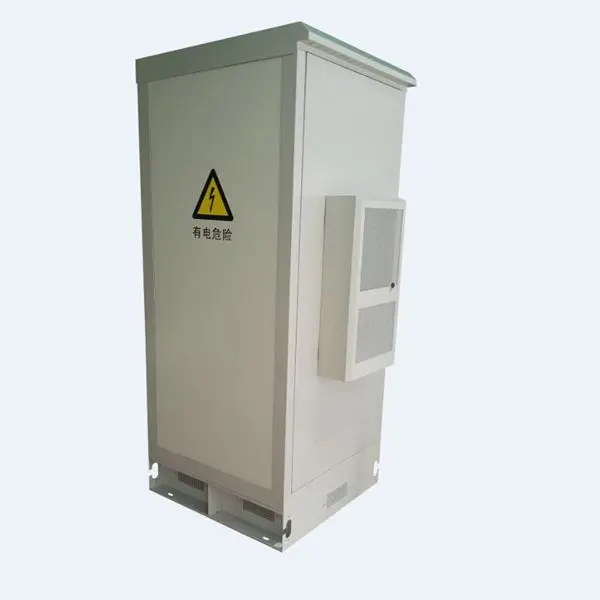

High quality outdoor rack used telecom cabinet
- Category: >>>
- Supplier: Changzhou Chen Tong Yuan Communication Equipment Co. Ltd.
Share on (60421121987):
Product Overview
Description
High quality outdoor rack used telecom cabinet
Product Description
Specification
Dimension: W800*D800*H2100mm (included the door mounted airconditioner thickness and depth size 840mm) communication cabinet size can be customized
Internal Capacity: 42U, 19 Inch Rack.
Cooling System: Air conditioner (1000w) 110v 60hz ,500w,800w ,
Door mount 1000W cooling capacity air-conditioner (Using the 110 VAC Power, provided with display and operation panel, could set the temperature control point )
Internal Fittings:
(1) 2 pieces of plate
(2) 1 piece of LED 4W lighting tube (Using the 110VAC Power, the lighting tube Switch on and off controlled by the gate of the cabinet)
(3) 1 piece of 7 sockets plug PDU
Internal Features:
Double layer heat insulation structure (double sheet metal filled phenol insulation board, the side wall thermal insulation thickness 21mm, roof insulation thickness 45mm) which has top effective heat preservation function.
Protection Grade: IP55
Cabinet Material: Galvanized steel plate
Mount Method: Floor Standing
Package: Wooden Box.
Wooden Box Size: L900*W700*H1400mm
Gross Weight: 330KG

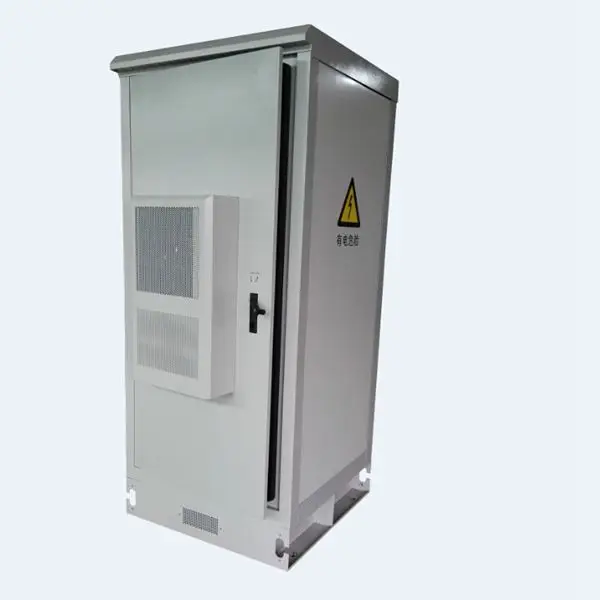

outdoor rack used telecom cabinet Product Display
outdoor rack used telecom cabinet Application areas: communications, industrial, electricity, radio and television, special equipment
cheng tong yuan Communication Equipment cabinets configuration
| Configuration | Items | Technical Index (one unit one cabin) | |||
| Standard | Model No. | ODC-140606-SACM | ODC-140808-SACM | ODC-180606-SAHM | ODC-180808-SAHM |
| Size(H*W*D) | 1400*600*600MM | 1400*800*800MM | 1800*600*600MM | 1800*800*800MM | |
| Material | color steel plate | steel plate+cotton insulation | |||
| Insulation Thickness | 45mm (other thickness customized) | 0mm/20mm/40mm (customized) | |||
| Maintenance Mode | front door/front back door | ||||
| Assembly Mode | assembly/complete | ||||
| Rack size | 19inch/ 21inch | ||||
| Protection Level | IP55 | ||||
| Working temperature | ,-40℃~+55℃ | ||||
| Optional | Compressor A/C | AC220V cooling capacity:300W/500W/800W/1100W/1500W/2000W/2500W | |||
| Heat exchanger | DC48V heat exchage capacity:80W/K,130W/K,150W/K,200W/K | ||||
| Switching power supply | DC power:DC48V60A/DV48V90A/DC48V120A/DC48V150A/DC48V200A | ||||
| UPS power supply | UPS: 1KW/2KW/3KW/6KW/10KW | ||||
| Power Distribution Unit | alternating-current distribution/direct current distribution/Ac,dc power distribution | ||||
| dynamic environment monitoring system | 1U monitoring comprising (access control, flooding, smoke, hit, temperature and humidity, mains supply off alarm) | ||||
Packaging & Shipping
low price outdoor rack used telecom cabinet standard wooden box packing +wooden pallet +OEM LOGO
outdoor rack used telecom cabinet Features
*High reliability, maintenance-free, fast assembly, suitable for harsh environment
* High integration, small footprint, short construction period, reduce the construction cost
* Improved thermal design, efficient energy saving, effectively extending the battery life
* Support for fast assembly, ready for the summit, multi-scene roof installation
*dynamic environment monitoring system, full alarm signal detection, real-time alarm information reported
Welcome your inquiry for further discussion regarding on outdoor rack used telecom cabinetproject!
