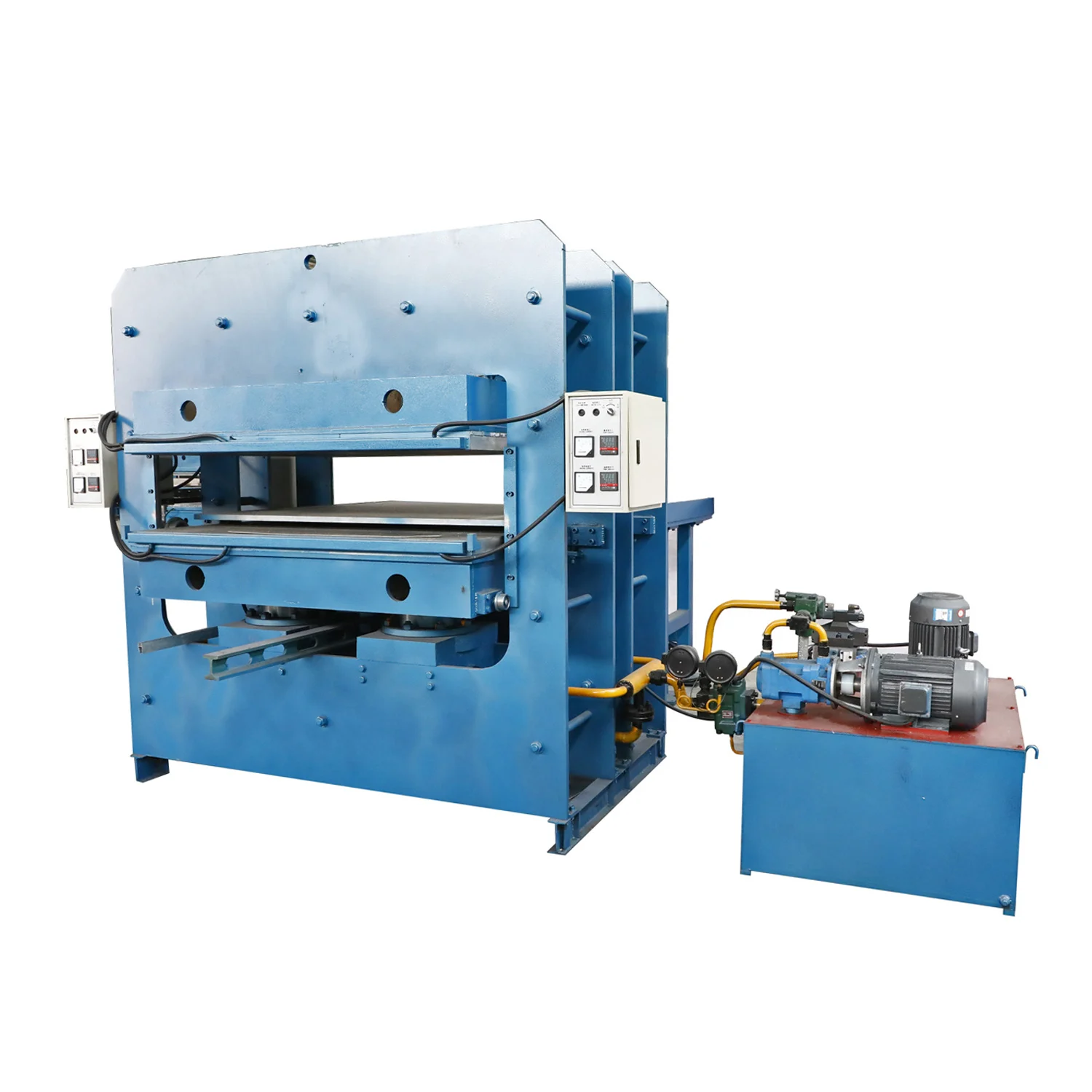

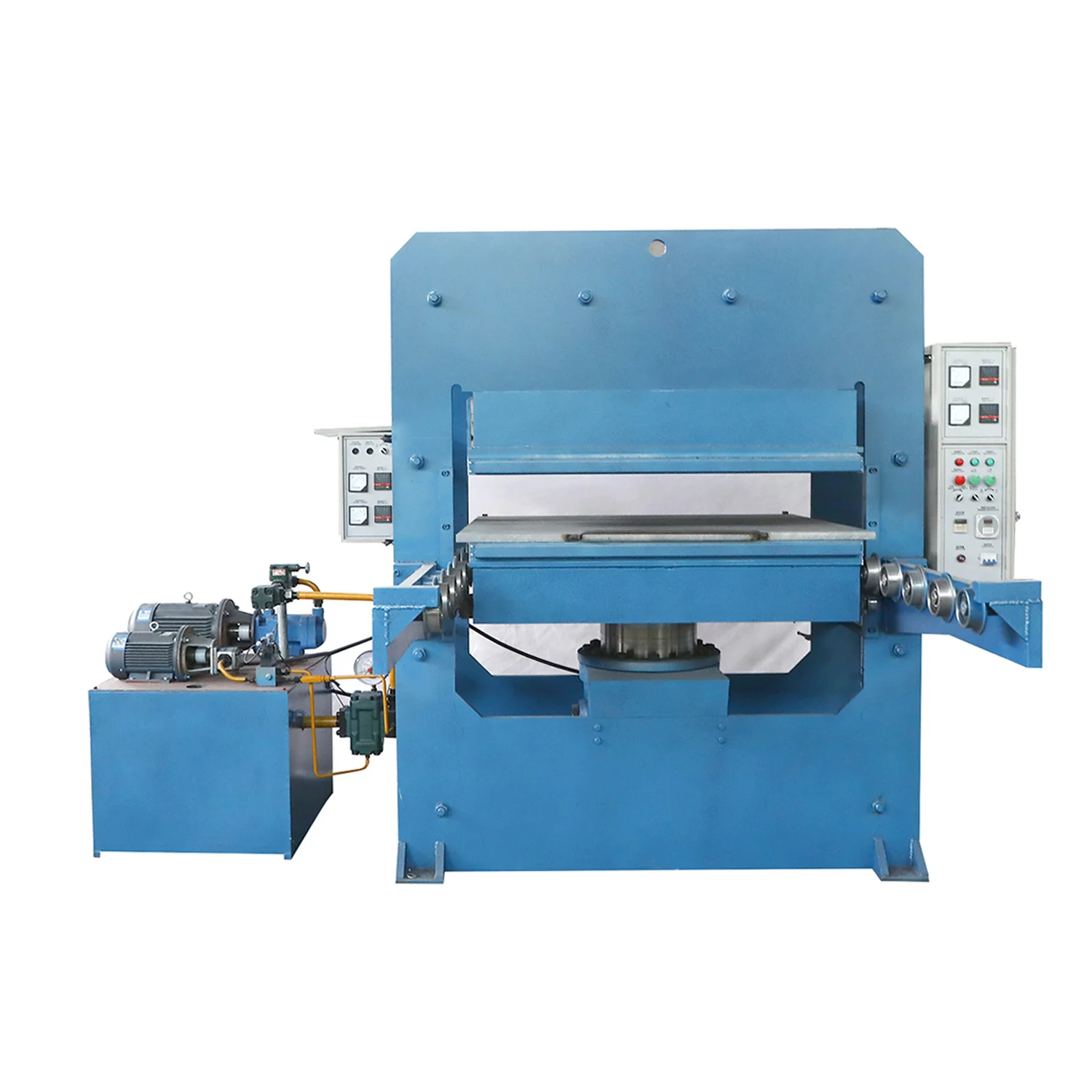

Curing Press Hydraulic Tyre Curing Press

Product Overview

Description

   Curing Press Hydraulic Tyre Curing Press

Note: We can design the different size of machine according to the requests for products.



it is mainly in use of vulcanizing various kinds of rubber pattern products.



high quality best price



 easy handing



fast delivery



design upon your request





 As a professional manufacturer and exporter of rubber machine of China, we can supply quality vulcanizing rubber machine, open mixing mill, rubber kneader to you with competitive price and give guarantee to the quality. we also can custom-made non-standard machine according to your requirement.

Technical Parameter:



VERSION	XLB350X350X2	XLB350X400X2	XLB500X500X2	XLB600X600X2/4	XLB750X850X2
Mould closing force(MN)	0.25	0.5	0.8	1.0	1.6
Daylight(mm)	125	125	125	125	125
opening	2	2	2	2/4	2
Platen unit area pressure(Mpa)	2.04	3.13	2.52	2.78	2.51
Plunger stroke	250	250	250	250	250
Heating way	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam
Main motor power	2.2	2.2	2.2	2.2	3
Size(length*width*height)mm	1450x400x1350	1450x690x1440	1450x690x1818	1880x780x1660	2100x1010x1900
Weight(kg)	1200	1500	1700	2500/3100	3560/4300
Structure form	Strain rod	Strain rod	Strain rod	Strain rod	Strain rod/plate

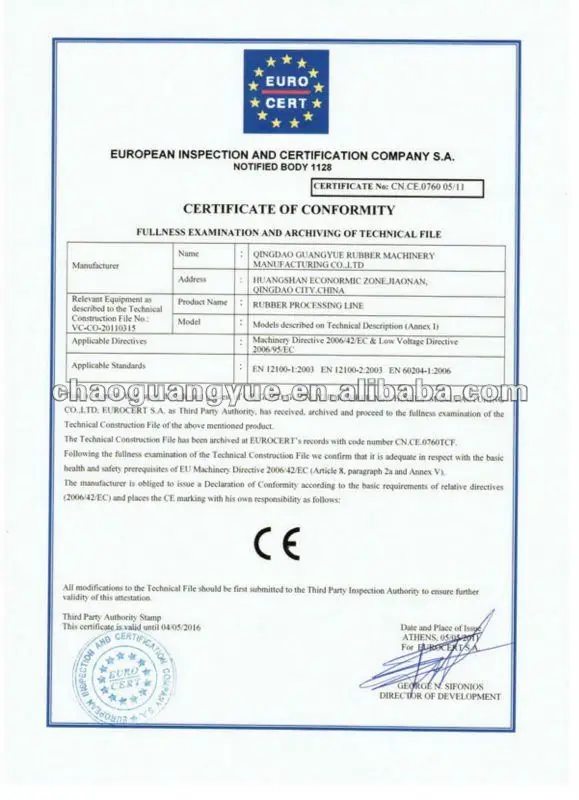

Certification:
