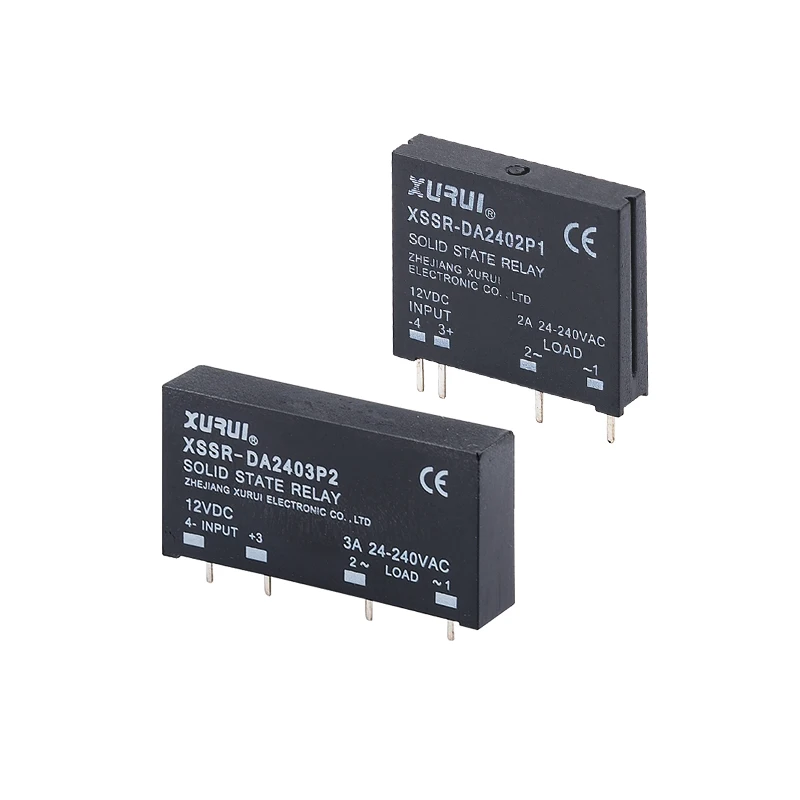

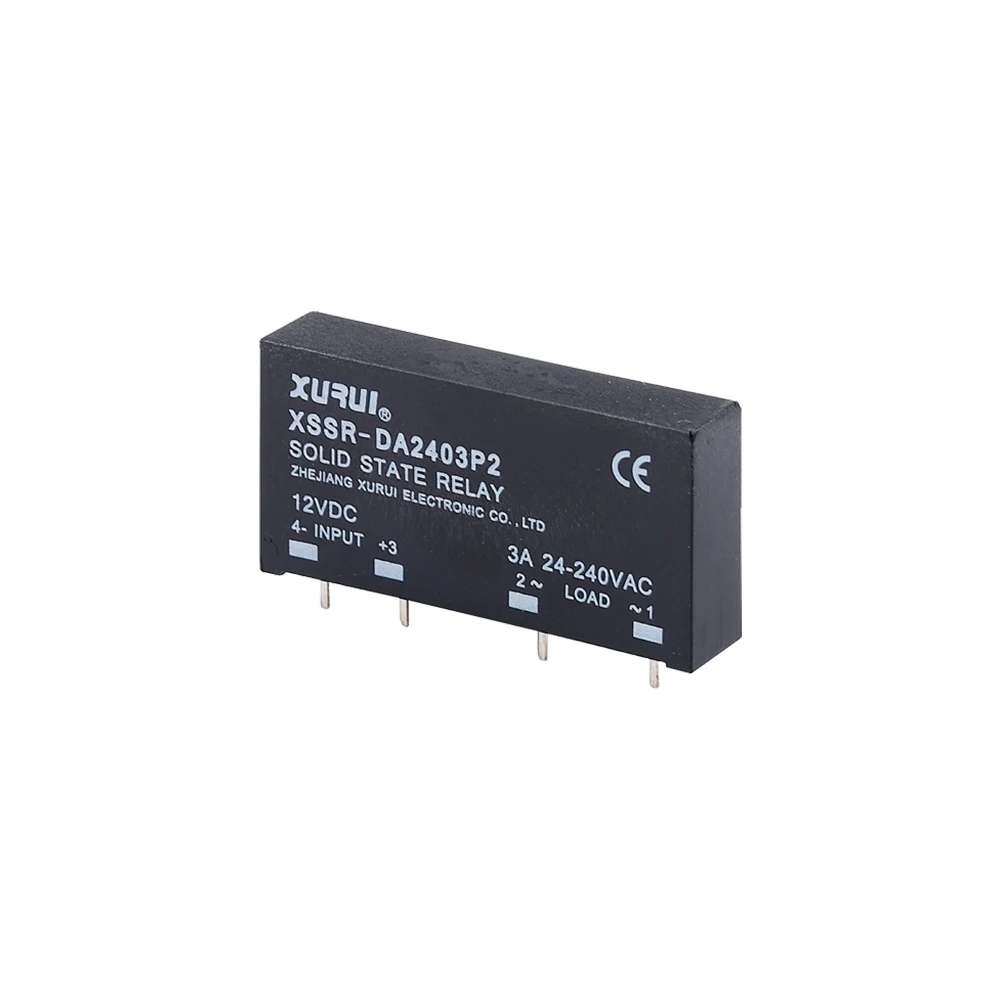

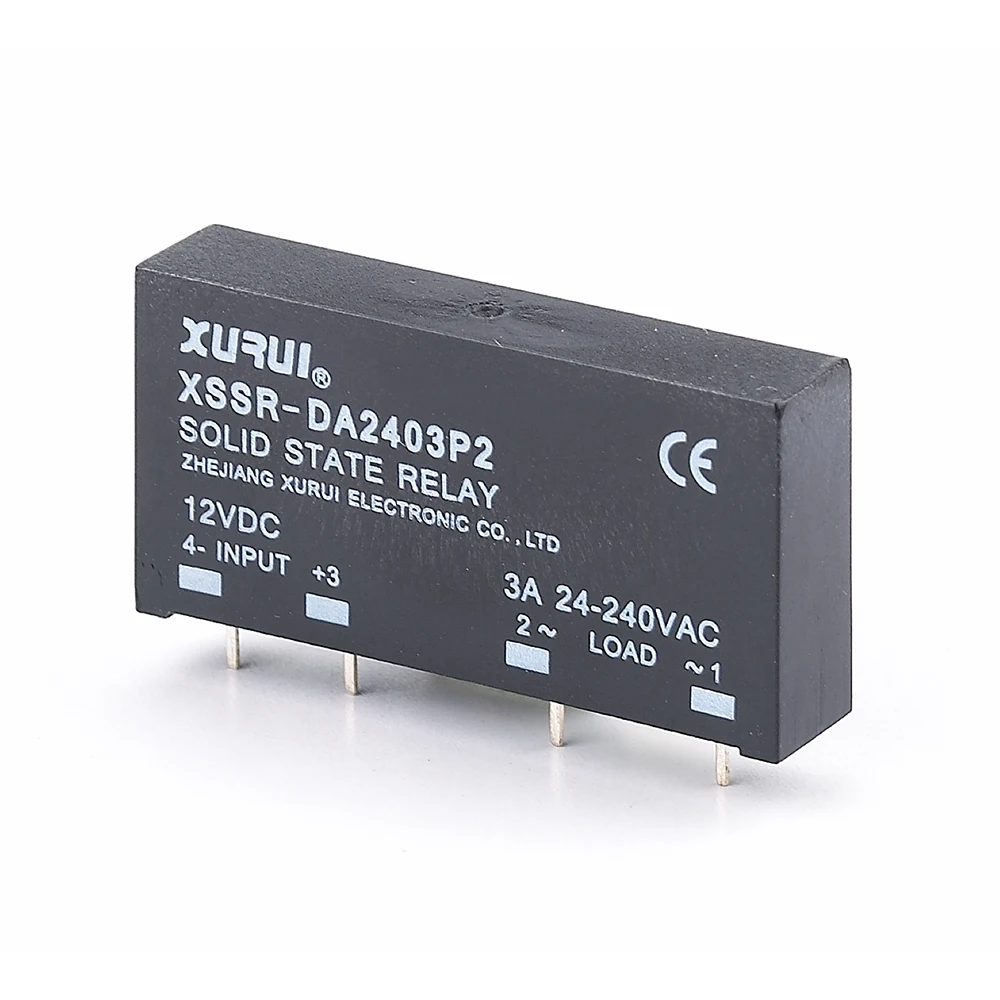

XSSR DA2402P1 5v 12v 24v dc to ac no output solid state relay
XSSR-DA2402P1 5v 12v 24v dc to ac no output solid state relay
XSSR-DA2402P1 5v 12v 24v dc to ac no output solid state relay
XSSR-DA2402P1 5v 12v 24v dc to ac no output solid state relay
XSSR-DA2402P1 5v 12v 24v dc to ac no output solid state relay

XSSR DA2402P1 5v 12v 24v dc to ac no output solid state relay

Share on (60421374729):


Price:

Quantity:


Product Overview

Description




















Property & Application



  • PCB soldering-Single Slide Lead Insert Type   Mini AC Solid State Relay;

  • Triac NO output;

  • DC-AC DC signal control AC load;

  • Optoelectronic devices Isolation;

  • Zero crossing / Random Trigger Form;

  • SMD mount technology;

  • Attention: P1 can be customized as DC-DC type.




Model & Meanings

model & meanings.jpg



Specification
































































Product model

XSSR-2402P1,


XSSR-2402P2/2403P2


Control voltage5V 12V 24V DC
Control current6-30mA
Load voltage24-240VAC
Load max current

2A(P1),


2A-3A(P2)


Load mini current0.03A
Breakover voltage≤1.5VAC
Output leakage current≤1mA
Medium withstand voltage≥2500VAC
Insulation resistance≥100MΩ
Switching time≤10mS
Frequency range50-60Hz
Operating temperature-20-70℃
Load current safety factor(resistive load)50-60%
(inductive load)30-40%

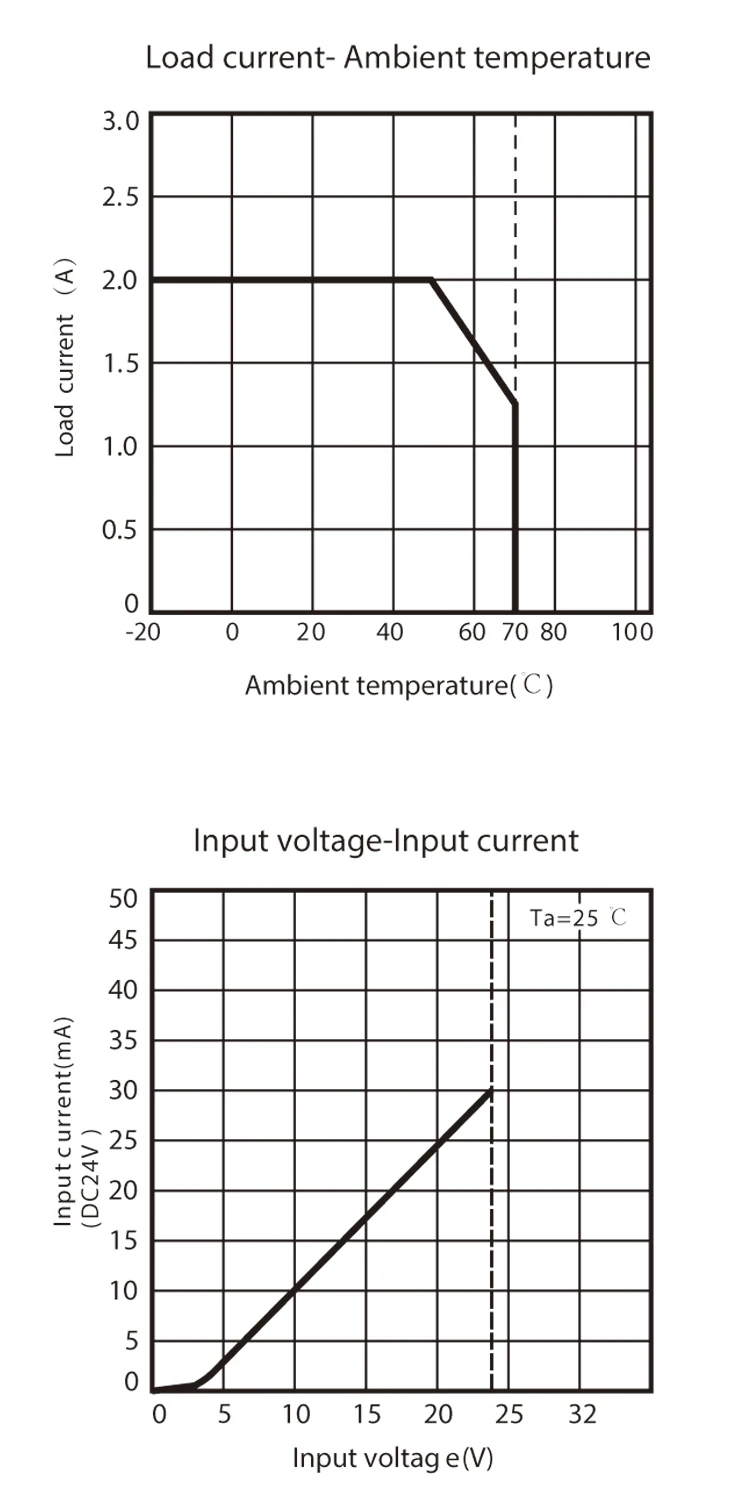

Characteristic Curve

Characteristic Curve.jpg

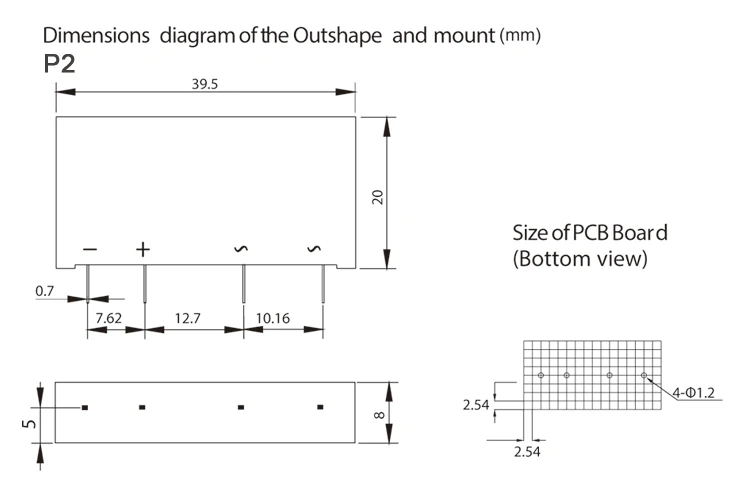

Ourshape Dimensions & Connection Diagram

Outshape Dimension P1.jpgOutshape Dimension P2.jpgConnection Diagram.jpg
