HIGH PRESSURE PUMP

Product Overview

Description

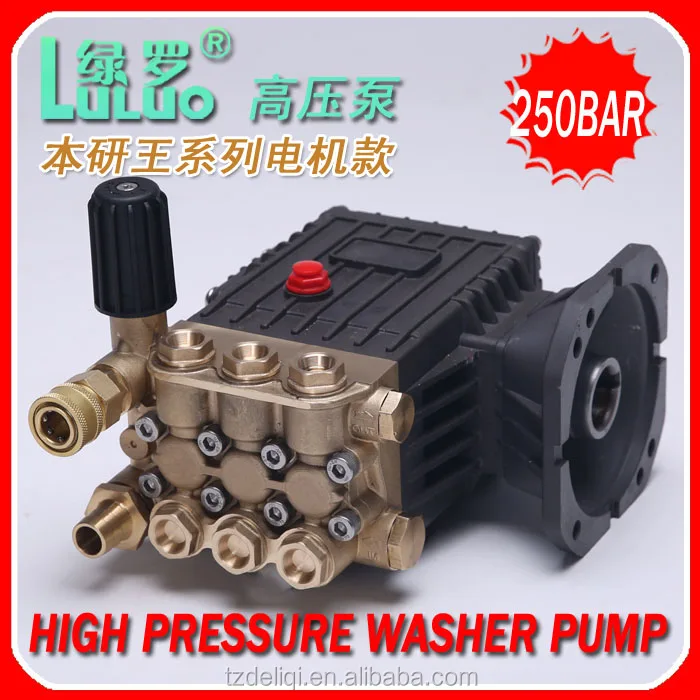

HIGH PRESSURE PUMP



• ADVANTAGE: AUTOMACTIC SUCTION PMP CAN STILL BE RUNNING FOR 30 MINUTES WHEN SPRAYER GUN TURNED OFF
• FEATURE: FIRST-GRADE CERAMIC PLUNGER. FORGED BRASS MANIFOLD NSK ITALY SEAL DETERGENT INJECTION.

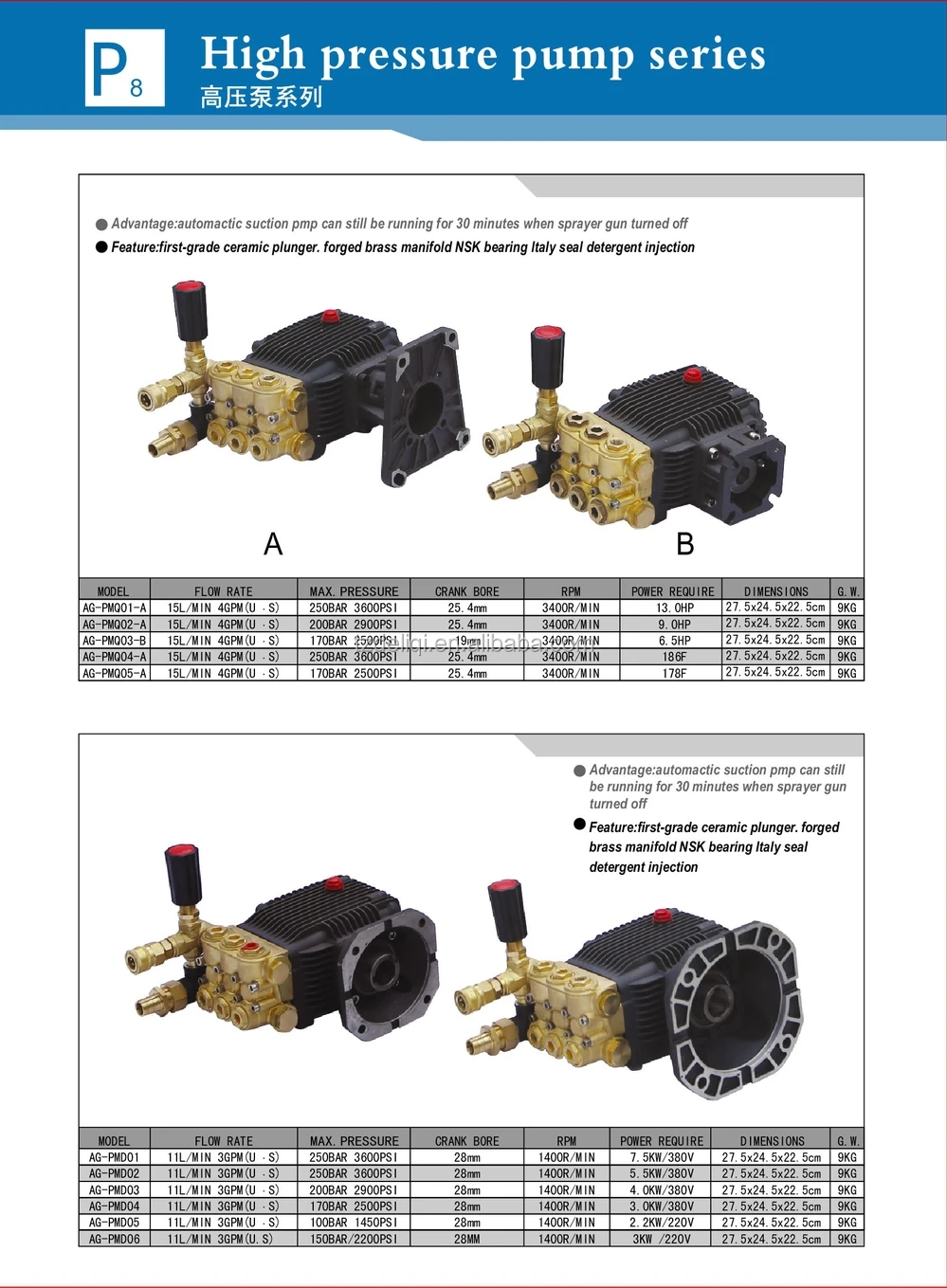

Model	Flow Rate	Max. Pressure	Crank Bore	RPM	Power	Dimensions(cm)	GW(kg)
AG-PMQ01-A	15L/M 4GPM	250bar 3600psi	25.4mm	3400r/m	13HP	27.5*24.5*22.5	9
AG-PMQ02-A	15L/M 4GPM	200bar 2900psi	25.4mm	3400r/m	9HP	27.5*24.5*22.5	9
AG-PMQ03-B	15L/M 4GPM	150bar 2160psi	19.05mm	3400r/m	6.5HP	27.5*24.5*22.5	9
AG-PMQ04-A	15L/M 4GPM	250bar 3600psi	25.4mm	3400r/m	186FE	27.5*24.5*22.5	9
AG-PMQ05-A	15L/M 4GPM	170bar 2500psi	25.4mm	3400r/m	178FE	27.5*24.5*22.5	9

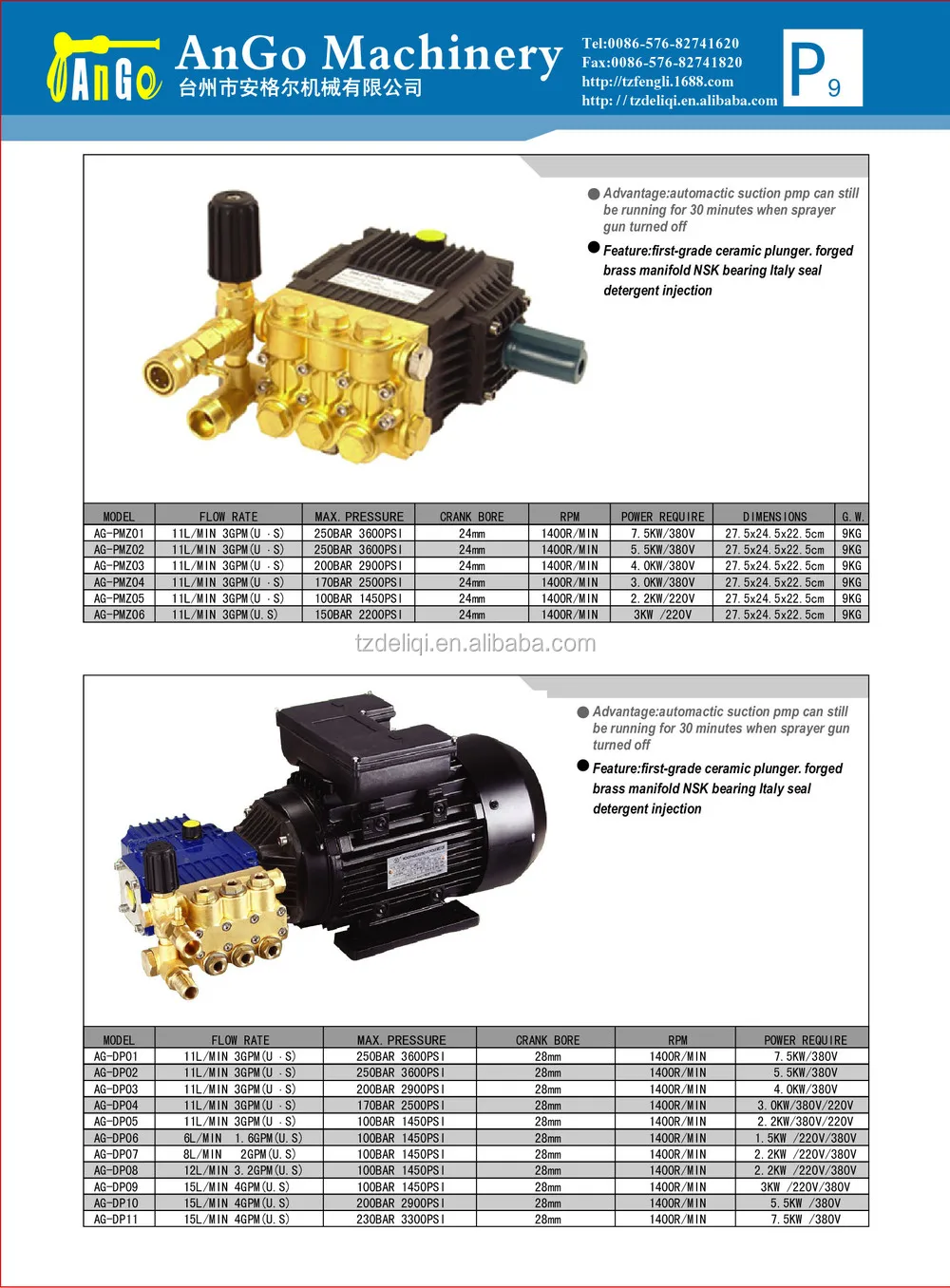

AG-PMD01	11L/M 3GPM	250bar 3600psi	28mm	1400r/m	7.5KW/380V	27.5*24.5*22.5	9
AG-PMD02	11L/M 3GPM	250bar 3600psi	28mm	1400r/m	5.5KW/380V	27.5*24.5*22.5	9
AG-PMD03	11L/M 3GPM	200bar 2900psi	28mm	1400r/m	4KW/380V	27.5*24.5*22.5	9
AG-PMD04	11L/M 3GPM	170bar 2500psi	28mm	1400r/m	3KW/380V	27.5*24.5*22.5	9
AG-PMD05	11L/M 3GPM	100bar 1450psi	28mm	1400r/m	2.2KW/220V	27.5*24.5*22.5	9
AG-PMD06	11L/M 3GPM	150bar 2200psi	28mm	1400r/m	3KW/220V	27.5*24.5*22.5	9

AG-PMZ01	11L/M 3GPM	250bar 3600psi	24mm	1400r/m	7.5KW/380V	27.5*24.5*22.5	9
AG-PMZ02	11L/M 3GPM	250bar 3600psi	24mm	1400r/m	5.5KW/380V	27.5*24.5*22.5	9
AG-PMZ03	11L/M 3GPM	200bar 2900psi	24mm	1400r/m	4KW/380V	27.5*24.5*22.5	9
AG-PMZ04	11L/M 3GPM	170bar 2500psi	24mm	1400r/m	3KW/380V	27.5*24.5*22.5	9
AG-PMZ05	11L/M 3GPM	100bar 1450psi	24mm	1400r/m	2.2KW/220V	27.5*24.5*22.5	9
AG-PMZ06	11L/M 3GPM	150bar 2200psi	24mm	1400r/m	3KW/220V	27.5*24.5*22.5	9
