Dual Band 3G/4G openWRT WE826 WIFI Router
- Category: >>>
- Supplier: Shenzhen Zhibotong Electronics Co. Ltd.
Share on (60421678056):
Product Overview
Description
Dual Band 3G/4G VPN openWRT WE826 WIFI Router
Notes
Model: ZBT-WE826
The price is not inclduing 5g module, only for 2.4Ghz 300Mbps for your reference. If you need 5g, please let me know. You can find my contact informaton as below.
The product can also support 3g 4g, if you need 3g or 4g, please tell me the band&frequency.
Simple Introduction
The ZBT-WE826 uses the latest wireless solution, performs better and more function. Stable wireless performance, more functions , 2.4G 300Mbps, Also support 3G, 4G (3G, 4G PCIE mode is necessary), it could also dial-up via the USB port (should mount the 3G,4G network card). Provide 1 USB2.0 interface, 1 Micro slot.
Product Feature
- Support 802.11ac/802.11a/802.11n/802.11g/802.11b network protocol, the transmission rate up to 1200Mbps(2.4G 300Mbps+ 5G 867Mbps
- Support 802.3/802.11u protocol, 5* 10/100Mbps Auto MDI/MDIX
- 1 USB 2.0 interface
- 1 Micro SD Card Slot
- Support 3G/4G and 11ac
- Many kinds of way to protect your data transmission
Product Specification
Hardware | ||
Main Chipset | MT7620A | |
RAM | DDR2 128MB (MAX DDR2 256MB) | |
SPI FLASH | 16MB (MAX 16MB) | |
Protocol | IEEE 802.11n,IEEE 802.11g,IEEE 802.11b,IEEE802.11ac ,IEEE802.11a | |
RT Power | 802.11b 18dBm±2dBm 802.11g 15dBm±2dBm 802.11n 15dBm±2dBm 802.11ac depends on the 11AC mode | |
Reception Sensitivity | 802.11b: -83dBm@10% PER 802.11g: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11AC mode | |
Work Channel | 2.4GHz choose :1-13 5GHz choose :149,153,157,161,165 | |
Wireless Rate | Max 300Mbps | |
Work Frequency | 2.4GHz | |
Antenna | 2*undetachable 5dBi antenna | |
Interface | 1*PCI-E slot 1*SIM card slot 1*USB 2.0 port 1*Micro SD card slot 1*10/100/100M WAN port(Auto MDI/MDIX) | |
LED | Power,PCIE mode ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 | |
Button | Reset/WPS | |
Max Power consumption | < 12W | |
Dimension(L*W*H) | 141*85*26MM | |
Software | ||
WAN Type | PPPoE,Dynamic IP, Static IP | |
Work Mode | AP Router | |
DHCP | Server, Client, DHCP Client List, Address Reservation | |
Port Forwareding | Virtual Server, Port Triggering, UPnP, DMZ | |
Firewall Security | Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding | |
DDNS | Support | |
VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) | |
Band Ctrl | Support | |
Static Router | Support | |
System Log | Support | |
Other Function | Mac clone | |
Others | ||
Work Environments | Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing | |
Adapter | 12V 1A | |
Authentication | CE, FCC, CCC, RoHs | |
Other accessories |
| |

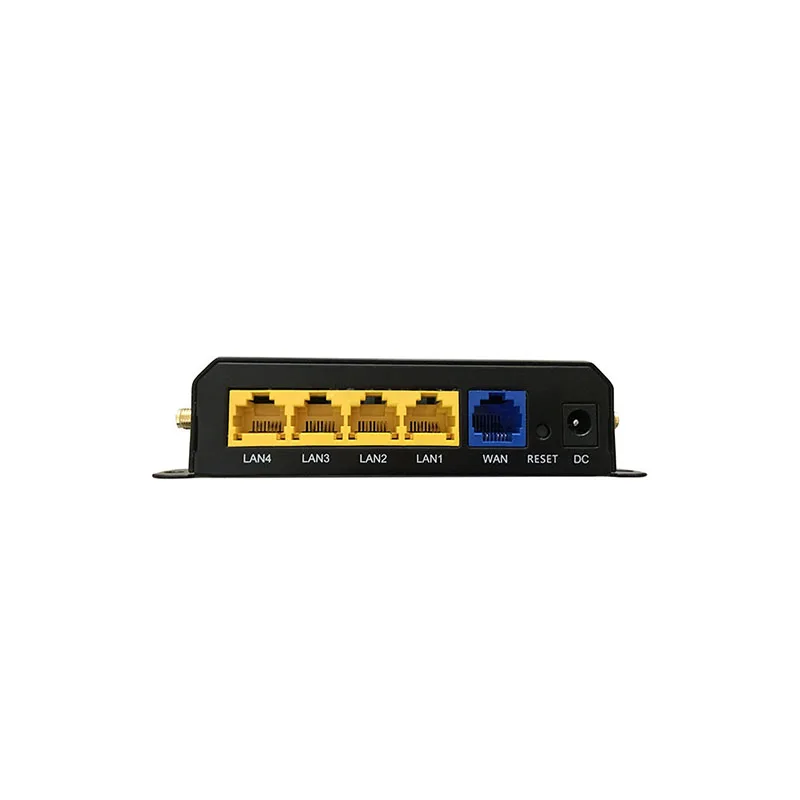

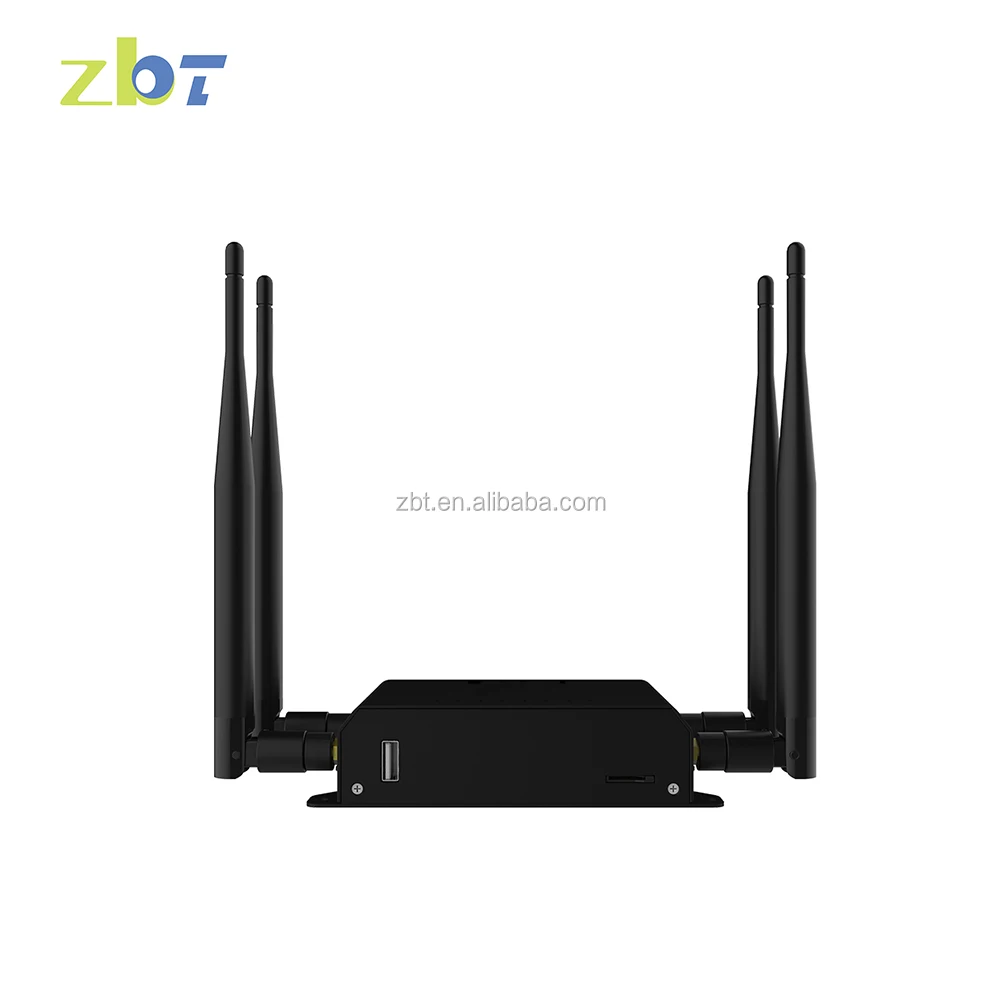

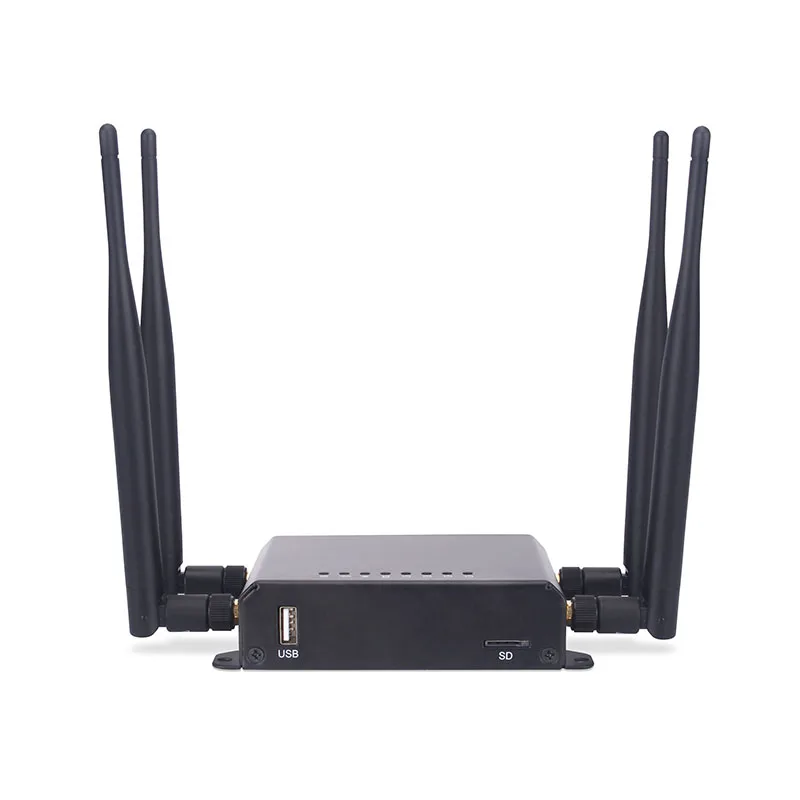

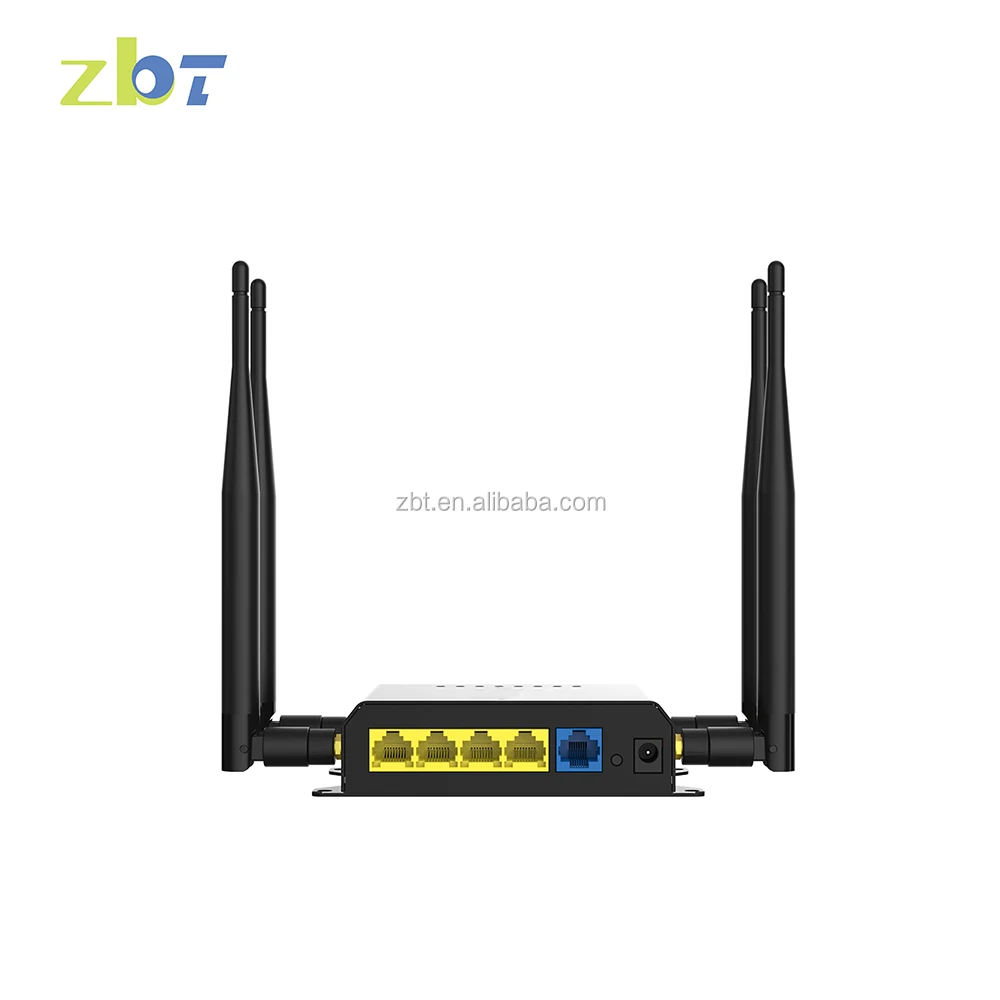

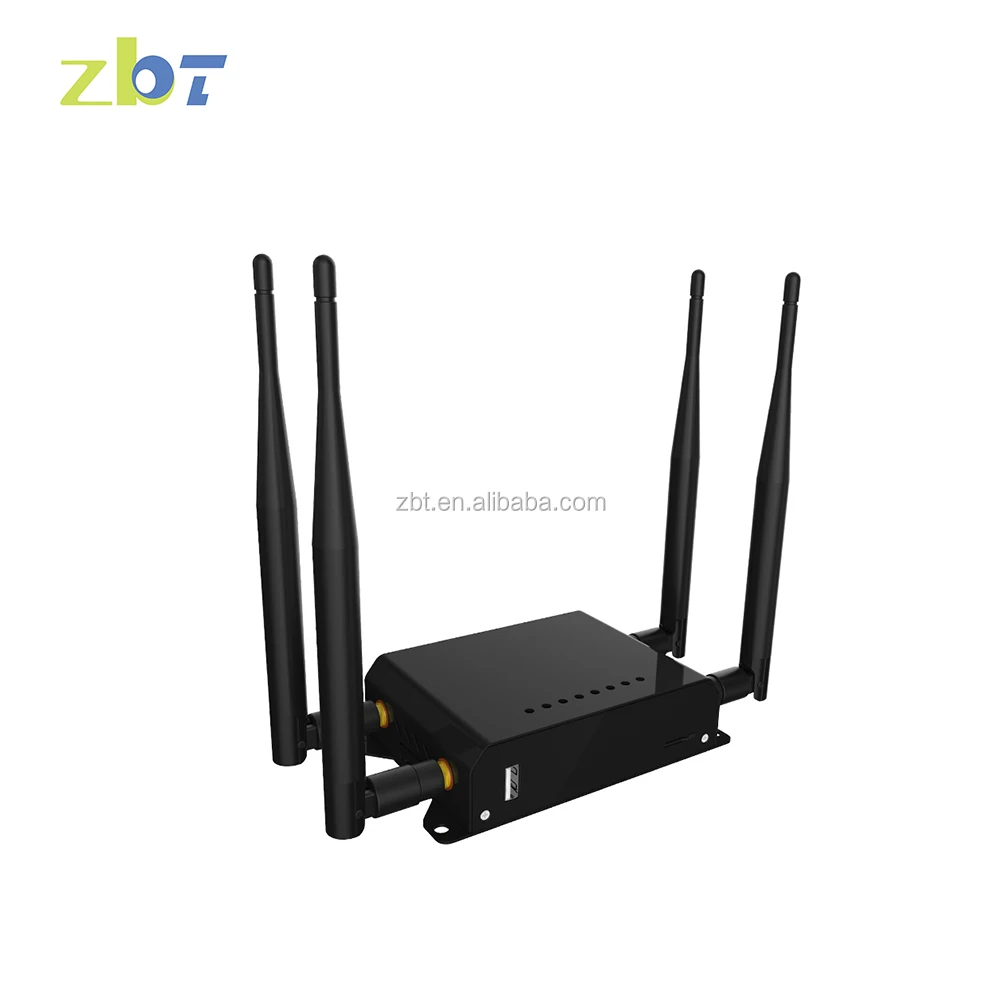

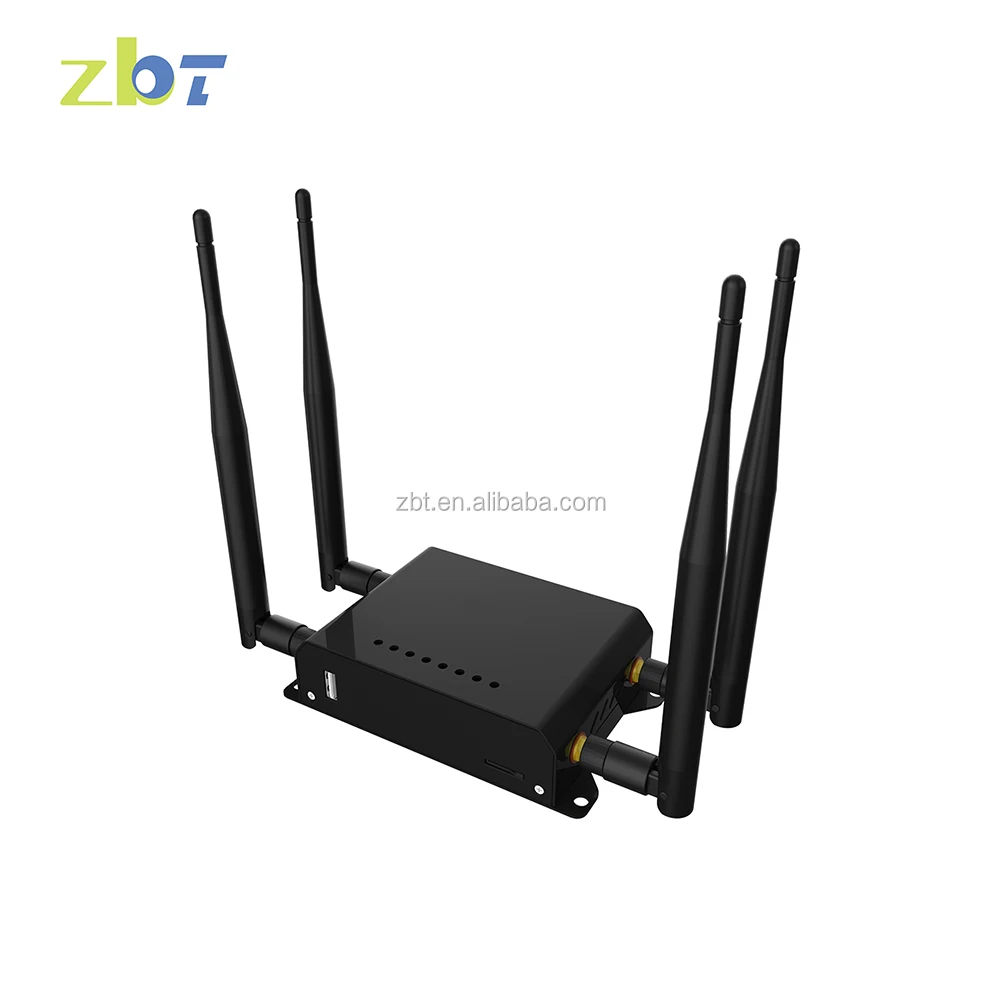

Product Pictures
As for ZBT-WE826 netural product (2.4GHz 300Mbps), here only have two 5dbi external antennas.
As for dual band/11ac ZBT-WE826, here are 4*5dbi external antennas.

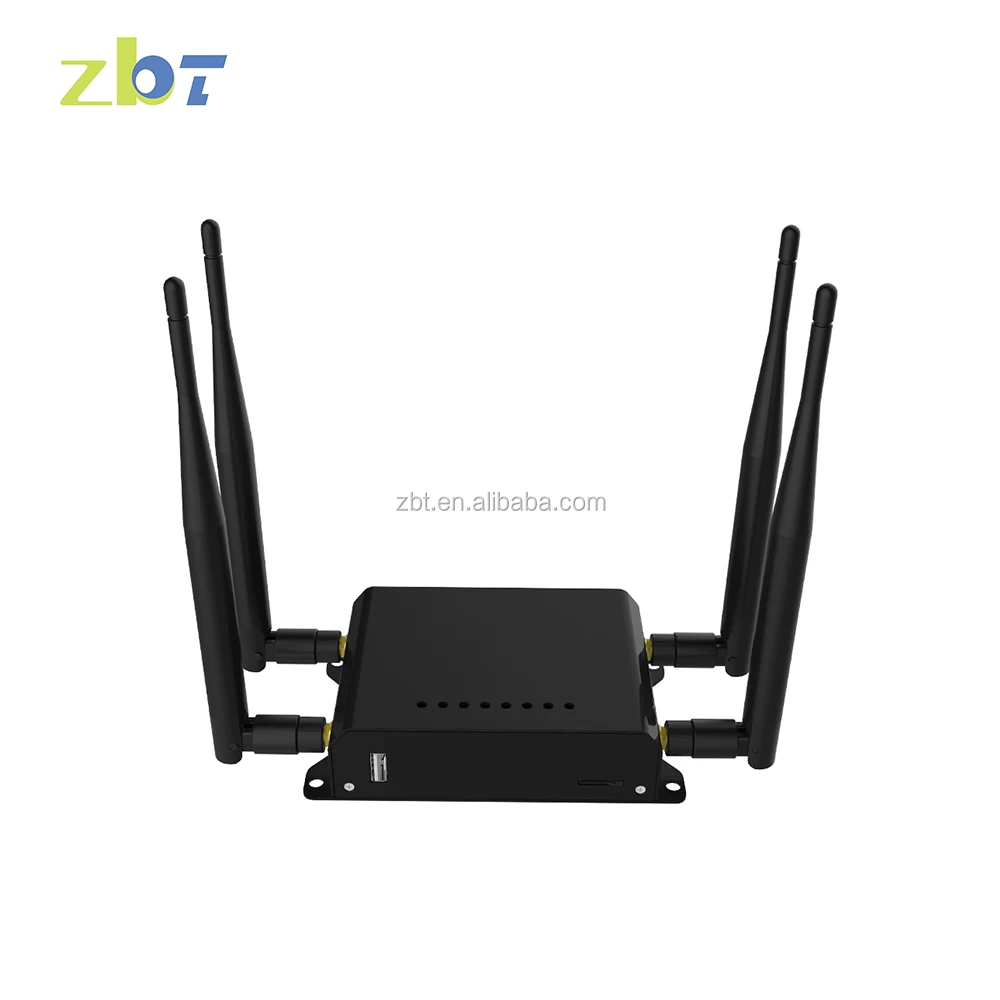

As for 3g 4g ZBT-WE826, here are also 4*5dbi external antennas.
For this product, we have another one new design for enclosue, and the design inspiration is from Transformers. If you want to learn more about it, please check the below link:
High Quality 300Mbps 3g 4g wireless router with sim card slot

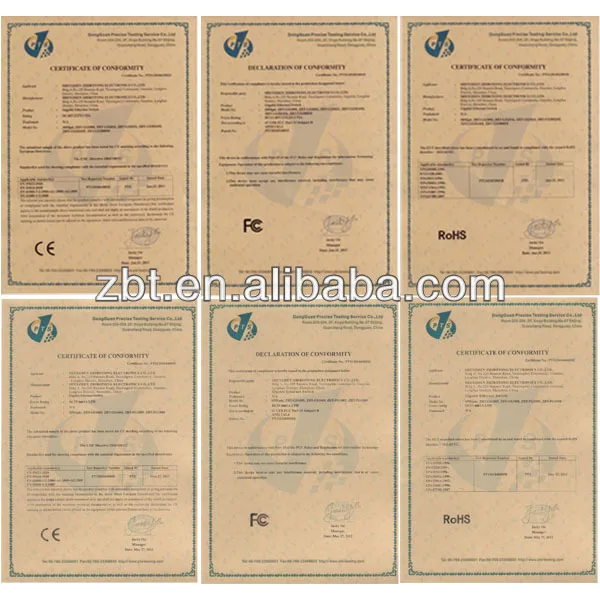

Certificate Information
We have various of different certificate for most of our products. If you want to know details, please contact me.
Company Information

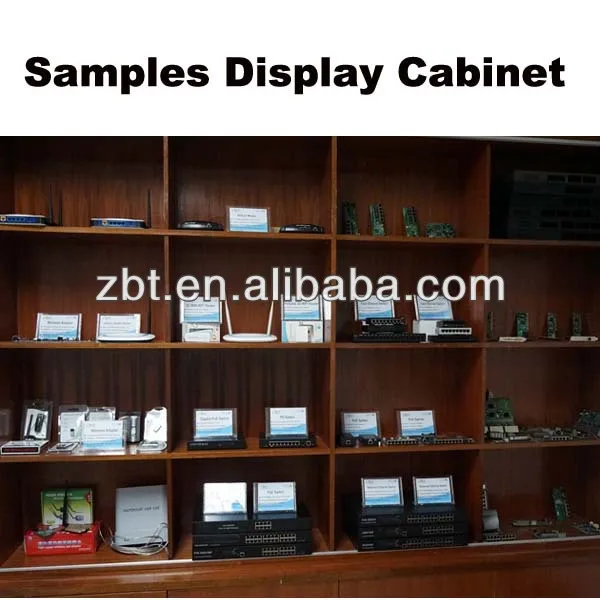

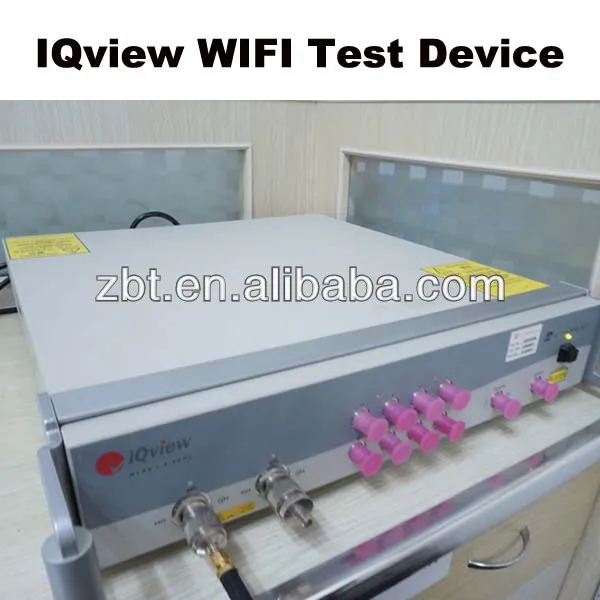

As a professional manufacturer, we have many devices help us to finish production. Most of our production devices are imported from Japan. The devices have regular maintenance and clean.

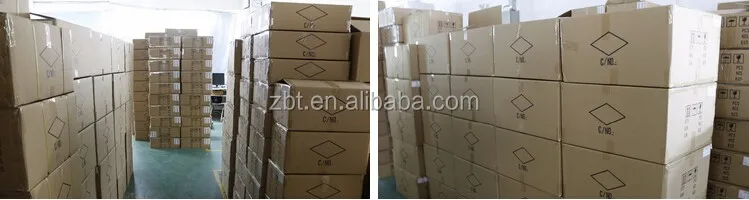

Packing and Shipment
1pcs/1 paper box
20pcs/1 carton
As samples or small order, we suggest to use Express, such as DHL, Fedex, TNT, Ups and so on.
As for bulk order, it is better to use oean shipment or air shipment.
FAQ
Do you provide customer LOGO?
Yes, we can provide customer LOGO on firmware and hardware.
Do you accept PCBA orders only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.
Do you provide firmware support?
Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
Do you....?
Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
