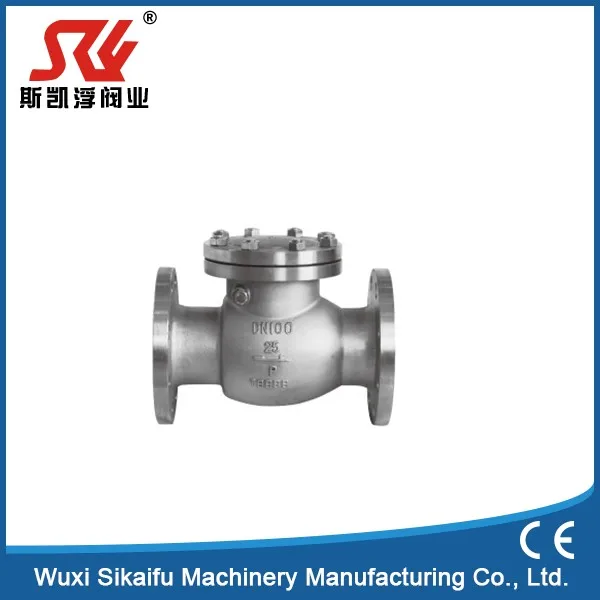

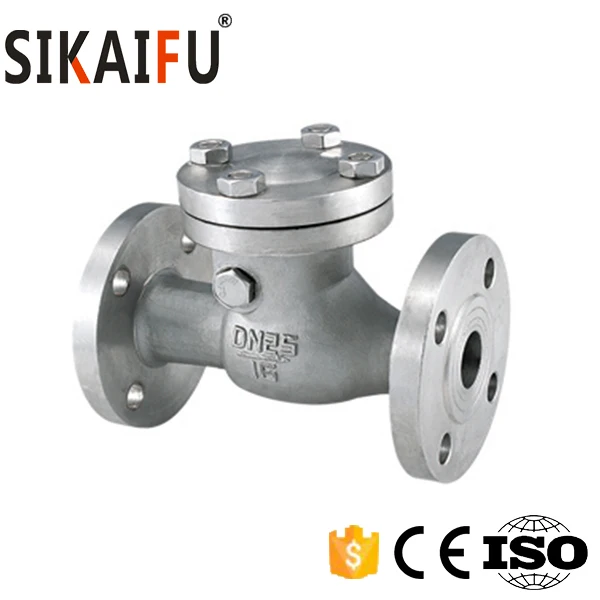

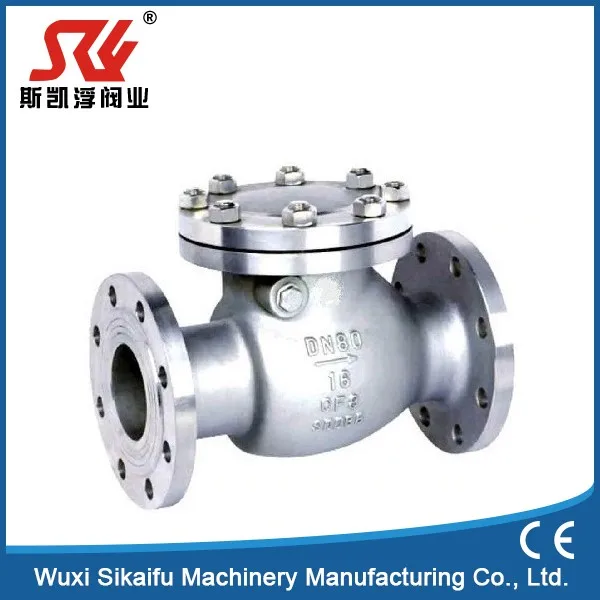

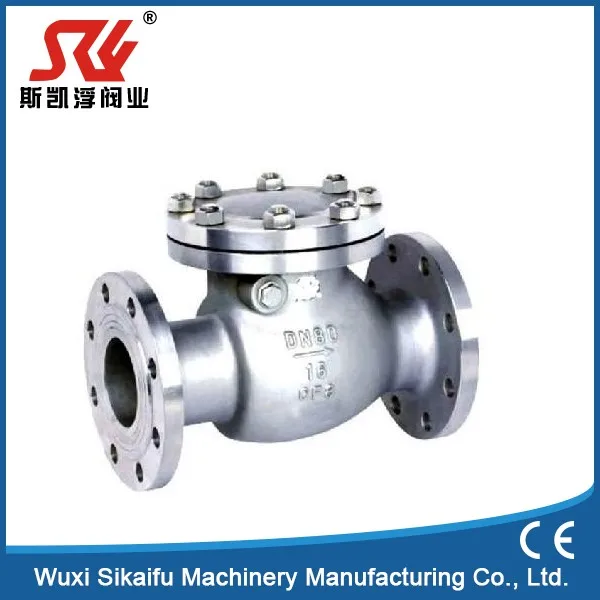

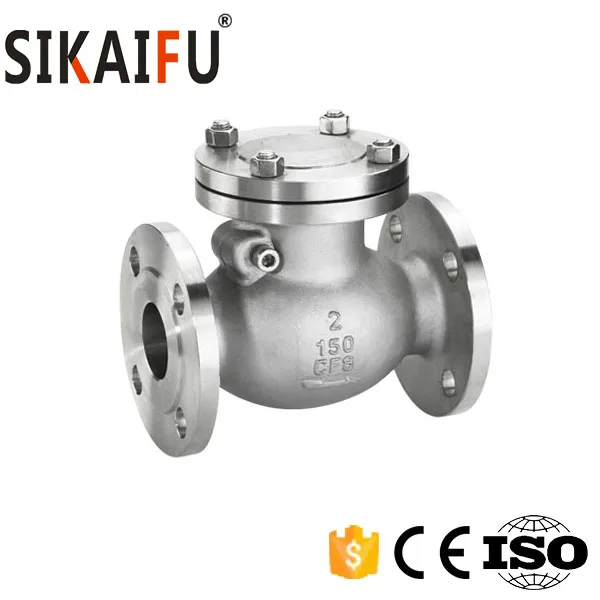

6 inch Stainless Steel Exceptional flanged back pressure retention swing check valve
- Category: >>>
- Supplier: Wuxi Sikaifu Machinery Manufacturing Co. Ltd.
Share on (60421963109):
Product Overview
Description
Product Description
- Swing check valve suitable for the pressure PN1.6 ~ 6.4MPa,
- the operating temperature of -29 ~ 550 ℃ of the oil, chemical, thermal power plants and other operating conditions of the pipeline.
- The applicable medium is: water, oil, steam and so on.
- Check Valves are fluid control valves used to restrict flow to only one direction

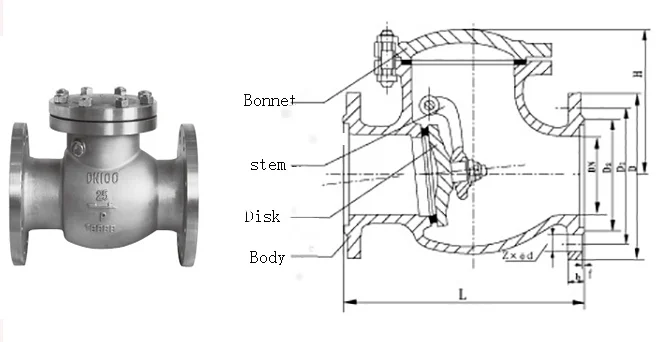

DN (mm) | Outline Dimensions | ||||||||
PN2.5Mpa | |||||||||
L1 | L | D | D1 | D2 | b | z-Φd | H1 | H | |
15 | 130 | - | 95 | 65 | 46 | 14 | 4-Φ14 | 77 | - |
20 | 150 | - | 105 | 75 | 56 | 16 | 4-Φ14 | 77 | - |
25 | 160 | 160 | 115 | 85 | 65 | 16 | 4-Φ14 | 80 | - |
32 | 180 | 180 | 135 | 100 | 76 | 18 | 4-Φ18 | 85 | - |
40 | 200 | 200 | 145 | 125 | 84 | 18 | 4-Φ18 | 95 | - |
50 | 230 | 230 | 160 | 145 | 99 | 20 | 4-Φ18 | 115 | 177 |
65 | 290 | 290 | 180 | 160 | 118 | 22 | 4-Φ18 | 140 | 192 |
80 | 310 | 310 | 195 | 190 | 132 | 24 | 4-Φ18 | 170 | 192 |
100 | 350 | 350 | 235 | 220 | 156 | 24 | 8-Φ22 | 200 | 217 |
125 | 400 | 400 | 270 | 250 | 184 | 26 | 8-Φ26 | 230 | 250 |
150 | 480 | 480 | 300 | 216 | 211 | 28 | 8-Φ26 | 255 | 270 |
200 | 600 | 550 | 360 | 310 | 274 | 30 | 12-Φ26 | 285 | 350 |
250 | 650 | 650 | 425 | 370 | 330 | 32 | 12-Φ30 | - | 410 |
300 | 750 | 750 | 485 | 430 | 389 | 34 | 16-Φ30 | - | 430 |
350 | - | - | 550 | 490 | 448 | 38 | 16-Φ33 | - | 450 |
400 | - | - | 610 | 550 | 503 | 40 | 16-Φ36 | - | 460 |
Parts Name | Material |
BONNET | CF8M |
GASKET | PTFE |
BODY | CF8M |
Disc | CF8M |
Nut | Stainless steel |
Washer | SS304 |
Gasket | SS304 |
Eyebolt Pin | SS316 |
Packaging & Shipping
Packaging & Shipping ⇓
What is our shipping?
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4.Delivery Time: 2-5 days for samples; 15-25 days for batch goods.
