Siemens PLC Control Stainless Steel Compact ETO Desk Tab Top Lab Ethylene Oxide Sterilizer for Hospital
- Category: >>>
- Supplier: HANGZHOU FANYUE INDUSTRIAL CO. LTD
Share on (60422043718):
Product Overview
Description
Siemens PLC Control Stainless Steel Compact ETO Desk Tab Top Lab Ethylene Oxide Sterilizer for Hospital
Product Description
Ethylene Oxide CE sterilizers designed according to ATEX, DIN EN 1422, EN ISO 11135, EN ISO 13485, customer's requirements and performance expected.
ETO Gsa Sterilizer, General specifications
Tech. Information | Specifications |
Machine Type | Ethylene Oxide sterilizers / Sterilization chambers |
Chamber Capacity | 0.1 to 100 m3 |
Chamber Type | Rectangular type, 1 to13 pallets (80x120cm) in single or double rows |
Doors Type | Double doors with pneumatic sliding systems (Manual and Automatic control) |
Chamber Material | Stainless steel construction in chamber (grade 304 or 316) |
Hot water Circulation | Double jacket with 4 circulations systems of hot water doors and chamber. Pumps and water tank integrated |
Steam Generator | Steam generator with tank |
Filtration | Water treatment by filtration system |
ETO Vaporizer | Ethylene oxide vaporizer |
ETO Circulation | ETO circulation system (ATEX circulation pump) |
Pneumatic Energie | Air compressor |
Electic Energie | 380 AC, 50Hz |
Software / Controls | |

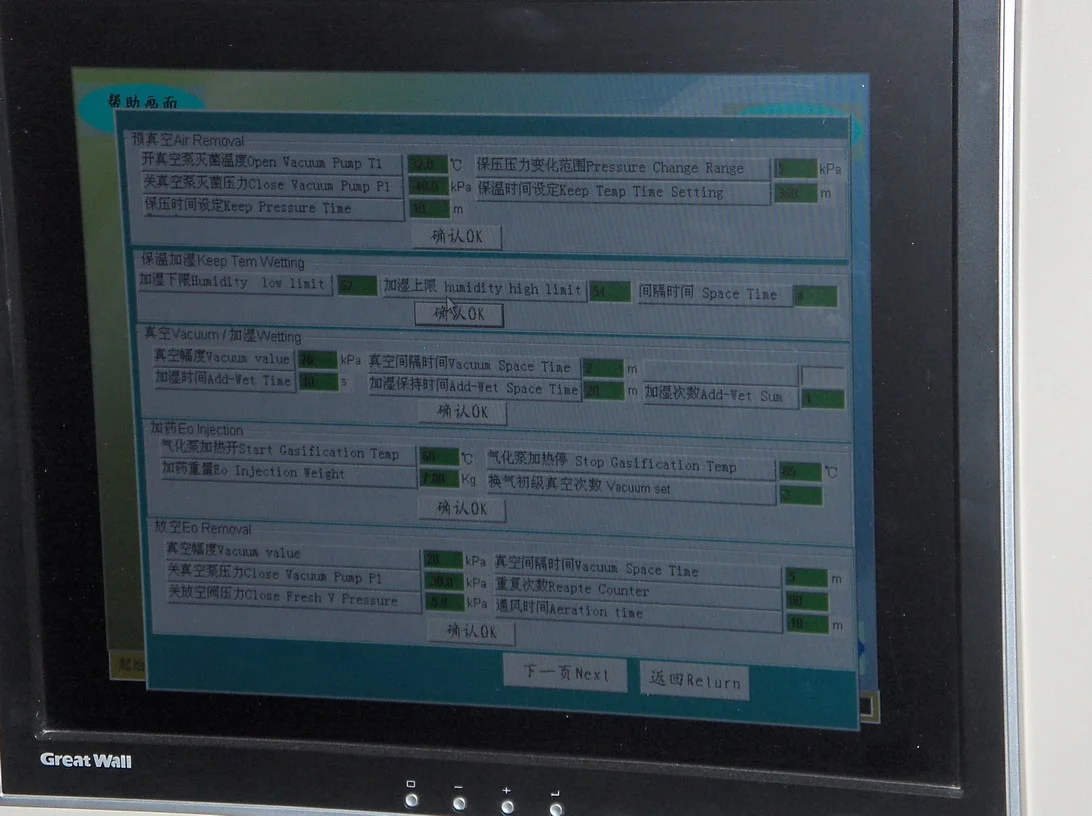

Software/ controls | Software : Automatic and manual control, data storage, graphic recorder (temperature, humidity, pressure, time, cycle steps…). Safety password administration and operator. |
PLC | SIEMENS or SCHNEIDER Programmable Logic Controller |
Sensors | Pressure, temperature, humidity sensors |
Computer | Computer with printer and desk |
Options (systems) | |
Sensors | EX/ATEX sensors |
Nitrogen generator | Nitrogen generator |
Maintenance Service | Extra Services after sales |
Software | Software qualified ISO13485 standard |
We could supply the following size ethylene oxide sterilizer :
Classic sizes (manufacturing sizes according to customer’s requirements)
Inner volume | Euro pallets qty | Inner size (mm) LxWxH | Outside Size (mm) LxWxH |
10m3 | 5 | 4500×1350×1700 | 4950×2950×2300 |
15 m3 | 8 | 6750×1350×1700 | 7200×2950×2300 |
20 m3 | 10 | 9000×1350×1700 | 9450×29500×2300 |
25 m3 | 13 | 10000×1450×1700 | 10450×3050×230 |
Packaging & Shipping
Our Services
General process:
- Feasibility studies, drawings, technical agreement,
- Process development and manufacturing,
- Export and installation,
- Trainings: using & global maintenance,
- Validation according to ISO 11135-1 and others norms related,
Trainings on :
- Sterilization QA documentations (procedures, controls sheets…),
- Routine Sterility controls
Each sterilization process is validated according to international standard.
Validations
The validation of sterilization unit always includes test preparation and protocols relating to the ISO11135-1, in order to perform the studies installation qualification, operational and performance. Reports are delivered to customer before shipment and/or on site after installation.
Pack validations:
- Installation Qualification
- Operational Qualification
- Performance Qualification
Calibration
Equipment is qualified by testing and calibration performed using standard methods.
Services after sales
We provide services in routine and support you on preventive, curative maintenance of your EO sterilizers.
Contact us for details and quotations.
Company Information
Hangzhou Shensheng Sterilization Equipment CO.,LTD (belong to Hangzhou Fanyue Trade Co., Ltd.) is the
most professional manufacturer of Ethylene Oxide Sterilizer in China. Our main sterilizers including Industrial
use ones and Hospital & Laboratory use ones.They are in conformity with Domestic industry standard and CE
standard,ISO11135 and EN1422.The sterilizers have been widely used for sterilizing medical device, healthcare
facilities,plastics and disposables products ,traditional Chinese medicinal materials,culture goods and currency
etc. We also manufacture matched pre-heating system, aeration room and professional ethylene oxide residual
gas treatment system.
Our technical team is working in sterilization fields more than 20years.They have rich experience in Research & Development, Produce, Sales&Service, Test&Verify the sterilize result. We are the real drafter of China
"Ethylene Oxide Sterilization" standard YY0503-2005 and GB18297-2000.
The equipments have been exported to Turkey,Egypt,South Africa, Algeria,Malaysia,Indonesia,Vietnam,Philippines, Bangladesh,Brazil,Argentina,Mexico,Ecuador,Peru,etc more than 40 countries.
